Description

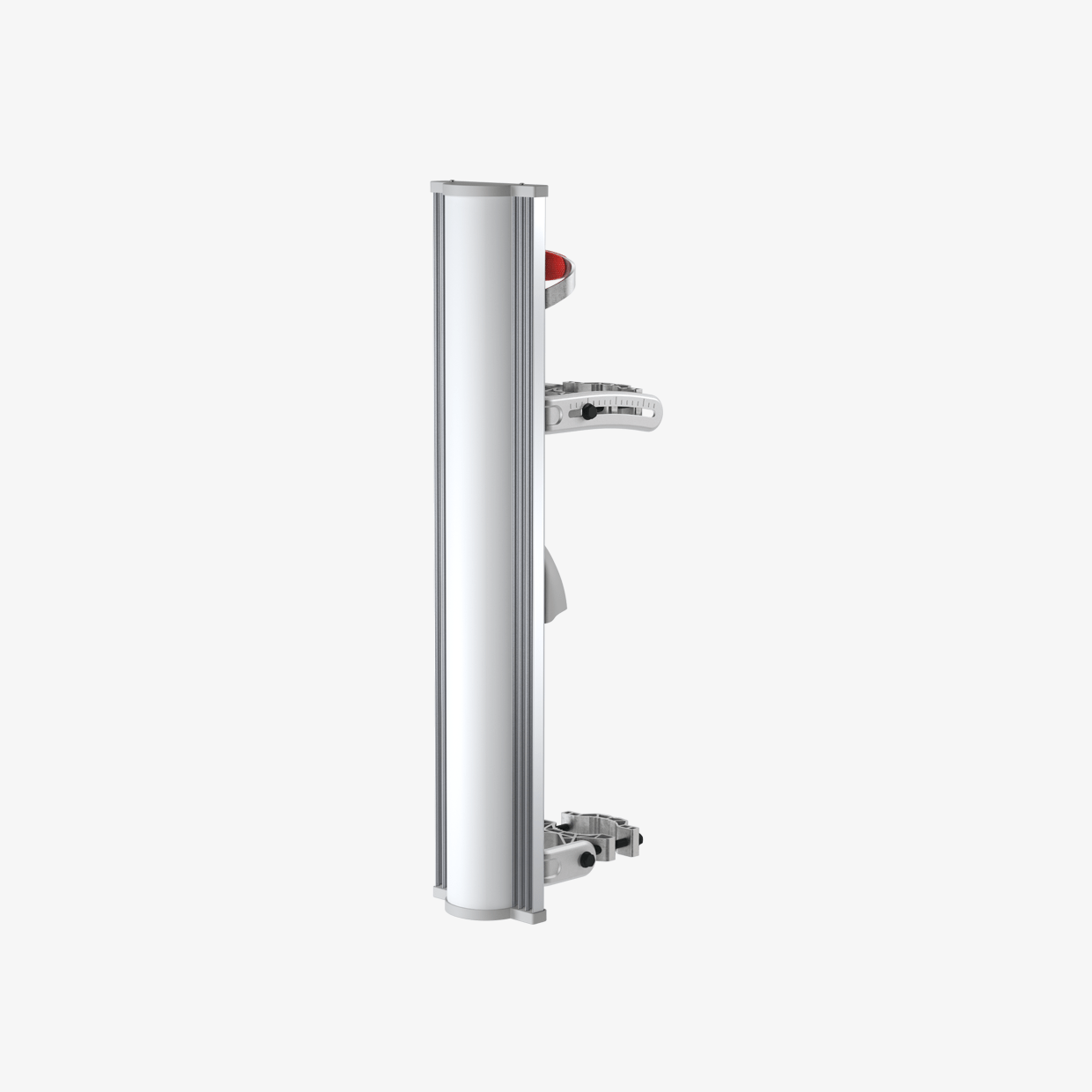

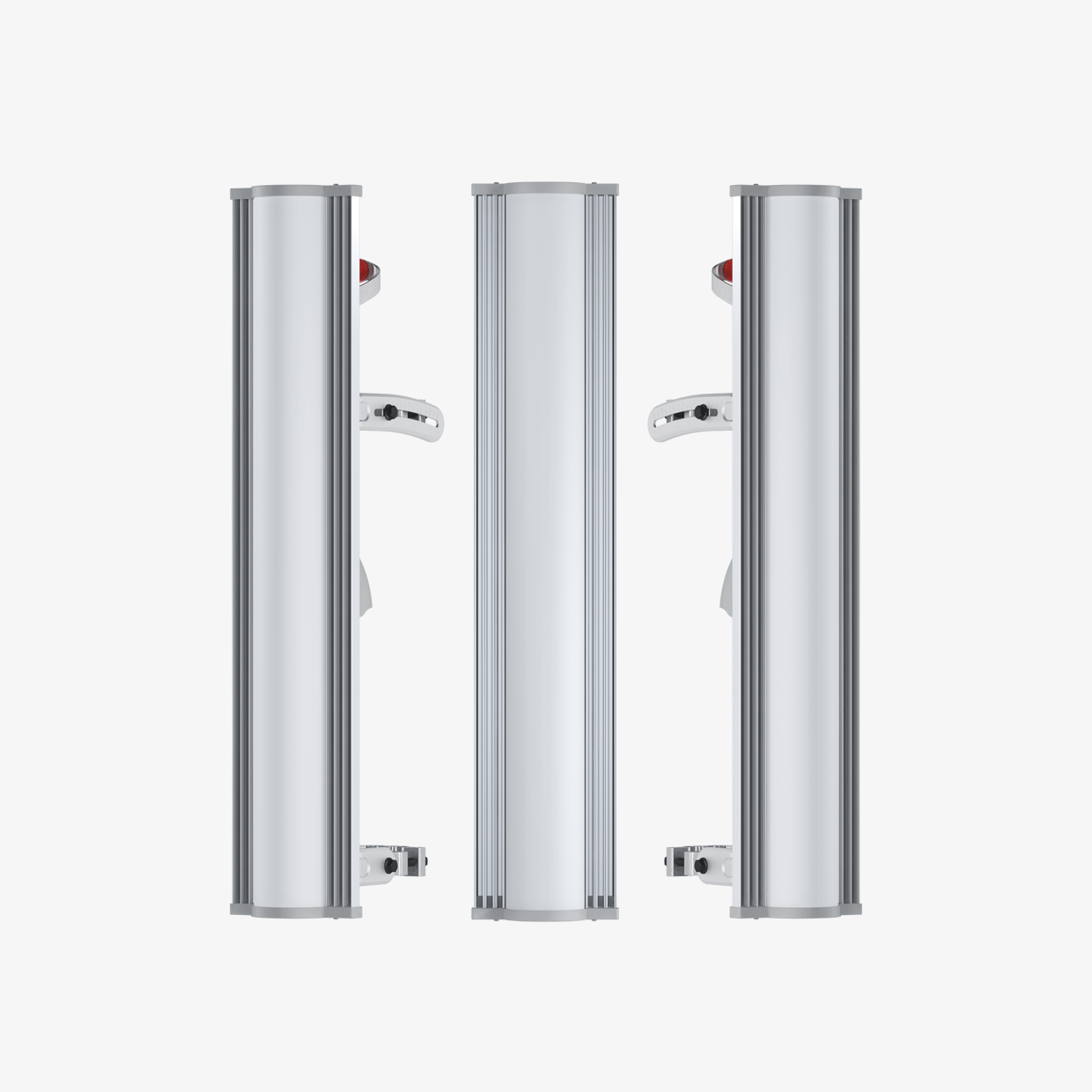

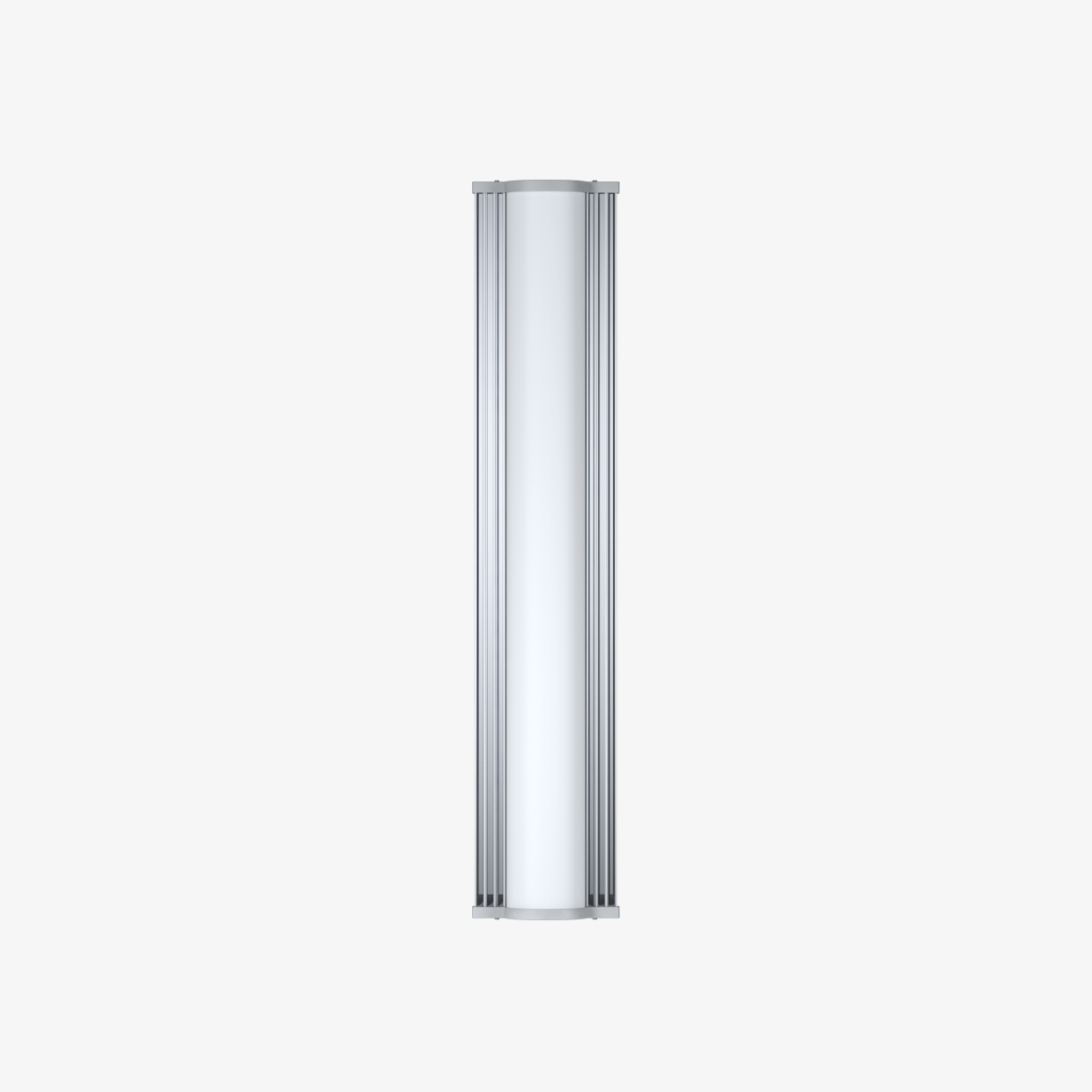

The RF elements Array Sector AS-5-20 is engineered to provide precise coverage and outstanding performance for wireless broadband networks. Operating in the 5 150–5 850 MHz range, this sector antenna delivers a 20 dBi gain with optimized dual-linear polarization (H + V), ensuring high data throughput and improved link stability. Its innovative beam shaping technology reduces noise and interference, making it ideal for dense deployments where spectrum efficiency is crucial.

The antenna features an 80° horizontal beamwidth and 71° vertical beamwidth at -3 dB, with excellent front-to-back ratio and high cross-polarization isolation. This design guarantees cleaner signals and better frequency reuse in crowded environments. Rugged construction with UV-resistant ABS, aluminium alloy, and stainless steel ensures reliability, while the IP55 weather rating protects against harsh outdoor conditions.

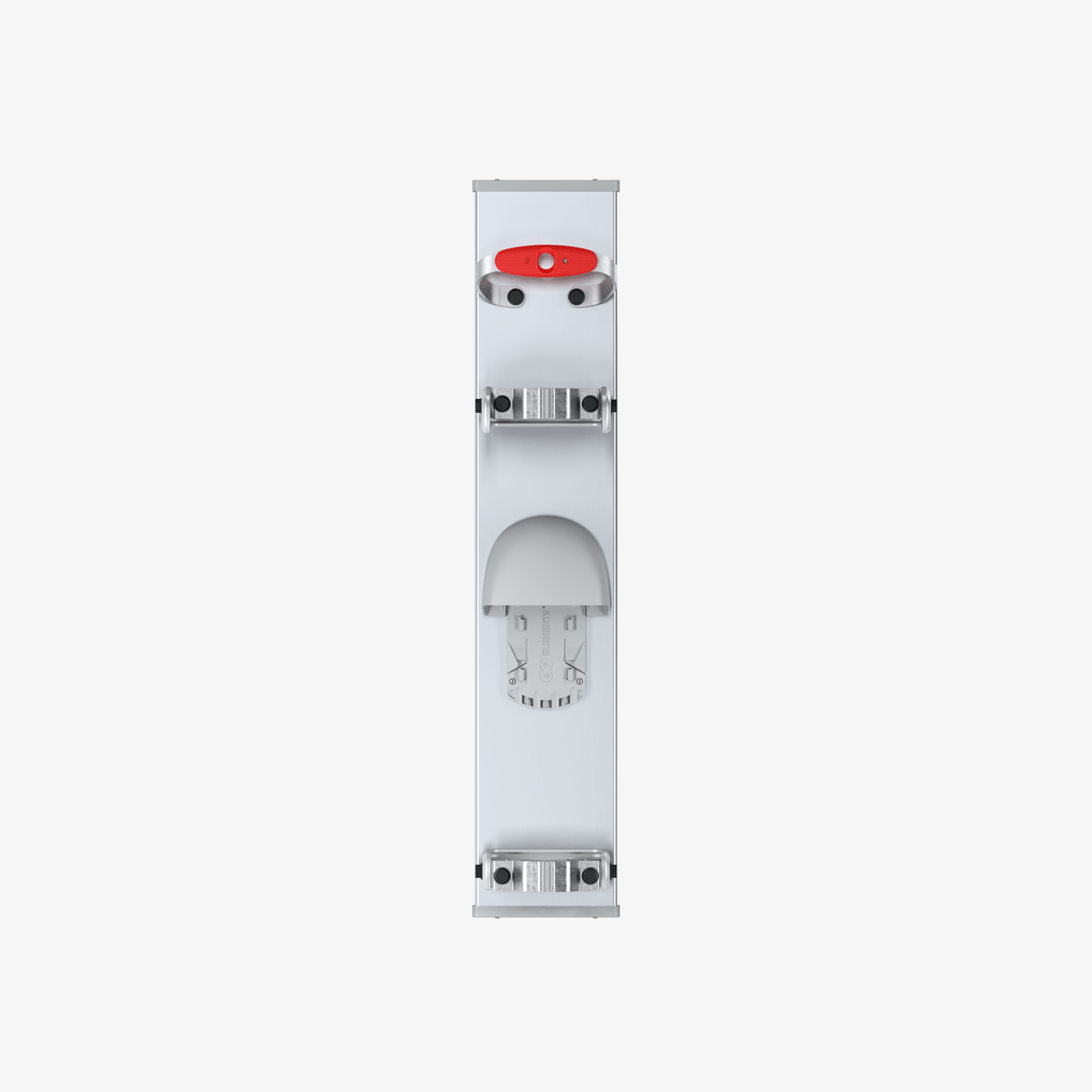

The AS-5-20 mounts securely on poles from 40 to 80 mm in diameter and withstands winds up to 160 km/h. At only 3.5 kg, it is lightweight yet durable, making installation straightforward. With its superior radiation control and beam efficiency of 69%, the Array Sector AS-5-20 is a reliable solution for WISPs, rural broadband providers, and enterprise outdoor networks.

Application

Wireless broadband, WISP deployments, Rural connectivity, PTP links

Key Features

✔️ 20 dBi high-gain 5 GHz sector antenna for long-range coverage
✔️ Dual-polarization (H + V) for increased throughput and reliability
✔️ Wide 80° azimuth beam for sectorized deployments
✔️ Beam efficiency of 69% for better spectrum use
✔️ Rugged outdoor design with IP55 protection
✔️ Lightweight 3.5 kg build with pole-mounting support
✔️ Wind survival up to 160 km/h ensures long-term durability
✔️ Superior front-to-back ratio and cross-polarization isolation
