Description

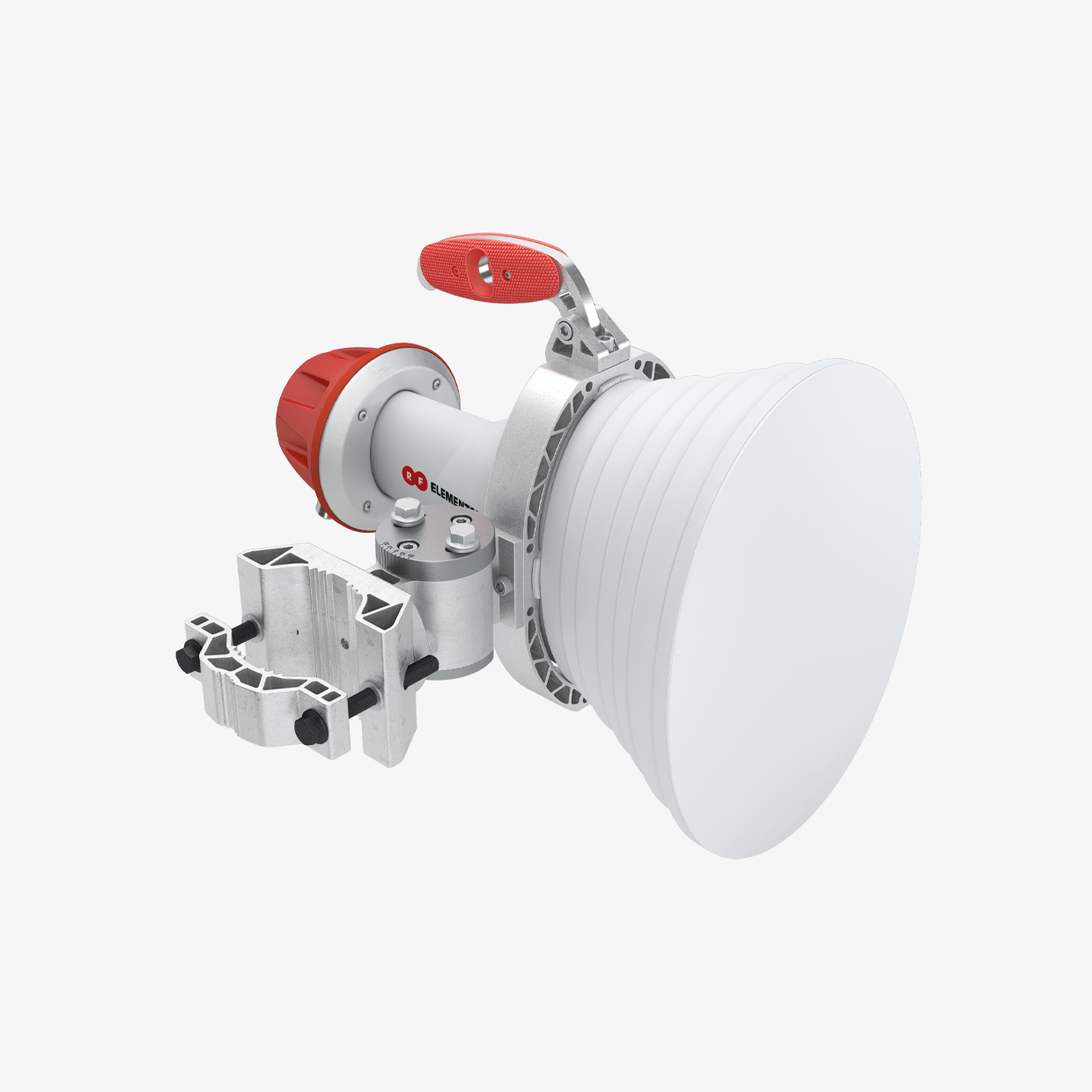

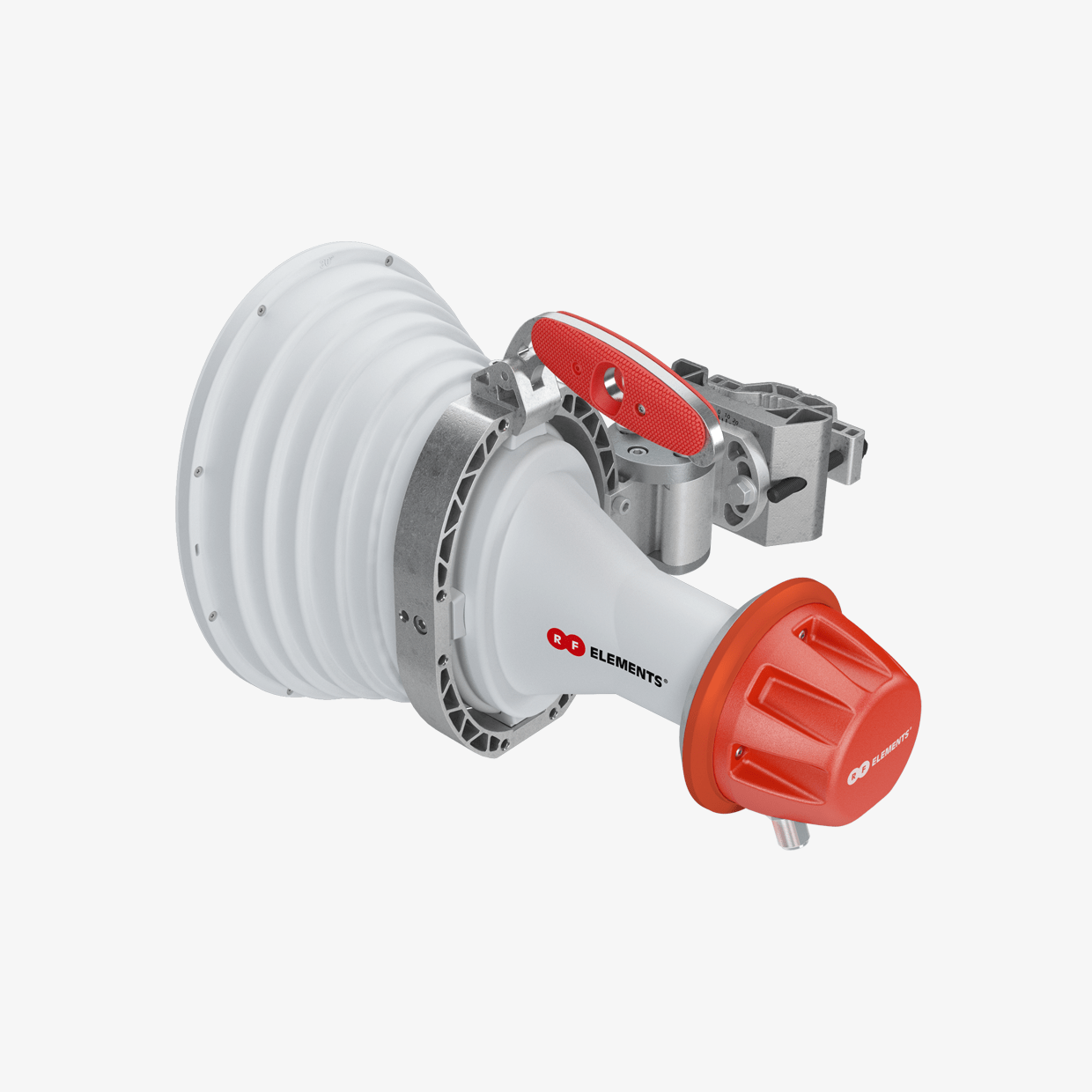

The RF Elements AH30-CC Asymmetrical Horn Carrier Class 30° antenna is a high-performance solution for 5 GHz point-to-multipoint wireless networks, ideal for ISPs, enterprise deployments, and dense urban environments. Its asymmetrical elliptical beam (30° azimuth × 20° elevation) allows precise coverage while minimizing interference from nearby access points, making it perfect for high-density clusters and co-located installations.
Featuring 2 N-Female bulkhead connectors, IP55 weatherproof rating, and a mechanical adjustment range of ±20° in both azimuth and elevation, the AH30-CC ensures both performance flexibility and durability. The antenna operates across 5180–6000 MHz and delivers 20.5 dBi gain, providing robust link quality over extended distances.
Constructed from UV-resistant ABS plastic, polycarbonate, HDPE, aluminum, and stainless steel, it is engineered to withstand harsh outdoor conditions with wind survival up to 160 km/h and operating temperatures from -35°C to +60°C. The innovative mounting system supports pole diameters of 40–80 mm and allows installation with a single tool, saving time for network professionals.
This makes the AH30-CC a reliable choice for dense wireless environments requiring precise, efficient coverage.
Application
Point-to-Multipoint, High-Density Deployments, Urban & Suburban Wireless Networks, ISP Base Stations
Key Features
✅ 5 GHz frequency range (5180–6000 MHz)
✅ 30° azimuth × 20° elevation beamwidth for precise coverage
✅ 20.5 dBi gain for robust link quality
✅ 2x N-Female bulkhead connectors
✅ IP55-rated weatherproof housing
✅ Mechanical adjustment ±20° azimuth/elevation
✅ Wind survival up to 160 km/h, temperature -35°C to +60°C
✅ Easy pole-mount system (40–80 mm) with single-tool installation
