Description

The Reyee RG-RAP52-OD is a compact and durable outdoor access point that extends high-performance Wi-Fi 5 connectivity into challenging environments. Supporting 802.11ac Wave 2, it delivers a combined throughput of 1,267 Mbps (400 Mbps on 2.4 GHz + 867 Mbps on 5 GHz) with 2×2 MU-MIMO for more efficient multi-user performance.

Built for outdoor use, the unit comes with IP65-rated housing for water and dust protection, detachable omni-directional antennas for flexible coverage, and 4 kV lightning / 15 kV ESD protection to withstand harsh conditions. Operating reliably in temperatures from –30 °C to +70 °C (short term), it is suitable for year-round deployments.

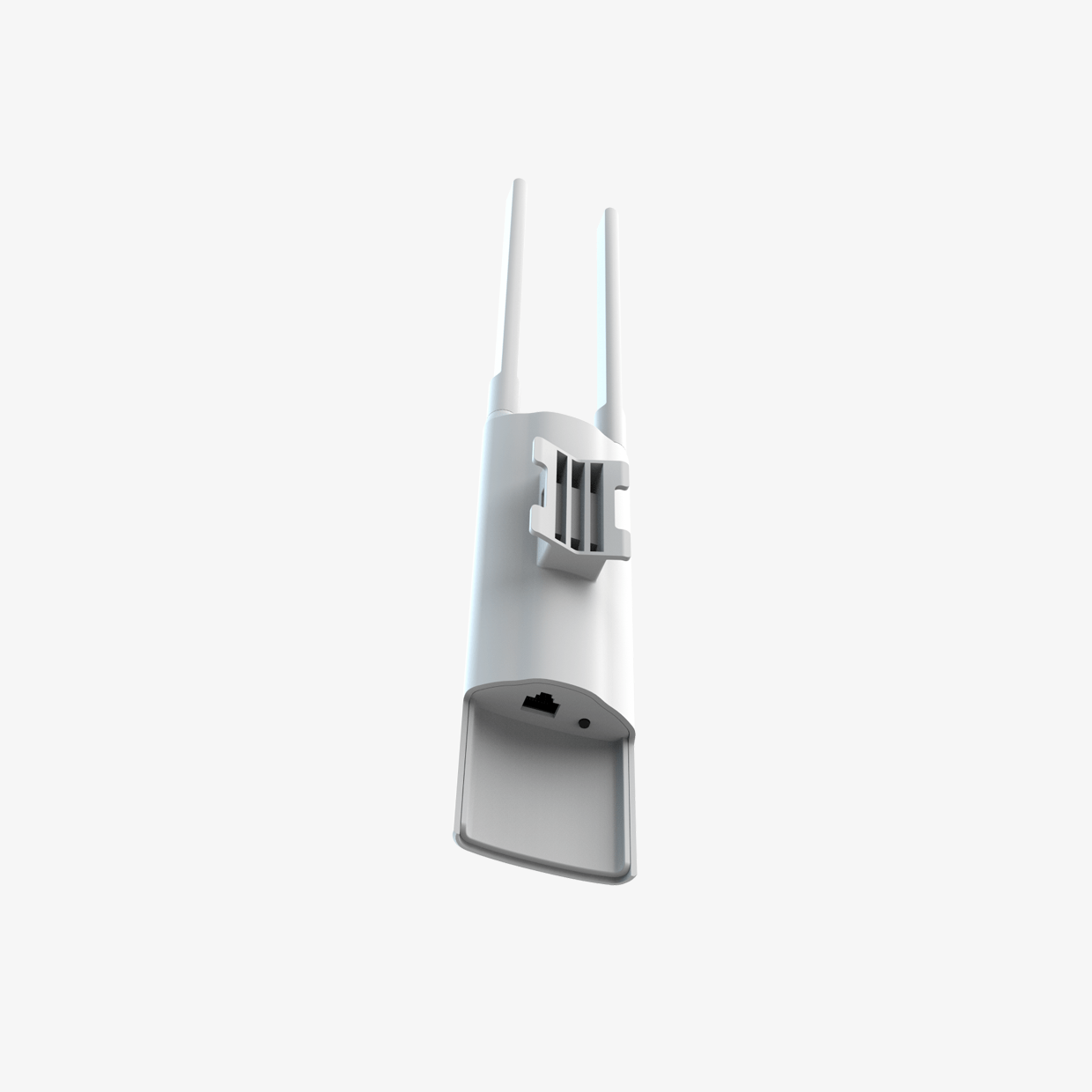

The AP includes a single Gigabit Ethernet port with IEEE 802.3af PoE and 24 V passive PoE power options for flexible installation. With a slim design (220 × 50 × 35.7 mm, ≤0.4 kg), it can be easily mounted on poles or walls.

Integrated Reyee Mesh enables controller-free wireless expansion, while AI roaming, VLAN support, and cloud management via Ruijie/Reyee Cloud simplify network control. Supporting up to 110 clients, the RG-RAP52-OD is a cost-effective, reliable solution for outdoor Wi-Fi in plazas, schools, retail, and residential areas.

Application

Outdoor hotspots, Villas & residential courtyards, Retail environments, Schools & campuses, Public Wi-Fi zones

Key Features

✔️ Wi-Fi 5 (802.11ac Wave 2) with up to 1,267 Mbps dual-band throughput
✔️ 2×2 MU-MIMO with detachable omni-directional antennas
✔️ IP65-rated enclosure with lightning and ESD protection
✔️ 1 × Gigabit Ethernet port with PoE 802.3af & 24 V passive PoE
✔️ Supports ~110 simultaneous clients
✔️ Reyee Mesh, AI roaming, VLAN & captive portal support

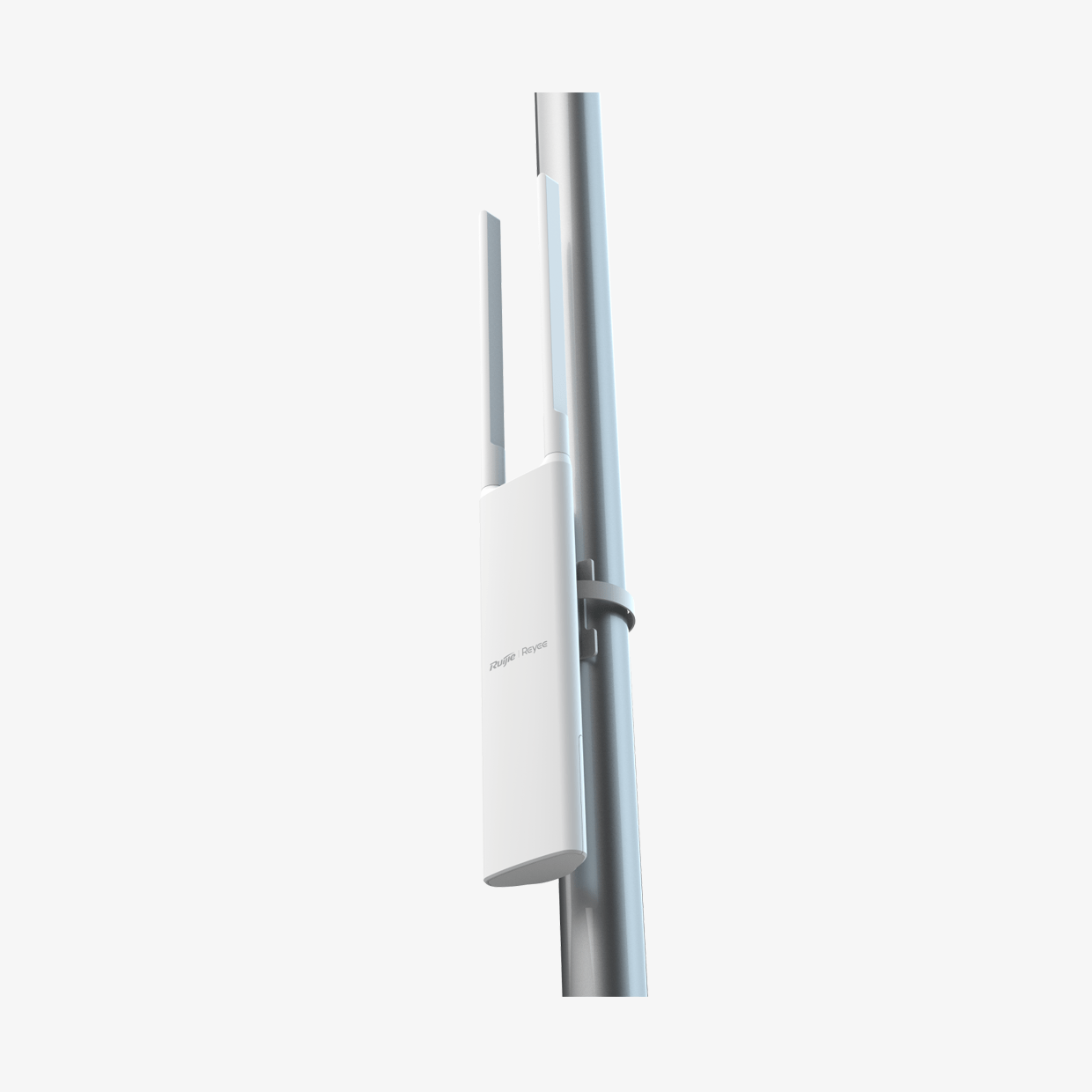

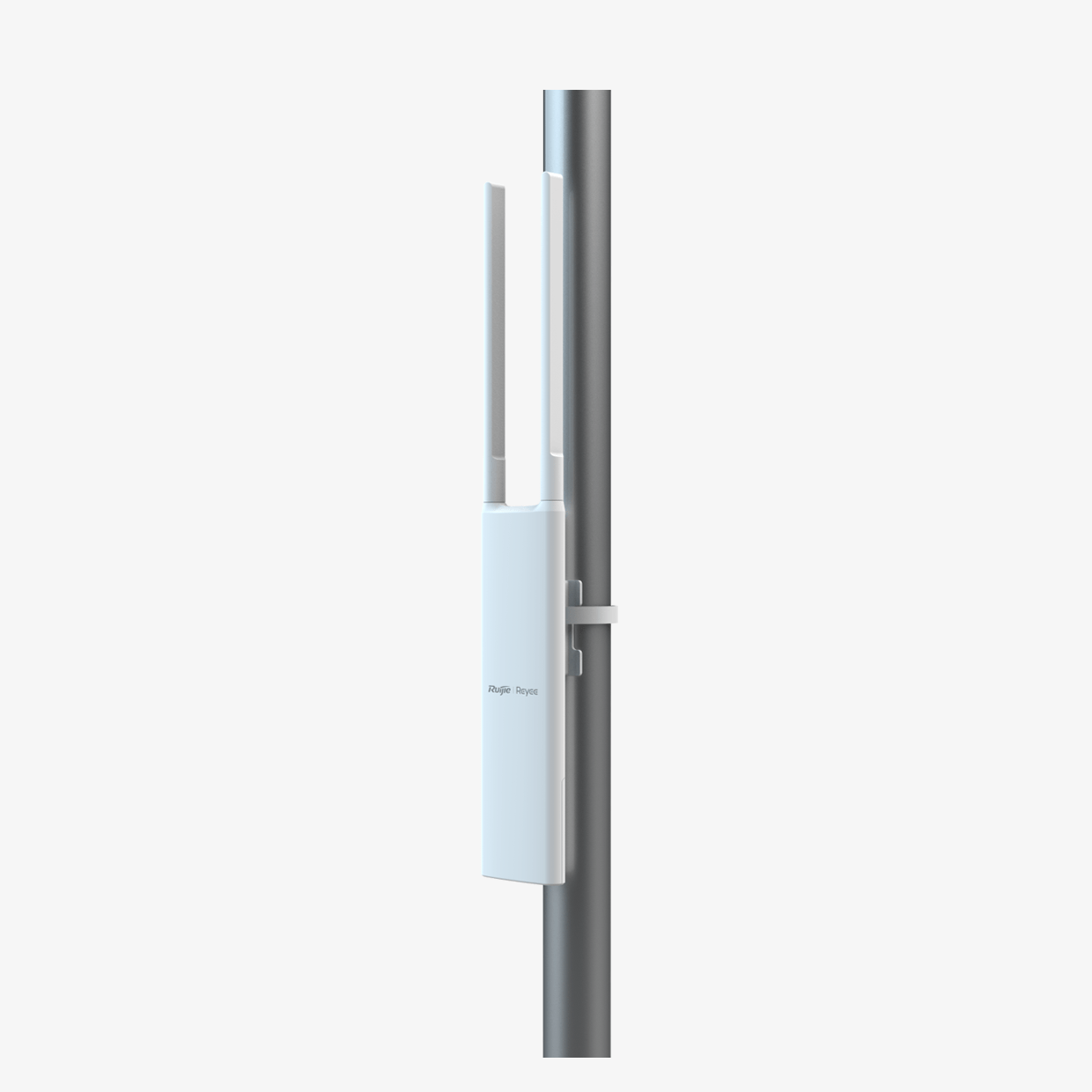

✔️ Slim, lightweight design (≤0.4 kg) for pole/wall mounting
✔️ 3-year warranty for reliable investment
