Description

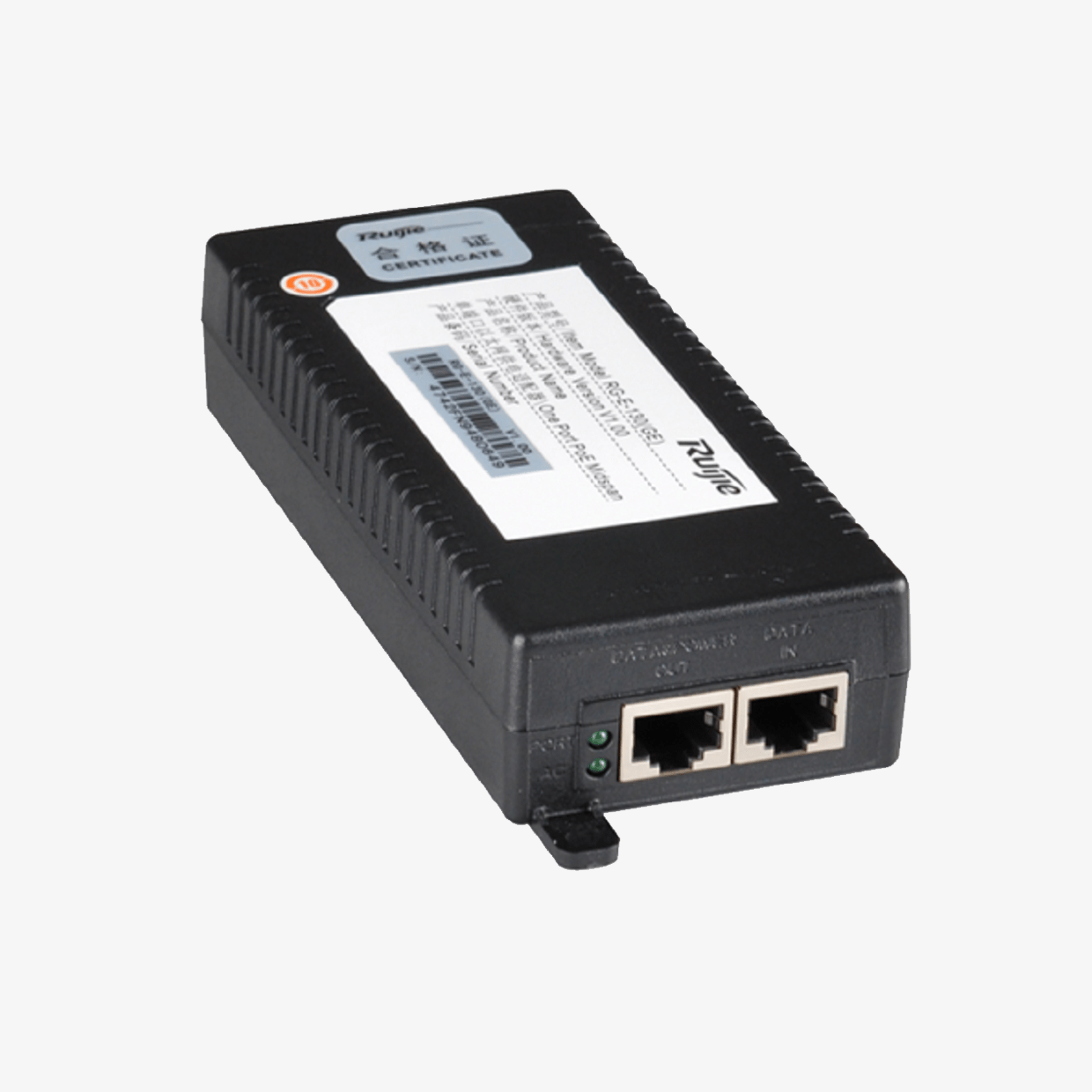

The Reyee RG-E-130(GE) is a high-performance Gigabit PoE+ injector tailored for powering remote network devices in surveillance, wireless AP, and bridge deployments. The unit accepts standard 100-240 VAC input and outputs 53 V DC at up to 30 W, making it suitable for most 802.3at/af devices.

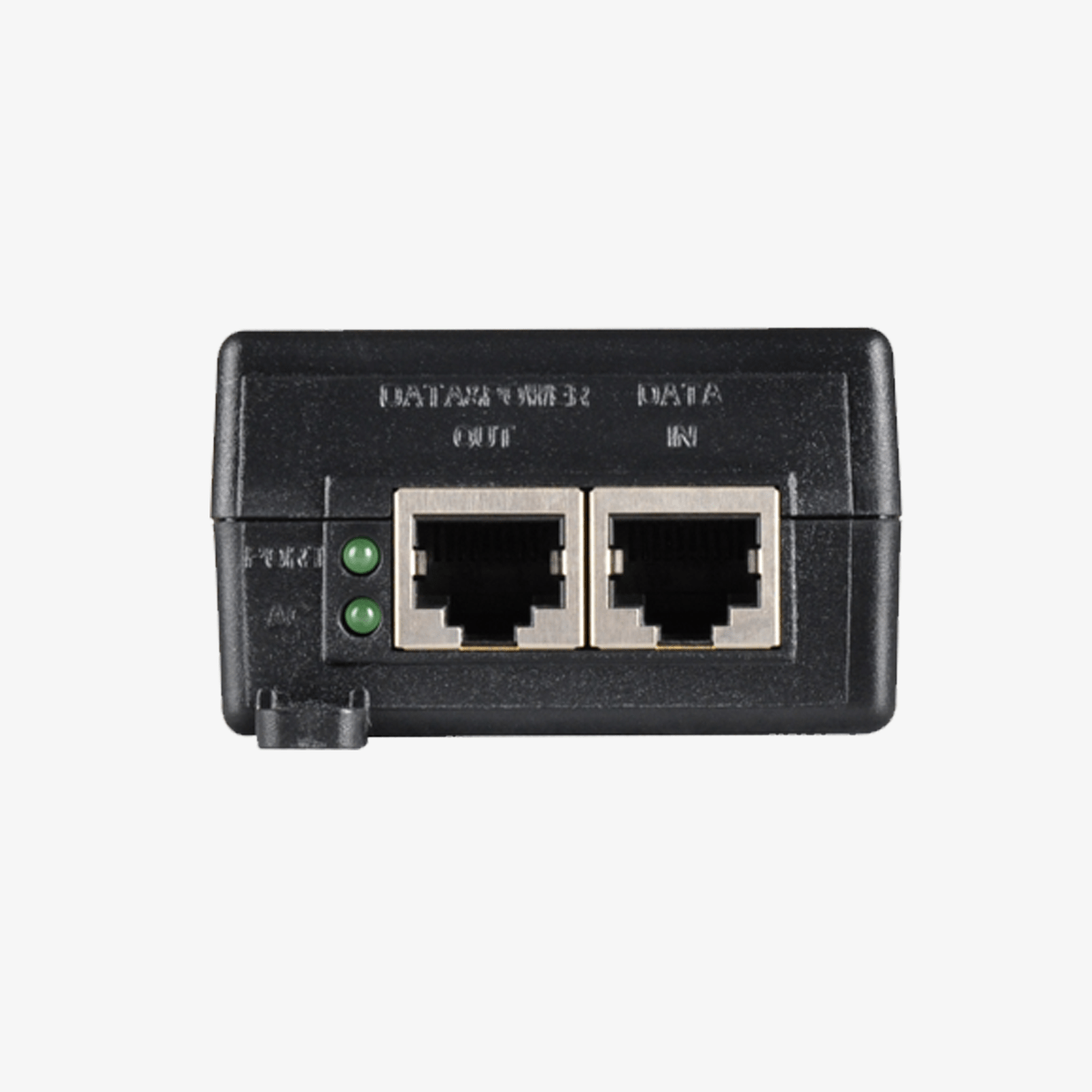

It includes one data input RJ-45 port and one PoE+ output RJ-45 port (both supporting Gigabit Ethernet), with auto MDI/MDIX for cable flexibility and short-circuit / overcurrent protection. The injector intelligently senses whether the connected device is a valid PoE client (PD), protecting non-PoE devices from damage.

With dimensions of 87.9 × 51.3 × 166 mm and weight ~350 g, it is compact for installation in junction boxes or near network equipment. Operating safely from 0 to 45 °C, it conforms to industry standards (IEEE 802.3at, backwards compatible to 802.3af) and complies with CE / RoHS regulations.

This PoE injector is ideal for extending the reach of network devices such as access points, bridges, IP cameras, or switches up to 100 meters over Ethernet cable, without needing separate power supplies at each node.

Application

Powering wireless access points, bridges, IP surveillance cameras, network switches, or other PoE-enabled devices in installations where power is not available at the device location.

Key Features

✔️ Single-port Gigabit PoE+ injector (10/100/1000 Mbps)
✔️ 30 W output at 53 V DC (supports IEEE 802.3at / 802.3af)
✔️ Auto detection of powered devices (PD) to avoid damage to non-PoE gear
✔️ Auto MDI/MDIX on RJ-45 ports for flexible cabling
✔️ Compact form factor: 87.9 × 51.3 × 166 mm, ~350 g
✔️ Operating temp 0 °C to 45 °C
✔️ Short-circuit / overcurrent protection
✔️ CE / RoHS compliance
