Description

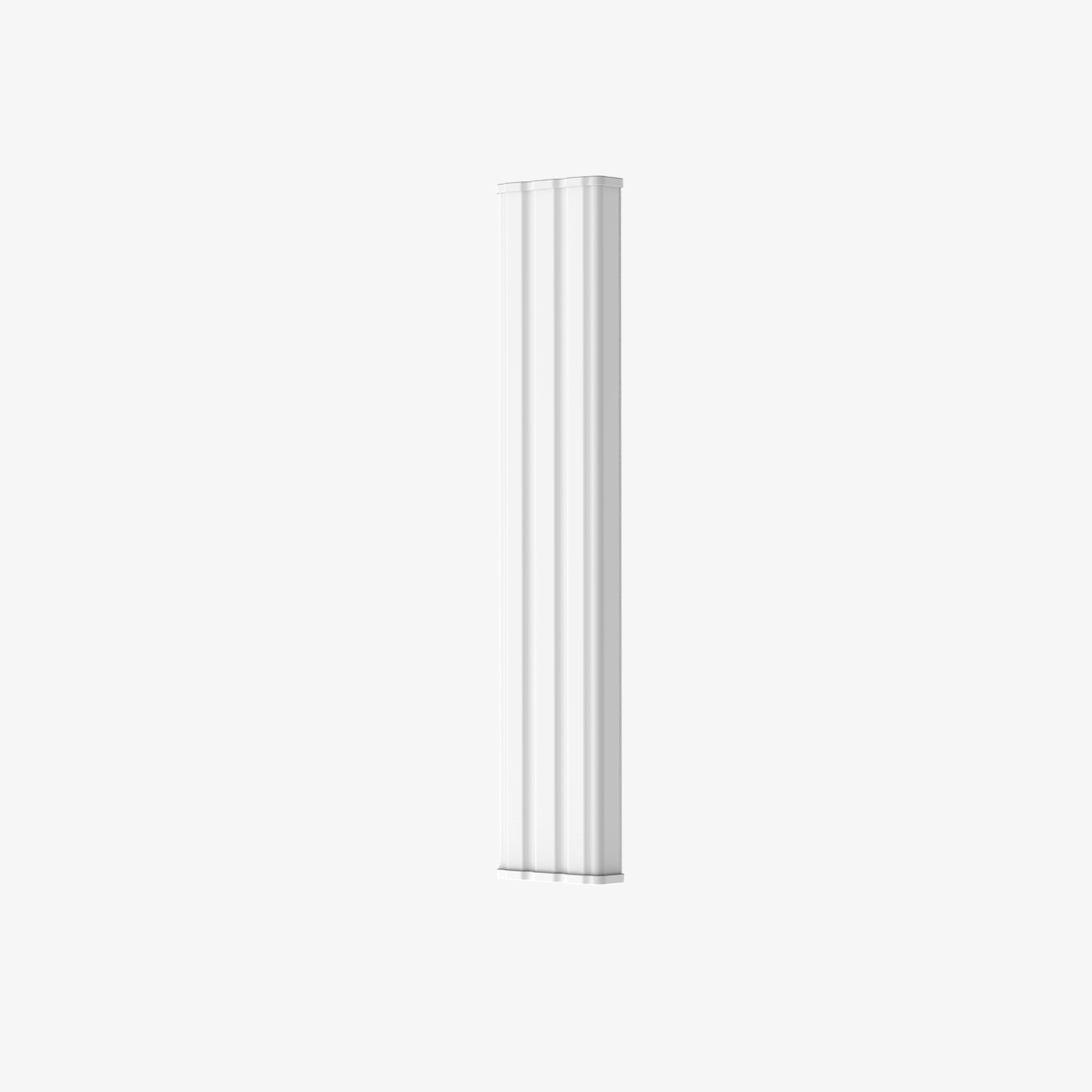

The Reyee RG-ANT20S-90 is an outdoor sector antenna engineered for seamless integration with the RG-AirMetro wireless bridge family. Operating in the 5 GHz band (5.15 – 5.85 GHz), this antenna provides 20 dBi gain with a 90° horizontal beamwidth and ~7° vertical beam tilt, enabling efficient sector coverage over client CPEs.

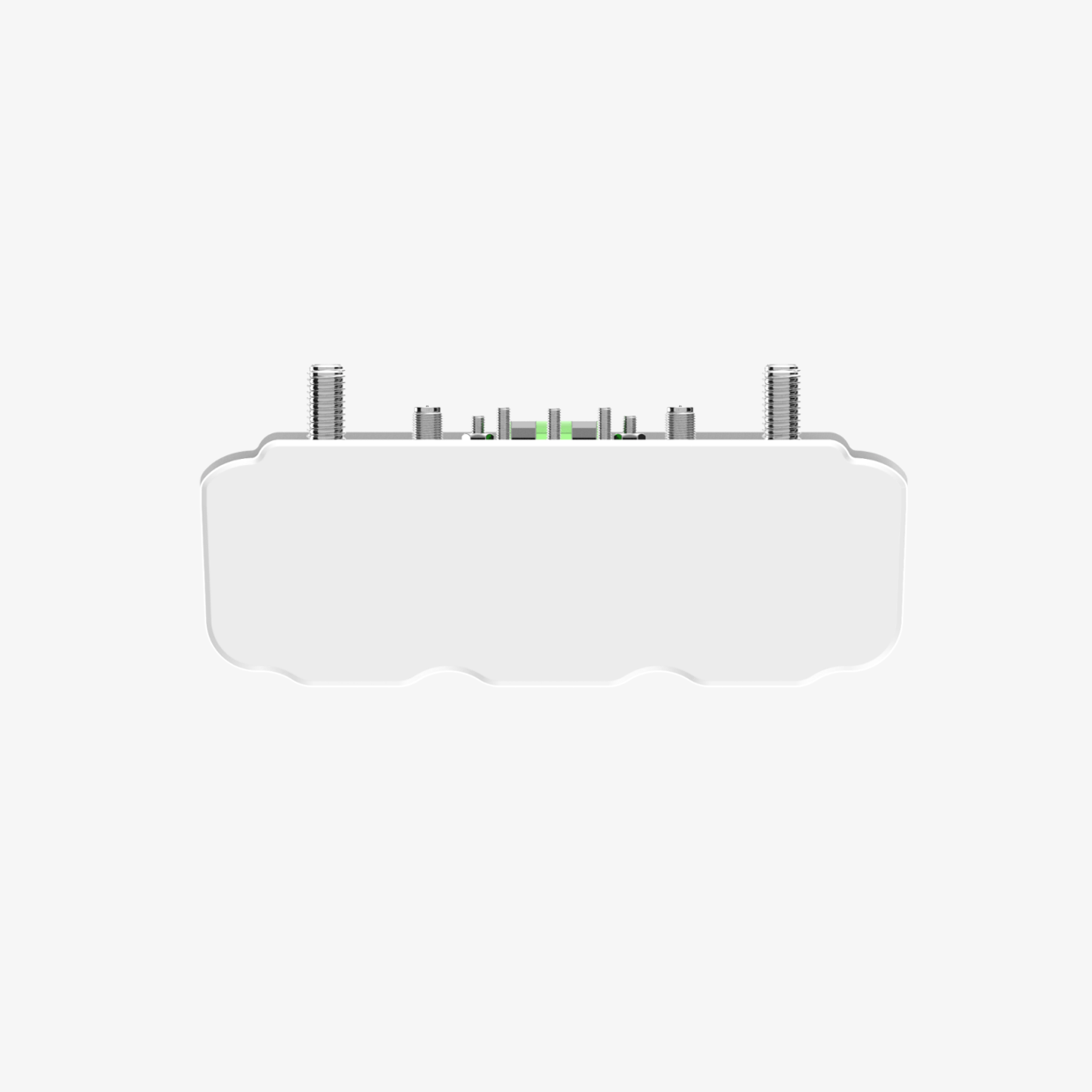

As a passive antenna, it requires no power—simply connect it via its two SMA (or RP-SMA) connectors to the RF ports of an AirMetro base station (e.g. RG-AirMetro550G-B). Its design supports long-distance links, with maximum effective range up to 10 km (line-of-sight) under ideal conditions.
Built for outdoor installation, the RG-ANT20S-90 features a rugged IP55 housing that resists dust and water spray, and it is fully compatible with standard sector mounting kits. At dimensions of 694 × 140 × 49 mm and weight around 3.82 kg, it is suitable for mast or pole installation as part of a sectorized wireless backhaul or multi-point network.
This sector antenna is ideal for network operators deploying multiple subscriber nodes—offering robust coverage over a wide horizontal angle. It is best paired with AirMetro base station radios and supports PTMP / sector-based topologies.
Application
Sector coverage for wireless backhaul / base station, PtMP networks, WISP deployments, surveillance link aggregation, campus or rural networks requiring wide-angle coverage.
Key Features
✔️ 20 dBi gain in the 5 GHz band
✔️ 90° horizontal sector coverage, ~7° vertical beamwidth
✔️ Passive (no power required)
✔️ 10 km line-of-sight link support
✔️ Durable IP55 outdoor housing
✔️ Dual SMA (or RP-SMA) connectors
✔️ Compact size: 694 × 140 × 49 mm
✔️ Compatible with RG-AirMetro base stations and bridges
