MikroTik SXTsq 5 ax

The MikroTik SXTsq 5 ax is a compact outdoor Wi‑Fi 6 CPE in the trusted square SXTsq form factor, offering exceptional value. Powered by a dual-core ARM IPQ‑5010 CPU (800 MHz) and 256 MB RAM, it delivers 1200 Mbps on 5 GHz (802.11a/n/ac/ax) with a built-in 16 dBi directional antenna for long-range, high-interference environments—field-tested up to 3 km, with line‑of‑sight links over 10 km. The IP55-rated enclosure supports hose-clamp mounting in three orientations, ideal for masts, poles, or rails. With RouterOS v7 (License Level 4), it can function as either a CPE or an AP. Passive PoE‑IN (12–28 V) powers the unit at up to 6 W max.

Request a Quote
6 people are viewing this product

Description

Meet the SXTsq 5 ax — MikroTik’s first Wi-Fi 6 outdoor CPE, combining the best wireless technology with the trusted, compact SXTsq form factor.

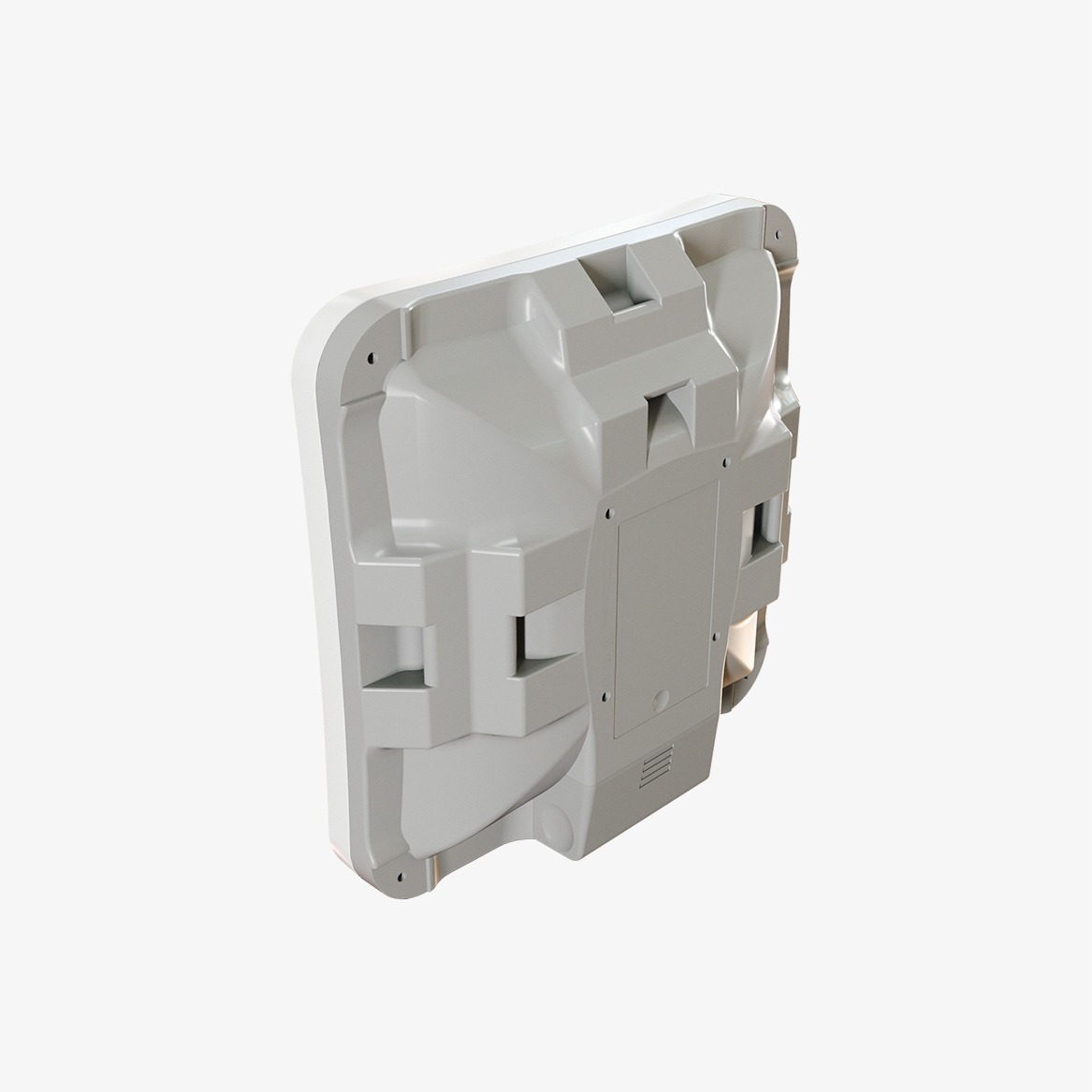

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space- sensitive deployments.

Specifications

Model SXTsq 5 ax
Product code SXTsq-5axD
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100,000 hours at 25°C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE input voltage 12–28 V
Wireless Specifications (5 GHz)
Max data rate 1200 Mbit/s
Number of chains 2
Standards 802.11a/n/ac/ax
Antenna gain 16 dBi
Chip model QCN-6102
Wi-Fi generation Wi-Fi 6
Ethernet
10/100/1000 Ethernet ports 1
Other
CPU temperature monitor Yes
Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS
IP rating 55
Wireless Performance – 5 GHz
6MBit/s Tx: 24 dBm / Rx: -96 dBm
54MBit/s Tx: 21 dBm / Rx: -80 dBm
MCS0 Tx: 24 dBm / Rx: -96 dBm
MCS7 Tx: 20 dBm / Rx: -75 dBm
MCS9 Tx: 18 dBm / Rx: -70 dBm
MCS11 Tx: 16 dBm / Rx: -67 dBm
