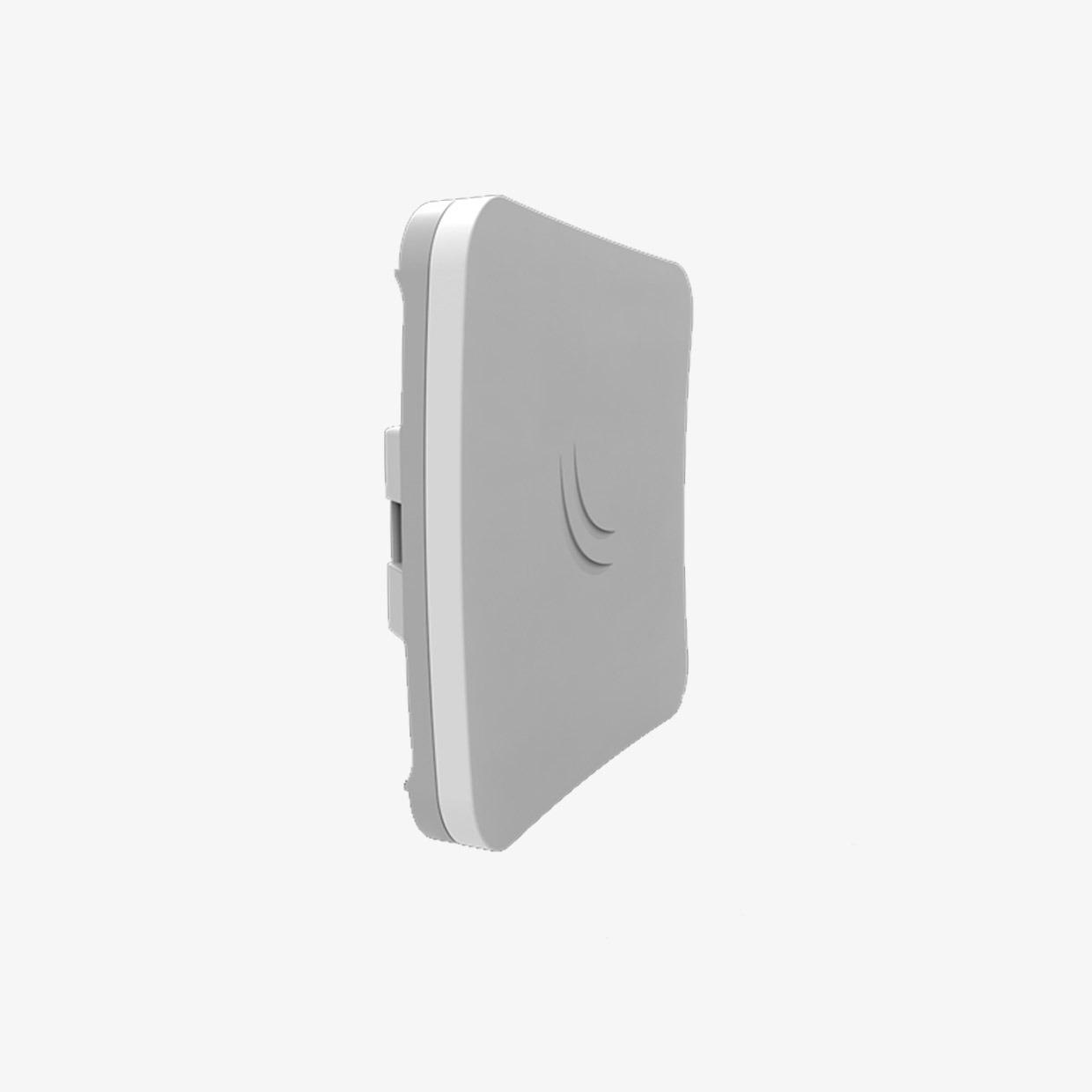

MikroTik SXTsq 5 ac

The MikroTik SXTsq 5 ac is a compact and lightweight outdoor 5GHz 802.11ac wireless device with an integrated 16 dBi antenna, designed for point-to-point links or as a CPE unit. It features a Gigabit Ethernet port to fully utilize the speeds that the 802.11ac protocol provides. The device is weatherproof and easy to mount, making it ideal for various outdoor deployments.

6 people are viewing this product

Description

The MikroTik SXTsq 5 ac is an outdoor wireless device that offers high-performance 5GHz connectivity in a compact form factor. Equipped with a 16 dBi integrated antenna, it provides a reliable and efficient solution for point-to-point links or as a Customer Premises Equipment (CPE) unit. The device supports the 802.11ac wireless standard, ensuring high-speed data transmission over the air. With a Gigabit Ethernet port, it can fully utilize the speeds offered by the 802.11ac protocol. Its weatherproof design ensures durability in various environmental conditions, and its compact size allows for easy mounting on poles or walls. This makes the SXTsq 5 ac a versatile choice for outdoor wireless networking needs.


Application

Ideal for point-to-point wireless links, Customer Premises Equipment (CPE) deployments, and outdoor wireless networking solutions.


Key Features

  • ✅ 16 dBi Integrated Antenna for enhanced signal strength

  • ✅ 5GHz 802.11ac Wireless Standard for high-speed data transmission

  • ✅ Gigabit Ethernet Port to fully utilize 802.11ac speeds

  • ✅ Compact and Lightweight Design for easy installation

  • ✅ Weatherproof Enclosure suitable for outdoor environments

  • ✅ Easy Mounting Options for poles or walls

  • ✅ Supports RouterOS for advanced configuration and management

Specifications

Specification Details
Brand / Model MikroTik SXTsq 5 ac (RBSXTsqG-5acD)
Architecture ARM 32bit
CPU / Chipset IPQ-4018
CPU Core Count 4
CPU Nominal Frequency 488–896 MHz (auto)
RouterOS License 3
Operating System RouterOS
RAM 256 MB
Storage Size / Type 16 MB / FLASH
MTBF Approximately 100,000 hours at 25°C
Tested Ambient Temperature -40°C to 70°C
IPsec Hardware Acceleration Yes
Powering – DC Inputs 1 (PoE-IN)
PoE In Passive PoE, 10–28 V
Max Power Consumption 7 W
Cooling Type Passive
Dimensions (W x D x H) 129 x 129 x 34 mm
Wireless 5 GHz Max Data Rate 867 Mbit/s
Wireless 5 GHz Number of Chains 2
Wireless 5 GHz Standards 802.11a/n/ac
Antenna Gain (5 GHz) 16 dBi
Wireless 5 GHz Chip Model IPQ-4018
Wireless 5 GHz Generation Wi-Fi 5
Ethernet Ports 1 x 10/100/1000
Transmit Power (dBm) 6Mbit/s: 25, 54Mbit/s: 21, MCS0: 25, MCS7: 20, MCS9: 18
Receive Sensitivity (dBm) 6Mbit/s: -96, 54Mbit/s: -80, MCS0: -96, MCS7: -75, MCS9: -70
Environmental Rating IP54
Certifications & Approvals CE, FCC, IC, EAC, ROHS
