Description
The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V – 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.
It is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

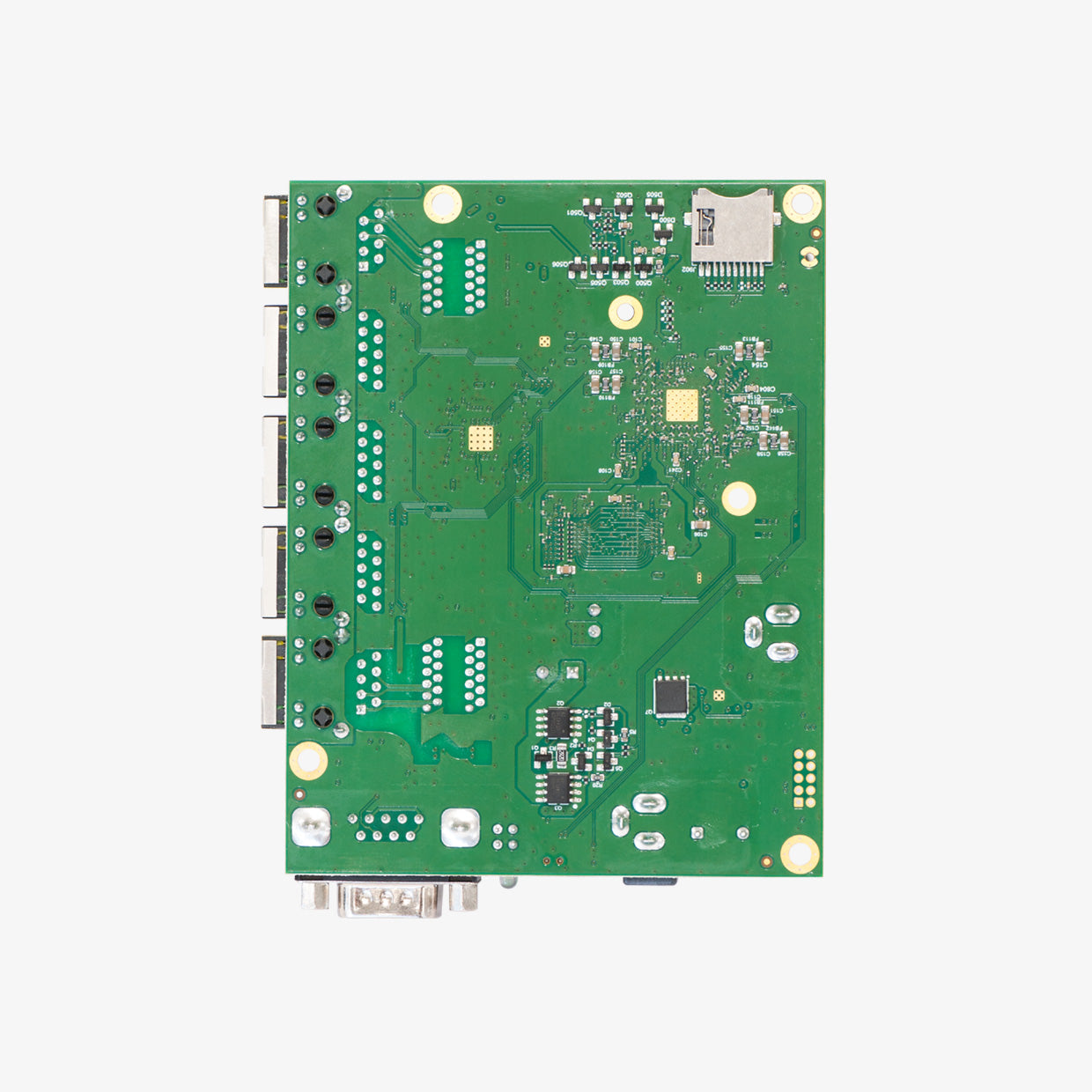

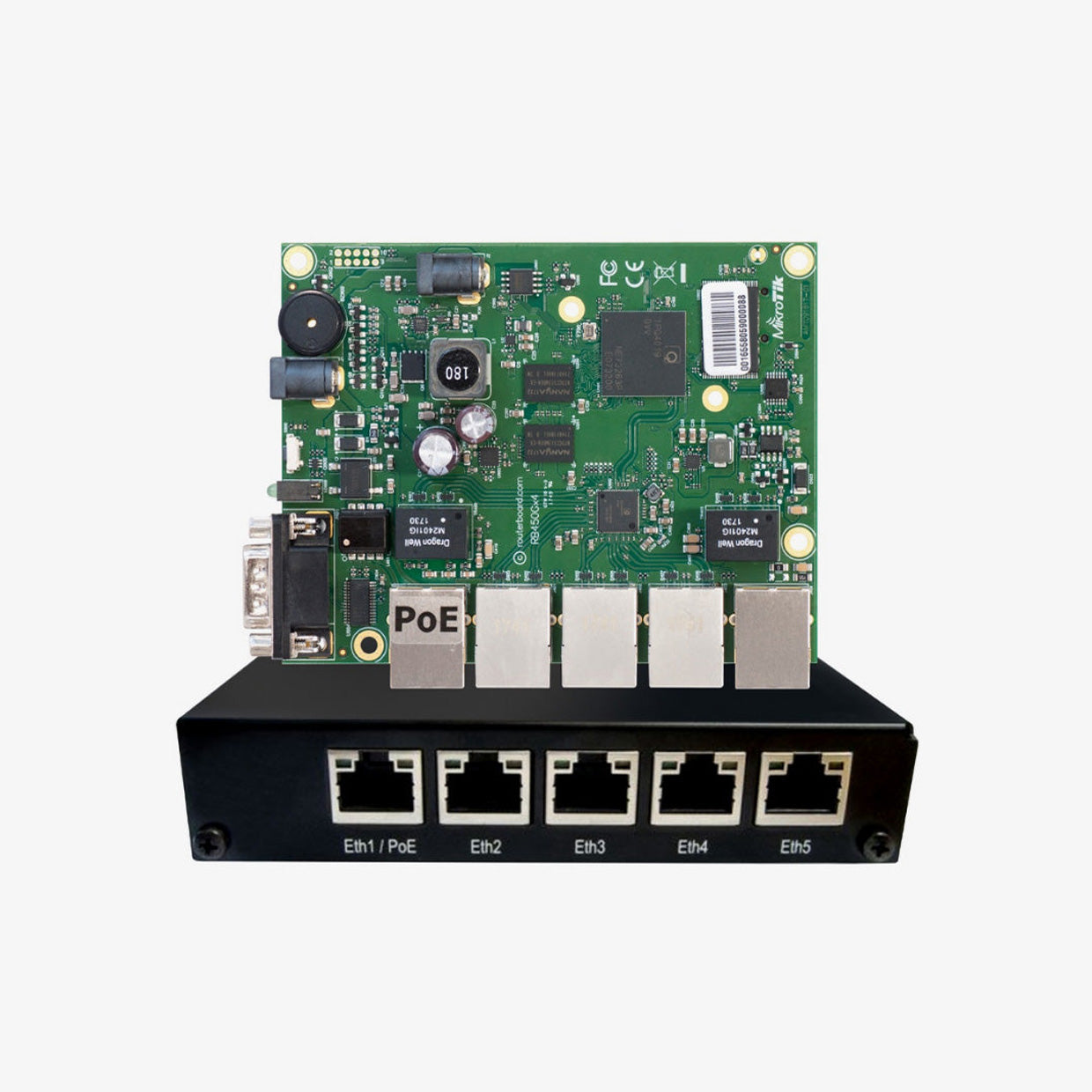

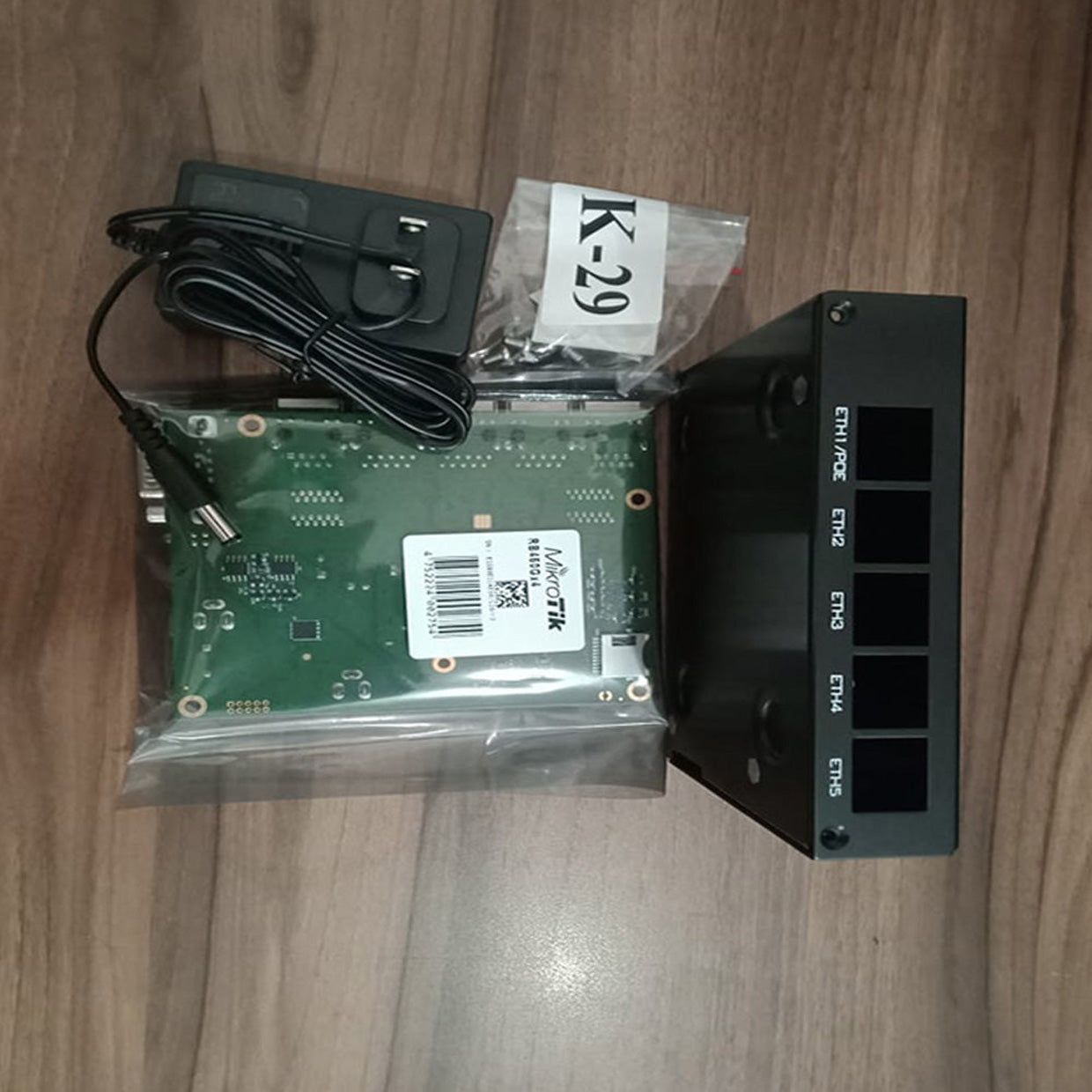

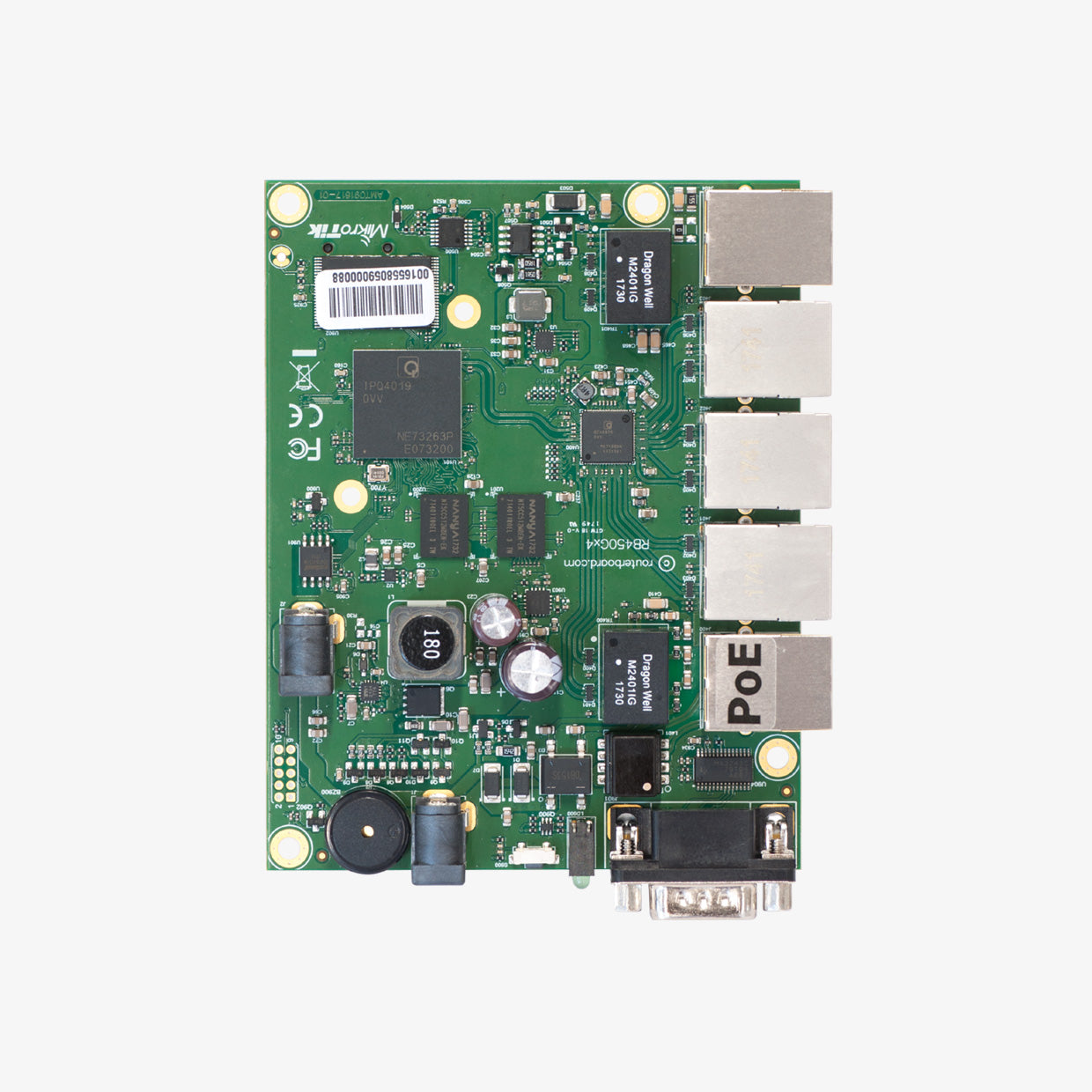

This product comes in a black metal casing. However, the board itself is of the same form factor as the RB850 and RB450 series, so you can use those same enclosures.
| Product code | RB450Gx4 |
| Architecture | ARM 32bit |
| CPU | IPQ-4019 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Switch chip model | IPQ-4019 |
| Dimensions | 90 x 116 mm |
| RouterOS license | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| MTBF | Approximately 100,000 hours at 25°C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Powering | |
| Number of DC inputs | 3 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
| Max power consumption | 16 W |
| Max power consumption without attachments | 4 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 12-57 V |
| PoE-out | |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max out per port output (input 30-57 V) | 500 mA |
| Max total out (A) | 500 mA |
| Ethernet | |
| 10/100/1000 Ethernet ports | 5 |
| Peripherals | |
| Memory card type | microSD |
| Serial console port | RS232 |
