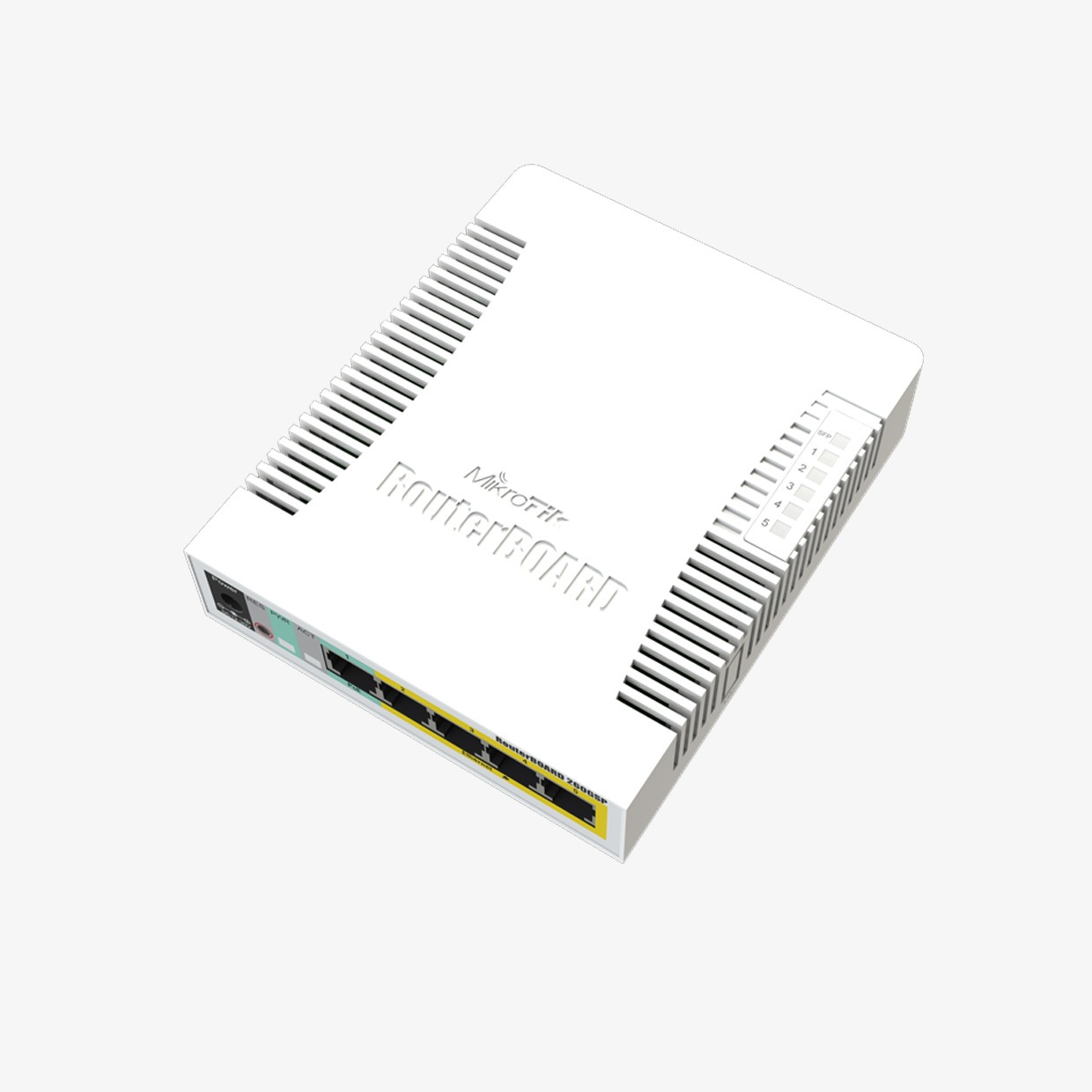

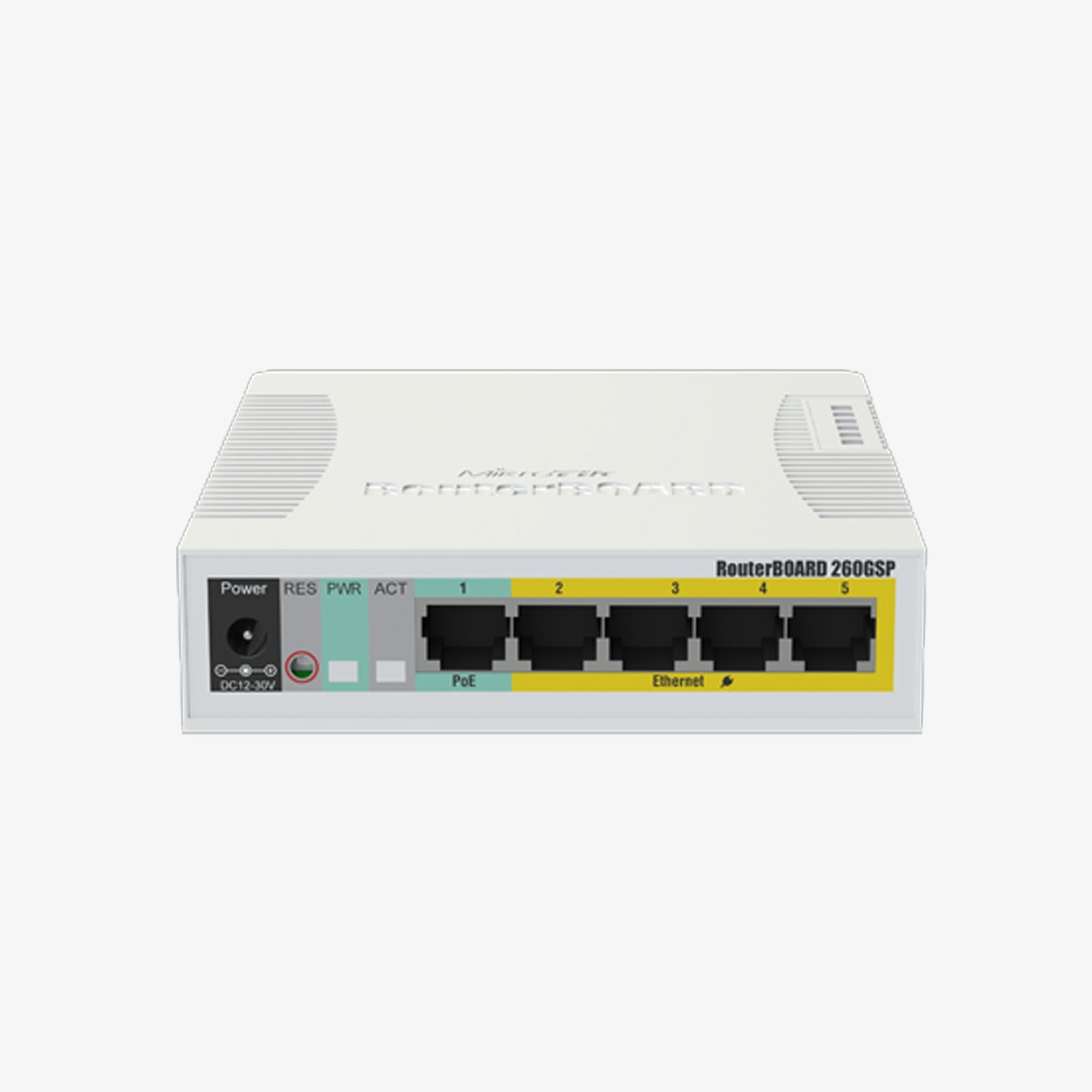

MikroTik RB260GSP — 5-Port Gigabit Smart Switch with PoE-Out & SFP

The MikroTik RB260GSP is a compact, high-performance smart switch ideal for SOHO and small office setups. It features five Gigabit Ethernet ports—including four with Passive PoE output (Ports 2–5)—and one SFP cage for flexible fiber uplinks. Powered by MikroTik’s SwOS, it provides intuitive browser-based management with support for VLANs, QoS, traffic mirroring, and bandwidth control. With dual power input options and a sleek, fanless design, it’s an efficient, reliable choice for streamlined network setups.

Request a Quote
7 people are viewing this product

Description

The MikroTik RB260GSP (CSS106‑1G‑4P‑1S) is a versatile desktop smart switch perfect for home and small office environments. Outfitted with five Gigabit Ethernet ports, it offers four Passive PoE outputs, allowing users to power multiple network devices directly without separate injectors—ideal for access points or cameras. It also includes a built-in SFP cage with DDMI support for seamless fiber connectivity with compatible modules. Amazon Germany+15MikroTik+15MBSI Wav+15MikroTik

Running SwOS, the switch delivers a robust web-based interface for essential network controls: VLAN tagging, MAC filtering, port-to-port forwarding, traffic mirroring, and bandwidth management, making it straightforward yet powerful to configure.

Compact and fanless, the RB260GSP efficiently consumes minimal power—including just 5 W when idle—but can deliver up to 2 A total across its PoE output ports. With both DC jack and Passive PoE input options, it adapts easily to various deployment setups.

Application

Home networking, Small offices, SOHO smart switch deployments

Key Features

  • 5× Gigabit Ethernet ports with four supporting Passive PoE-out (Ports 2–5)

  • 1× SFP cage with DDMI support for fiber uplinks

  • SwOS browser-based management: VLAN, QoS, mirroring, bandwidth control

  • Dual power inputs: DC jack and Passive PoE (11–30 V)

  • Low idle power consumption (~5 W), up to 53 W with PoE load

  • Compact, fanless design—quiet and efficient

  • Hardware monitoring: PCB temperature and voltage sensors

  • Designed for compact, intelligent home and office networking

Specifications

Specification Details
Brand MikroTik
Model / Product Code RB260GSP / CSS106‑1G‑4P‑1S
Switch Chip Model QCA8337 (Atheros)
Operating System MikroTik SwOS
Ethernet Ports 5× 10/100/1000 Mbps
SFP Ports 1 (with DDMI support)
Storage 128 KB Flash
Dimensions 113 × 139 × 28 mm
Power Inputs DC jack & PoE-IN (Passive, 11–30 V)
Max Power Consumption 53 W total, ~5 W idle
PoE-out Ports 2–5, Passive PoE, 1 A per port, 2 A total
MTBF ~100,000 hours at 25 °C
Tested Ambient Temp –20 °C to +70 °C
Cooling Type Passive
Hardware Monitoring PCB temperature monitor, Voltage monitor
Environmental Rating Indoor, IP20
Certifications CE, EAC, RoHS

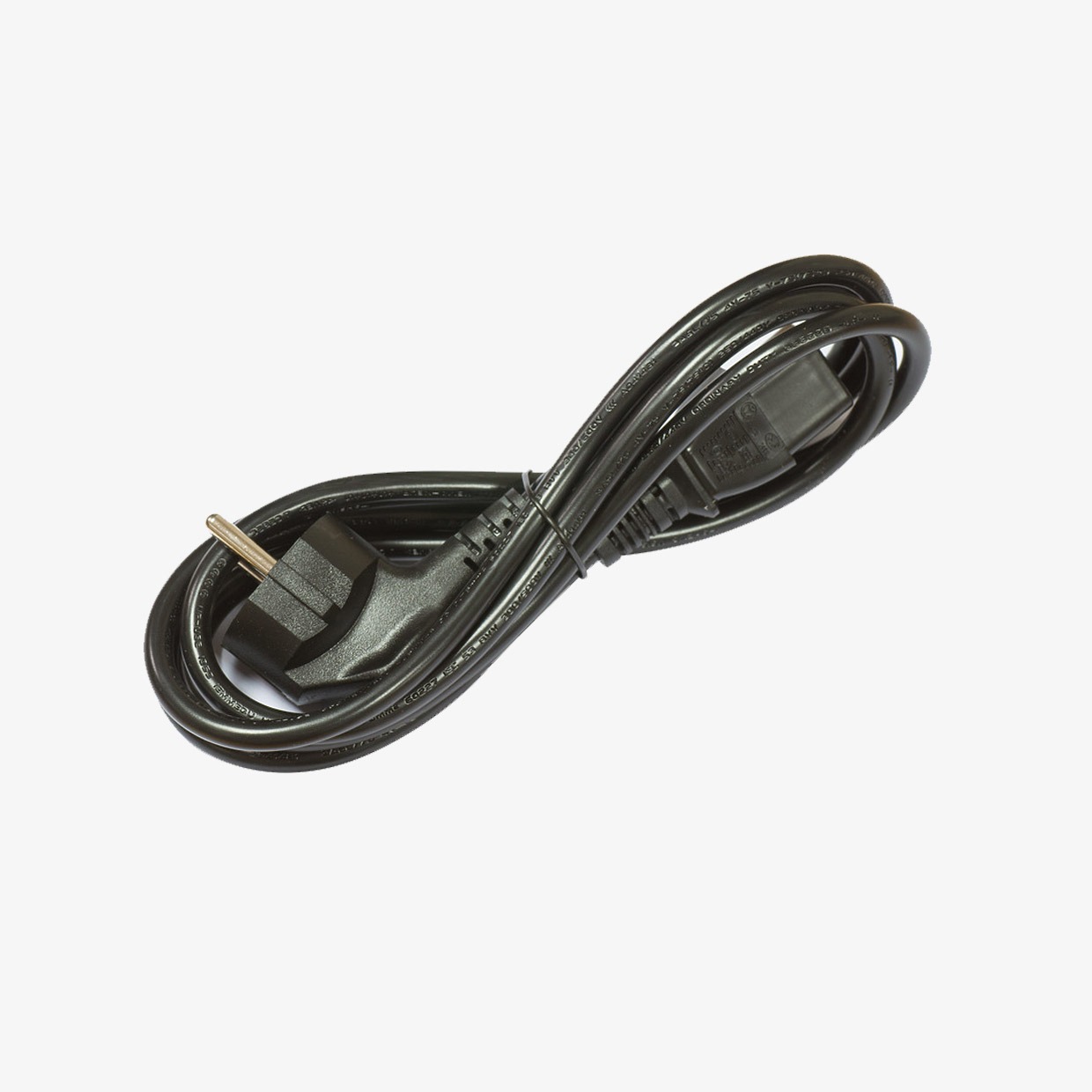

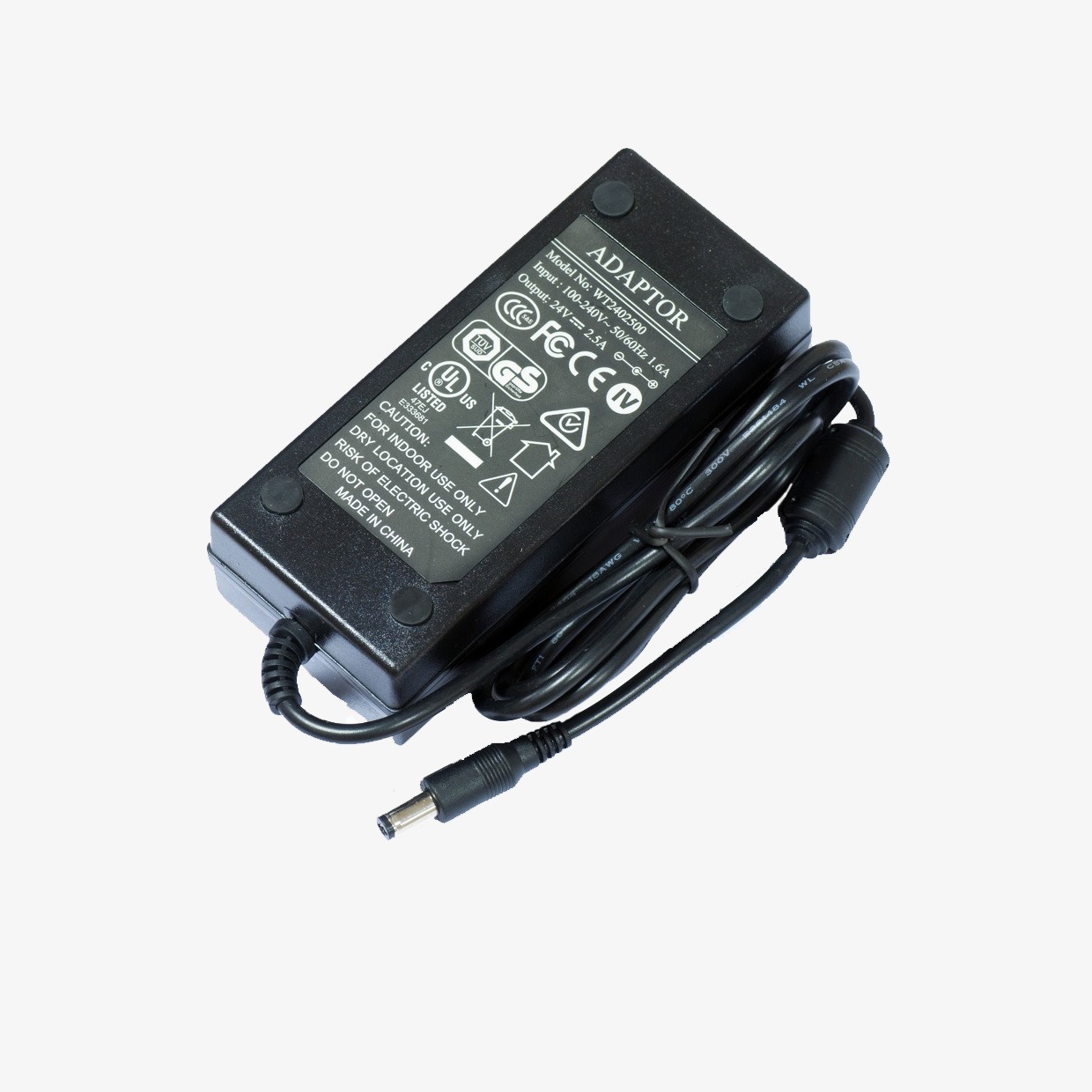

Package Contents Switch unit, 24 V 2.5 A power adapter, IEC cord
