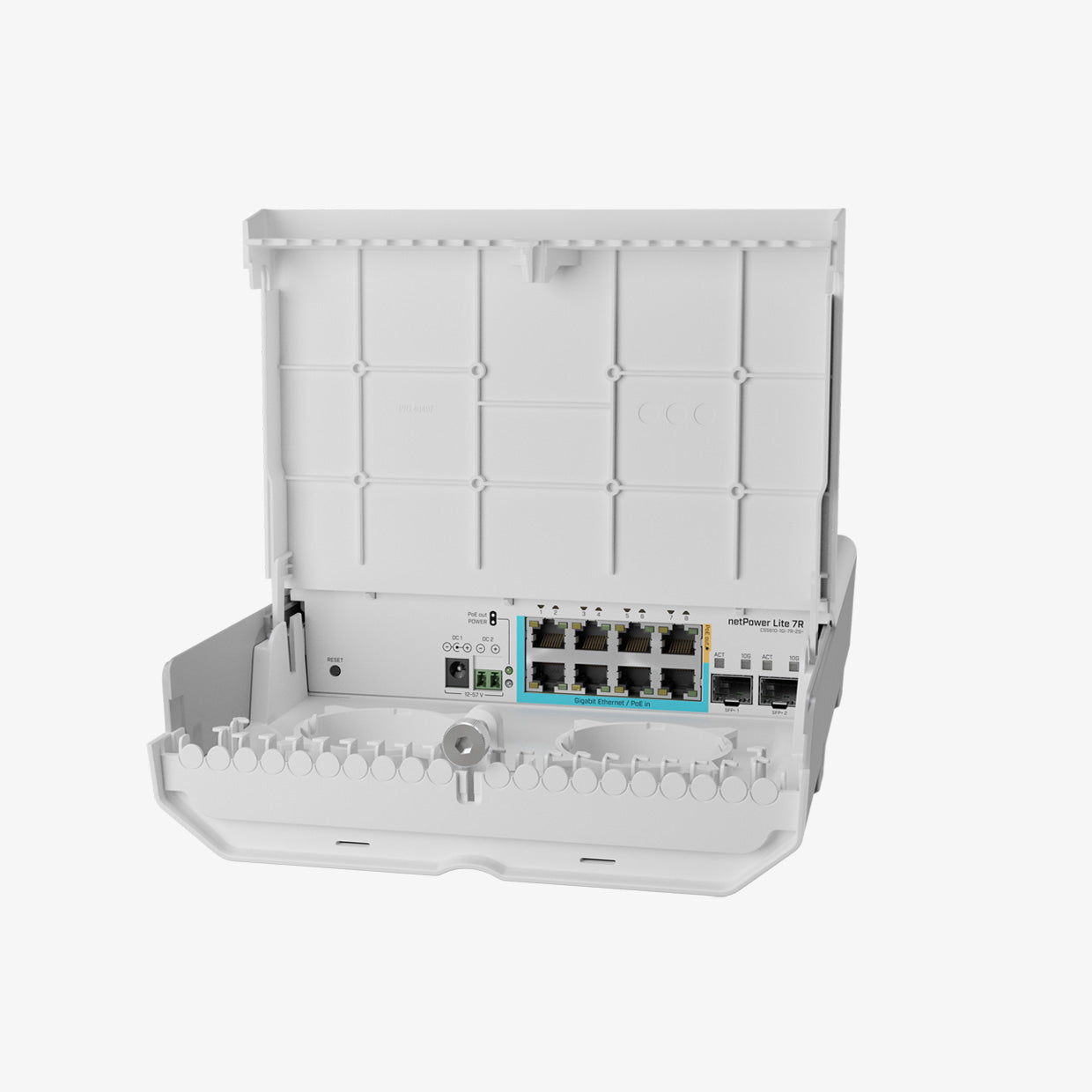

MikroTik netPower Lite 7R

The MikroTik netPower Lite 7R is an outdoor reverse PoE switch designed to deliver high-speed networking at a lower cost. Featuring 7 Gigabit Ethernet reverse PoE ports and a 10G SFP+ port, it combines the speed and flexibility of fiber with the affordability of Ethernet, making it ideal for ISPs looking to connect individual apartments.

With multiple powering options, it can draw power from a single client, a DC jack, or a 2-pin terminal, and can also provide PoE output via Ethernet port 8. Housed in a durable outdoor enclosure, it’s built for diverse environments, offering 28 Gbps throughput, 56 Gbps switching capacity, and a 41.7 Mpps forwarding rate. (Power supply sold separately.)

Request a Quote
11 people are viewing this product

Description

An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports. Cut costs, not speed – choose GPEN over GPON!

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of MikroTik’s GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

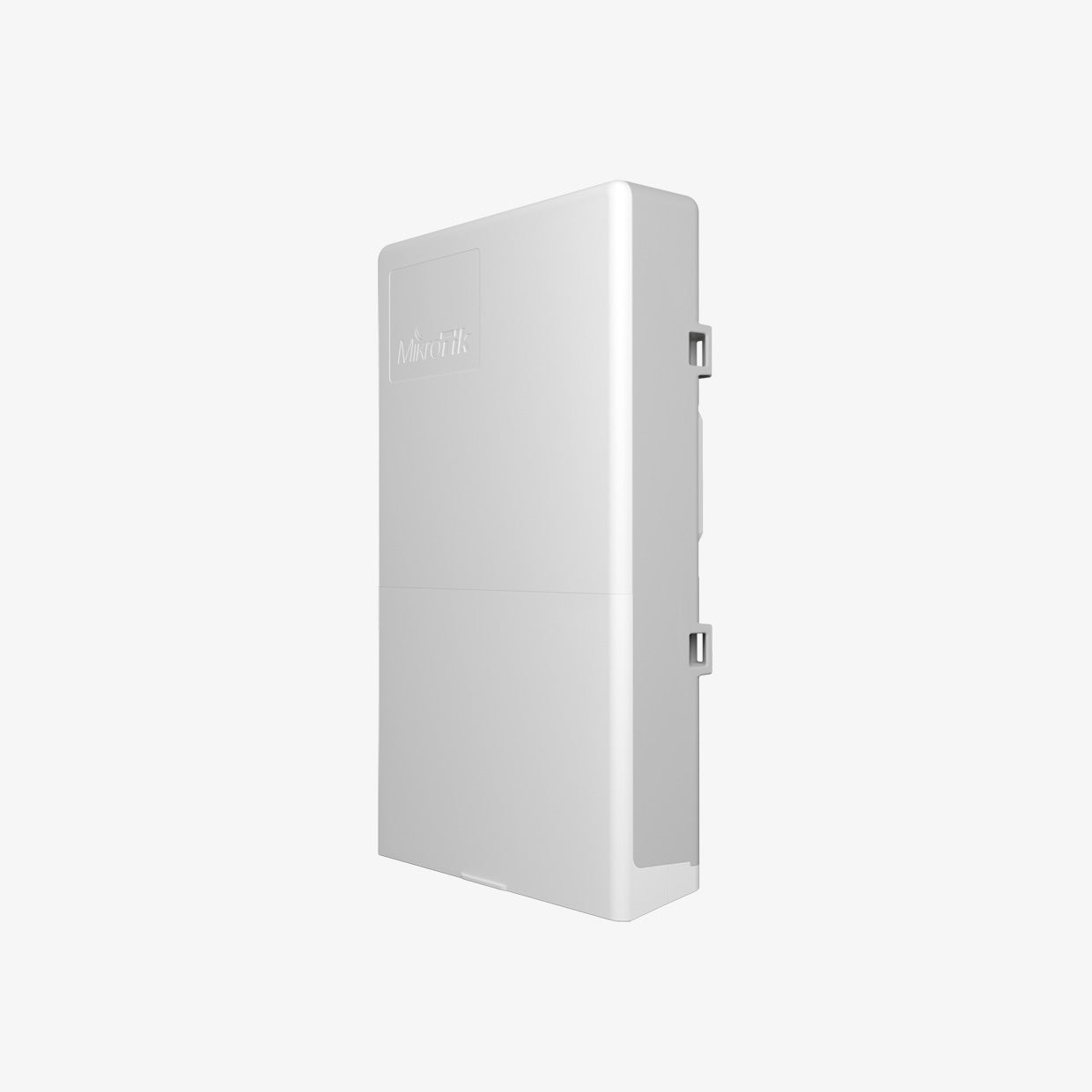

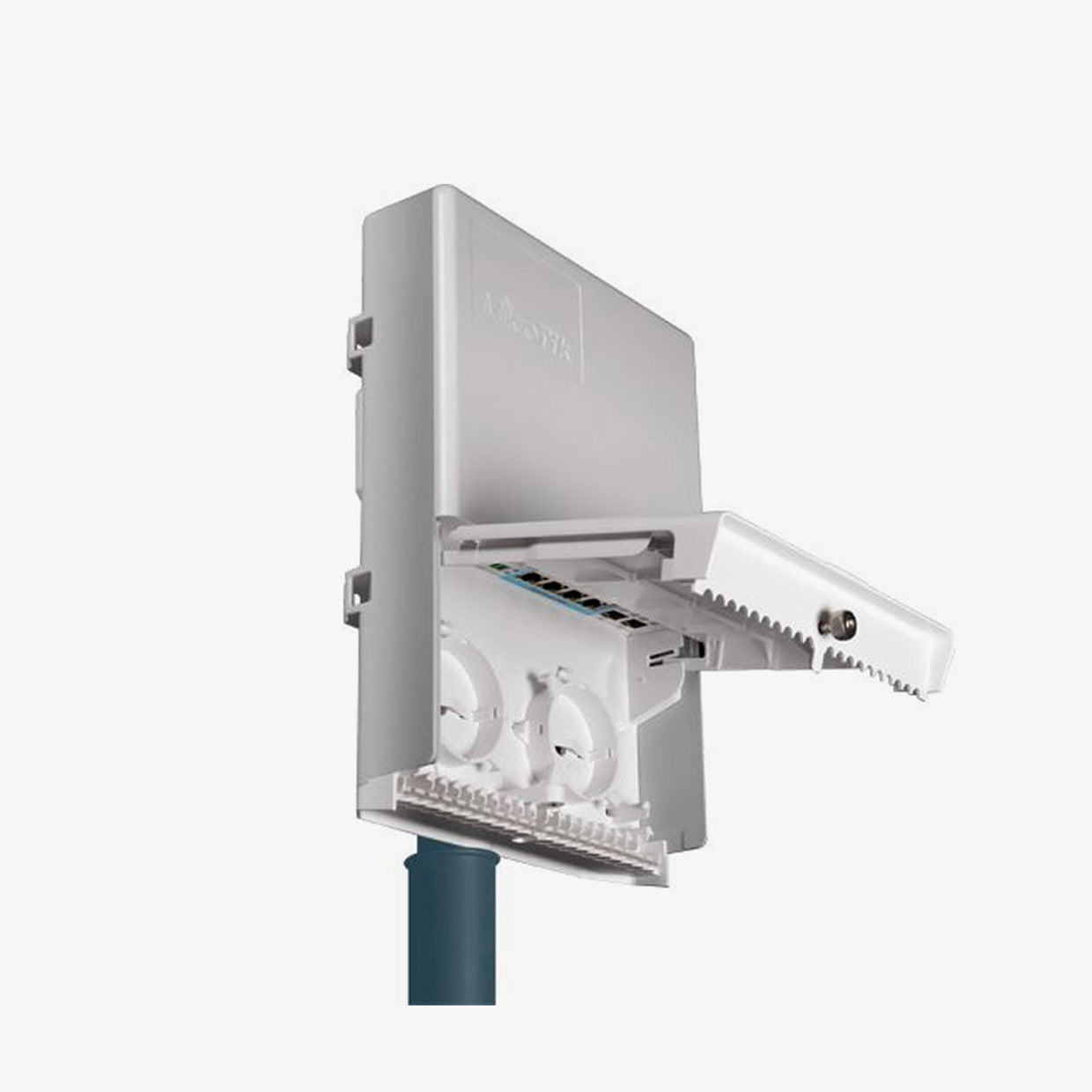

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

The power supply is NOT included with the product- must be purchased separately.

Specifications

Product code CSS610-1Gi-7R-2S+OUT
Switch chip model 88E6193X
Dimensions 304 x 212 x 71 mm
Operating System SwitchOS Lite
Storage size 64 KB
Storage type FLASH
MTBF Approximately 200,000 hours at 25°C
Tested ambient temperature -40°C to 70°C
Powering
Number of DC inputs 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage 12-57 V
2-pin terminal input Voltage 12-57 V
Max power consumption 29 W
Max power consumption without attachments 7 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 12-57 V
PoE-out
PoE-out ports Ether8
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 450 mA
Ethernet
10/100/1000 Ethernet ports 8
Number of 1G Ethernet ports with Reverse PoE (PoE-in) 7
Number of 1G Ethernet ports with PoE-out 1
Fiber
SFP+ ports 2
