MikroTik netPower 15FR – CRS318-1Fi-15Fr-2S-OUT

The MikroTik netPower 15FR is an outdoor 18-port switch with 15 reverse PoE ports and SFP for fiber connectivity, designed to bring high-speed, cost-effective networking to ISPs. With its GPEN concept, this switch eliminates the need for expensive GPON base stations and optical splitters, offering a simple, affordable way to deliver fiber-like speeds to individual apartments. Featuring a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps, and forwarding rate of 5.4 Mpps, the netPower 15FR ensures reliable performance in various outdoor environments with its rugged enclosure.

7 people are viewing this product

Description

An outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.

Specifications

Product codeCRS318-1Fi-15Fr-2S-OUT
ArchitectureARM 32bit
CPU98DX224S
CPU core count1
CPU nominal frequency800 MHz
Switch chip model98DX224S
Dimensions304 x 212 x 71 mm
RouterOS license5
Operating SystemRouterOS / SwitchOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25C
Tested ambient temperature-40°C to 70°C
Number of DC inputs16 (PoE-IN, DC jack)
DC jack input Voltage18-57 V
Max power consumption29 W
Max power consumption without attachments10 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage18-57 V (recommended 36-57V)
PoE-out portsEther15
PoE outPassive PoE
Max out per port output (input 18-30 V)0.75 A
Max out per port output (input 30-57 V)0.5 A
Max total out (A)0.75 A
10/100 Ethernet ports16
SFP ports2
CPU temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IPIP54

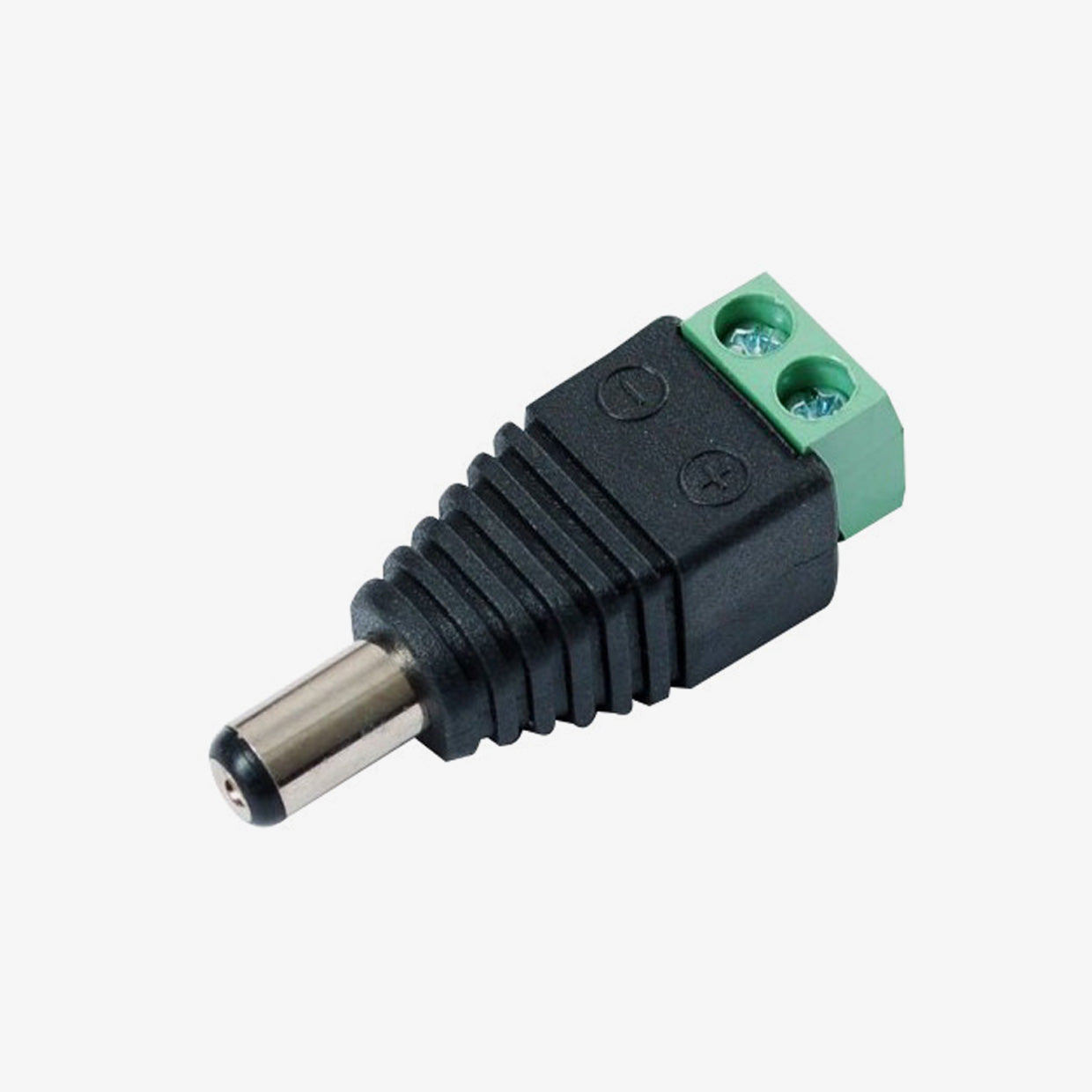

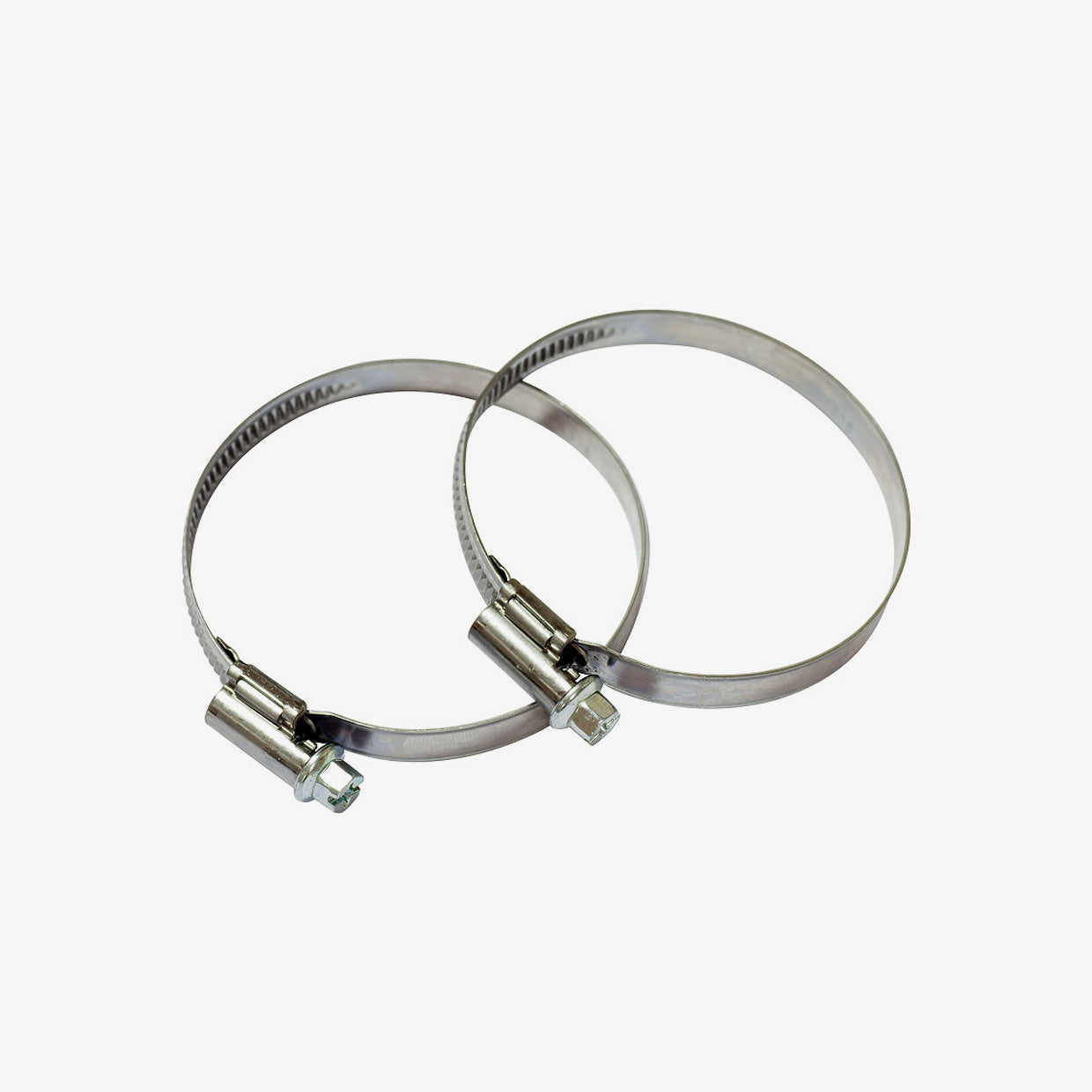

Parts IncludedHose clamp 2, K-66 fastening set, DC to Terminal block adapter
