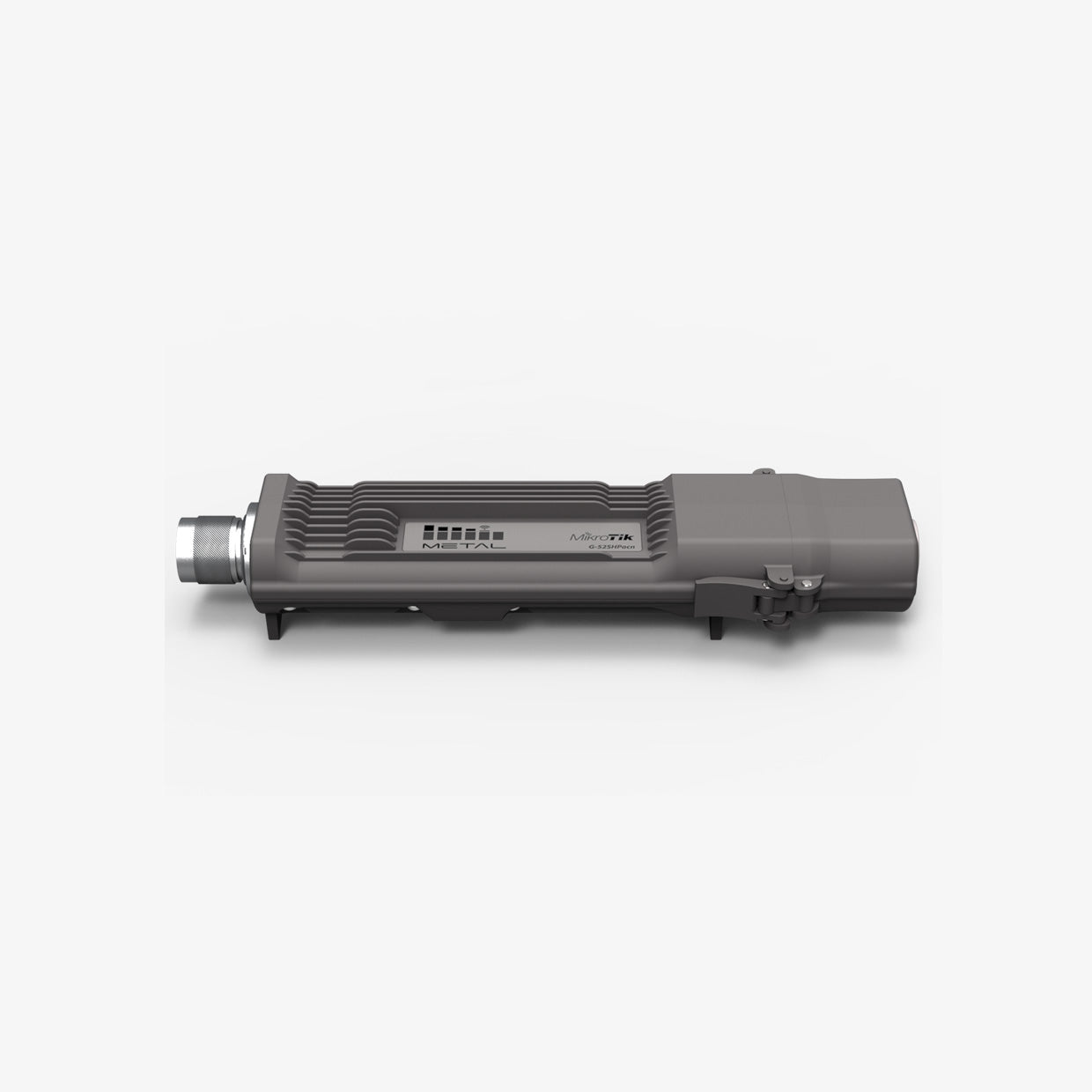

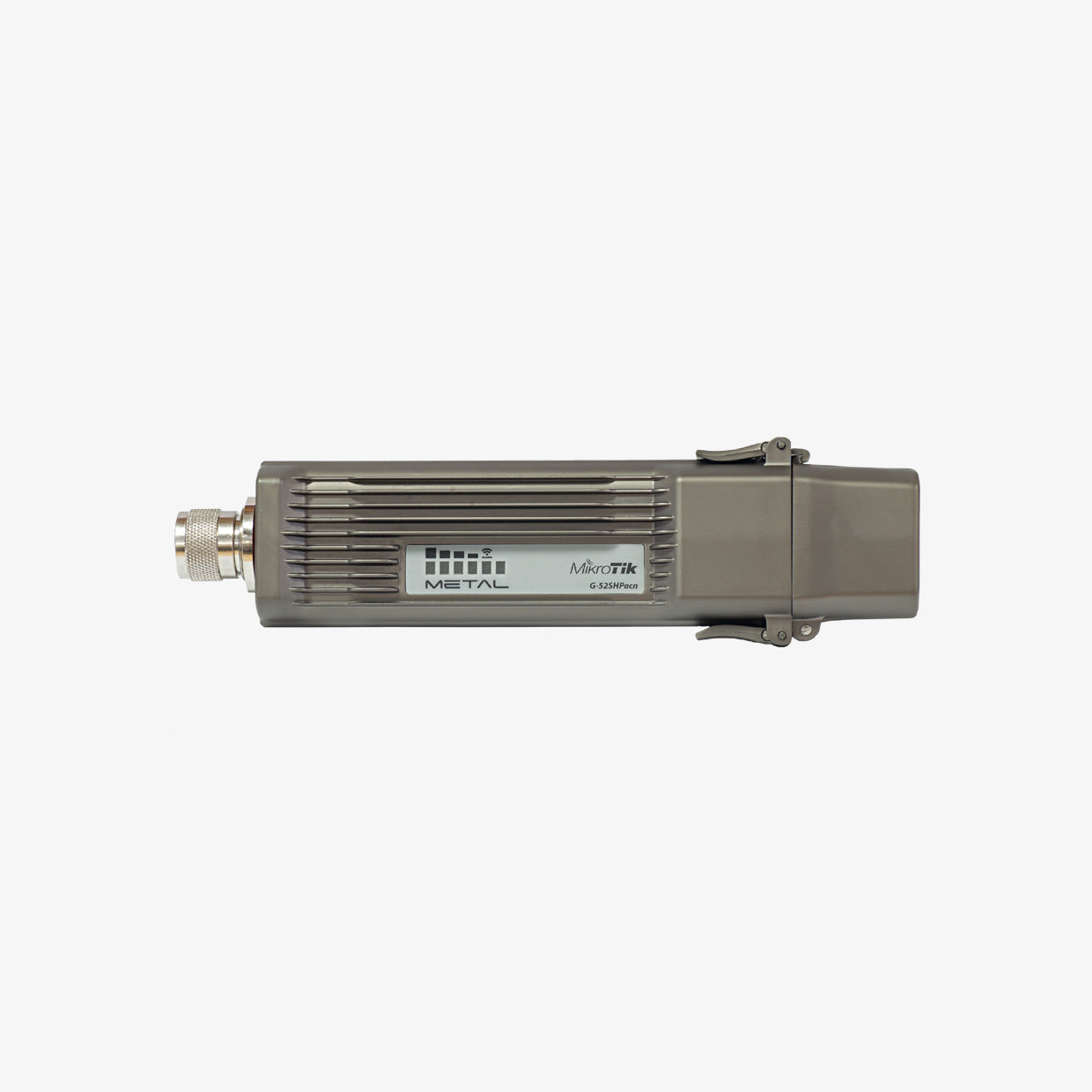

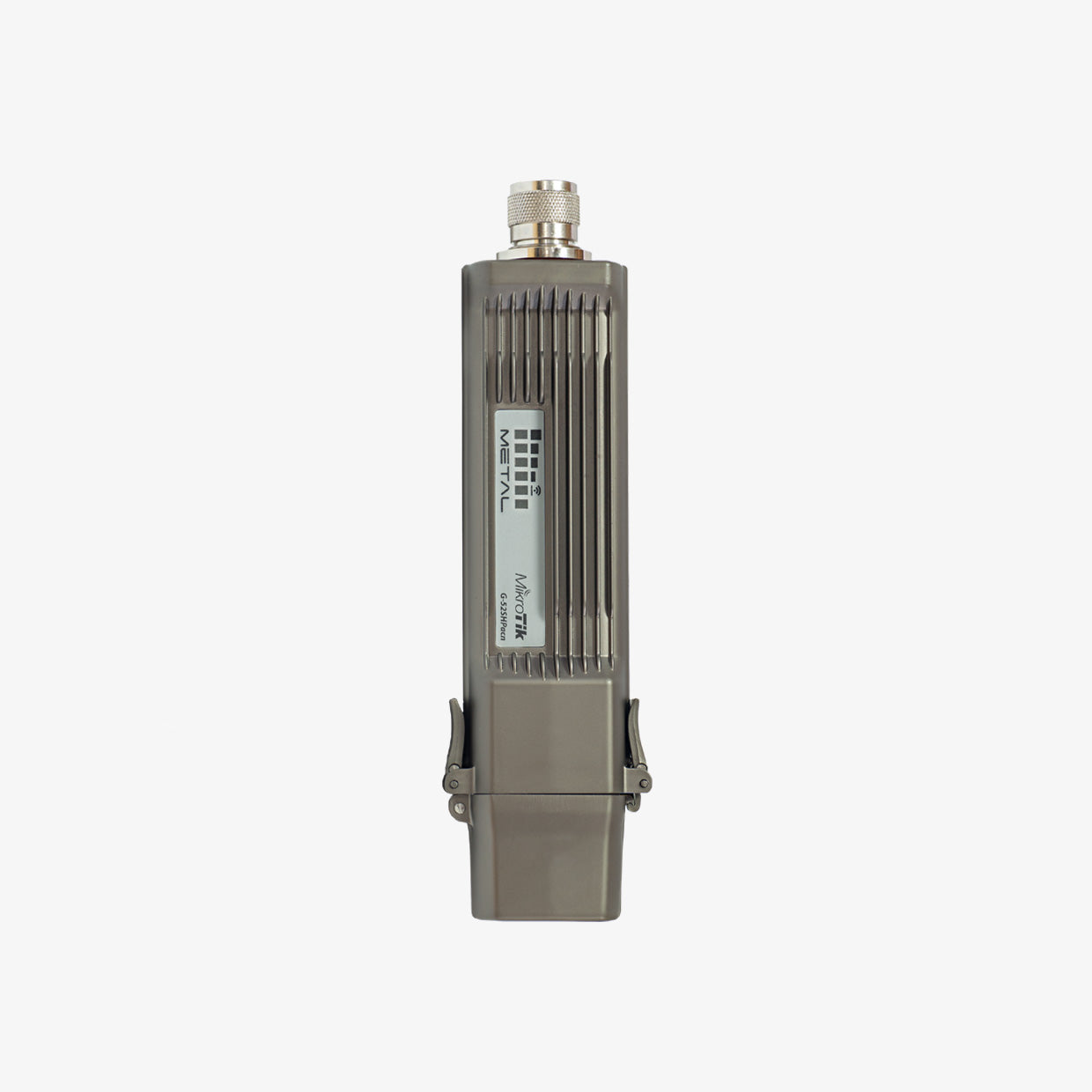

Mikrotik Metal 52 ac

4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

8 people are viewing this product

Description

4/5GHz software selectable AP/Backbone/CPE with AC support, high TX power, N-male connector, Omni antenna included

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.

The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).

RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Product codeRBMetalG-52SHPacn
ArchitectureMIPSBE
CPUQCA9556
CPU core count1
CPU nominal frequency720 MHz
Dimensions215x60x38mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25°C
Tested ambient temperature-40°C to 70°C
Powering
Number of DC inputs1 (PoE-IN)
Max power consumption11 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage10-30 V
Wireless specifications
Wireless 2.4 GHz/5 GHz Max data rate433 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains1
Wireless 2.4 GHz/5 GHz standards802.11a/n/ac, 802.11b/g/n
Antenna gain dBi for 2.4 GHz/5 GHz6
Wireless 2.4 GHz/5 GHz chip modelQCA9889
Wireless 2.4 GHz/5 GHz generationWi-Fi 5
Ethernet
10/100/1000 Ethernet ports1
Other
PCB temperature monitorYes
Voltage MonitorYes
BeeperYes
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS
IPIP55
Wireless specifications
5 GHzTransmit (dBM)  | Receive Sensitivity
6MBit/s31-93
54MBit/s27-78
MCS030-93
MCS726-74
MCS922-69
2.4 GHzTransmit (dBM)  | Receive Sensitivity
1MBit/s31-97
11MBit/s31-91
6MBit/s31-93
54MBit/s28-77
MCS031-93
MCS727-72
Parts IncludedPower adaptor, Angled N connector, Metal rings,
Omni antenna, Gigabit PoE injector
