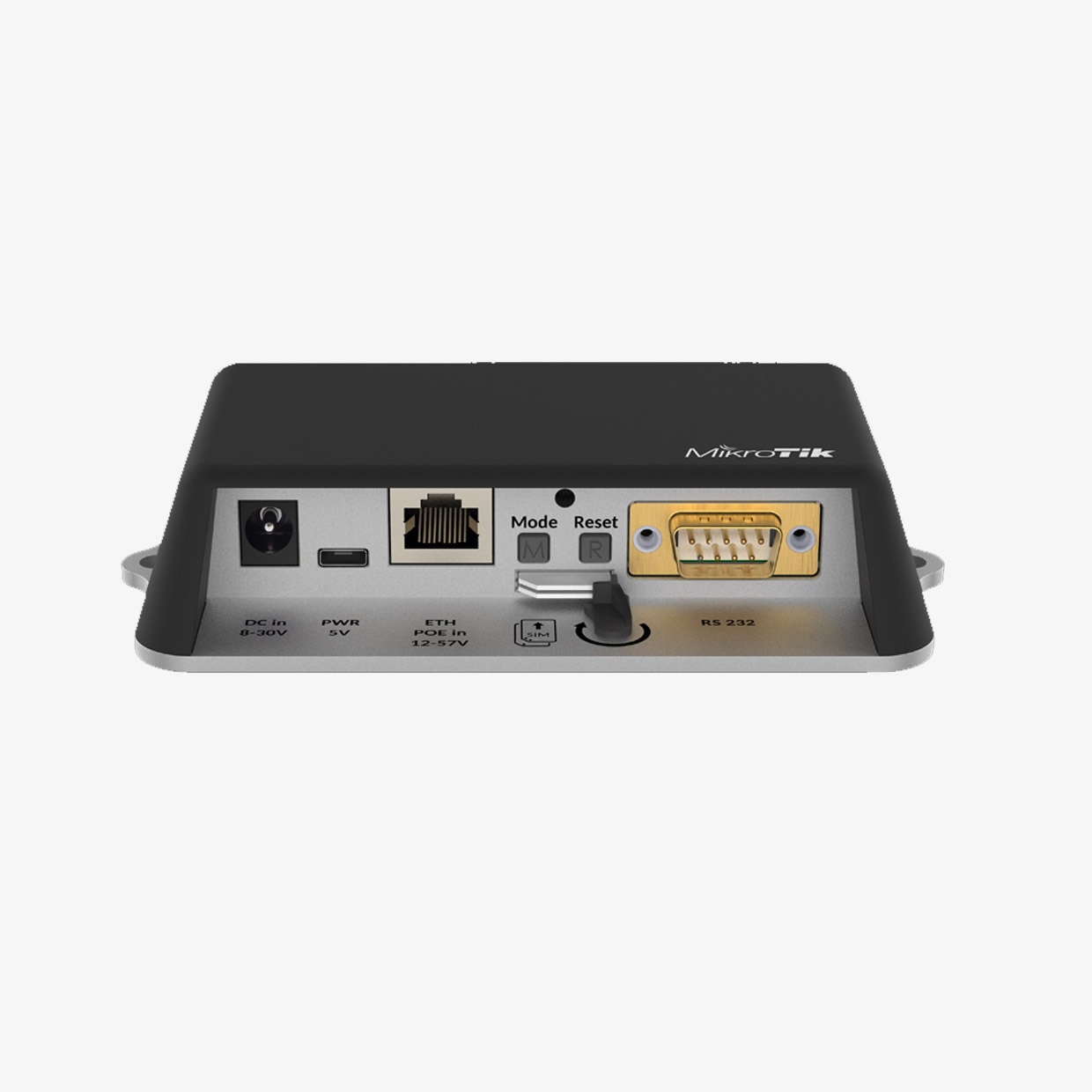

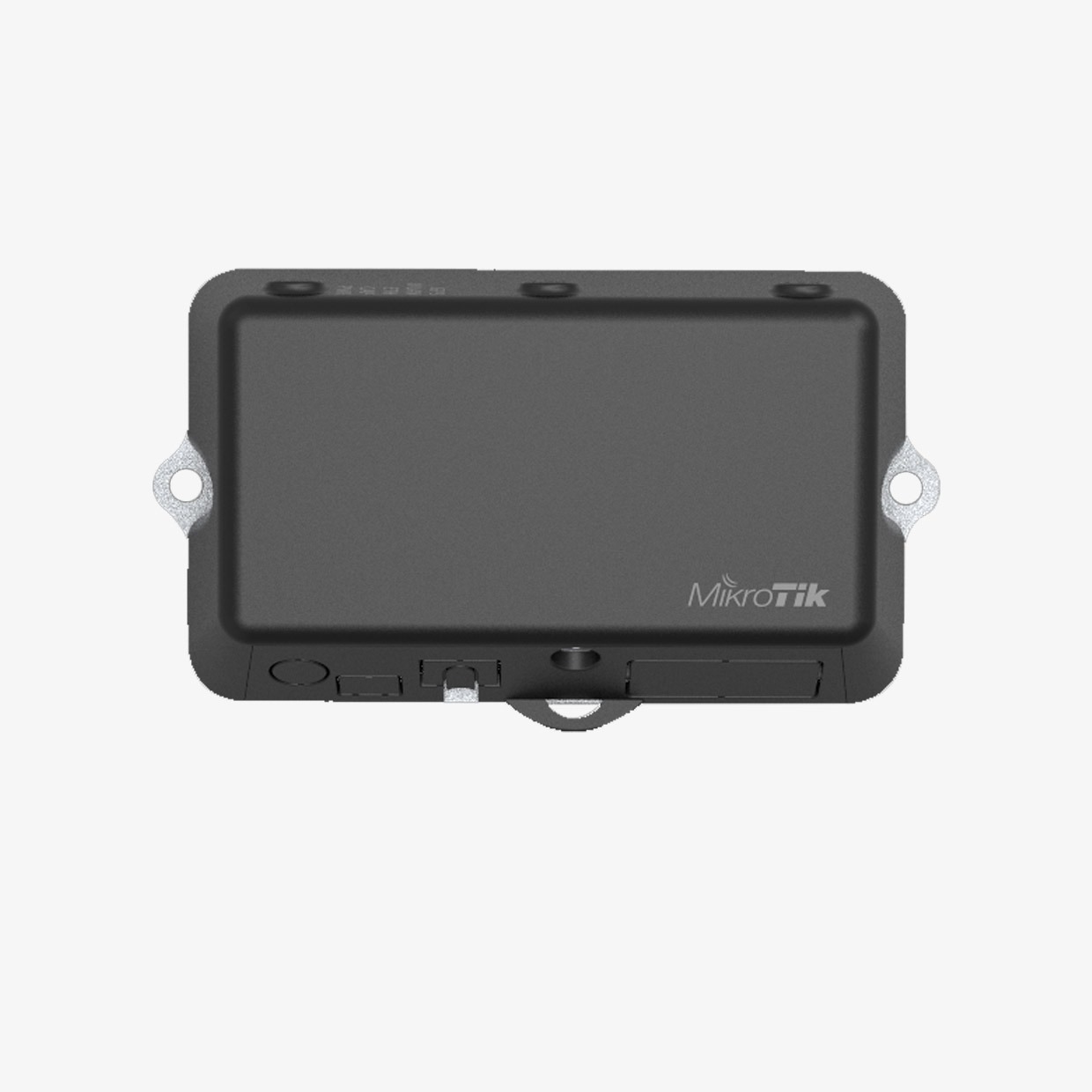

MikroTik LtAP mini LTE kit (2024) — Rugged LTE Cat 4 Access Point with GPS

The MikroTik LtAP mini LTE kit (2024) is a compact, rugged weatherproof access point with a built-in LTE modem, perfect for vehicle and outdoor deployments. Featuring dual Mini‑SIM slots, integrated GPS, and versatile power options such as DC jack, PoE‑in, and MicroUSB, it ensures reliable mobile connectivity in any environment. With Wi‑Fi, Ethernet, GPS, and LTE tracking capabilities, it delivers resilient connectivity and location monitoring for fleet and transport applications.

  • User Manual
Request a Quote
9 people are viewing this product

Description

The MikroTik LtAP mini LTE kit (2024) — model RB912R‑2nD‑LTm&EC200A‑EU — is a robust, weatherproof wireless access point engineered for mobility-critical scenarios like fleet tracking, field operations, and vehicle-mounted networking. Encased in a durable enclosure, this versatile device includes a built-in LTE Cat 4 modem, GPS module, and dual Mini-SIM slots for seamless carrier failover and location tracking.

It supports 2.4 GHz Wi-Fi (802.11b/g/n) and provides a 10/100 Mbps Ethernet port for wired devices. Equipped with multiple power options — DC jack, passive PoE‑in, and MicroUSB — it’s deployable in varied conditions with ease. The integrated RS232 serial port simplifies configuration and debugging, while RouterOS v7 (License L4) offers advanced routing, firewall, and VPN functionality. The LtAP mini LTE kit is an ideal solution for transport, logistics, and remote site connectivity, ensuring dependable performance under rugged conditions.

Application

Wireless broadband, Mobile networks, Transportation tracking, Rural or field connectivity

Key Features

✔️ Rugged, weatherproof (IP54) LTE access point with built-in GPS
✔️ Integrated LTE Cat 4 modem with B28 support and u.FL connectors for external antenna
✔️ Dual Mini-SIM slots for automatic failover between carriers
✔️ 2.4 GHz dual-chain Wi-Fi (802.11b/g/n) and 10/100 Ethernet port
✔️ Multiple power inputs: DC jack (8–30 V), PoE-in (10–57 V), MicroUSB (5 V)
✔️ RS232 serial port for fast setup and troubleshooting
✔️ Compact, mountable design with wall kit included
✔️ RouterOS v7 (License L4) for advanced networking features

Specifications

Specification Details
Brand MikroTik
Model / Product Code RB912R-2nD-LTm&EC200A-EU
Architecture MIPSBE
CPU QCA9531
CPU Frequency 650 MHz
RouterOS License L4
Operating System RouterOS v7
RAM 64 MB
Storage 16 MB FLASH
Wireless Standard 2.4 GHz 802.11b/g/n
Wireless Capabilities Dual-chain, up to 300 Mbps, chip: QCA9531
Antenna Gain (Wi-Fi) ≈1.5 dBi
Ethernet Ports 1 × 10/100 Mbps
LTE Category Cat 4 (150 Mbps DL / 50 Mbps UL)
LTE FDD Bands 1, 2, 3, 5, 7, 8, 20, 28
LTE TDD Bands 38, 40, 41
3G Category R7 (21 Mbps DL / 5.76 Mbps UL)
2G Category Class12
SIM Slots 2 × miniSIM
GPS Built-in (u.FL connector)
Serial Port RS232 (shared with GPS)
Power Inputs DC jack (8–30 V), PoE-in (10–57 V), MicroUSB (5 V)
Max Power Consumption ~9 W
Cooling Passive
Operating Temperature –40 °C to +70 °C
Environmental Rating IP54
Dimensions 139 × 77 × 28.5 mm
MTBF ~100,000 hours
Certifications & Approvals CE, E-MARK, EAC, RoHS
Warranty Not specified by vendor
Package Contents Device, 24 V / 1.2 A adapter, PoE injector, external DC cable, K-55/K-52 screw kit
