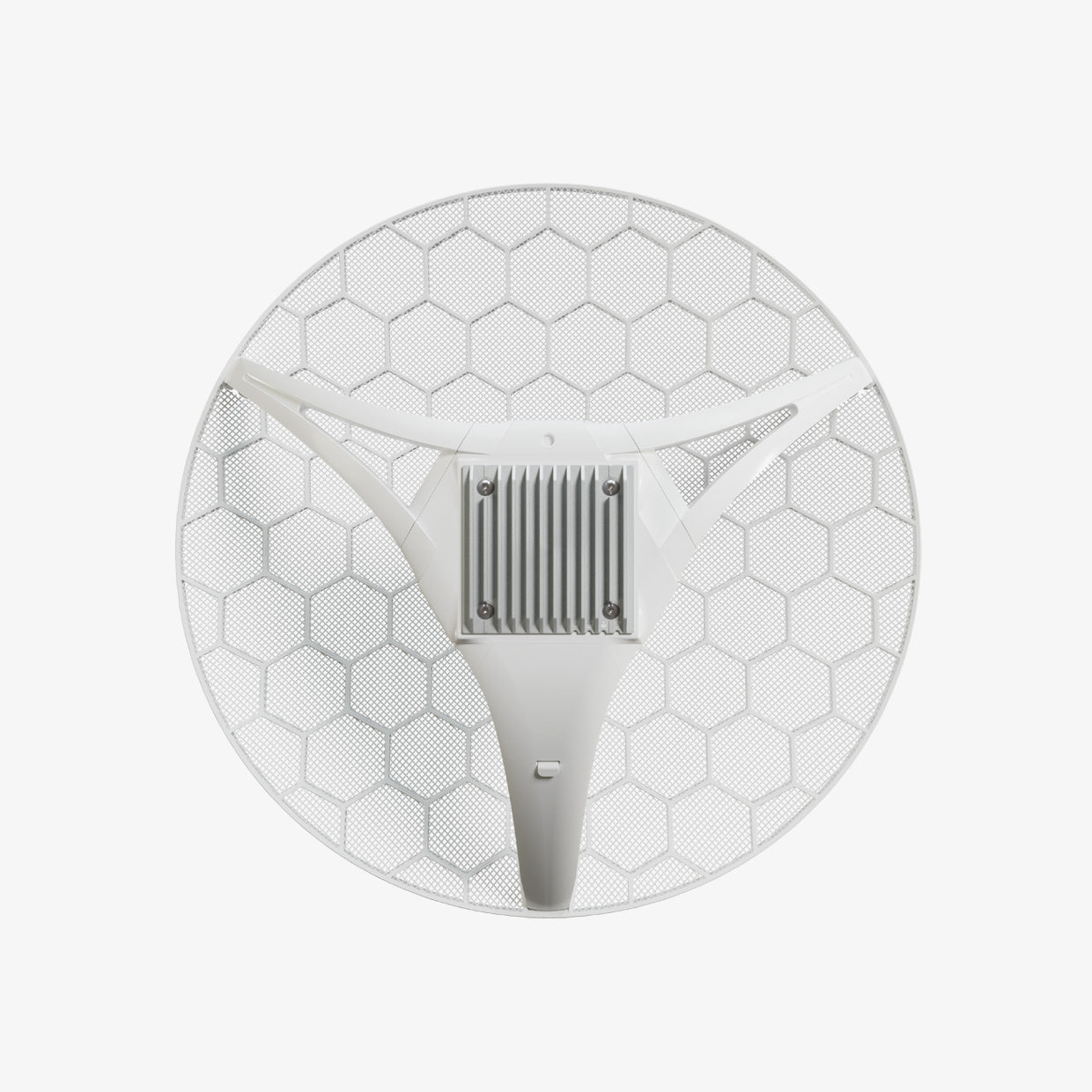

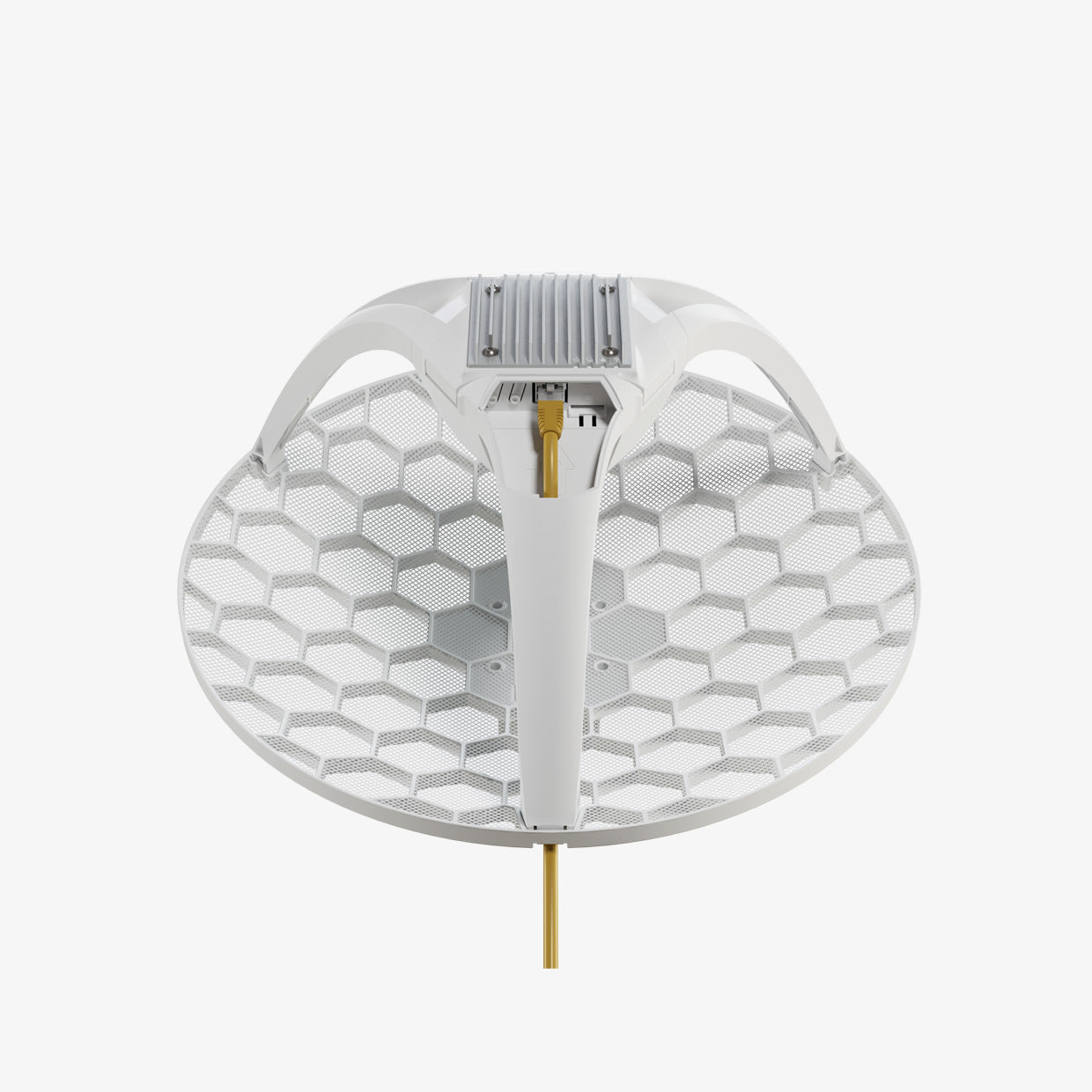

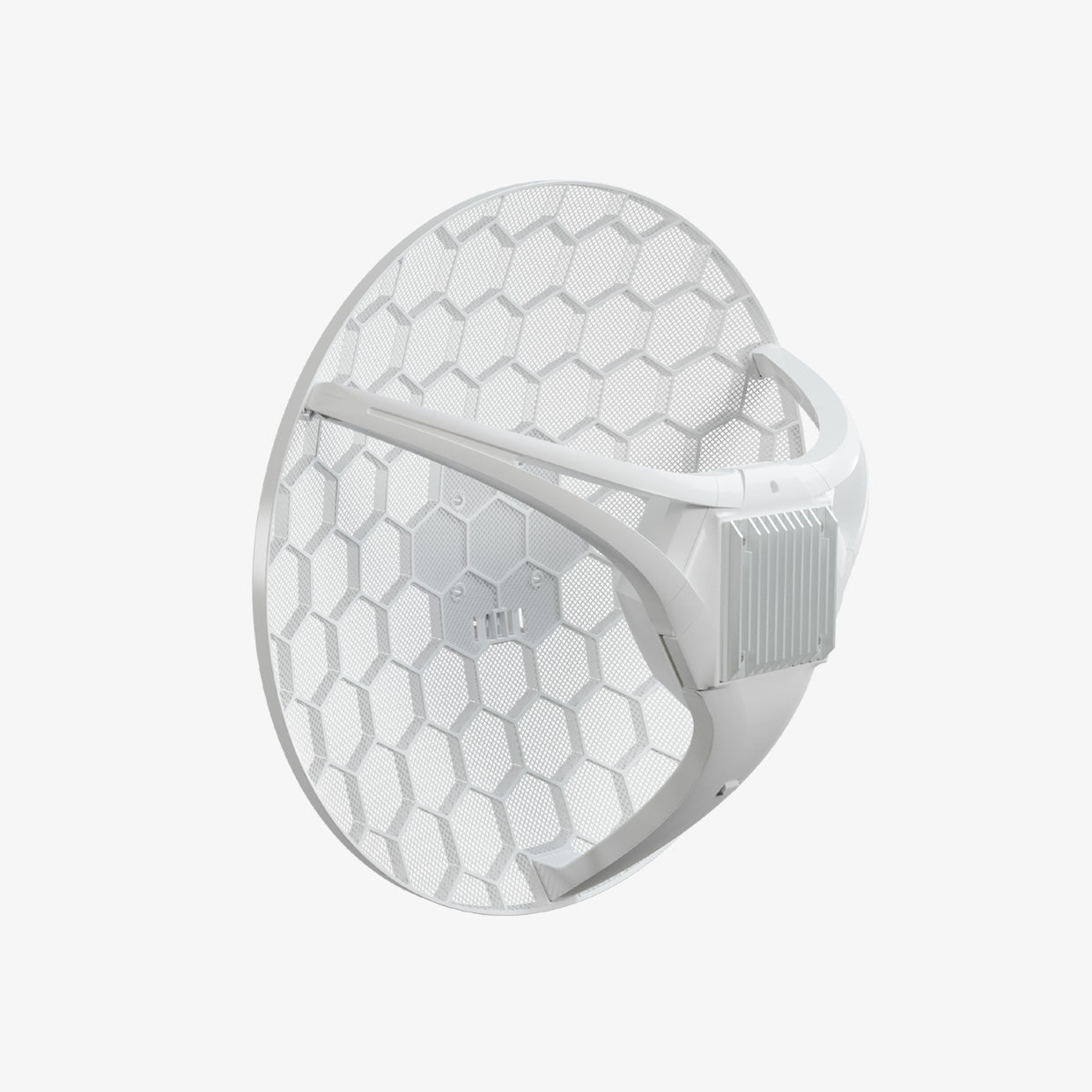

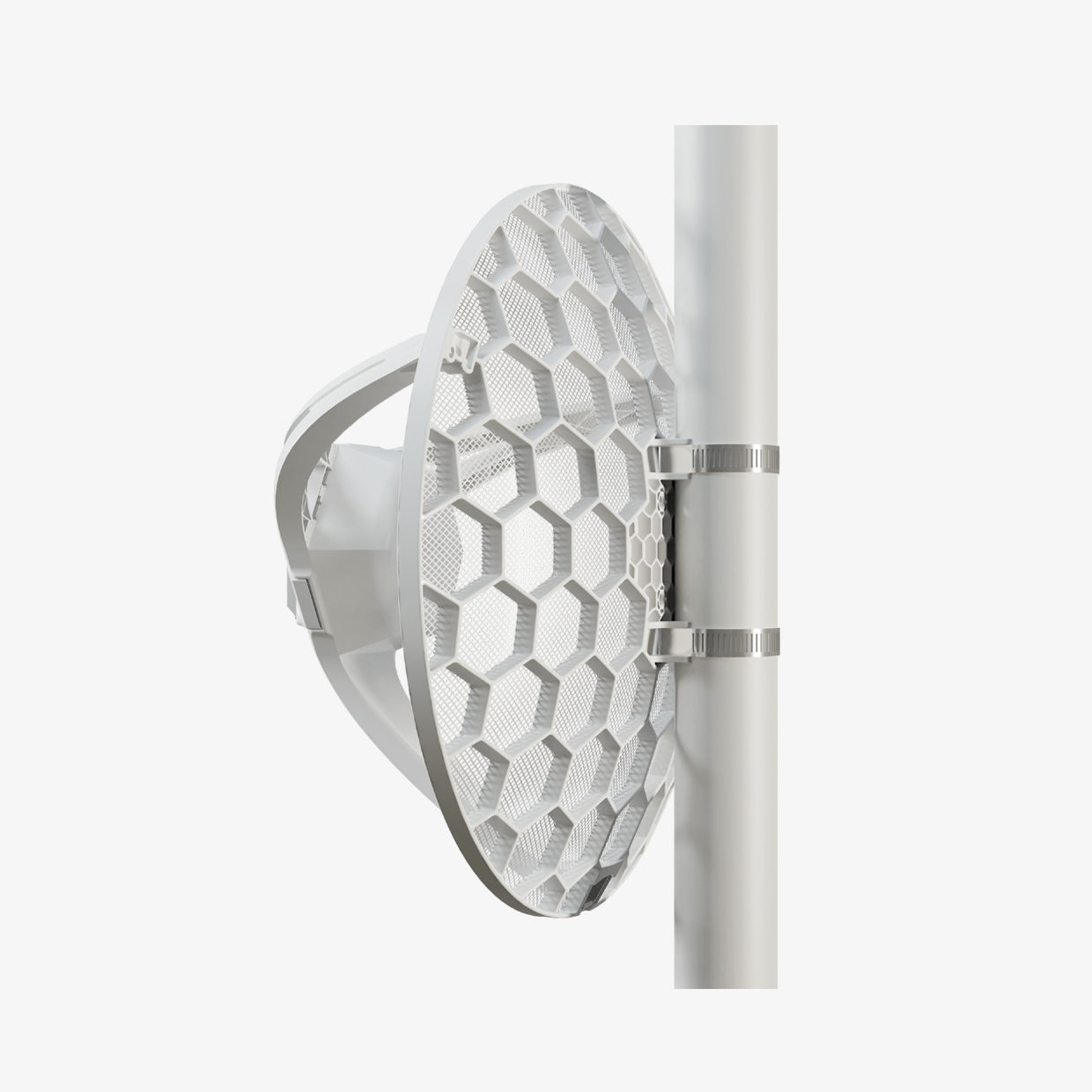

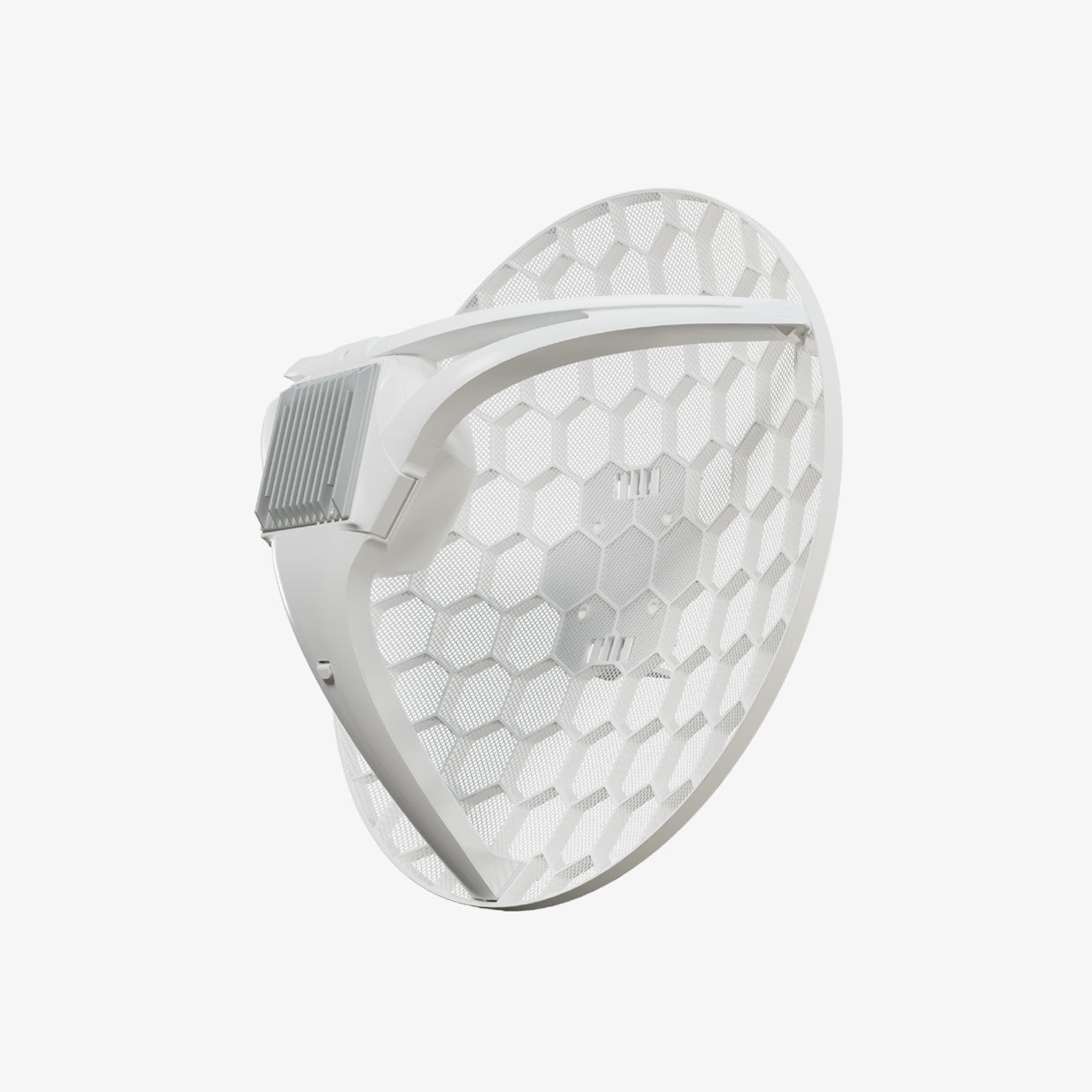

MikroTik LHGG LTE6 Kit

The LHGG LTE6 kit is your solution for high-speed internet in remote areas. Featuring a 17 dBi high-gain antenna, Gigabit Ethernet, and an upgraded dual-core CPU, it ensures reliable connectivity even in extreme rural locations. Its CAT6 LTE modem supports carrier aggregation, allowing the device to use multiple LTE bands simultaneously for improved performance in crowded areas or weak signal zones. With a rugged grid antenna design and a massive heat sink, it withstands harsh weather and prevents overheating. Mount it easily outdoors, and enjoy last-mile internet access where other solutions fail to connect.

Description

LHGG LTE6 KIT – a great solution for great distances. With Gigabit Ethernet, an upgraded dual-core CPU, a powerful 17 dBi antenna, and a massive heat sink, you can trust the LHGG LTE6 kit to handle any challenge!

Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.

Specifications

DetailsSpecification
Product codeRBLHGGR&R11e-LTE6
ArchitectureARM 64bit
CPU88F3720
CPU core count2
CPU nominal frequency800 MHz
Dimensions391 x 391 x 237 mm
RouterOS license3
Operating SystemRouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25°C
Tested ambient temperature-30°C to 70°C
PoweringDetails
Number of DC inputs1 (PoE-IN)
Max power consumption8 W
Max power consumption without attachments8 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage12-57 V
MobileDetails
2G CategoryClass12
2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) /
R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz /
8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) /
17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC35666210
EthernetDetails
10/100/1000 Ethernet ports1
PeripheralsDetails
Number of SIM slots1 Modem (Micro SIM)
MiniPCI-e slots1
Included PartsLHGG Kit, 24V 0.8A power adapter, Gigabit PoE injector, Hose Clamp 2
