MikroTik LHG LTE6 kit

The LHG LTE6 kit is an excellent solution for providing internet access in remote locations within cellular network coverage. Designed for outdoor mounting on poles or tall structures, it connects to distant cell towers where mobile phones may struggle. Equipped with a large high-gain antenna and a CAT6 LTE modem, it supports carrier aggregation, using multiple LTE bands simultaneously. This enhances performance in crowded areas and improves efficiency in weak signal zones. With the LHG LTE6 kit, users in rural locations can experience significantly faster internet speeds without waiting for cable network expansions.

Get a Quote
11 people are viewing this product

Description

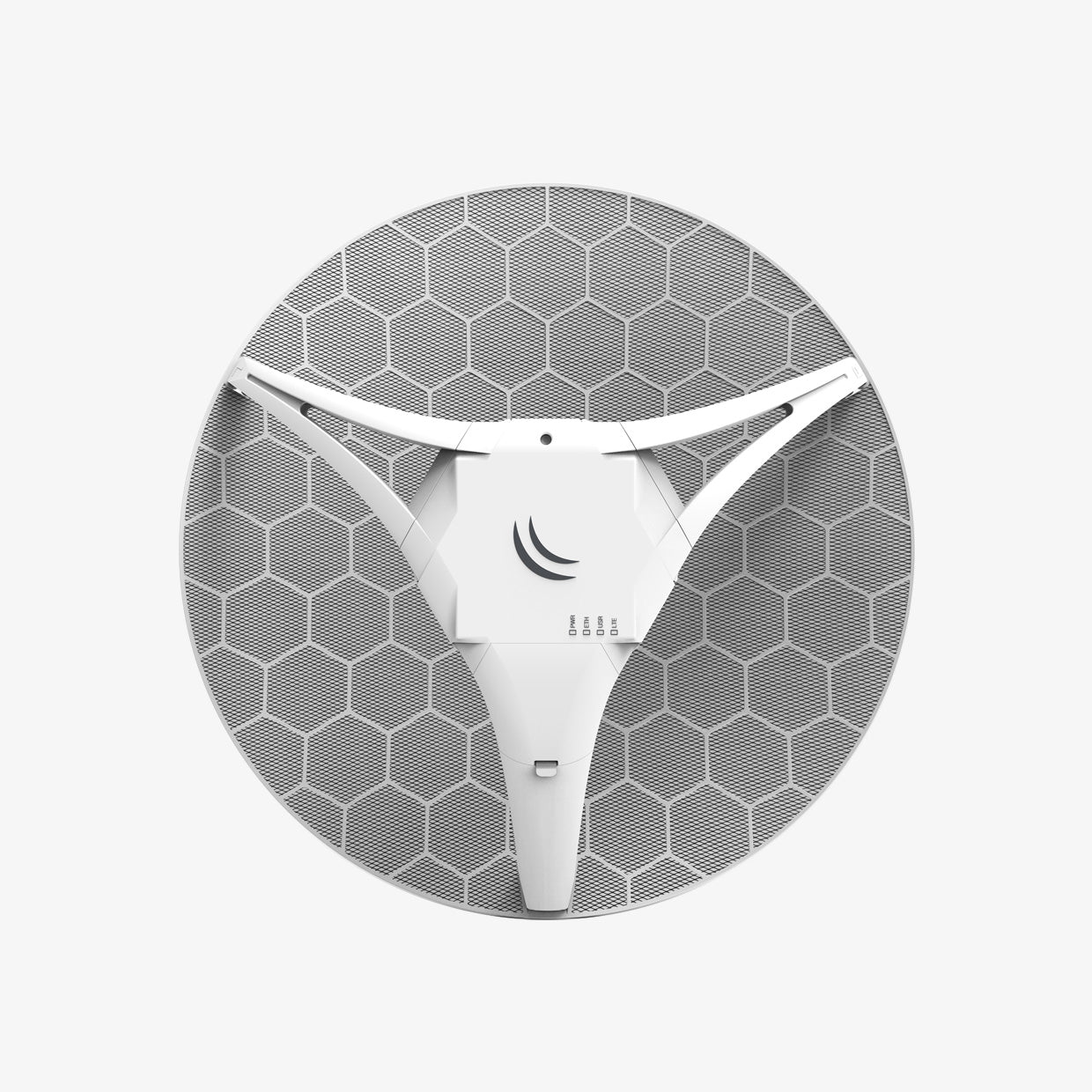

Great solution for great distances. The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

Specifications

Product codeRBLHGR&R11e-LTE6
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
RouterOS license3
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25°C
Tested ambient temperature-30°C to 60°C
Powering
Number of DC inputs1 (PoE-IN)
Max power consumption6 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage12-57 V
Mobile
2G CategoryClass12
2G bands2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G CategoryR7 (21Mbps Downlinks, 5.76Mbps Uplink) /
R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) /
8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) /
17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC35666210
Ethernet
10/100 Ethernet ports1
Peripherals
Number of SIM slots1 Modem (Micro SIM)
MiniPCI-e slots1
Other
Mode buttonYes
Certification & Approvals
CertificationCE, EAC, ROHS
IPIP54

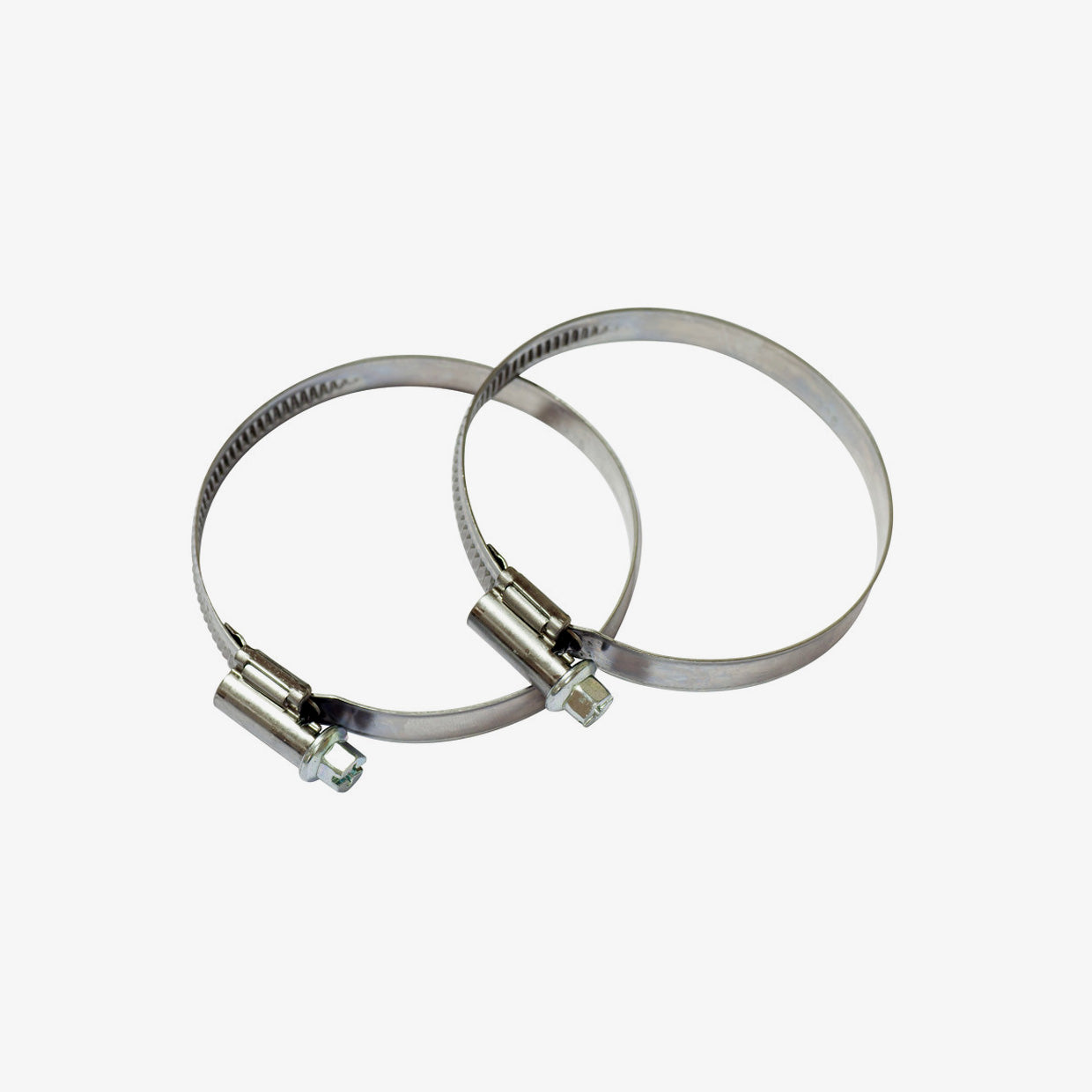

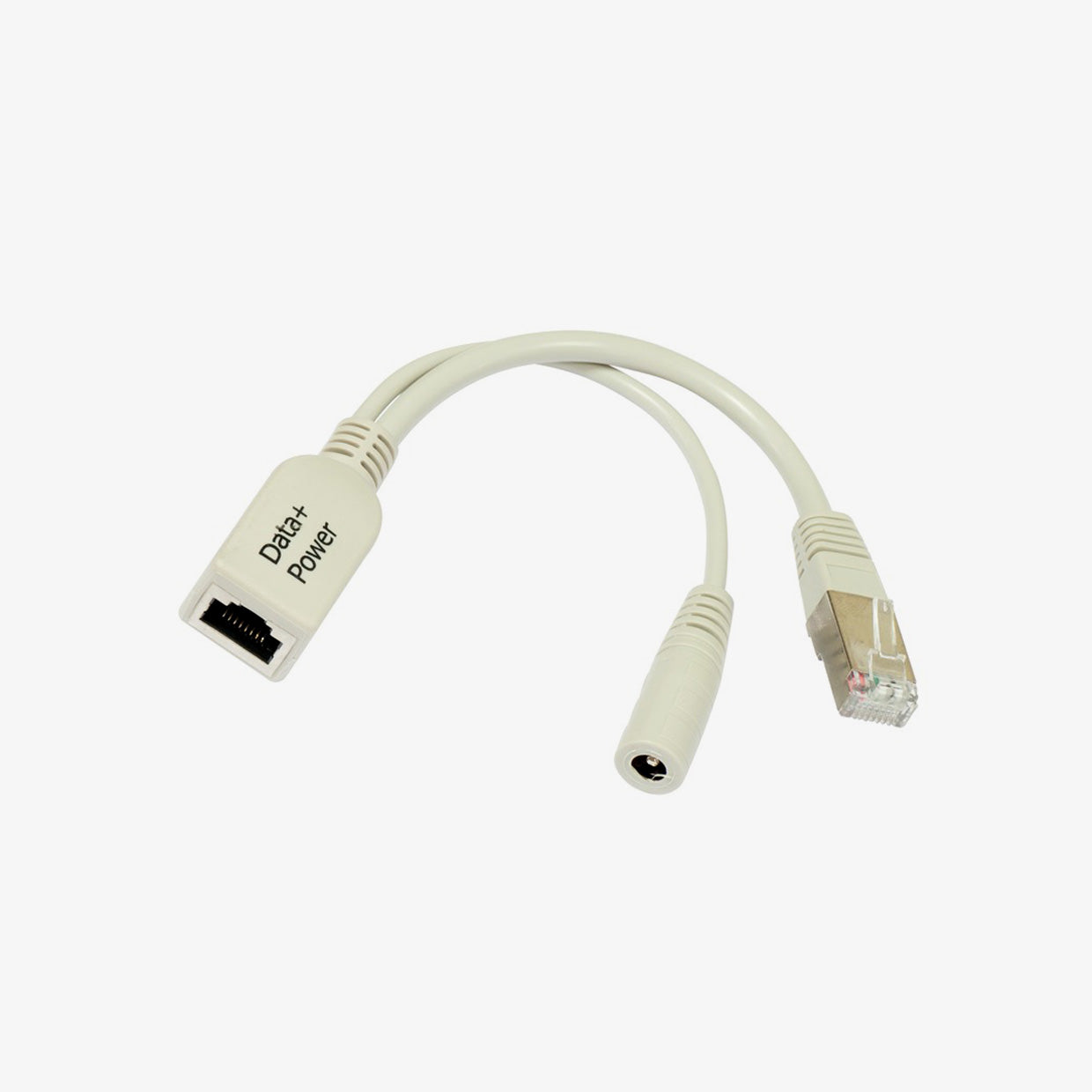

Parts Included24V 0.38A power adapter, Metal rings (two), PoE injector, K-LHG kit
