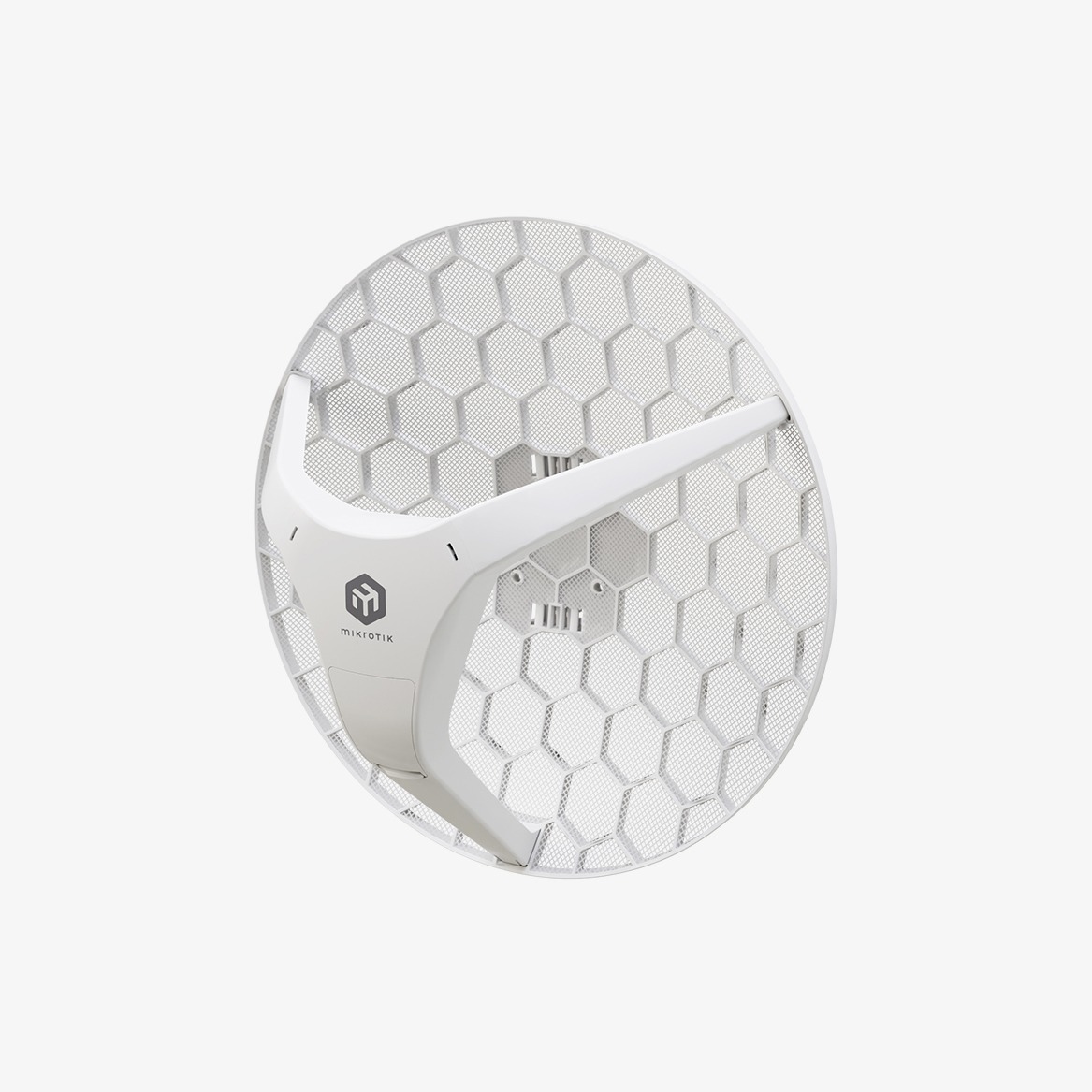

MikroTik LHG 5 ax

The MikroTik LHG 5 ax is a long‑range outdoor Wi‑Fi 6 CPE featuring a compact, rugged IP54‑rated design and a powerful integrated 24.5 dBi directional antenna, ideal for point‑to‑point links up to 20 km. Powered by a dual‑core ARM IPQ‑5010 CPU (800 MHz) with 256 MB RAM and 128 MB NAND storage, it runs RouterOS v7 at License Level 3. The 802.11a/n/ac/ax wireless supports up to 1200 Mbps and WPA3 encryption). PoE‑IN (12–28 V passive) supplies up to 5 W with passive cooling. A single Gigabit Ethernet port and CPU temperature monitoring ensure reliable outdoor deployment from ‑40 °C to 70 °C. Each unit includes adapter, injector, hose clamp, and K‑LHG kit.

10 people are viewing this product

Description

Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: it’s at the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.

The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

LHG 5 ax is compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios. The XL version (27 dBi) is also available if you need a longer distance!

Specifications

ModelLHG 5 ax
Product codeLHG-5axD
ArchitectureARM 64bit
CPUIPQ-5010
CPU core count2
CPU nominal frequency800 MHz
RouterOS license3
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
Tested ambient temperature-40°C to 70°C
Powering
Number of DC inputs1 (PoE-IN)
Max power consumption5 W
Cooling typePassive
PoE inPassive PoE
PoE in input voltage12–28 V
Wireless Specifications (5 GHz)
Max data rate1200 Mbit/s
Number of chains2
Standards802.11a/n/ac/ax
Antenna gain24.5 dBi
Chip modelQCN-6102
Wi-Fi generationWi-Fi 6
Ethernet
10/100/1000 Ethernet ports1
Other
CPU temperature monitorYes
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS
IP rating54
