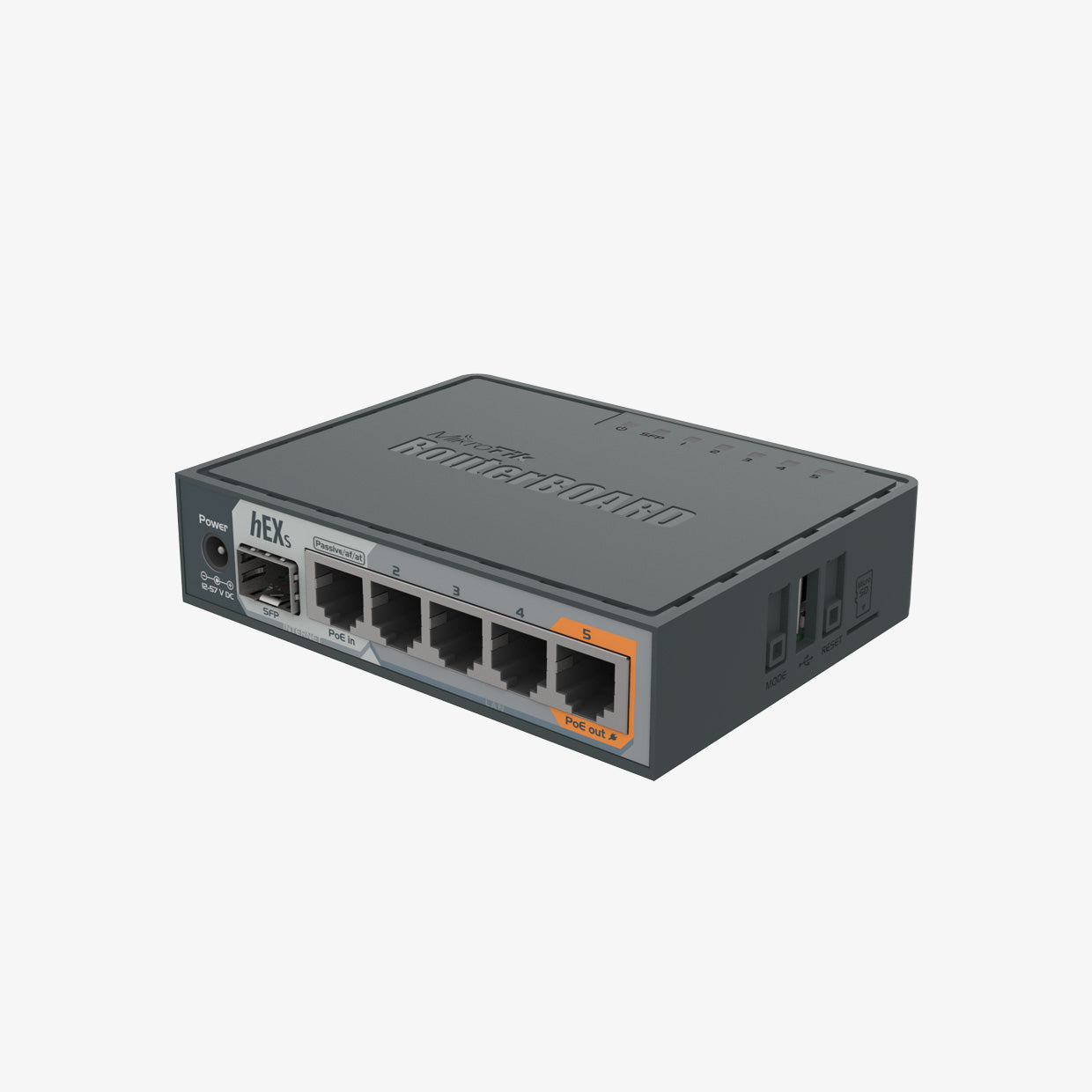

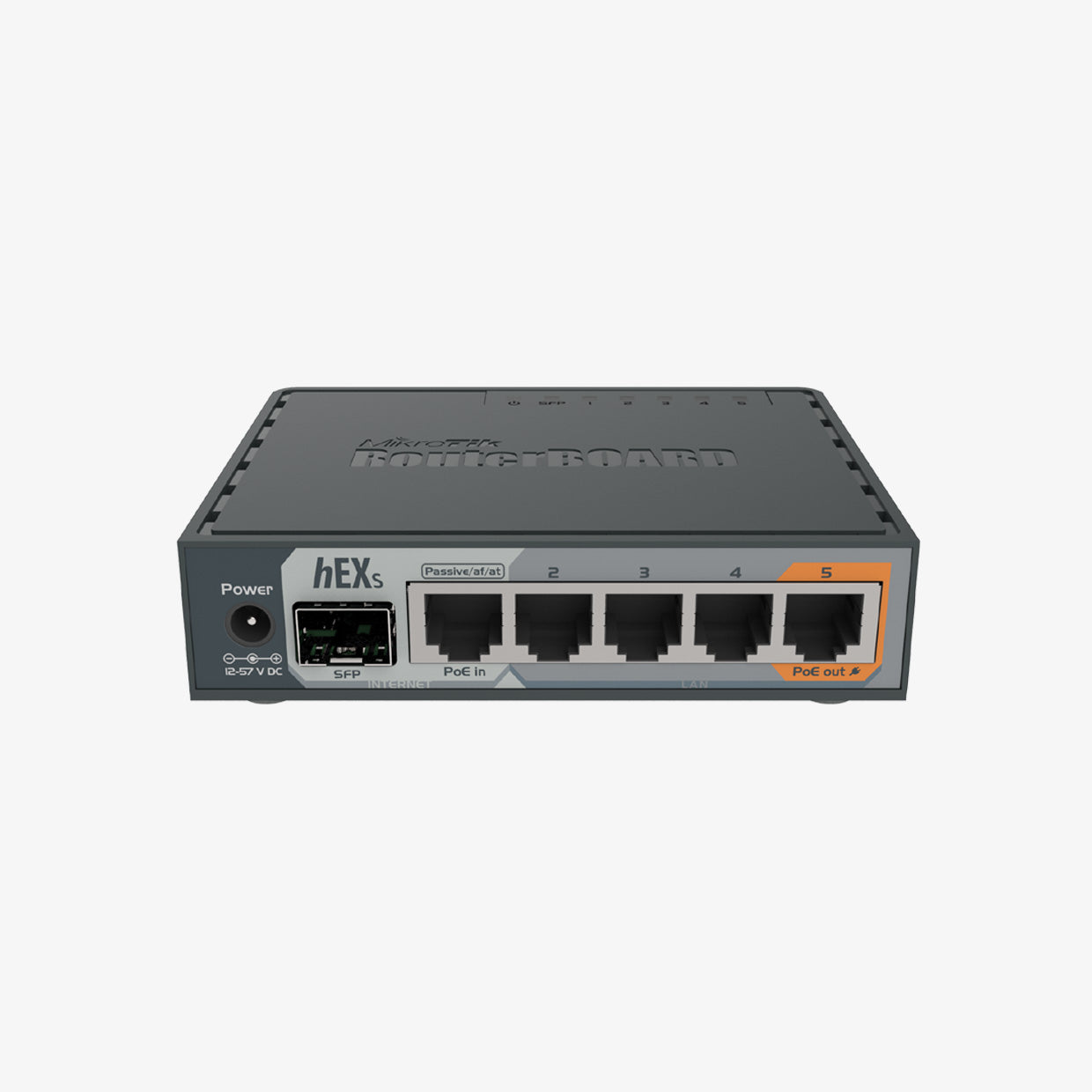

Mikrotik hEX S – RB760iGS

The MikroTik hEX S is a compact, powerful five-port Gigabit Ethernet router designed for locations where wireless connectivity isn’t needed. In addition to its Gigabit ports, it features an SFP port for fiber connections and PoE output on port 5. Powered by a dual-core 880 MHz CPU and 256 MB RAM, it supports advanced configurations through RouterOS. With IPsec hardware encryption (up to 470 Mbps), USB 2.0, microSD slot for improved storage, and The Dude server package support, it’s ideal for secure, efficient networking in small setups.

Description

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specification

Product codeRB760iGS
ArchitectureMMIPS
CPUMT7621A
CPU core count2
CPU nominal frequency880 MHz
CPU Threads count4
Switch chip modelMT7621A
Dimensions113 x 89 x 28 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100,000 hours at 25°C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Powering
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption24 W
Max power consumption without attachments6 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage12-57 V
PoE-out
PoE-out portsEther5
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)500 mA
Max out per port output (input 30-57 V)500 mA
Max total out (A)500 mA
Ethernet
10/100/1000 Ethernet ports5
Fiber
SFP ports1
Peripherals
Memory card typemicroSD
Memory Cards1
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1
Other
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes
BeeperYes
