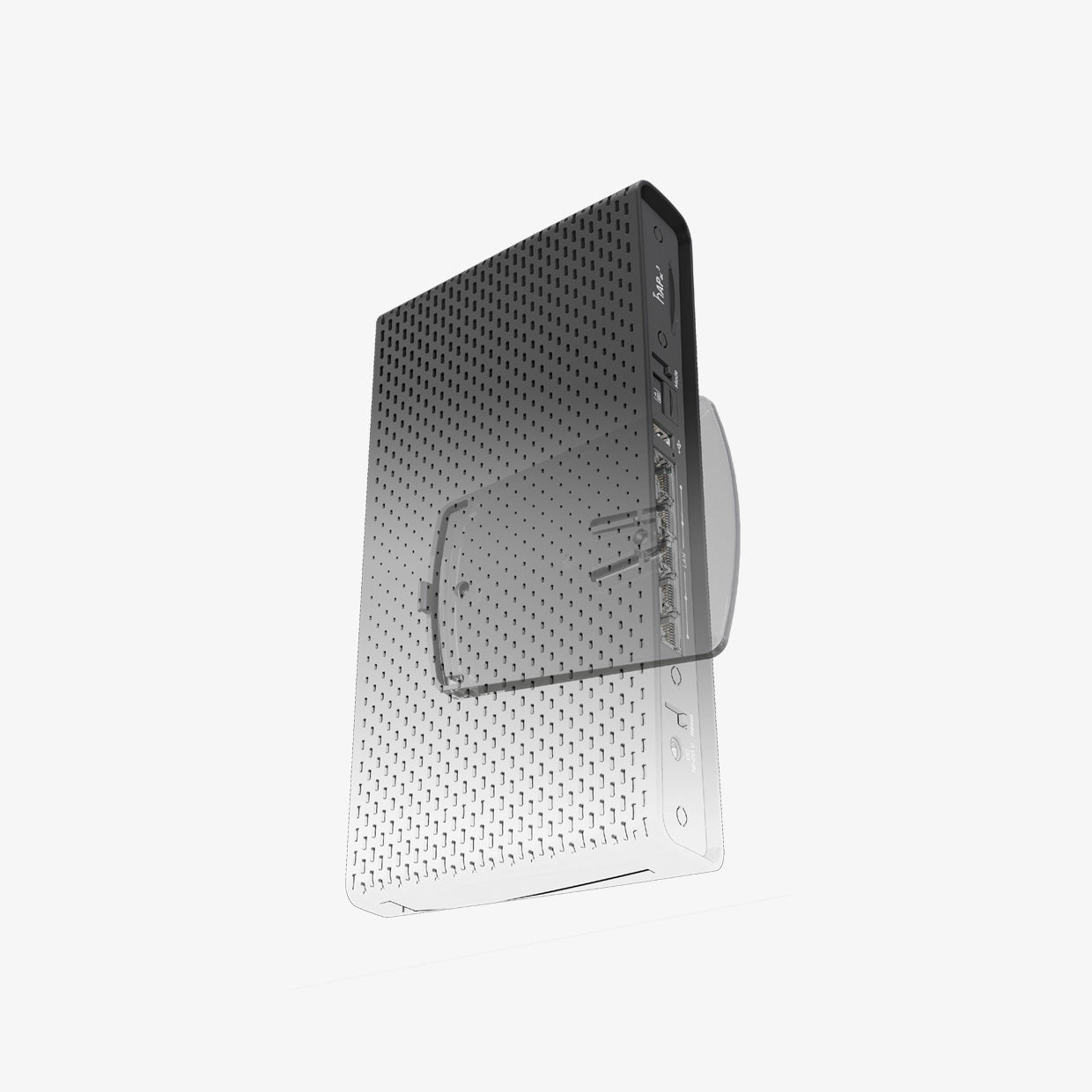

Hap ac3 lte6 kit 1

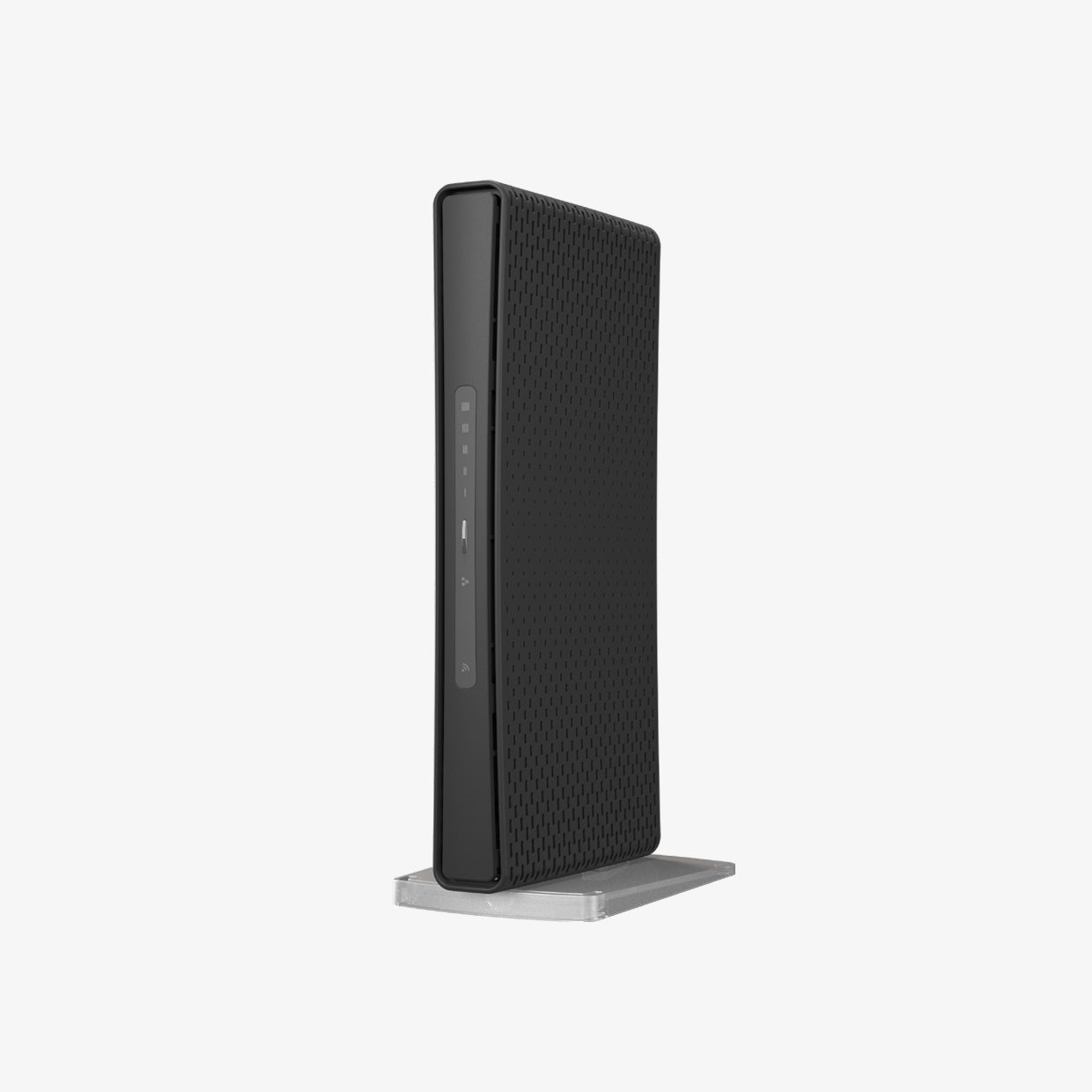

Hap ac3 lte6 kit

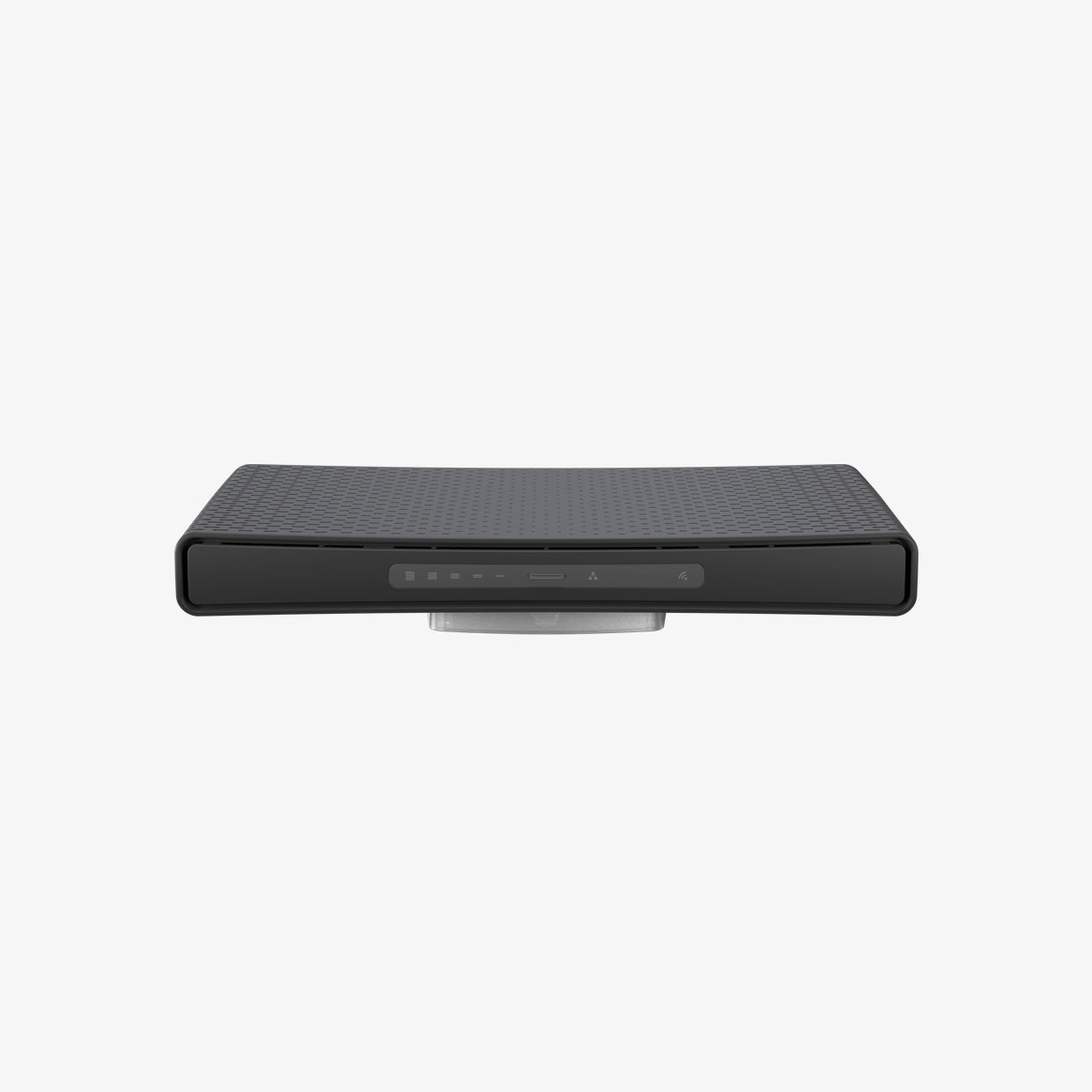

Hap ac3 lte6 kit 3
Hap ac3 lte6 kit 4

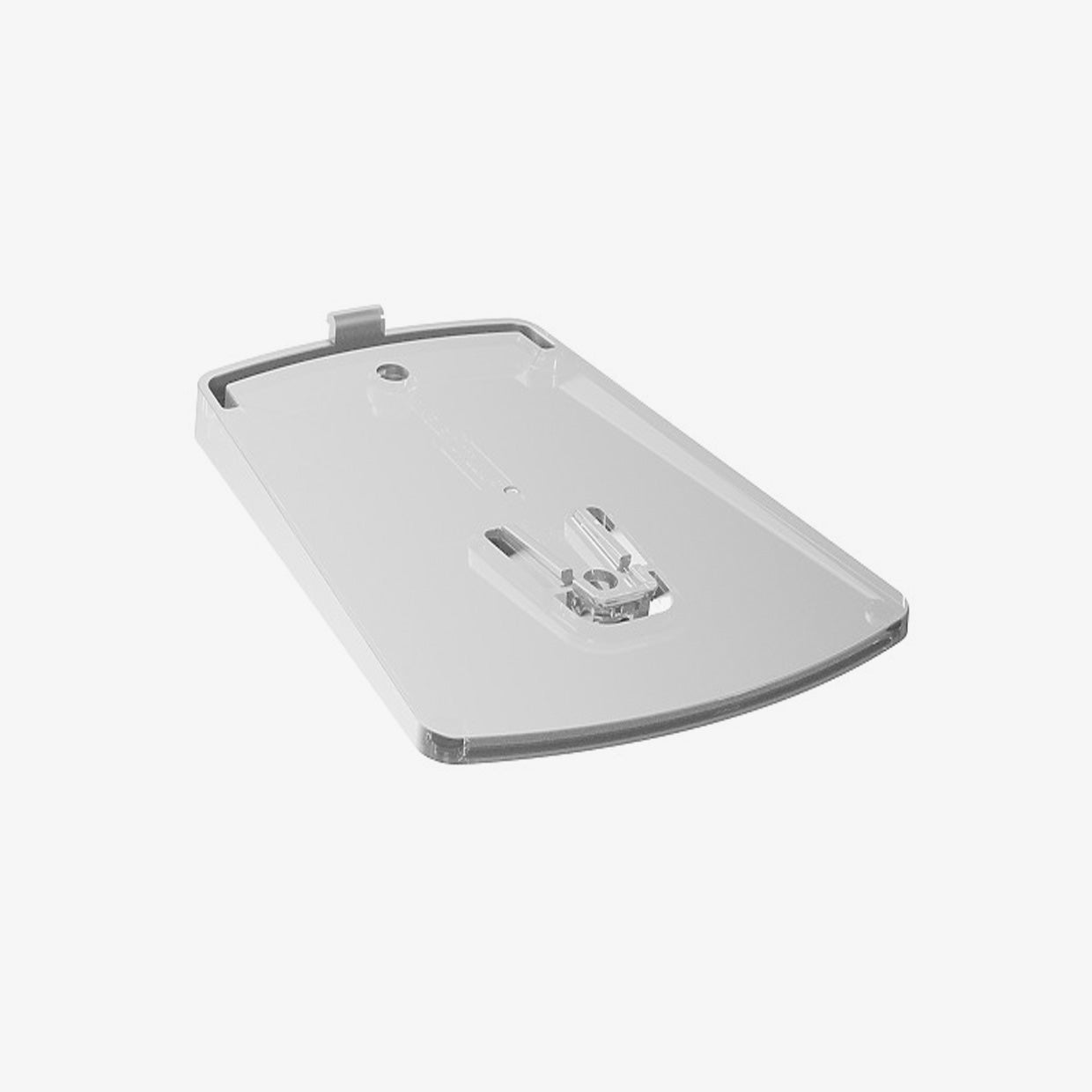

Plate

MikroTik hAP ac3 LTE6 Kit (Simbased)

The hAP ac³ LTE6 kit is the ideal wireless dual-band router for homes requiring reliable connectivity. With 5 Gigabit Ethernet ports, dual-band 2.4/5 GHz wireless, and LTE support, it delivers fast, stable internet to all your devices. The built-in CAT6 LTE modem enables speeds of up to 300 Mbps through carrier aggregation, optimizing performance even in crowded LTE areas. Powered by a quad-core CPU and 256 MB of RAM, it ensures smooth operation for even the most demanding households. Additionally, its versatile design allows vertical, horizontal, or wall-mounted setups. With strong wireless coverage and advanced features, the hAP ac³ LTE6 kit provides a future-proof solution for home networking.

Request a Quote
8 people are viewing this product

Description

hAP ac³ LTE6 kit features our newest CAT6 LTE modem. It enables carrier aggregation, allowing you to use the LTE connection with speed up to 300 Mbps. It works by using multiple LTE bands at the same time. A huge advantage when there are a lot of LTE users in the area. Depending on the service provider, we have seen Internet speed doubling after switching to CAT6.

With 5 Gigabit Ethernet ports, 256 MB of RAM and quadcore CPU, hAP ac³ LTE6 kit can satisfy even the biggest and most demanding households. There is a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set is also included.

Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.

Specifications

Product code RBD53GR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 251 x 129 x 39 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200,000 hours at 25C
Tested ambient temperature -30°C to 60°C
IPsec hardware acceleration Yes
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 20 W
Max power consumption without attachments 16 W
Cooling type Passive
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC 35666210
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
10/100/1000 Ethernet ports 5
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Mode button Yes
Certification CE, FCC, IC, EAC, ROHS
IP IP20
Parts Included K-47 wall mount set, Base leg, 24V 1.2A power supply (straight plug)
