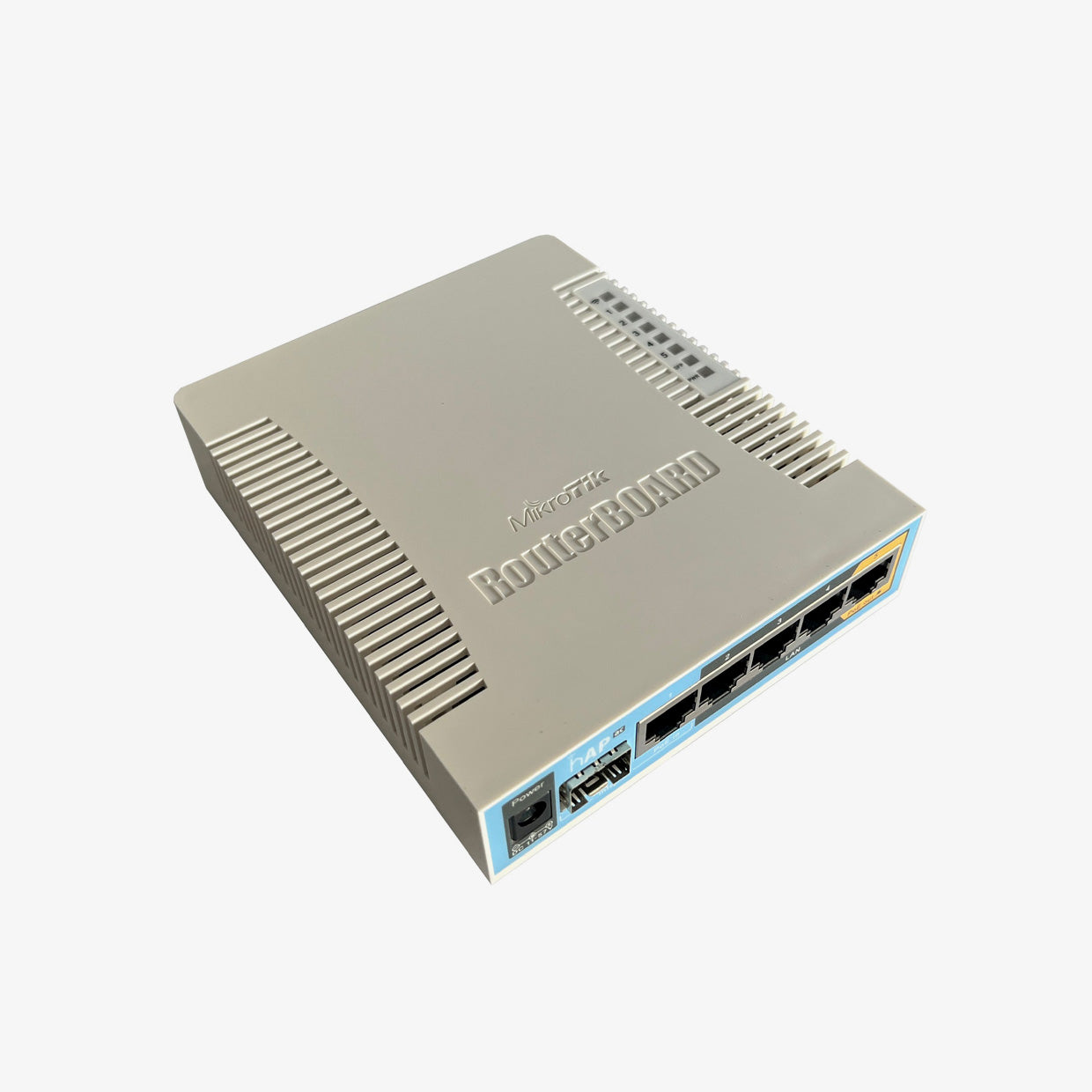

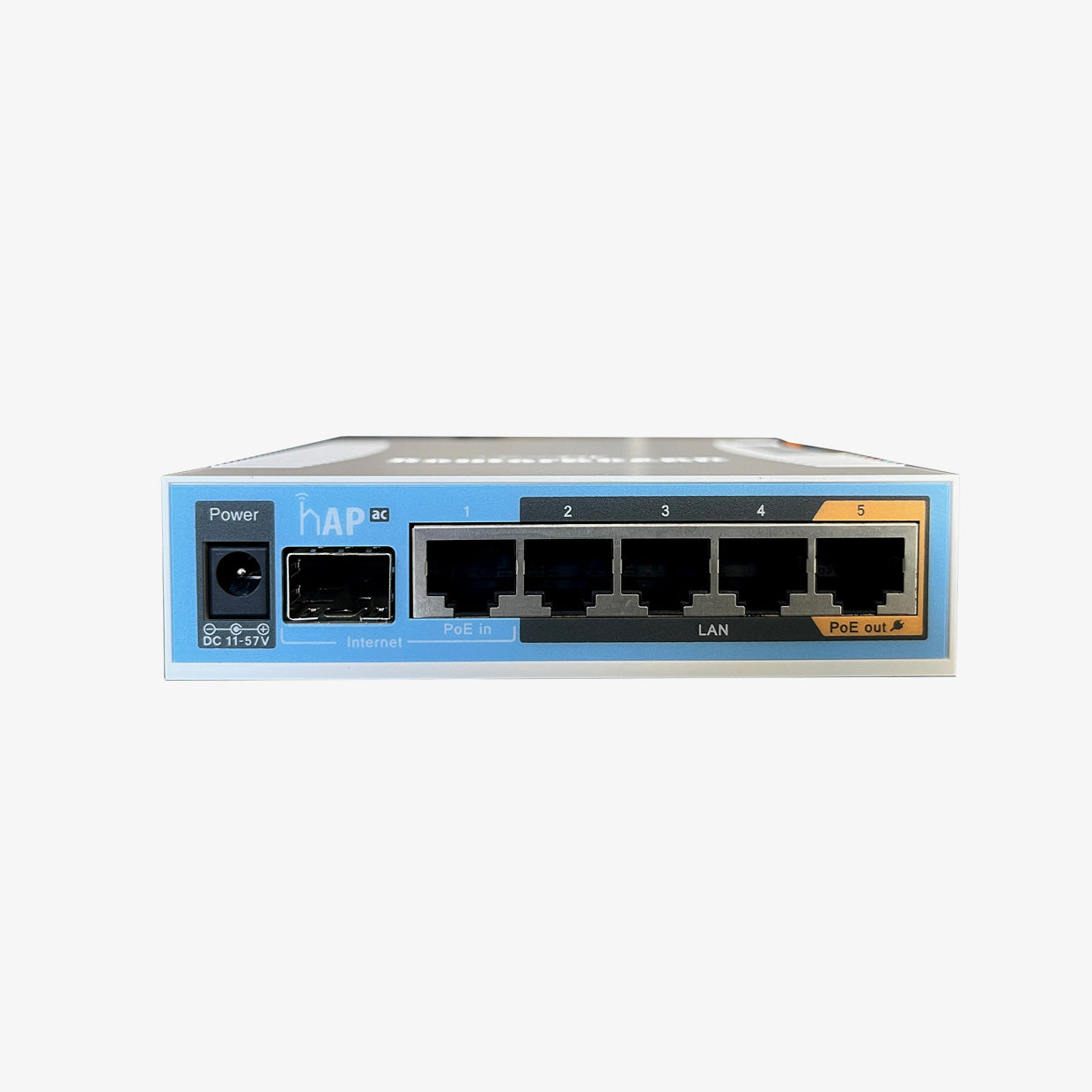

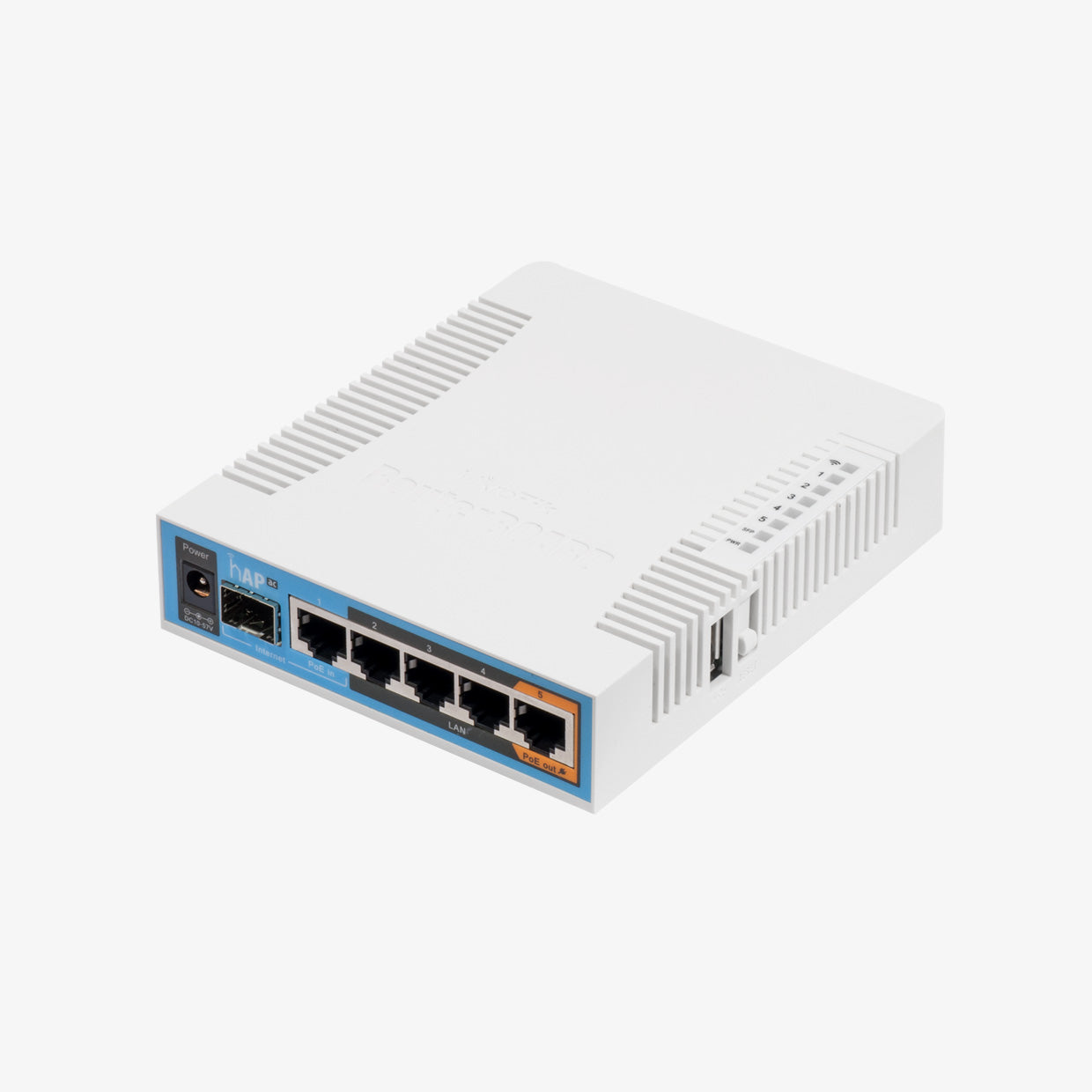

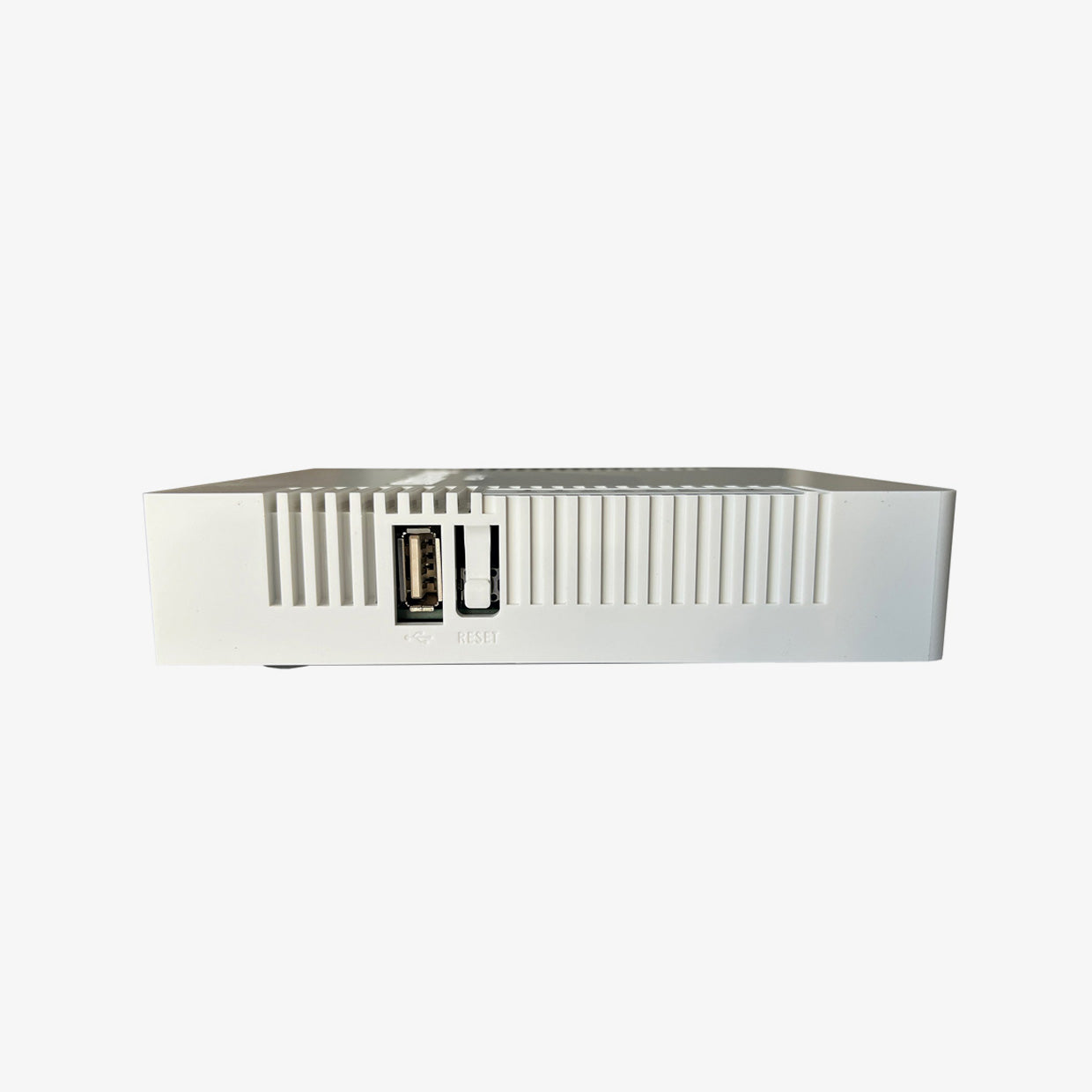

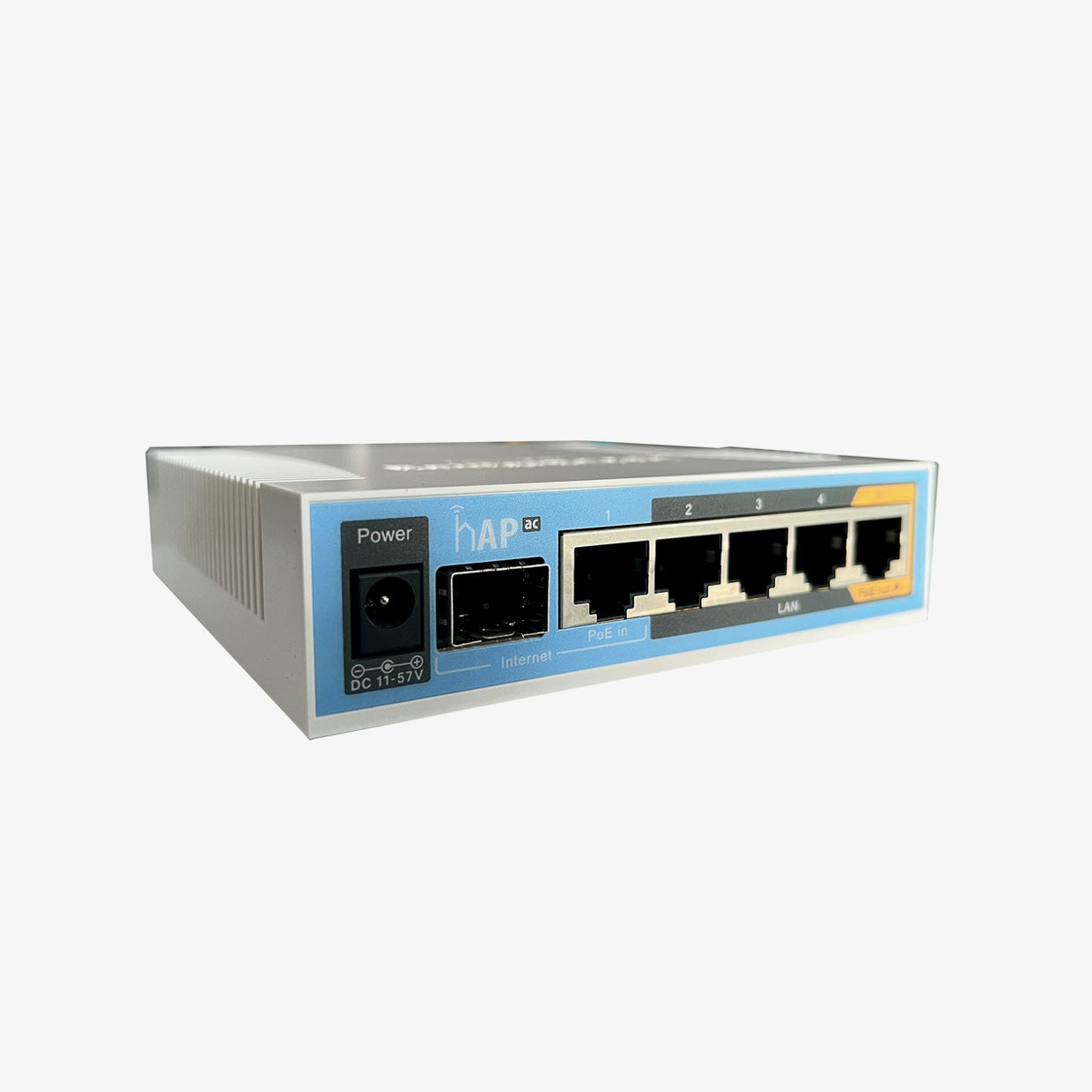

MikroTik hAP ac

The MikroTik hAP ac is a versatile dual-band wireless access point, perfect for home or office environments. It supports both 2.4GHz and 5GHz bands with 802.11ac technology for high-speed wireless connectivity. Equipped with five Gigabit Ethernet ports, PoE-out on port 5, and an SFP cage for optical connections, it ensures flexible networking options. The device also features omnidirectional antennas for excellent coverage and a USB port for 3G/4G support or extra storage. Ideal for maintaining compatibility with legacy devices while providing modern, high-speed wireless performance.

Description

Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage.

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.

The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.

Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.

Specifications

Product codeRB962UiGS-5HacT2HnT
ArchitectureMIPSBE
CPUQCA9558
CPU core count1
CPU nominal frequency720 MHz
Switch chip modelQCA8337
Dimensions114 x 137 x 29 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25°C
Tested ambient temperature-40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate450 Mbit/s
Wireless 2.4 GHz number of chains3
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2.5
Wireless 2.4 GHz chip modelQCA9558
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate1300 Mbit/s
Wireless 5 GHz number of chains3
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2
Wireless 5 GHz chip modelQCA9880
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1750
Ethernet
10/100/1000 Ethernet ports5
Fiber
SFP ports1
Peripherals
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1
Powering
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage11-57 V
Max power consumption17 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage11-57 V
PoE-out
PoE-out portsEther5
PoE outPassive PoE
Max out per port output (input 18-30 V)700 mA
Max out per port output (input 30-57 V)350 mA
Max total out (A)700 mA
Parts Included24V 1.2A power adapter
