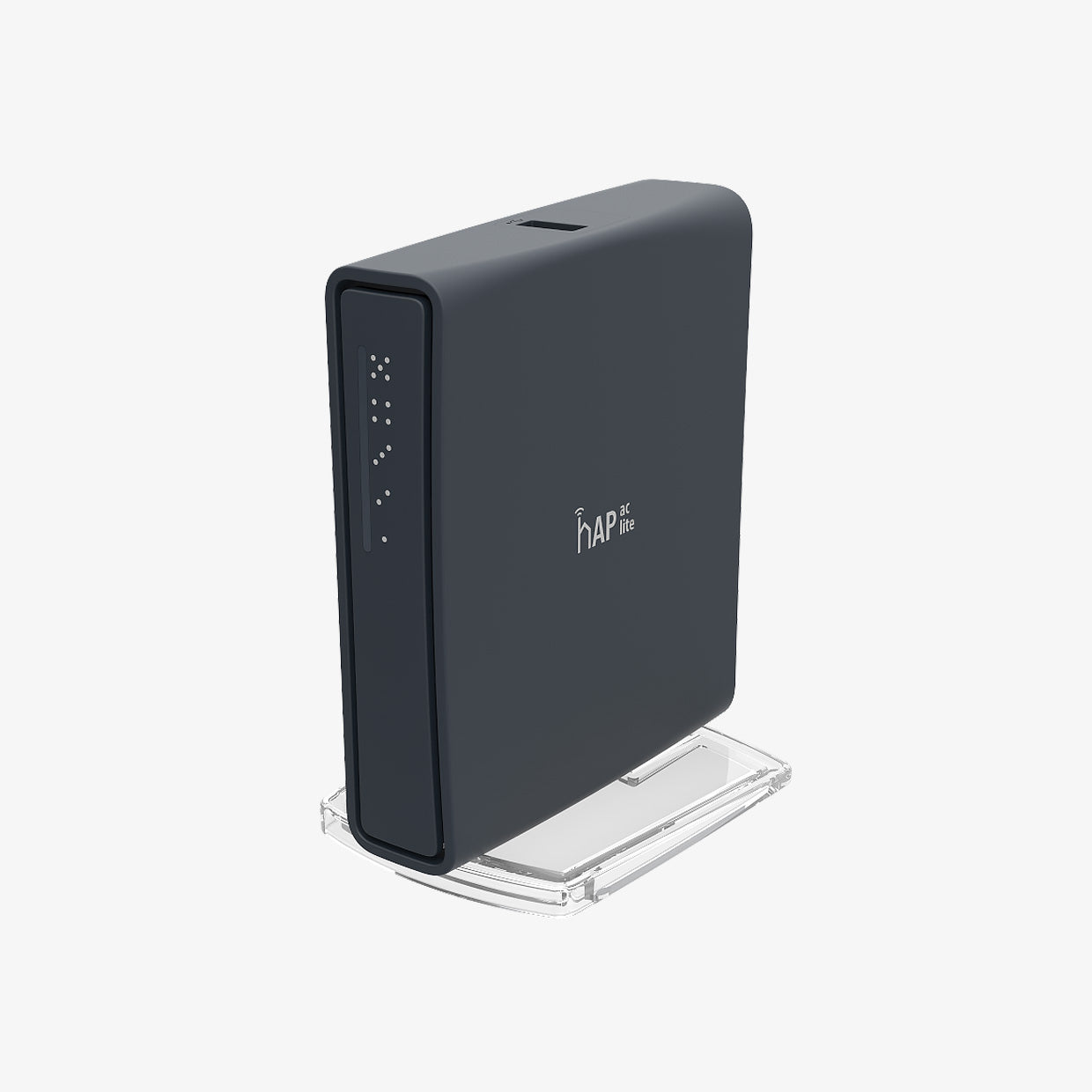

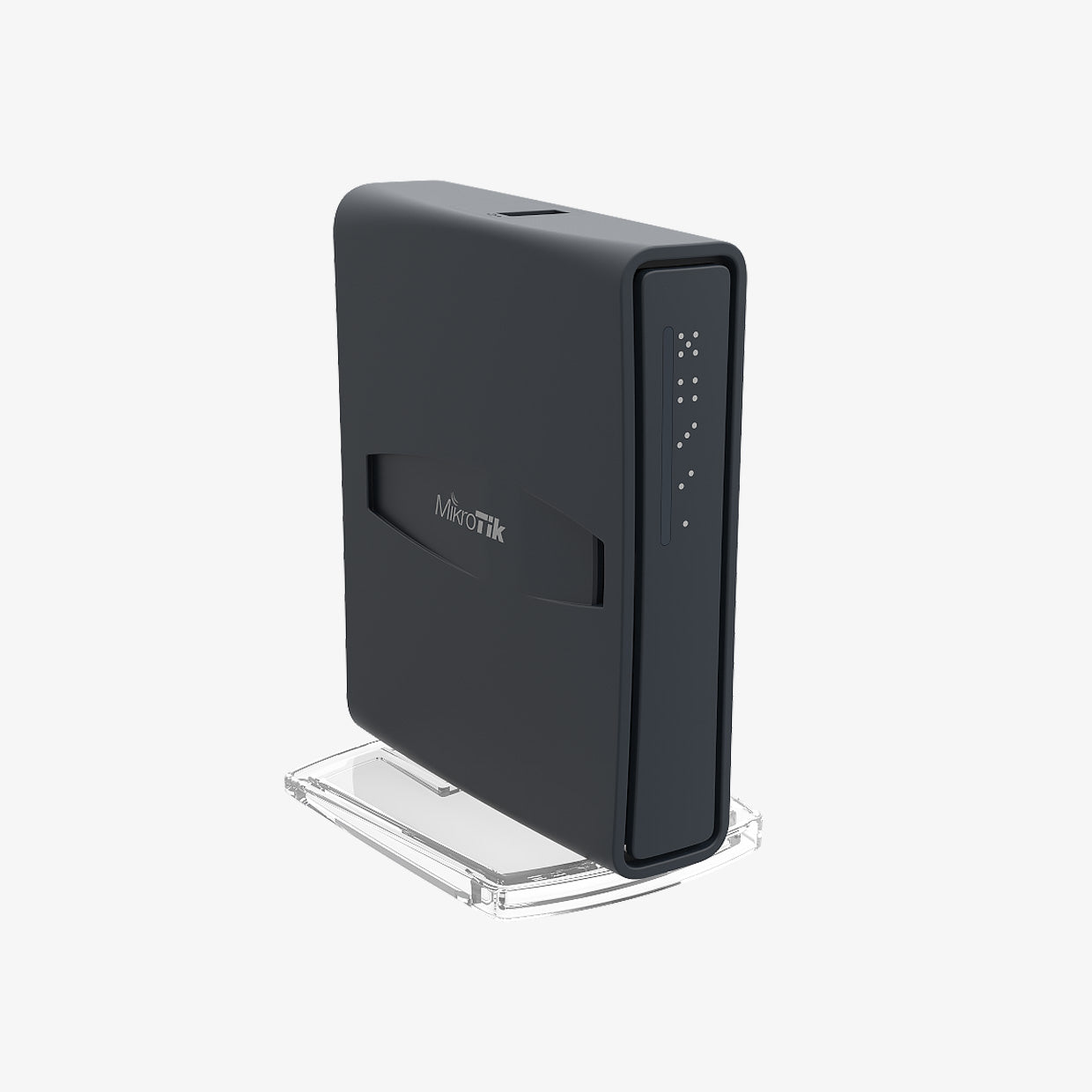

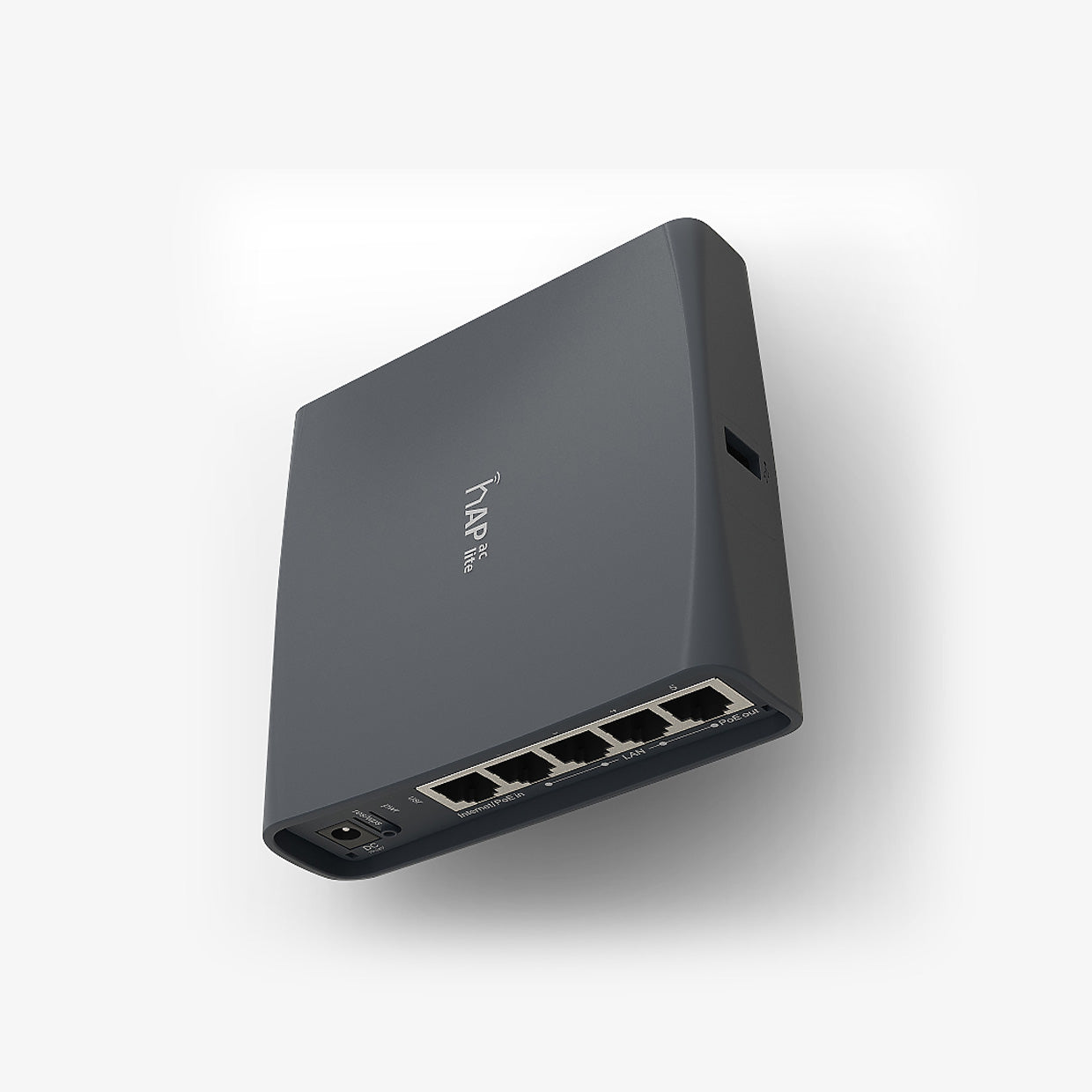

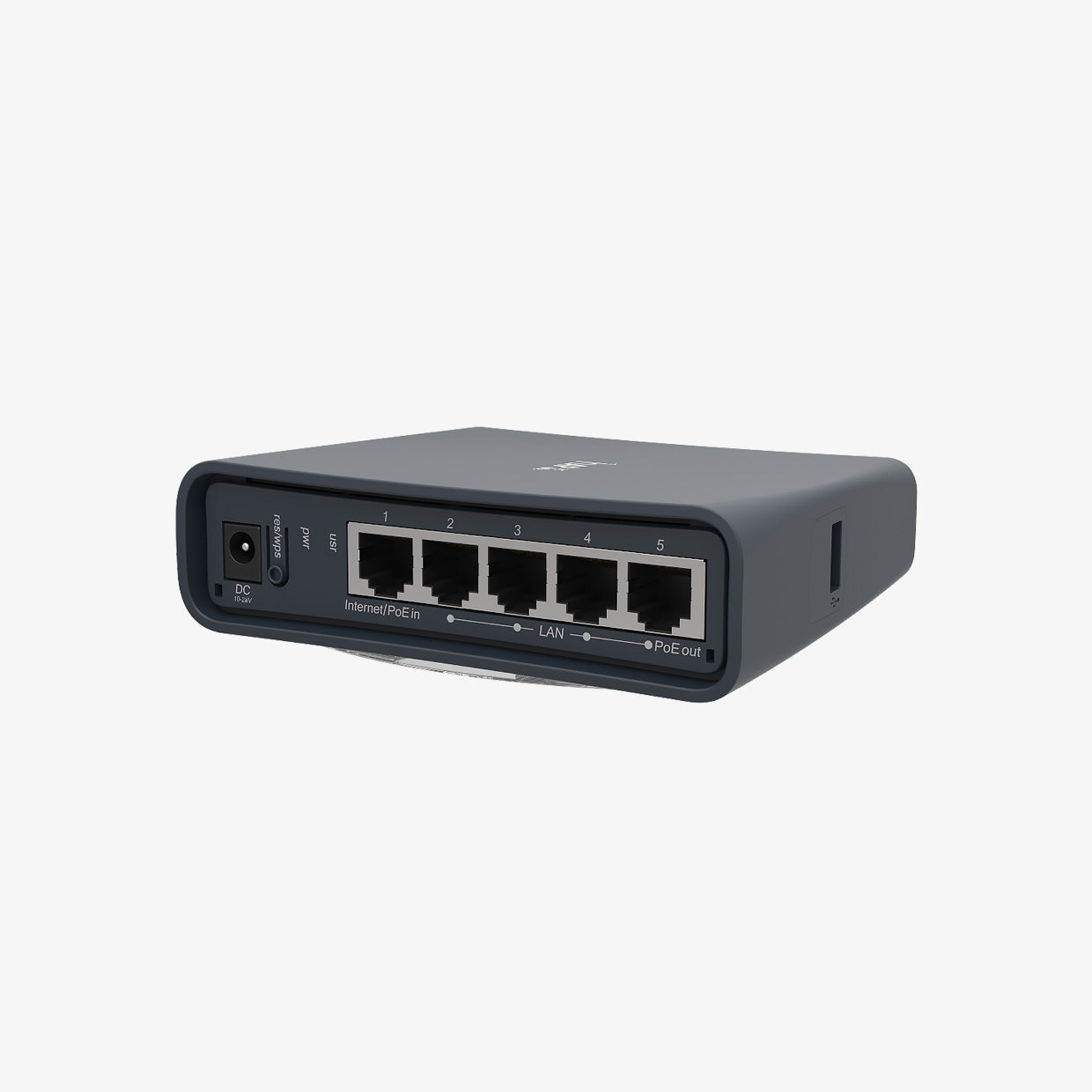

MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC
MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC - Image 2
MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC - Image 3
MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC - Image 4
MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC - Image 5
MikroTik hAP ac lite TC - RB952Ui-5ac2nD-TC - Image 6

MikroTik hAP ac lite TC – RB952Ui-5ac2nD-TC

The MikroTik hAP ac lite TC is a dual-concurrent access point providing simultaneous WiFi coverage on both 2.4GHz and 5GHz frequencies. It features a 650MHz CPU, 64MB RAM, and five 10/100Mbps Ethernet ports, with PoE-out on port 5 for powering other devices. Supporting 802.11ac for high-speed 5GHz and 802.11b/g/n for 2.4GHz, it’s ideal for versatile wireless networking. A USB port enables 3G/4G modem support. The new universal case design allows for both horizontal and vertical positioning, and a wall-mounting kit is included for flexible installation.

Request a Trade Quote

Description

Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case.

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Product codeRB952Ui-5ac2nD-TC
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Switch chip modelQCA9531
Dimensions34 x 119 x 98mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100,000 hours at 25°C
Tested ambient temperature-30°C to 70°C
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9531
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate433 Mbit/s
Wireless 5 GHz number of chains1
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2
Wireless 5 GHz chip modelQCA9887
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC750
10/100 Ethernet ports5
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage10-28 V
Max power consumption20 W
Max power consumption without attachments8 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage10-28 V
PoE-out portsEther5
PoE outPassive PoE
Max out per port output (input 18-30 V)500 mA
Max total out (A)500 mA
CertificationCE, FCC, IC, EAC, ROHS
IPIP20
Parts Included24V 1.2A power adapter, K-47 wall mount set
