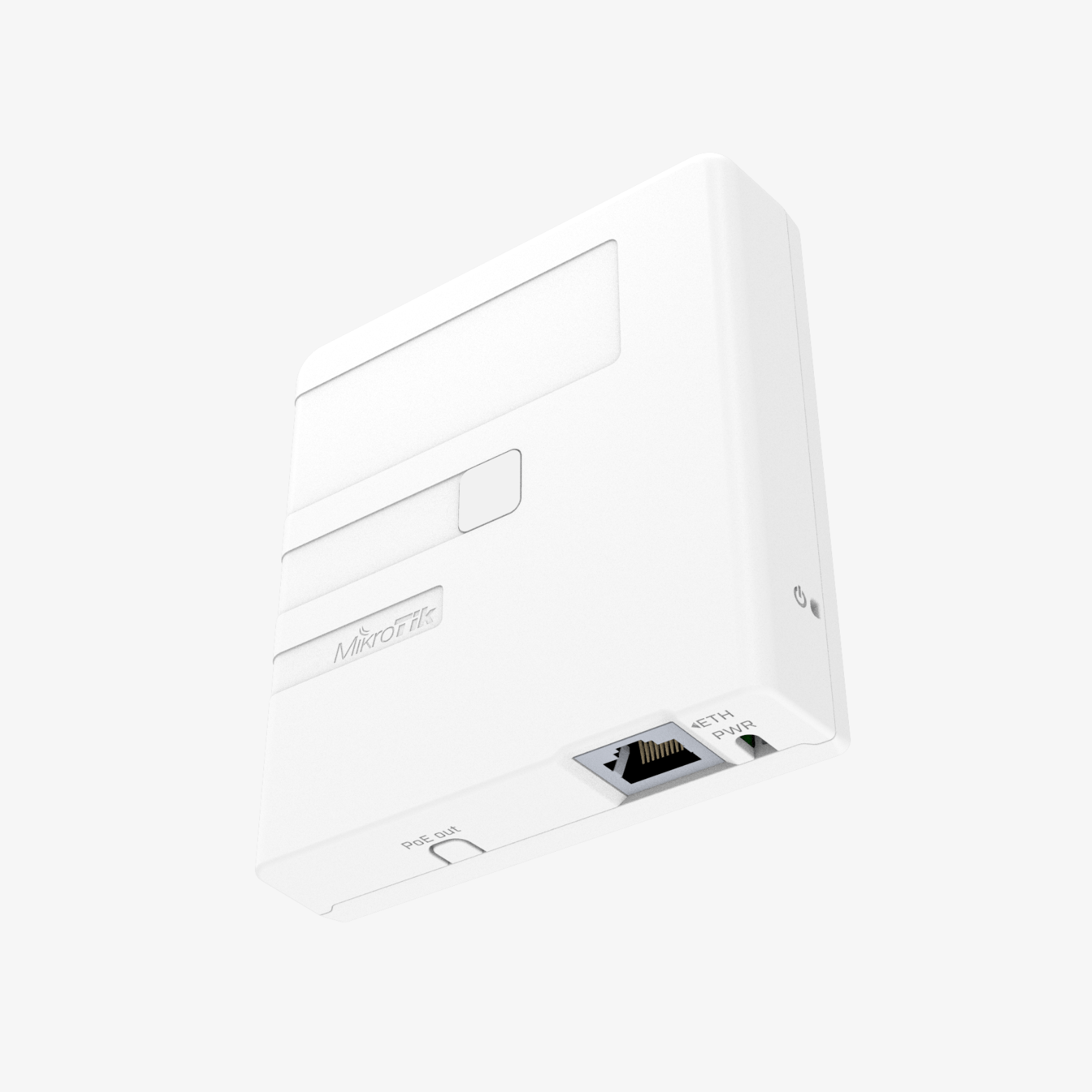

MikroTik GPEN11 — Wall-Mount Passive PoE Injector for Gigabit Ethernet

The MikroTik GPEN11 is a compact, wall-mountable passive PoE injector designed for Gigabit Ethernet networks. It allows network devices to receive both data and power through a single Ethernet cable, simplifying installation for home and small office setups. The device supports 12–57 V input, passive PoE output, and delivers reliable, low-power operation in a silent, fanless design. With its compact IP20-rated housing, the GPEN11 is a durable and cost-effective solution for powering MikroTik routers and switches.

  • Data Sheet
  • User Manual
Request a Quote
10 people are viewing this product

Description

The MikroTik GPEN11 is part of MikroTik’s GPEN (Gigabit Passive Ethernet Network) concept, offering a simple and affordable alternative to fiber-based GPON solutions. Designed for wall-mounting, it enables network devices such as routers, switches, and APs to receive power and data over a single Ethernet cable, reducing cabling complexity and installation costs.

The GPEN11 accepts 12–57 V DC input and provides passive PoE output over Ethernet, capable of delivering up to 2 A to compatible devices. Its compact, fanless design ensures silent operation, making it suitable for indoor deployments in homes, small offices, or ISP setups. With IP20 protection, wall-mount capability, and an integrated ISP sticker area, it simplifies device management and labeling for service providers.

This passive PoE injector is ideal for scenarios where cost-effective, reliable power delivery over Ethernet is needed without compromising network performance or installation simplicity.

Application

Home Wi-Fi, Small offices, ISP deployments, Device powering via Ethernet

Key Features

  • ✅ Wall-mountable passive PoE injector

  • ✅ Supports 12–57 V DC input for flexible powering

  • ✅ 1 Ethernet port with PoE output (up to 2 A)

  • ✅ Fanless, silent operation for indoor use

  • ✅ Compact dimensions (92 × 104 × 24 mm)

  • ✅ IP20-rated housing for durability

  • ✅ ISP sticker area for labeling

  • ✅ Easy Gigabit Ethernet integration with MikroTik devices

Specifications

Specification Details
Product code GPEN11
Tested ambient temperature -40°C to +70°C
Power inputs 1 × DC jack
DC jack input voltage 12–57 V
Cooling type Passive
PoE-out ports Ether2
PoE out type Passive PoE
Low voltage PoE-out current limit 2 A
Max total PoE output 2 A
Ethernet ports 2 × 10/100/1000 Mbps
1G Ethernet ports with PoE-out 1
Certifications & Approvals CE, EAC, RoHS
