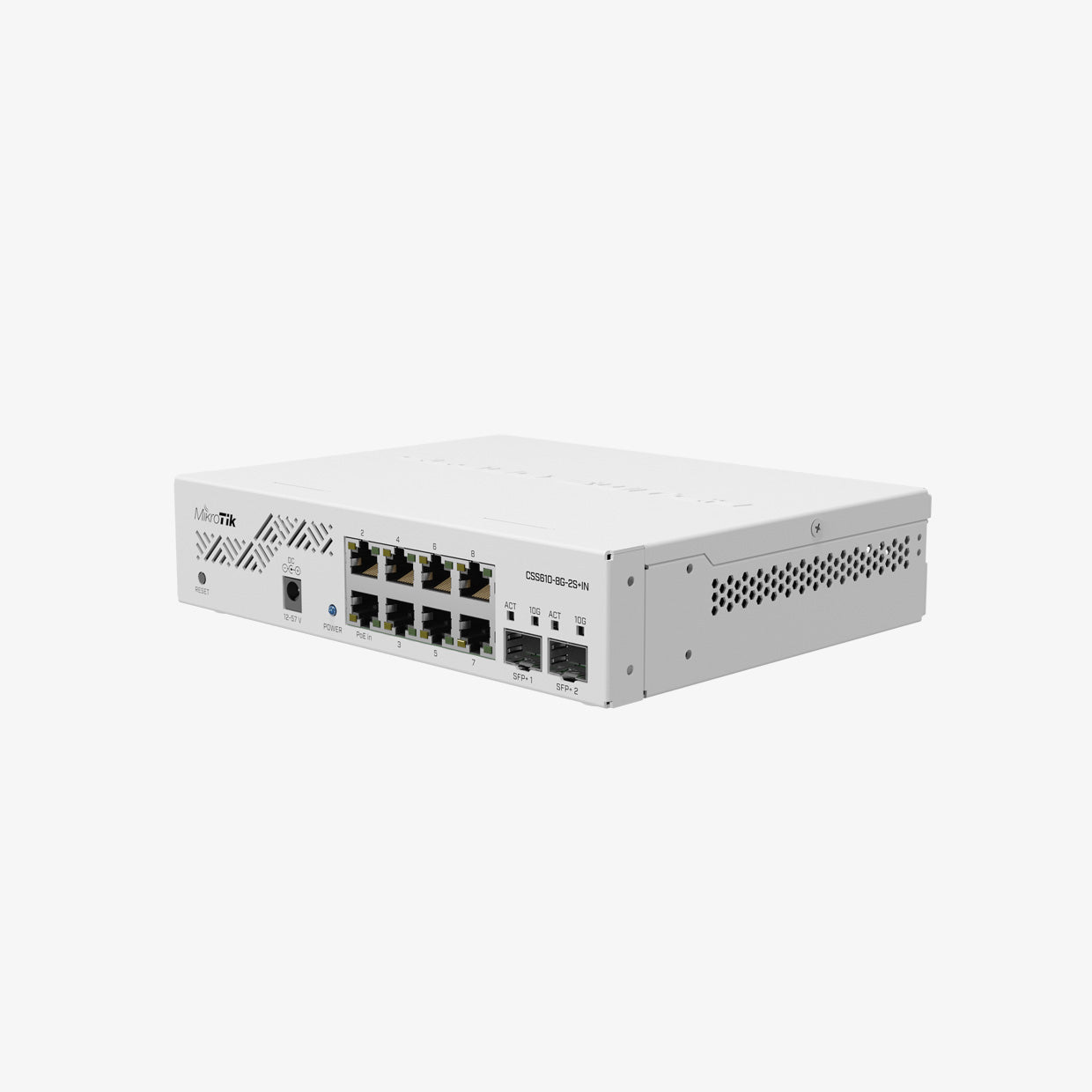

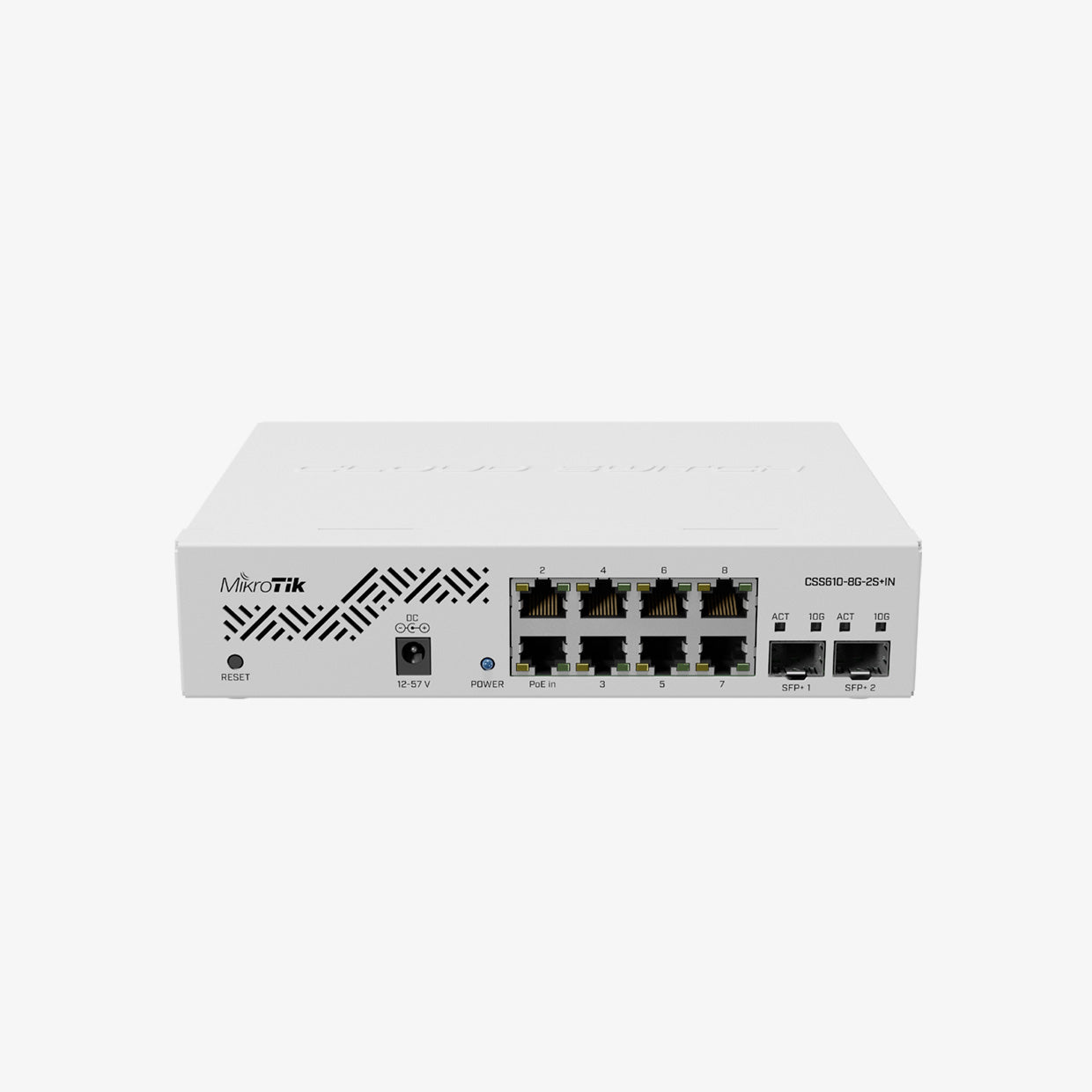

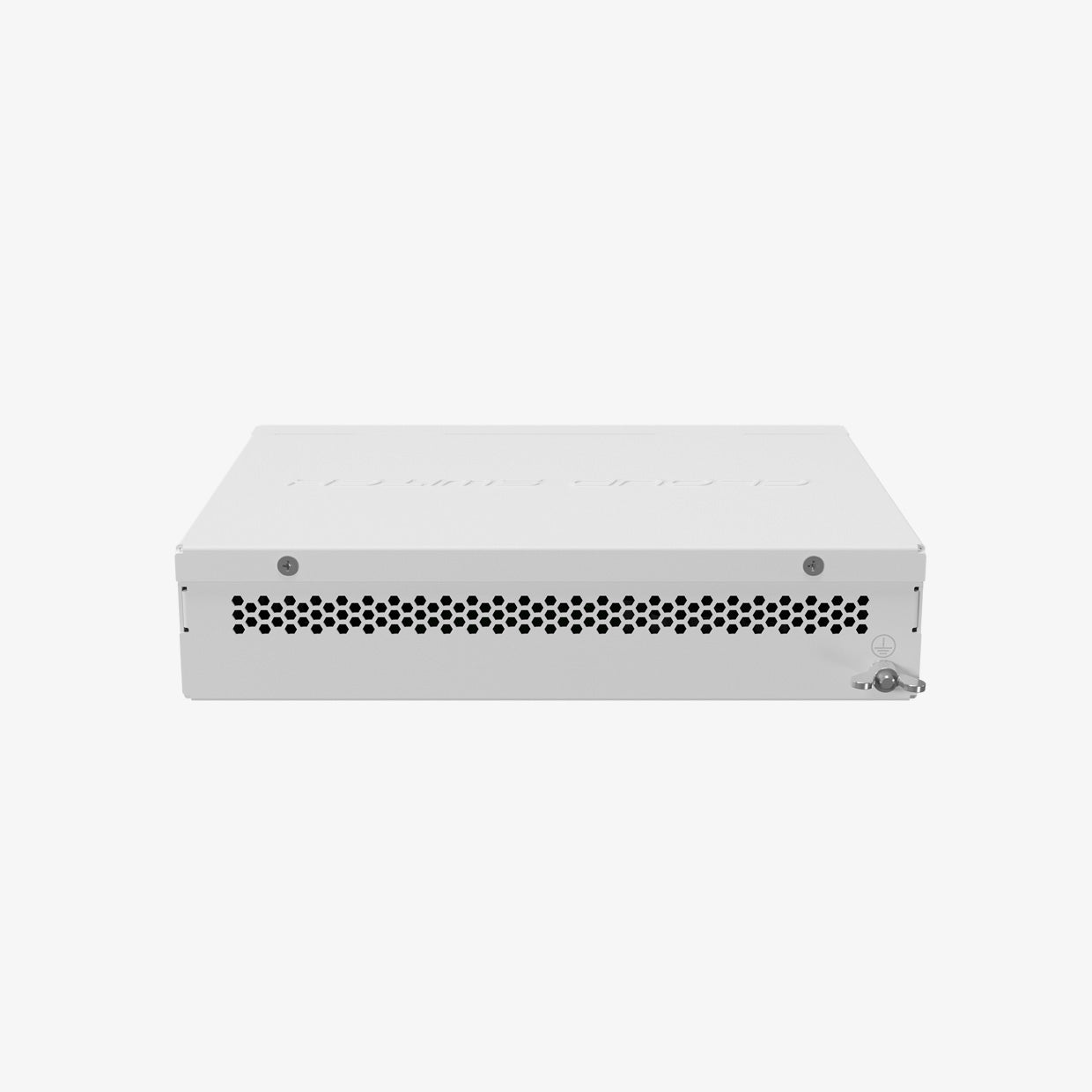

MikroTik CSS610-8G-2S+IN Cloud Managed Switch

The MikroTik Cloud Smart Switch 610-8G-2S+IN is a portable, powerful, and cost-effective solution with eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Designed for simplicity and efficiency, it runs on the lightweight SwOS, which is easily configurable through your web browser. This switch offers essential managed switch features, including port-to-port forwarding, broadcast storm control, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation, and the ability to adjust MAC and IP header fields, making it an ideal choice for versatile and affordable networking.

Description

Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this switch is an instant classic!

Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

SPECIFICATIONS:
Product codeCSS610-8G-2S+IN
Switch chip model88E6193X
Dimensions200 x 164 x 44 mm
Operating SystemSwitchOS Lite
Storage size64 KB
Storage typeFLASH
MTBFApproximately 200,000 hours at 25C
Tested ambient temperature-20°C to 60°C
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption11 W
Max power consumption without attachments5 W
Cooling typePassive
PoE inPassive PoE
PoE in input Voltage12-57 V
10/100/1000 Ethernet ports8
SFP+ ports2
CertificationCE, EAC, ROHS
IPIP20
Parts Included24V 0.8A power adapter, K-48 fastening set, Rack ears for CSS610-8G-2S+IN
