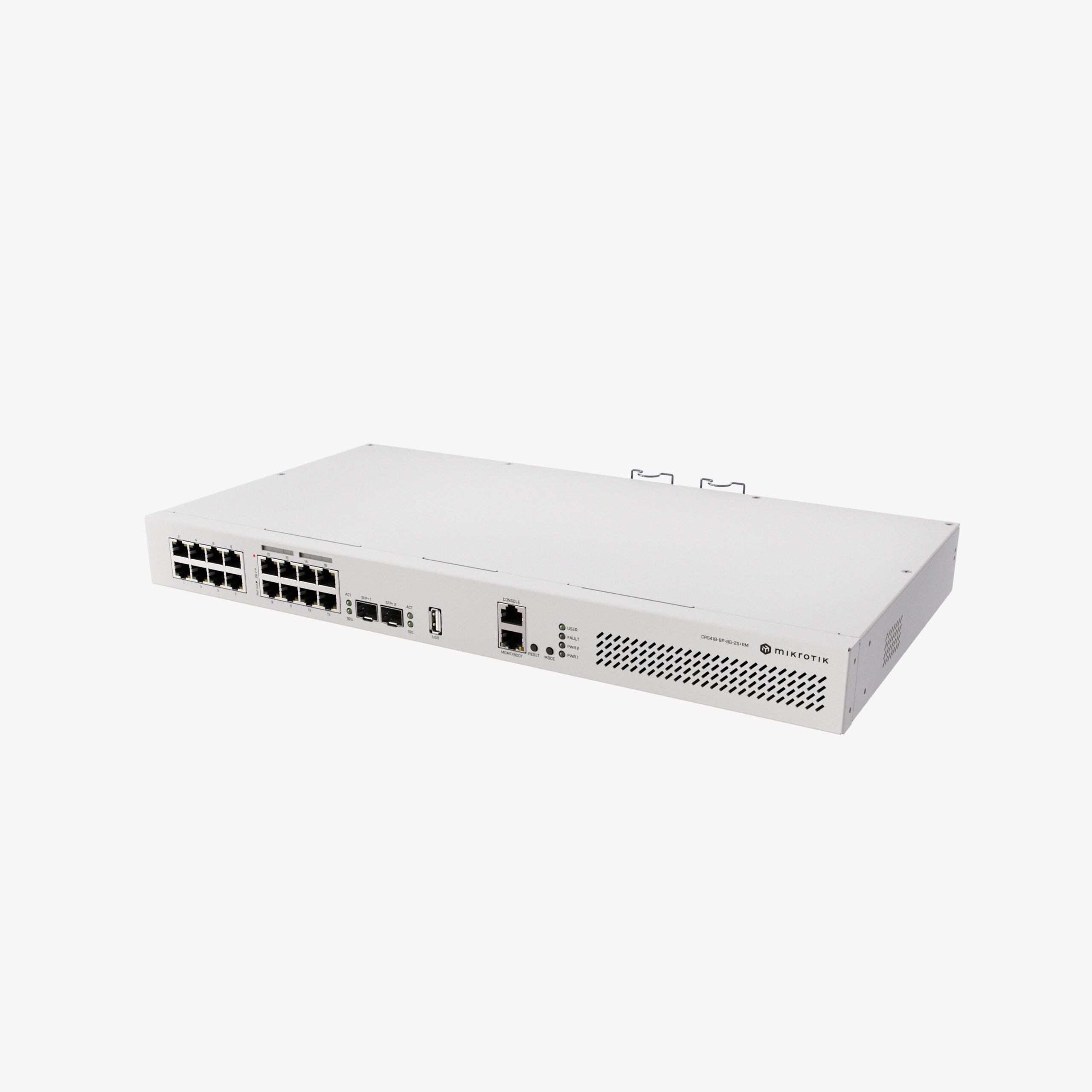

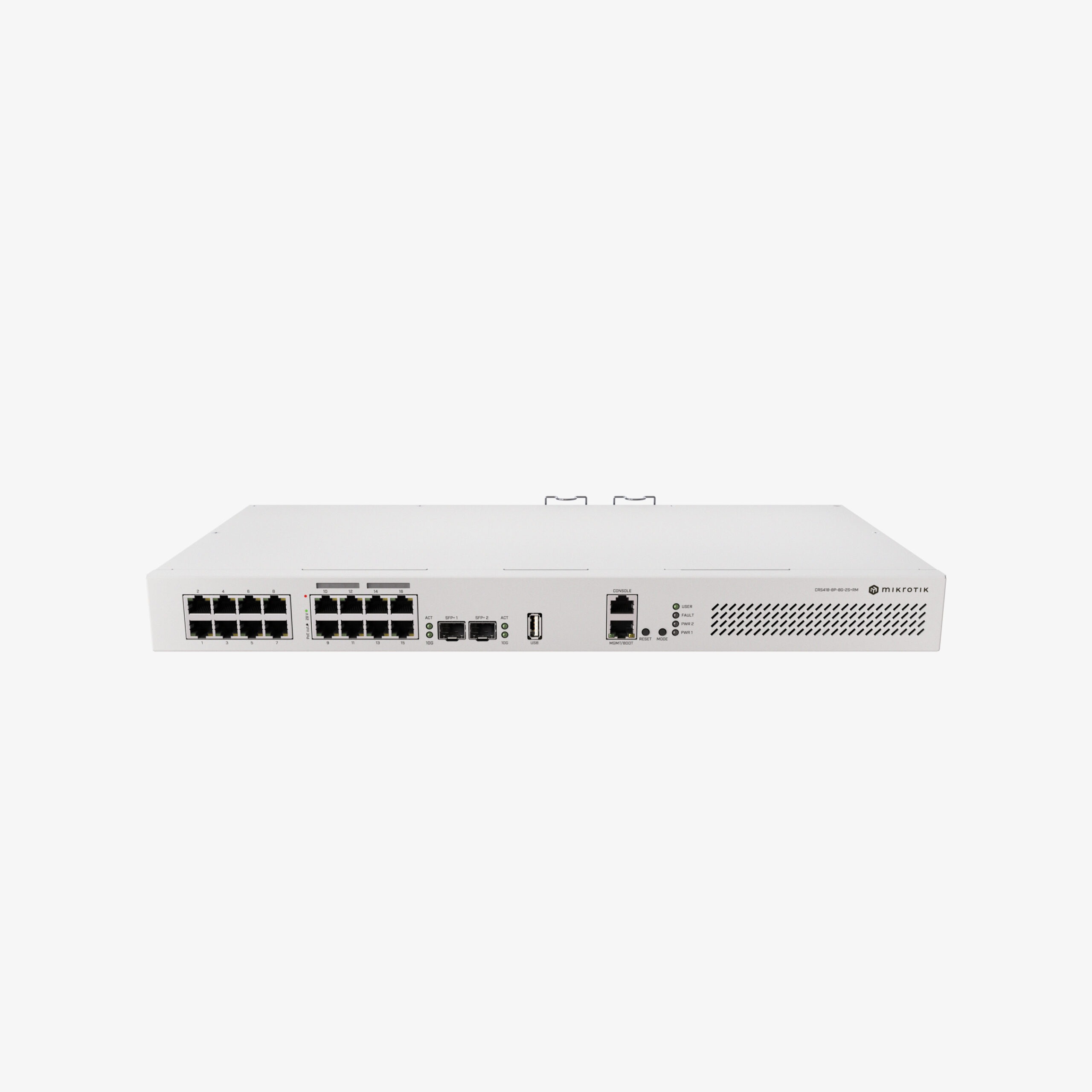

MikroTik CRS418-8P-8G-2S+RM

The MikroTik CRS418-8P-8G-2S+RM is a 1U rack-mount Cloud Router Switch suited for SMBs and branch deployments. It offers 16 Gigabit Ethernet ports (8 with PoE-out), 2 × 10G SFP+ uplinks, and RouterOS v7 with hardware offloading. Its quad-core 2.2 GHz CPU enables routing, firewall, and advanced services without needing separate hardware. With dual AC power inputs, USB 3 support, and durable build, it combines switching and routing in one versatile unit.

Description

The MikroTik CRS418-8P-8G-2S+RM is a hybrid switch/router platform built for networks that demand both robust Layer 2 switching and capable routing functionality in one device. It runs RouterOS version 7, allowing full control over L2/L3 features while offloading packet forwarding to its hardware switch chip for optimal performance.

This device includes 16 × 1 GbE ports (of which 8 ports supply PoE, supporting 802.3af/at), and 2 × 10G SFP+ ports for uplinks or fiber backhaul. Total PoE budget is 150 W with per-port current limits depending on voltage.

Its quad-core IPQ-8072 CPU (2.2 GHz), paired with 1 GB RAM and 128 MB NAND storage, can handle routing, firewall, QoS, VPN, and other services on top of switching.

Power redundancy is catered via dual AC inputs (100–240 V). Cooling is handled by 4 internal fans.

Use cases include serving as an aggregation switch with PoE for APs/cameras, handling edge routing in small to mid networks, or consolidating multiple devices into one rackmount unit.

Applications

Home Wi-Fi, Small offices, Enterprise networks, ISPs, Hospitality, Education, Surveillance systems.

Its PoE-out capabilities make it ideal for powering IP cameras, VoIP phones, and APs, while dual 10G SFP+ uplinks ensure high-bandwidth backhaul for enterprise and ISP environments.

Key Features

✔️ 16 × Gigabit Ethernet ports (8 with PoE-out)
✔️ 2 × 10G SFP+ uplink ports
✔️ 150 W total PoE budget
✔️ RouterOS v7 with Layer 3 routing, firewall, NAT etc. plus hardware offload
✔️ Dual AC power inputs for redundancy
✔️ USB 3.0 port for storage or configuration backup
✔️ 4 internal fans for cooling
✔️ Rack-mountable 1U form factor

Specifications

SpecificationDetails
BrandMikroTik
Model / Product CodeCRS418-8P-8G-2S+RM
CPU / ChipsetIPQ-8072 quad-core 2.2 GHz
RAM1 GB
Storage128 MB NAND
Switch Chip98DX226S
Ethernet Ports16 × 10/100/1000 Mbps (8 with PoE-out)
PoE OutYes — 802.3af/at; total 150 W, current limits 1.1 A / 0.56 A
SFP+ / Fiber Uplink Ports2 × 10G SFP+
USB1 × USB 3.0 Type A
Management PortDedicated Gigabit management port (direct CPU line)
Power SupplyDual AC 100–240 V inputs
Power ConsumptionMax ~215 W (full load) / ~28 W idle
Cooling4 internal fans
Operating Temperature–20 °C to +70 °C
Certifications & ApprovalsCE, EAC, ROHS
MountingRack-mount 1U enclosure
Switching PerformanceNon-blocking L2 throughput: 3,007.2 kpps / ~36.5 Gbps
Layer 3 OffloadSupports routing with hardware offload
Warranty1 year
Package ContentsCRS418-8P-8G-2S+RM unit, rack ears, 2 x power supply cables
