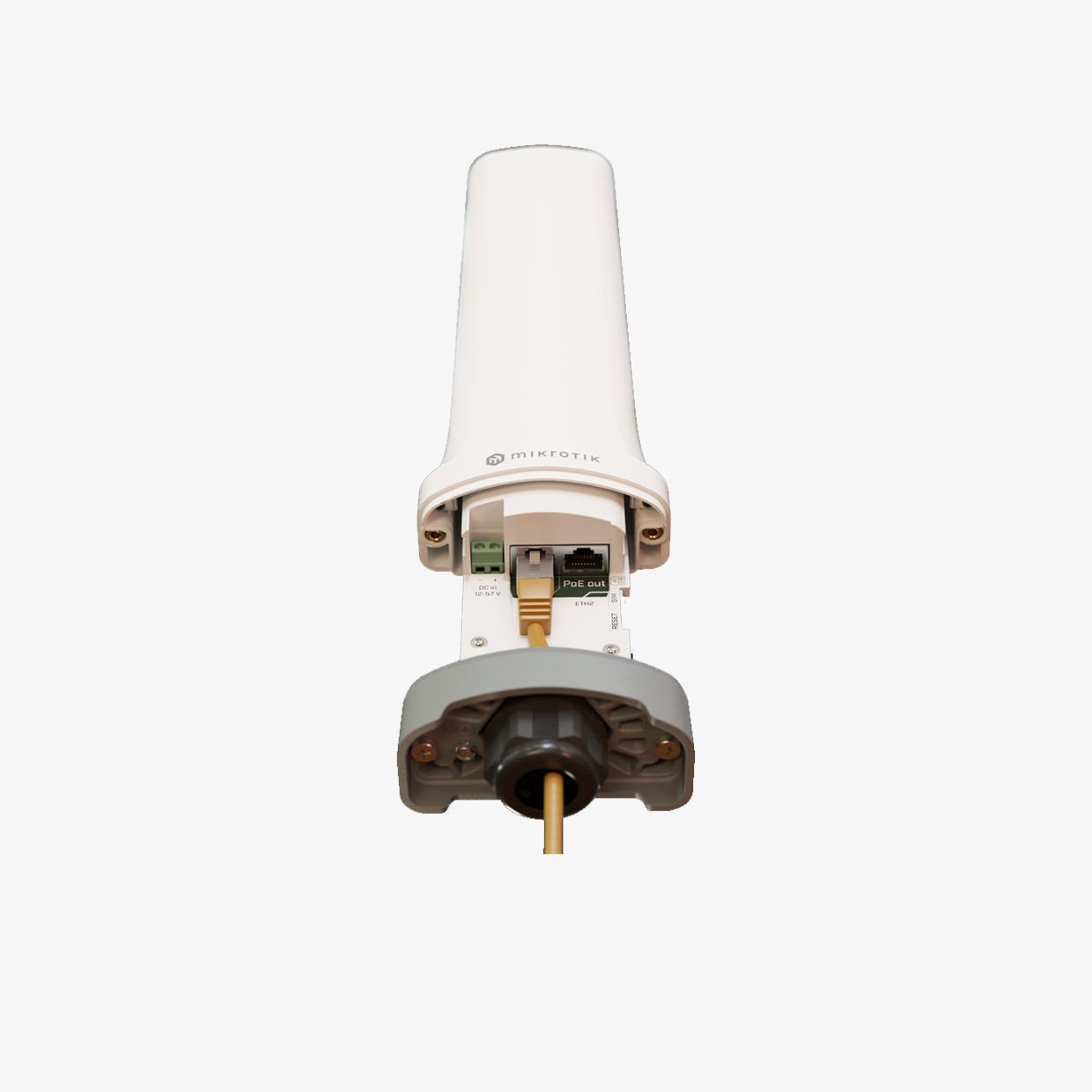

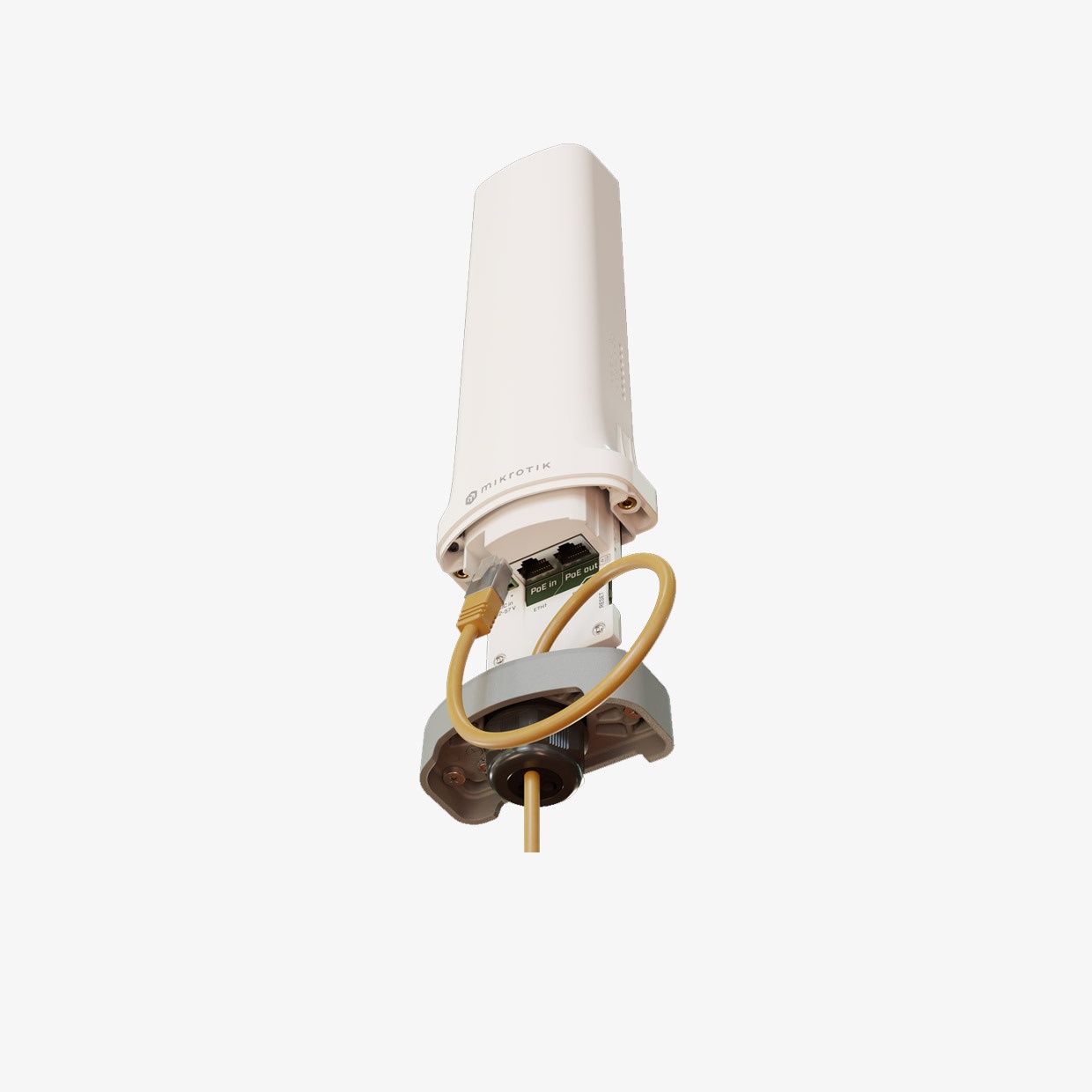

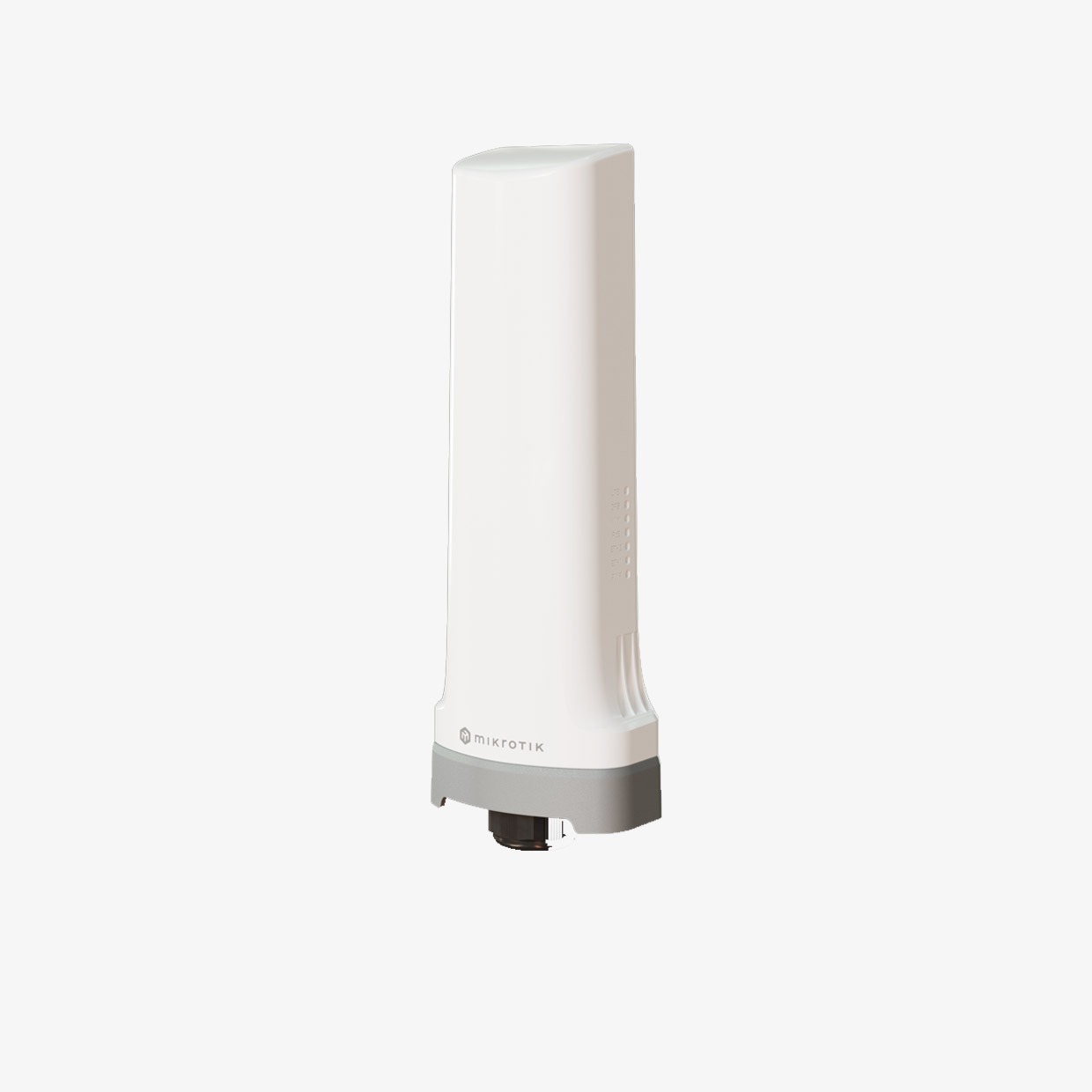

MikroTik CME22-2n-BG77

The MikroTik CME22-2n-BG77 is a compact, rugged IoT gateway designed for smart metering, remote monitoring, and automation applications. It integrates a CAT-M/NB-IoT modem (BG77), GNSS (GPS, GLONASS, BeiDou, Galileo), and 2 x 10/100 Mbps Ethernet ports for flexible connectivity. Passive PoE support and a wide input voltage range (12–57 V) simplify deployment in remote locations. With IP66 protection and operating temperatures from -40°C to +70°C, this durable gateway is ideal for low-bandwidth IoT networks requiring reliable, secure, and scalable connectivity.

Description

The MikroTik CME22-2n-BG77 is a versatile and rugged IoT gateway built for industrial, smart city, and remote monitoring solutions. Equipped with a high-reliability QCA9531-BL3A-R CPU, 1 core at 650 MHz, 64 MB DDR2 RAM, and 16 MB Flash storage, it delivers efficient network processing for low-bandwidth IoT applications.

This gateway features a CAT-M/NB-IoT modem (BG77) supporting multiple global bands, enabling cellular connectivity for remote sensors, smart meters, or automation devices. Its integrated GNSS module provides accurate positioning via GPS, GLONASS, BeiDou, and Galileo. Two 10/100 Mbps Ethernet ports, one of which supports passive PoE output, allow easy integration with wired devices.

Designed for challenging environments, the CME22-2n-BG77 supports a wide operating temperature range (-40°C to +70°C) and IP66-rated dust and water protection. RouterOS v7 with Level 4 license ensures seamless configuration, security, and monitoring. Compact dimensions and passive cooling simplify installation in tight spaces or outdoor enclosures. This gateway is a reliable, scalable solution for IoT networks requiring connectivity, security, and durability.


Application

IoT networks, Smart metering, Remote monitoring, Automation solutions, Low-bandwidth connectivity


Key Features

  • ✅ Integrated CAT-M/NB-IoT BG77 modem supporting global cellular bands

  • ✅ GNSS module for GPS, GLONASS, BeiDou, and Galileo positioning

  • ✅ 2 x 10/100 Mbps Ethernet ports with one supporting Passive PoE output

  • ✅ Wide input voltage range: 12–57 V DC, passive PoE-IN support

  • ✅ Compact, rugged enclosure with IP66 rating for outdoor deployment

  • ✅ Operating temperature from -40°C to +70°C

  • ✅ RouterOS v7 with Level 4 license for advanced IoT management

  • ✅ Low-power design with passive cooling for reliable continuous operation

Specifications

SpecificationDetails
Product CodeCME22-2n-BG77
ArchitectureMIPSBE
CPU / ChipsetQCA9531
CPU Core Count1
CPU Nominal Frequency650 MHz
Switch Chip ModelQCA9531
RAM64 MB
Storage16 MB Flash
Operating SystemRouterOS v7
RouterOS LicenseLevel 4
MTBFApproximately 100,000 hours at 25°C
Tested Ambient Temperature-40°C to 70°C
DC Inputs2 (2-pin terminal, PoE-IN)
DC Input Voltage2-pin terminal: 12–57 V, PoE-IN: 18–57 V
Max Power Consumption31 W
Max Power (without attachments)6 W
PoE OutEther2, Passive PoE up to 57 V
PoE Out Current LimitsLow voltage: 600 mA, High voltage: 450 mA, Max total: 0.6 A
Wireless2.4 GHz, Wi-Fi 4, 802.11b/g/n, Max 150 Mbit/s, 1 chain, Antenna gain 2 dBi, Chip: QCA9531
Ethernet Ports2 x 10/100 Mbps
SIM Slots1 x Nano SIM (modem)
Certifications & ApprovalsCE, FCC, IC, EAC, RoHS
IP RatingIP66
