MikroTik Chateau PRO ax

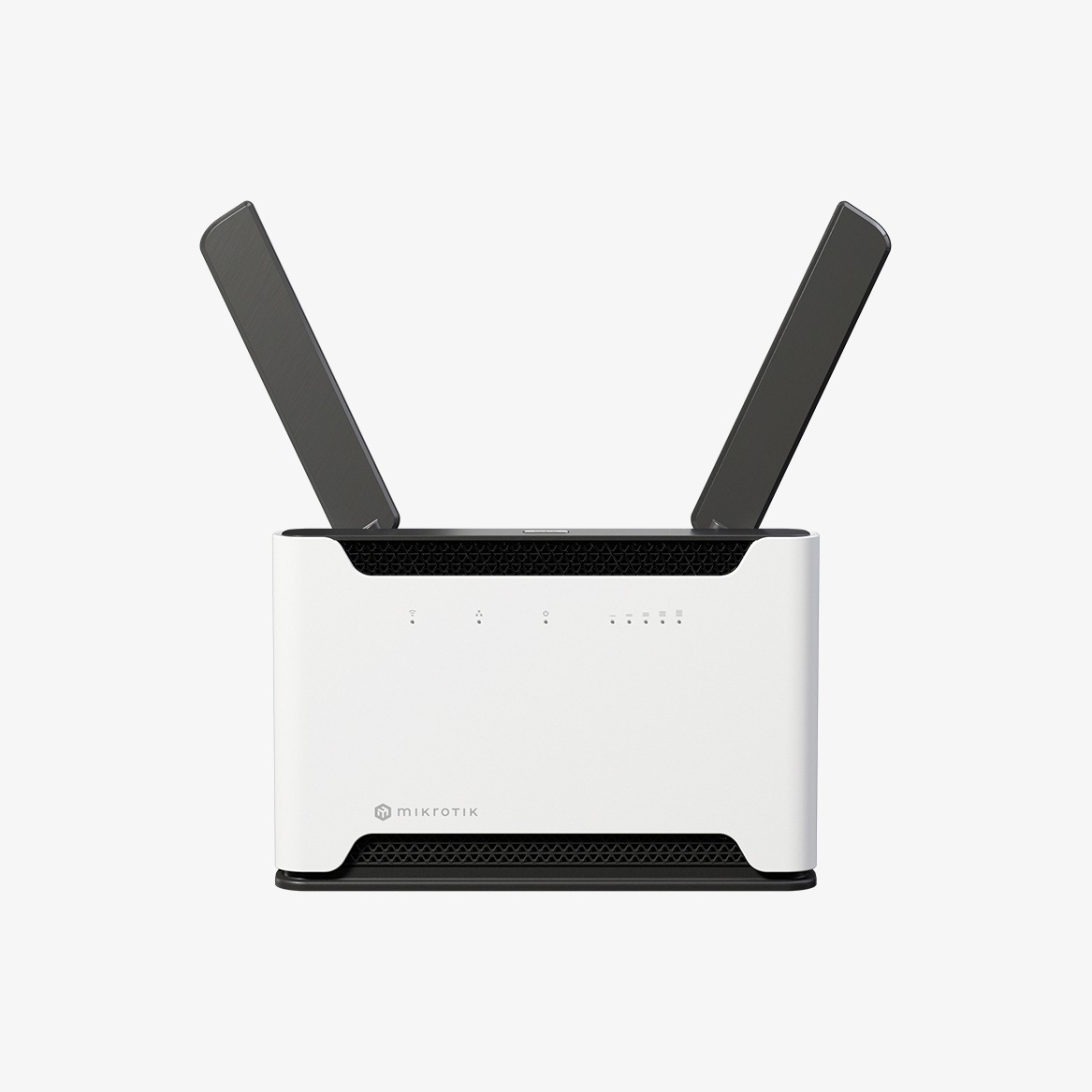

Front of MikroTik Chateau PRO ax
Back of MikroTik Chateau PRO ax

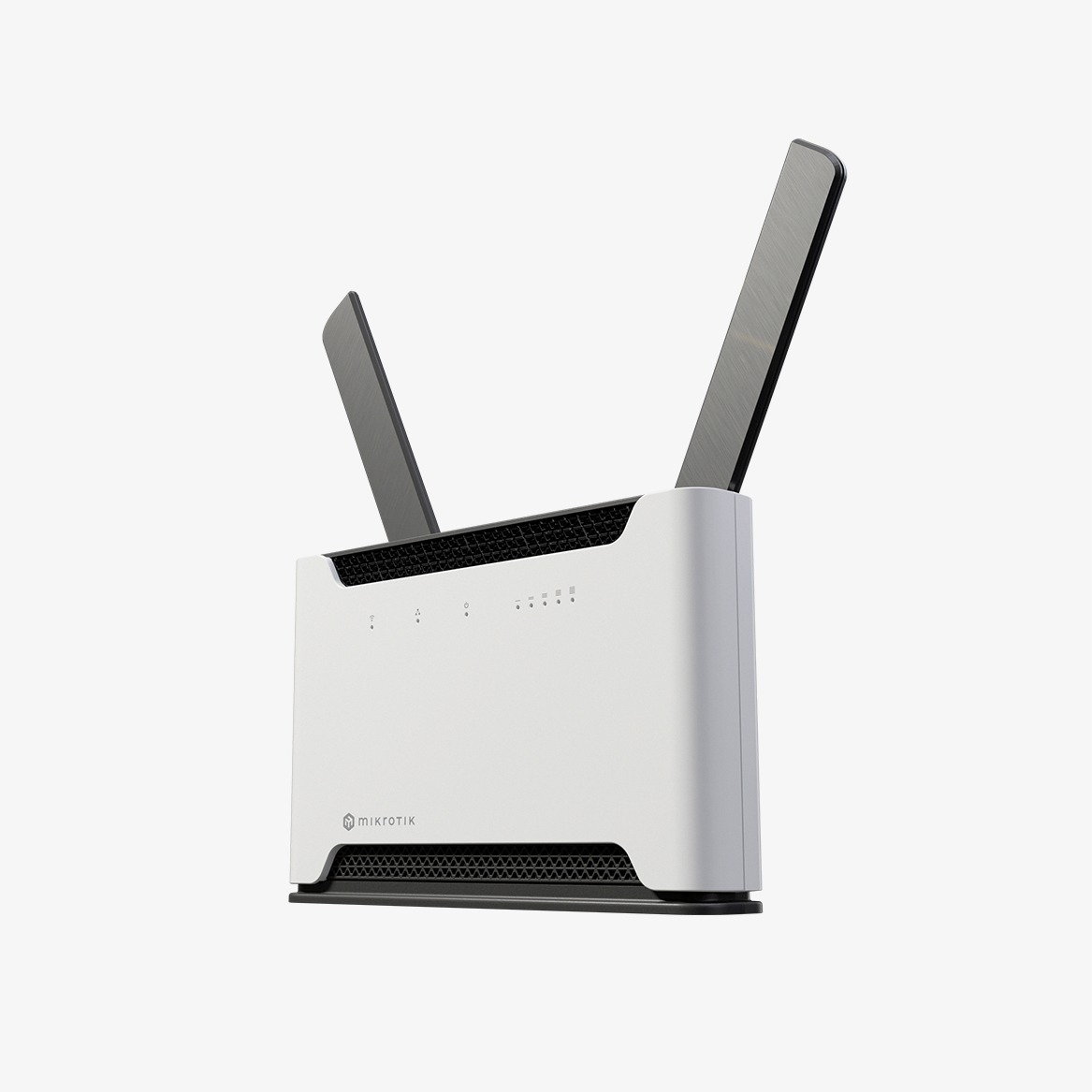

MikroTik Chateau PRO ax

The MikroTik Chateau PRO ax is a high-performance Wi‑Fi 6 home access point tailored for advanced users. Powered by a quad‑core 2.2 GHz ARM IPQ‑8072A CPU with 1 GB RAM and 128 MB NAND storage, it delivers robust processing to handle heavy traffic and advanced setups. Featuring 4×4 MIMO on both 2.4 GHz and 5 GHz bands (1148 Mbps + 2400 Mbps), it offers superior wireless data rates and beamforming capability. With five Gigabit Ethernet ports, including one with passive PoE output, and a USB 3.0 port for SSD or LTE modem use, it’s a versatile hub for media, backup, or bonding tasks. Running RouterOS v7 at License Level 6 with QCN‑5024/QCN‑5054 chipsets, it ensures reliable home networking in a refined, professional-grade package.

Request a Trade Quote

Description

Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4×4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Specifications

Specifications
ModelChateau PRO ax
Product codeH53UiG-5HaxQ2HaxQ
ArchitectureARM 64bit
CPUIPQ-8072A
CPU core count4
CPU nominal frequency2208 MHz
Switch chip modelIPQ-8072
RouterOS license6
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200,000 hours at 25°C
Tested ambient temperature-40°C to 70°C
IPsec hardware accelerationYes
Wireless Capabilities
WiFi speedAX3600
2.4 GHz
Max data rate1148 Mbit/s
Number of chains4
Standards802.11b/g/n/ax
Antenna gain5 dBi
Chip modelQCN-5024
Wi-Fi generationWi-Fi 6
5 GHz
Max data rate2400 Mbit/s
Number of chains4
Standards802.11a/n/ac/ax
Antenna gain6 dBi
Chip modelQCN-5054
Wi-Fi generationWi-Fi 6
Ethernet
10/100/1000 Ethernet ports5
1G Ethernet ports with PoE-out1
Peripherals
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current1.5 A
Powering
Number of DC inputs1 (DC jack)
DC jack input voltage18–57 V
Max power consumption55 W
Max power without attachments18 W
Cooling typePassive
PoE-out
PoE-out portsEther5
PoE out typePassive PoE up to 57 V
Max per port output (18–30 V)600 mA
Max per port output (30–57 V)500 mA
Total output power22.8 W
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS
IP rating20
Other
CPU temperature monitorYes
PCB temperature monitorYes
Voltage monitorYes
Mode buttonYes
