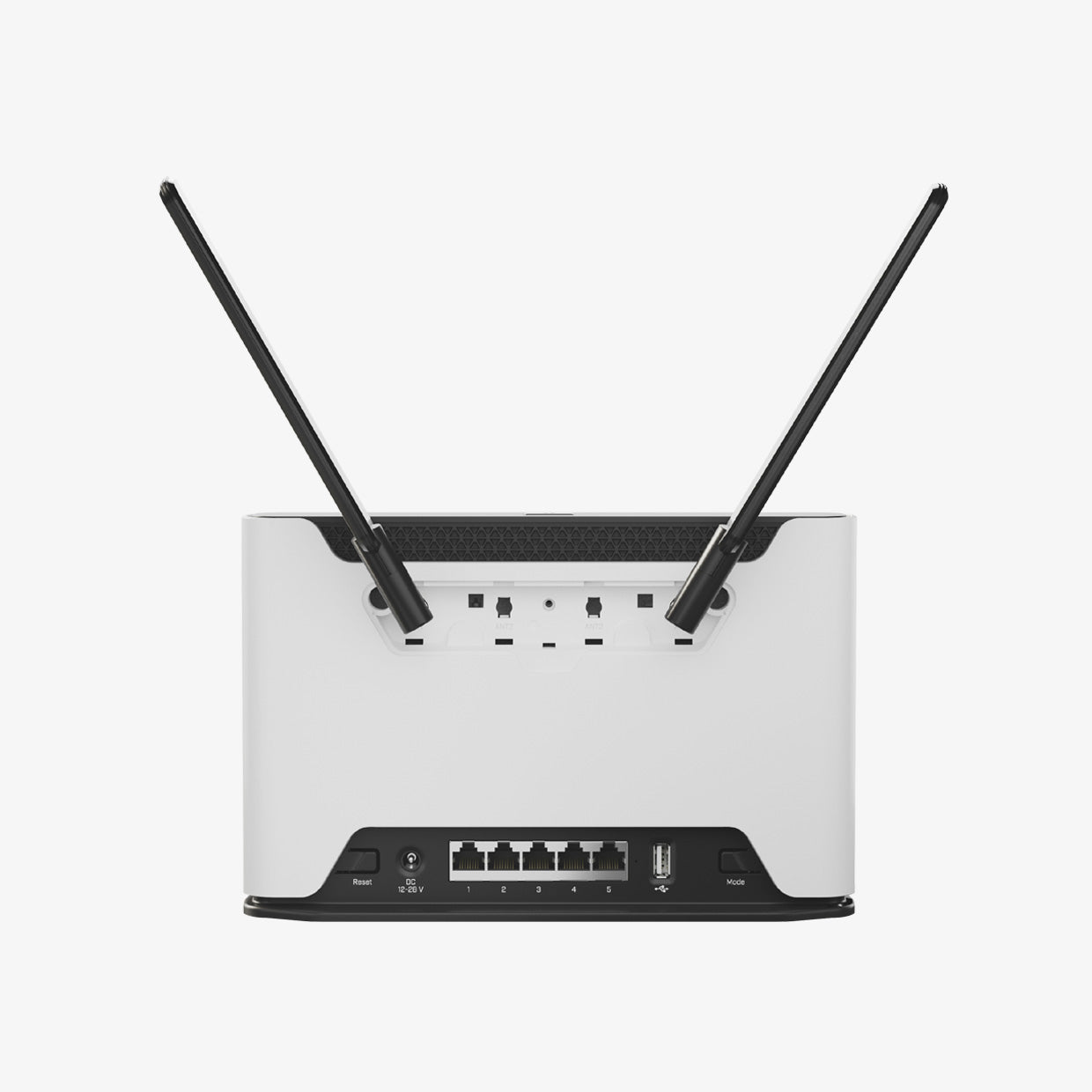

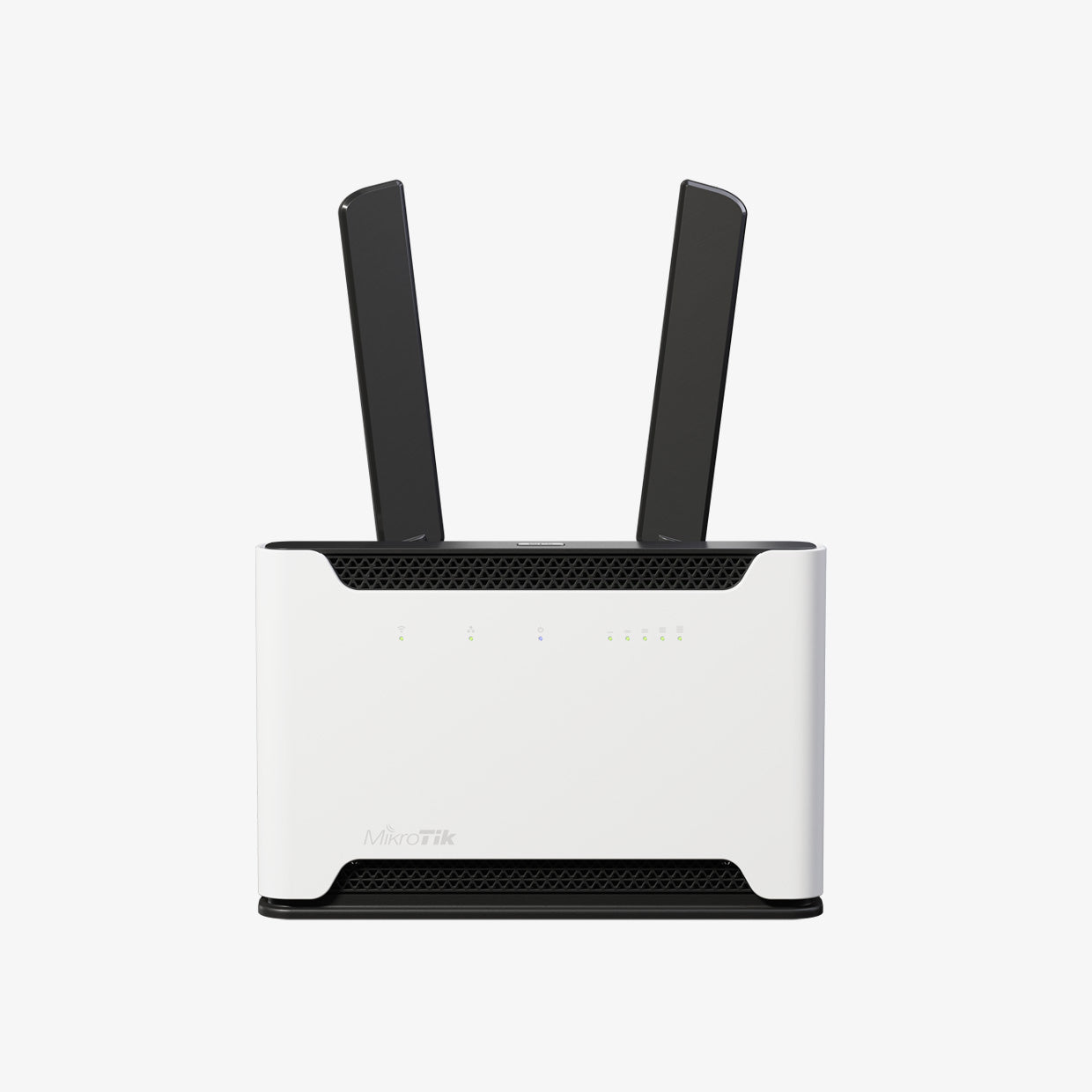

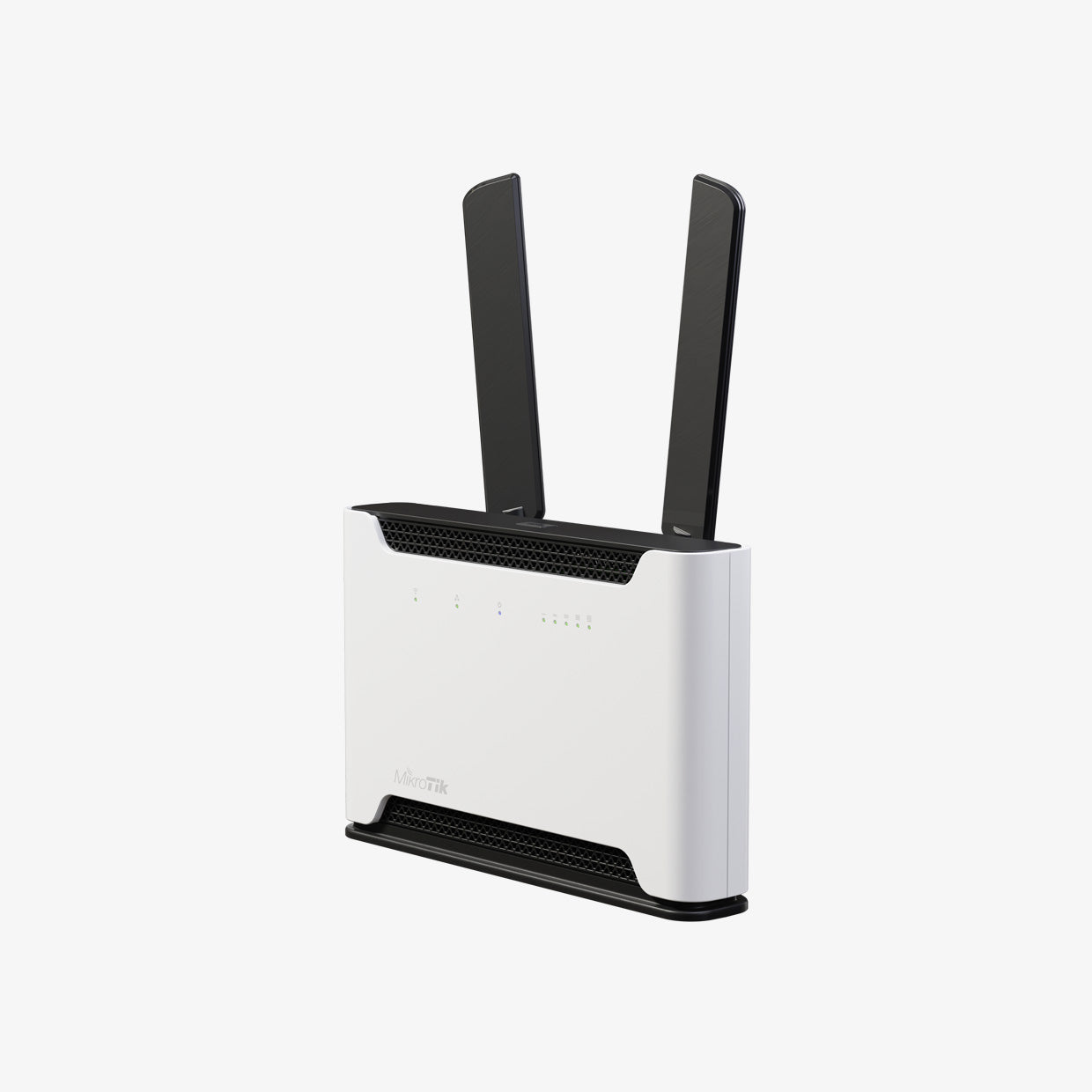

MikroTik Chateau 5G

Introducing the Chateau 5G – the ultimate home access point designed to deliver ultra-fast internet with LTE/5G support. Whether you need reliable speeds for streaming, gaming, or remote work, Chateau has you covered. Offering options from CAT4 LTE to the cutting-edge CAT20 LTE and 5G, you can enjoy high-speed internet anywhere, anytime. The router also features 5 Gigabit Ethernet ports, dual-band 2.4/5 GHz wireless coverage, and a full-size USB port for added functionality.

Perfect for crowded environments, Chateau allows seamless use of both wireless bands, ensuring smooth streaming and connectivity. With TR-069 technology, you can customize client management, allowing users flexible control while maintaining optimal performance and security.

Request a Quote
10 people are viewing this product

Description

One router to delight them all – introducing the ultimate home AP with ultra-fast LTE/5G support

Chateau 5G is a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.

Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

You can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

NOTE: Before purchasing, make sure you already have a 5G signal on your mobile phone, as this item should not be bought or used in an area without 5G coverage.

Specifications

Product code D53G-5HacD2HnD-TC&RG502Q-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Switch chip model IPQ-4019
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200,000 hours at 25°C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Powering
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 23 W
Max power consumption without attachments 17 W
Cooling type Passive
Mobile
3G Category R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)
3G bands 6 (850 MHz), 3 (1800 MHz), 5 (850 MHz), 8 (900 MHz), 19 (800 MHz), 1 (2100 MHz)
LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD bands 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 18 (800 MHz), 19 (800 MHz), 20 (800 MHz), 26 (850 MHz), 28 (700 MHz), 32 (1500 MHz)
LTE TDD bands 38 (2600 MHz), 39 (1900 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz), 34 (2000 MHz)
5G NSA FDD bands 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
5G NSA TDD bands 40 (2300 MHz), 41 (2500 MHz), 77 (3700 MHz), 78 (3500 MHz), 79 (4700 MHz), 38 (2600 MHz)
5G SA FDD bands 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
5G SA TDD bands 41 (2500 MHz), 77 (3700 MHz), 78 (3500 MHz), 79 (4700 MHz), 38 (2600 MHz), 40 (2300 MHz)
TAC 86073604
Wireless specifications
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports 5
Peripherals
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of M.2 slots 1
Other
Mode button Yes
Certification & Approvals
Certification CE, EAC, ROHS

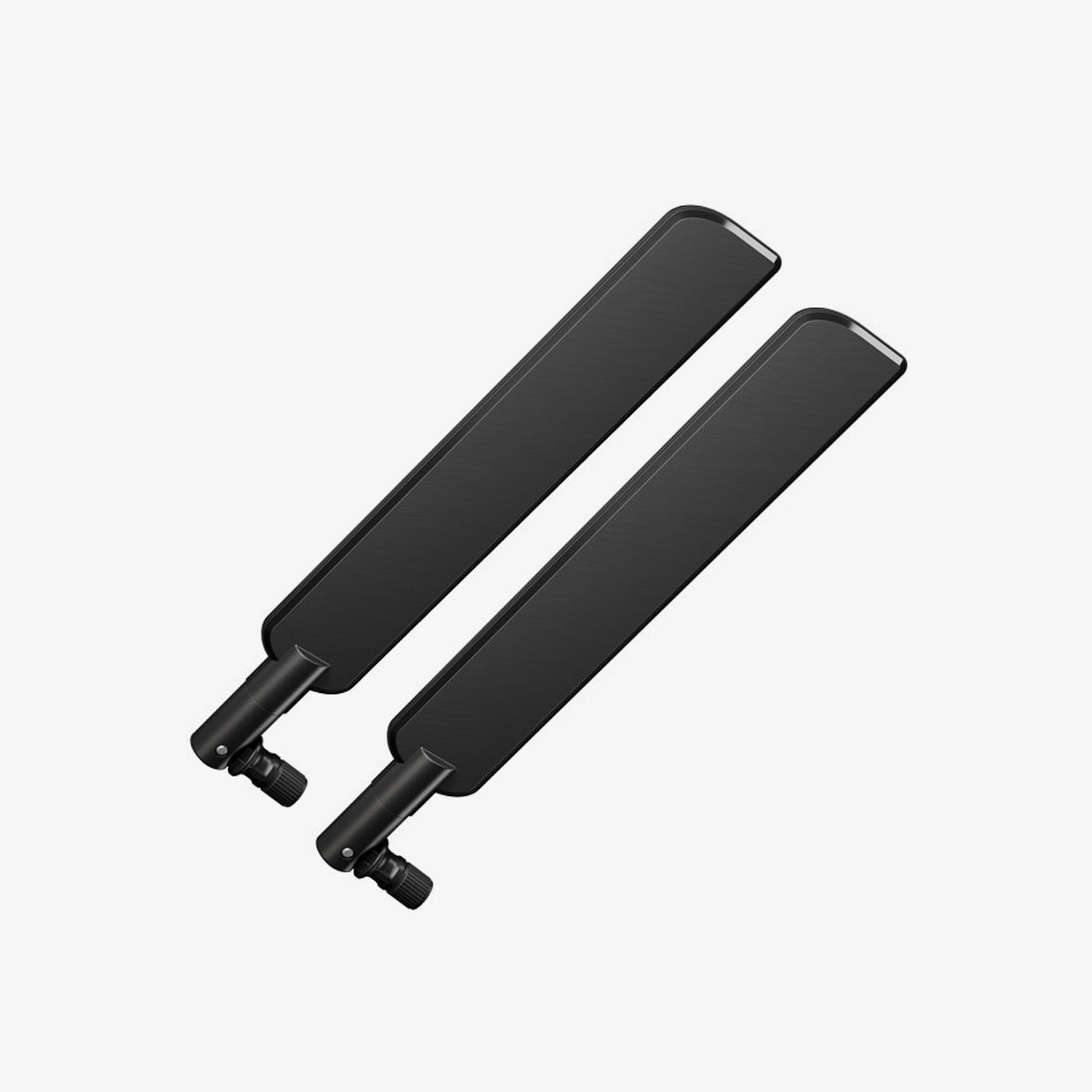

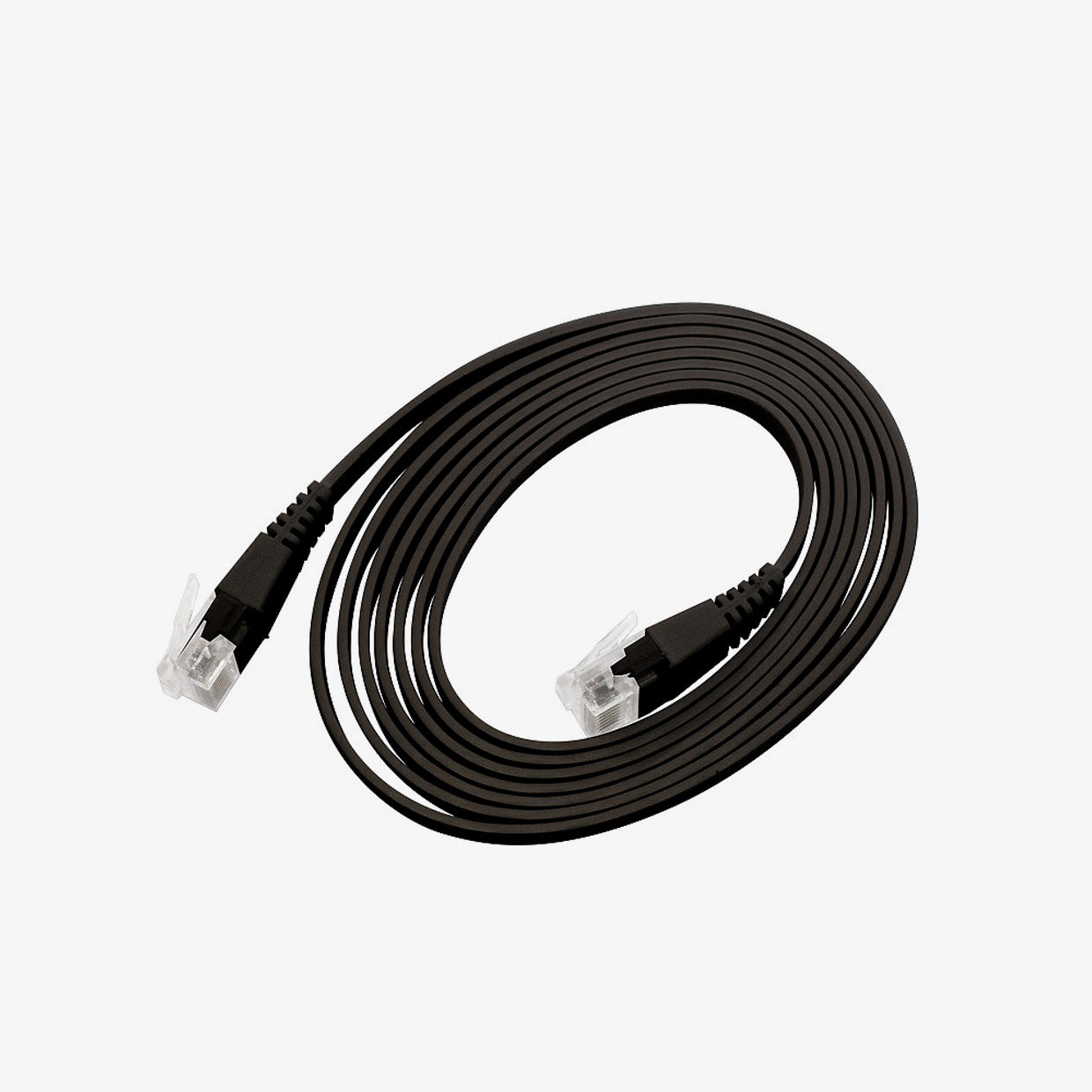

Parts Included 2 external LTE/5G antennas, 24V 1.2A power supply (straight plug), UTP Flat Cable (1.5m)
