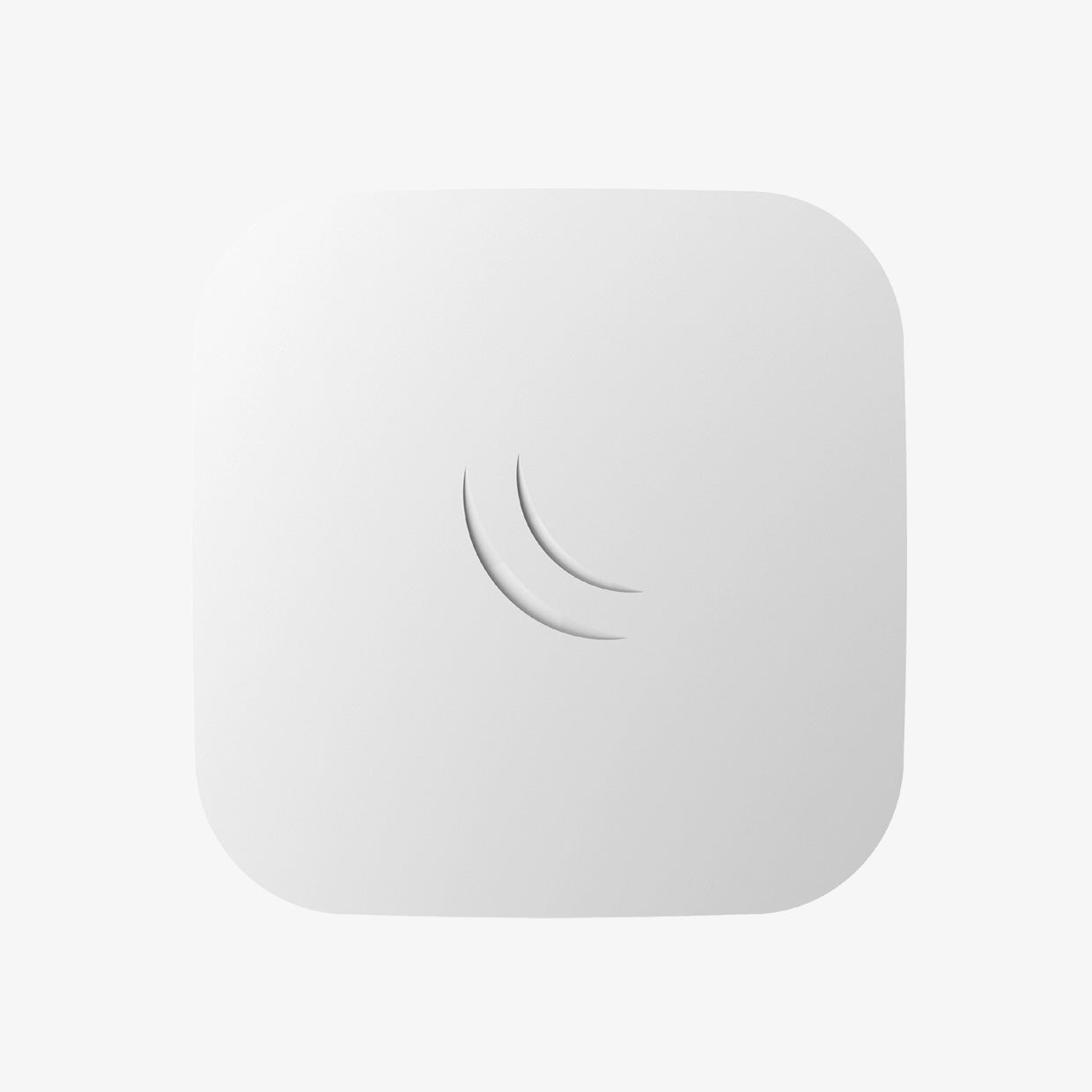

Mikrotik cAP ac | RBcAPGi-5acD2nD

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

10 people are viewing this product

Description

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output), 802.11ac support and IPsec hardware encryption support

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.

Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.

Specifications

Product codeRBcAPGi-5acD2nD
ArchitectureARM 32bit
CPUIPQ-4018
CPU core count4
CPU nominal frequency716 MHz
Switch chip modelIPQ-4018
DimensionsRound case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100,000 hours at 25°C
Tested ambient temperature-40°C to 50°C
IPsec hardware accelerationYes
Wireless capabilities
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2
Wireless 2.4 GHz chip modelIPQ-4018
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2.5
Wireless 5 GHz chip modelIPQ-4018
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1200
Ethernet
10/100/1000 Ethernet ports2
Powering
Number of DC inputs1 (PoE-IN)
Max power consumption24 W
Max power consumption without attachments13 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage17-57 V
PoE-out
PoE-out portsEther2
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)500 mA
Max out per port output (input 30-57 V)400 mA
Max total out (A)500 mA
Certification & Approvals
CertificationCE, FCC, IC, EAC, ROHS
Parts Included24V 1.2A power adapter, Ceiling mount, Gigabit PoE injector, K-46 screw kit
