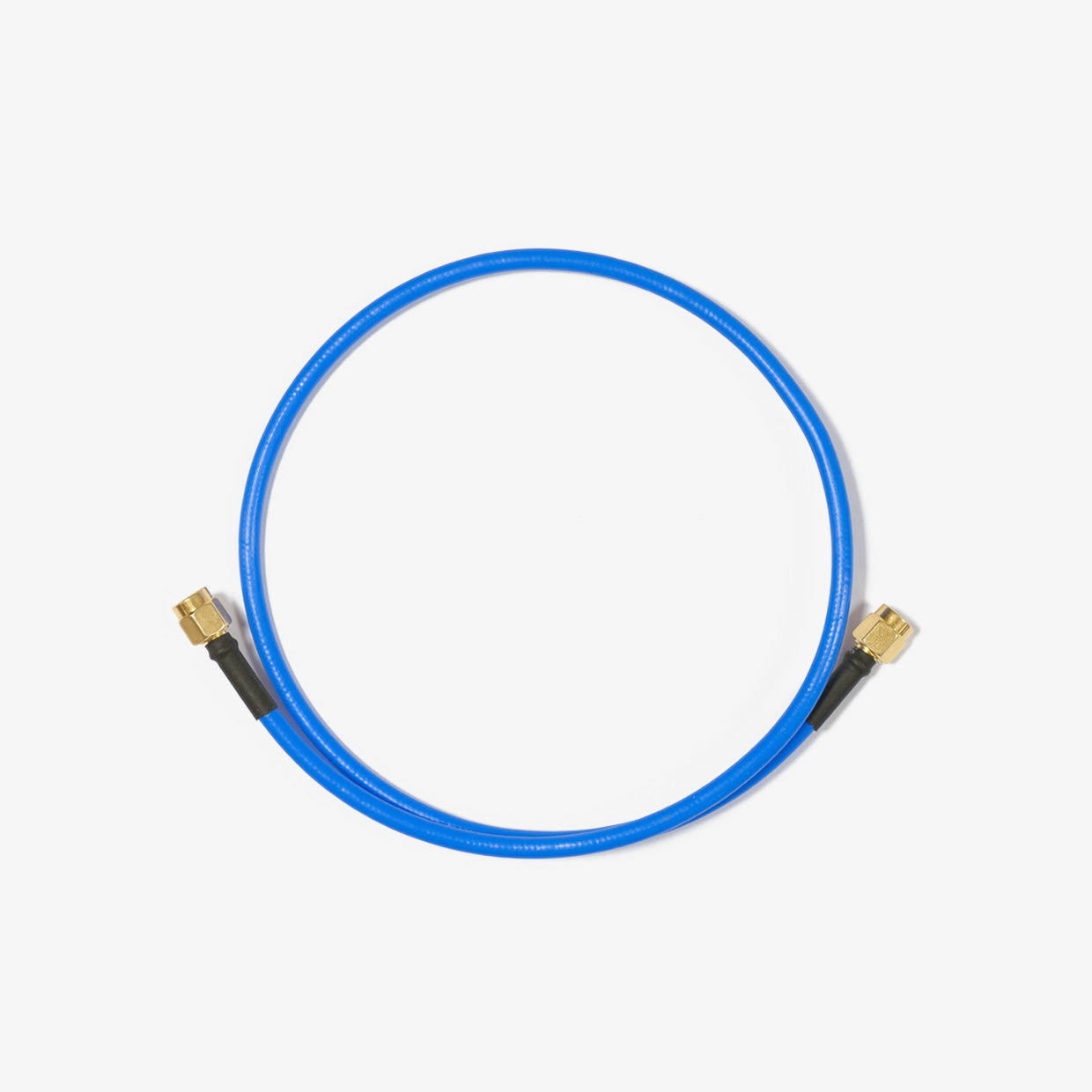

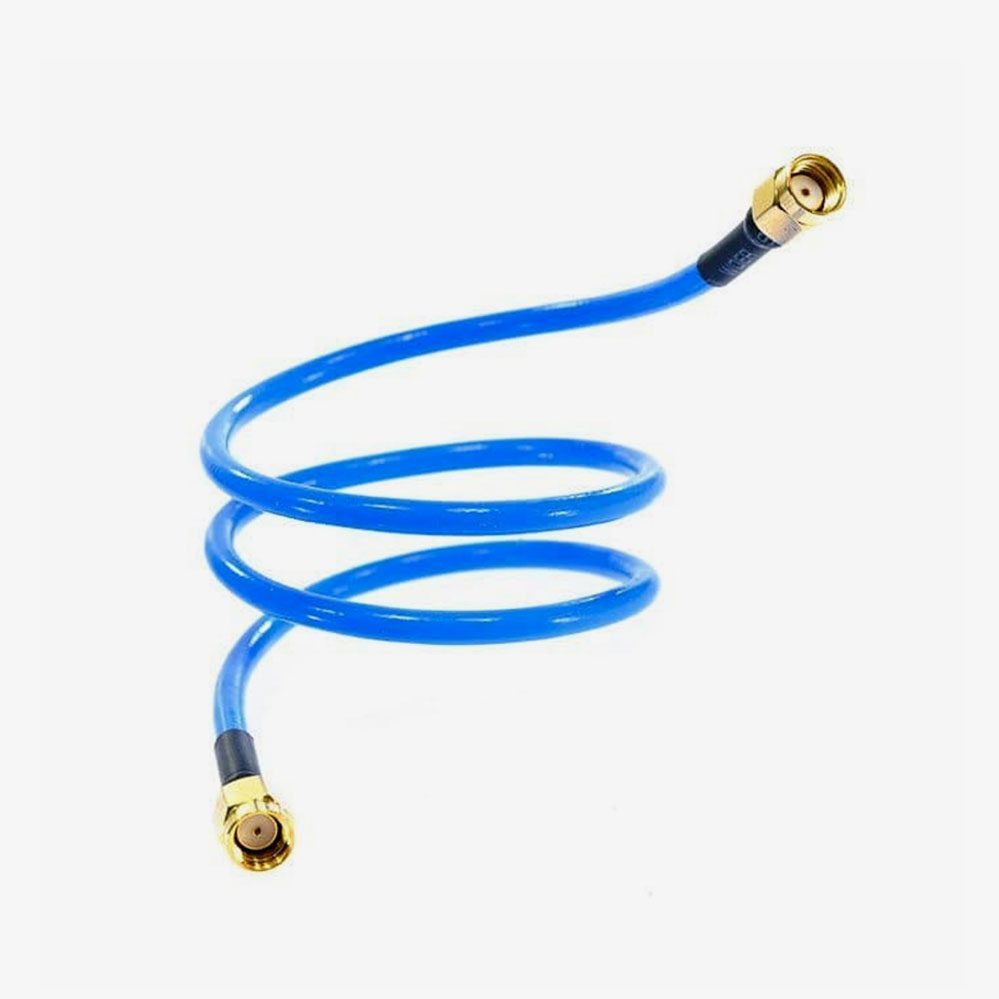

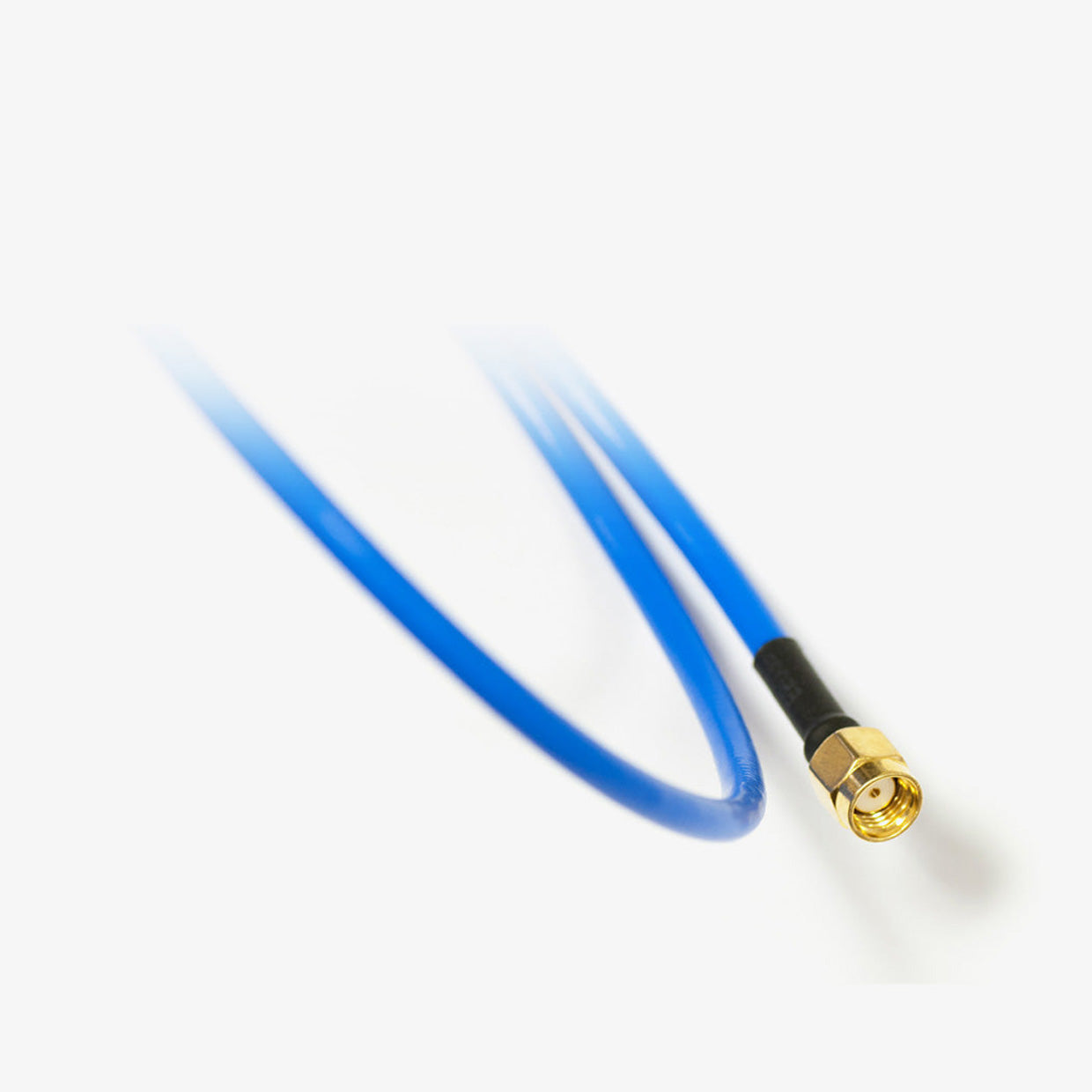

MikroTik ACRPSMA Flex-guide – 50cm Low loss cable assembly

This low-loss 50cm RPSMA cable assembly features silver-plated copper and less than 0.65dB loss, ensuring top-tier signal quality for both indoor and outdoor use. Designed with precision, both ends are soldered rather than crimped, providing superior connection reliability. Its name, derived from “flexible” and “waveguide,” highlights its high-end construction and performance. Ideal for use with MikroTik’s BaseBox and other devices with RPSMA connectors, this cable offers excellent matching and minimal signal loss, making it compatible with a variety of antennas for optimal network performance.

  • Data Sheet
  • User Manual
Request a Quote
10 people are viewing this product

Description

Low loss cable assembly, soldered on both ends, with silver plated copper and less than 0.65dB losses

A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.

The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product.

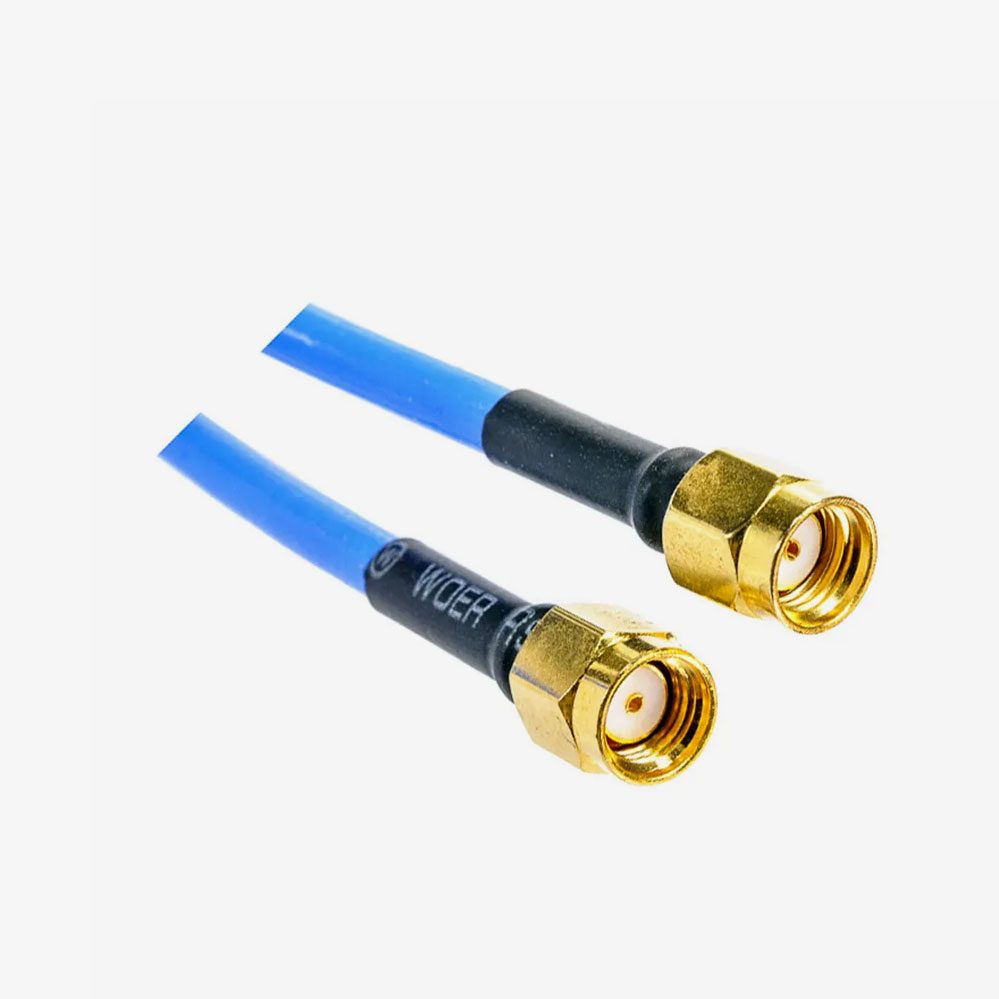

The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.

Specifications
Product code ACRPSMA
Frequency up to 6GHz
Matching above -20dB
Signal loss below 0.65dB
Tested ambient temperature -55°C to 125°C
