Description

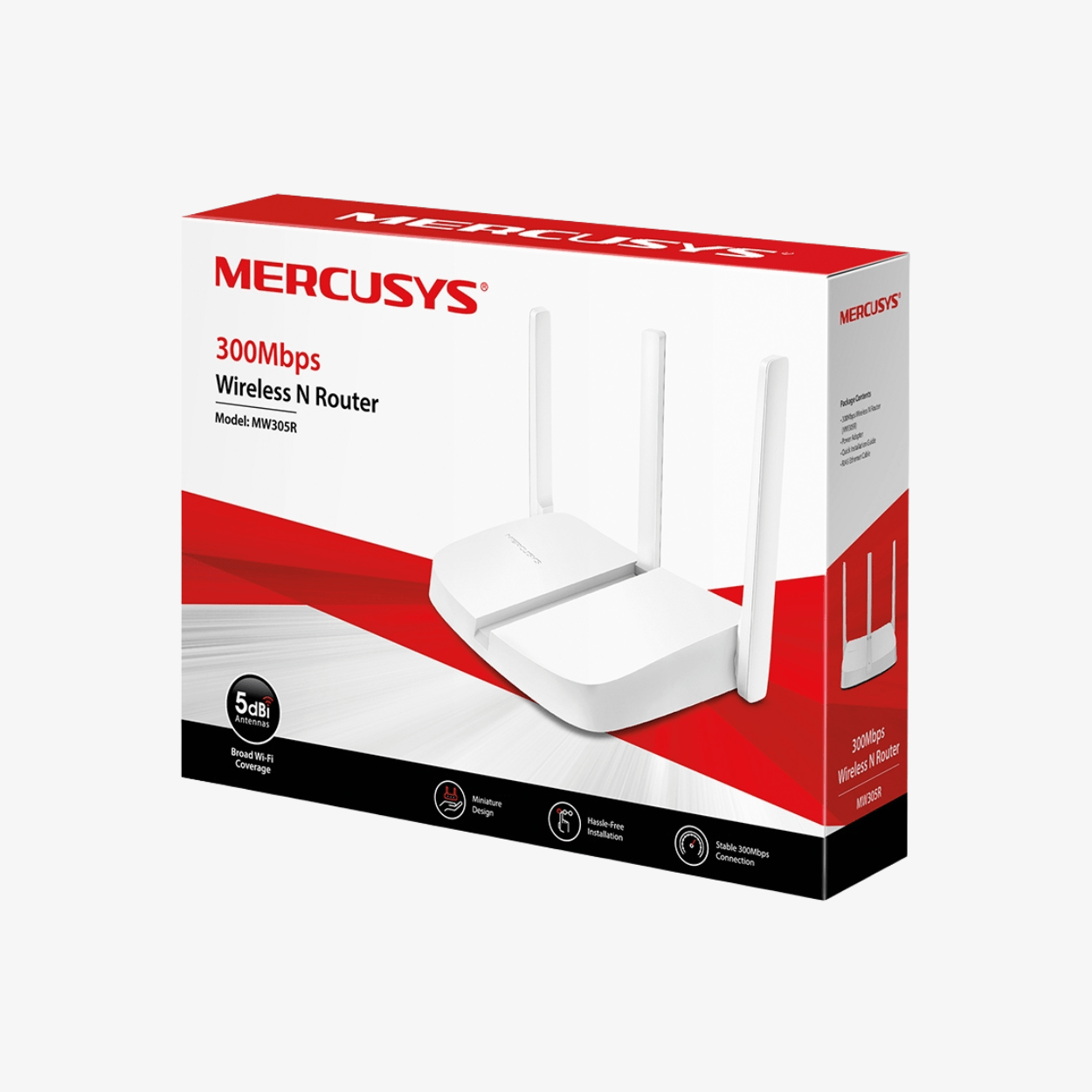

The MERCUSYS MW305R provides reliable, high-value wireless coverage with 300 Mbps performance on the 2.4 GHz band using IEEE 802.11 b/g/n. It comes equipped with three fixed 5 dBi omnidirectional antennas, enhancing signal coverage and stability across a typical home environment.

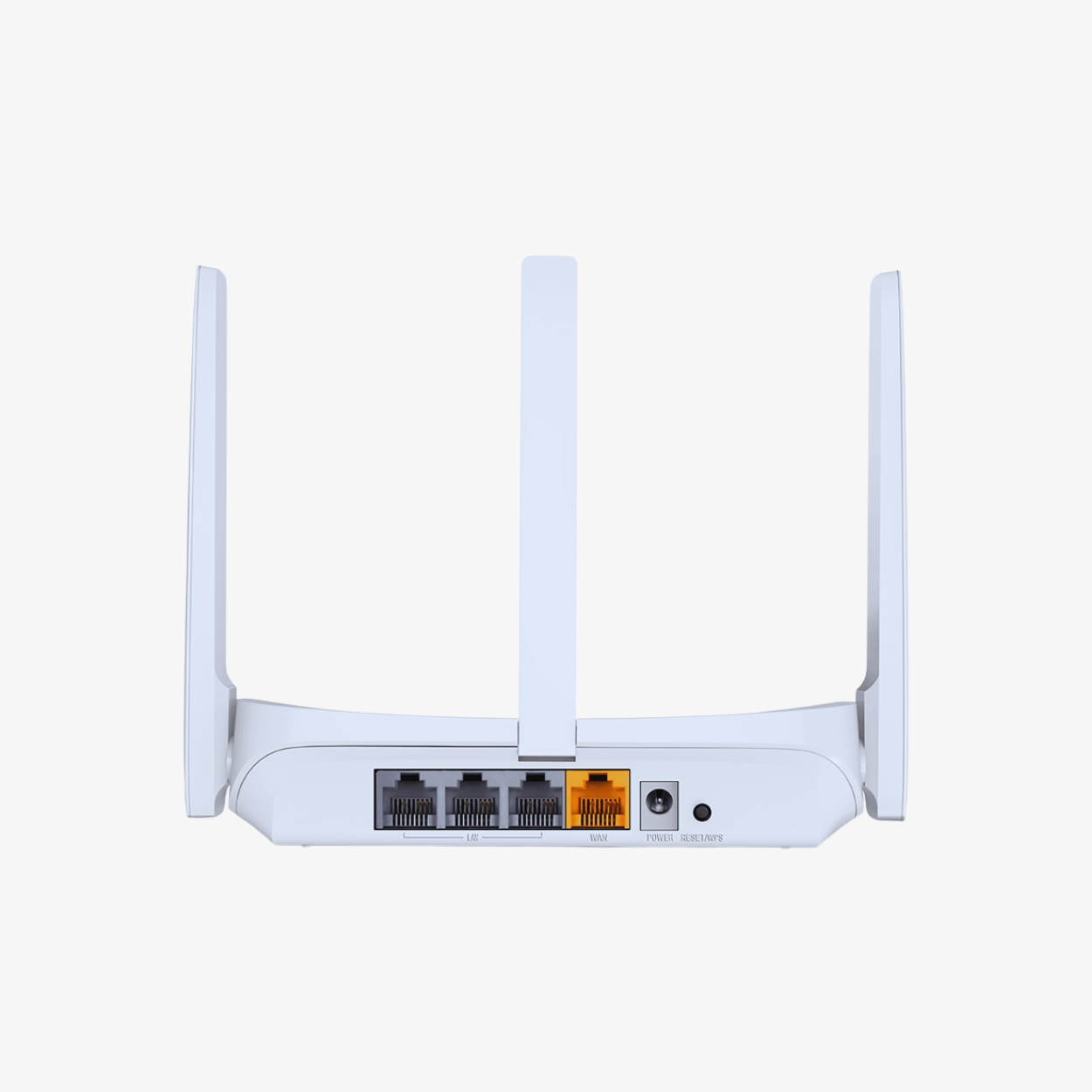

Connected devices can use its 1 × WAN and 3 × LAN Fast Ethernet (10/100 Mbps) ports to integrate both wired and wireless networks.

For configuration, MW305R includes functions such as DHCP, port forwarding, guest network, parental controls, and supports Dynamic IP, static IP, PPPoE, L2TP, and PPTP WAN modes.

The device uses a 5 V / 0.6 A power adapter and supports basic wireless security standards like WPA-PSK/WPA2-PSK.

Compact in size (147 × 115 × 34 mm) and optimized for small to medium homes, it’s a practical Wi-Fi solution for streaming, browsing, and connecting smart devices.

Application

Home Wi-Fi, Small office, Guest networks, Streaming & gaming, Basic IoT connectivity

Key Features

✔️ Up to 300 Mbps on 2.4 GHz (802.11n)
✔️ 3 × 5 dBi external antennas for enhanced coverage
✔️ 1 WAN + 3 LAN Fast Ethernet (10/100 Mbps) ports
✔️ Supports WAN modes: Dynamic IP, Static, PPPoE, L2TP, PPTP
✔️ Guest network & parental control features
✔️ WPA-PSK / WPA2-PSK encryption
✔️ Compact form factor (147 × 115 × 34 mm)
✔️ Easy web interface setup + app support
