Description

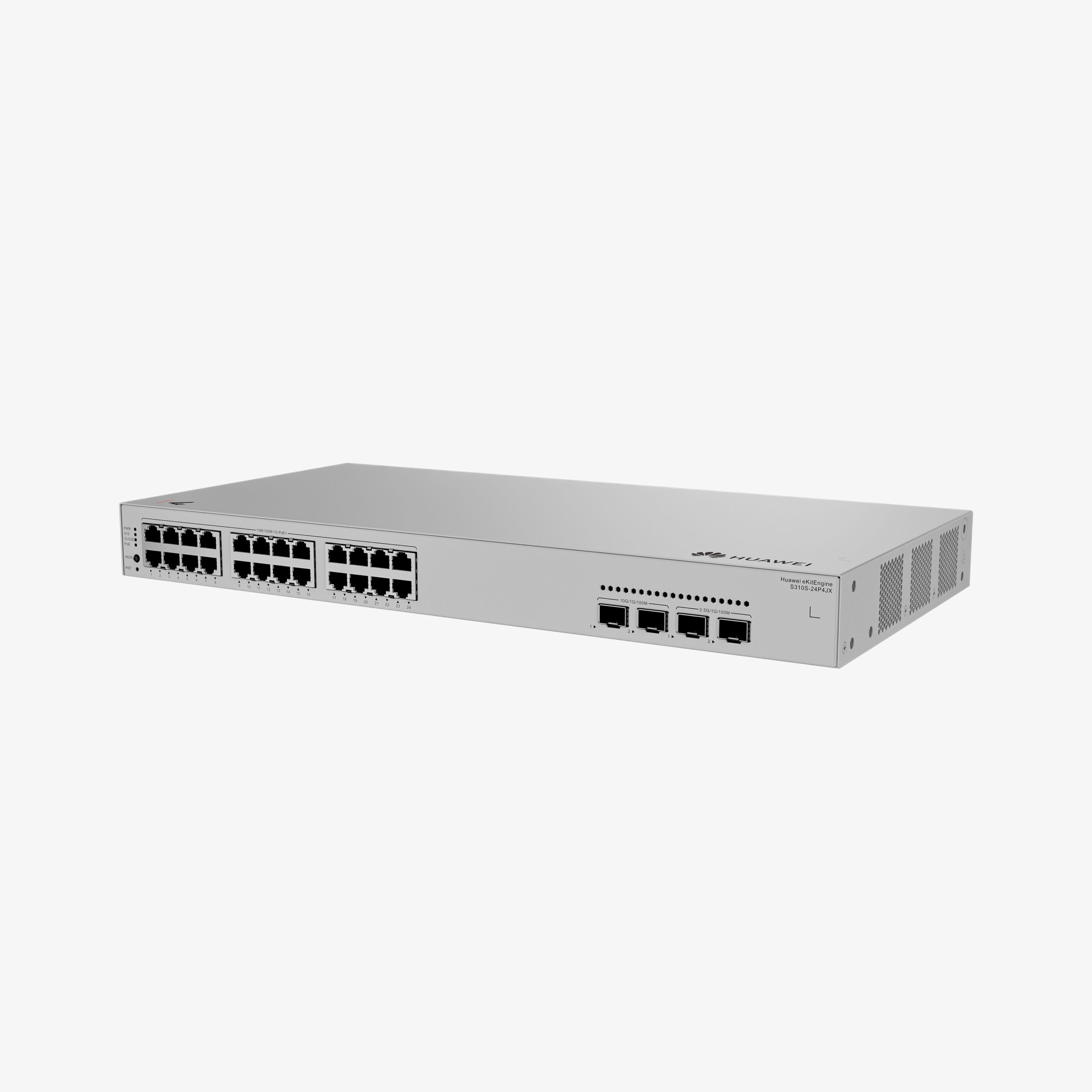

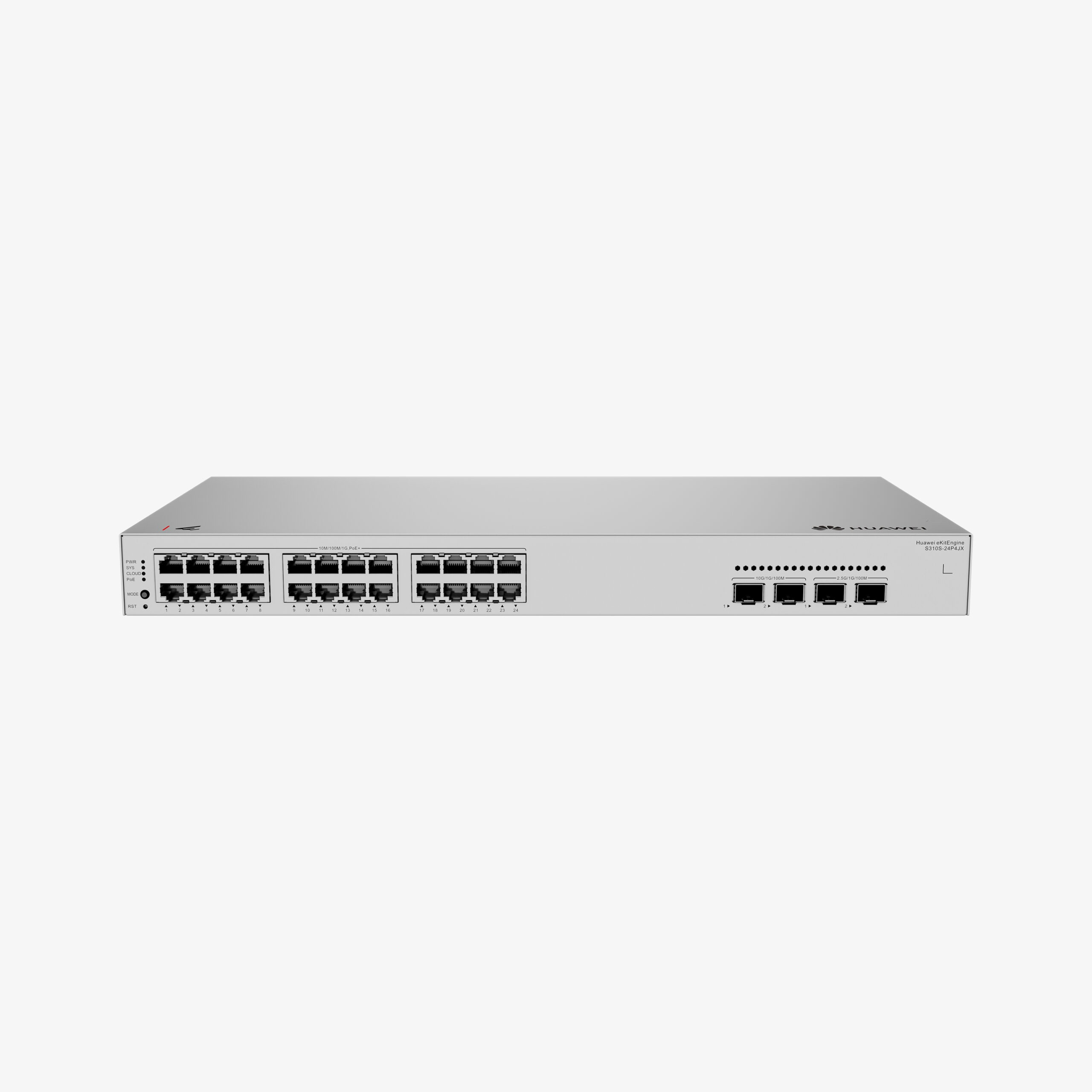

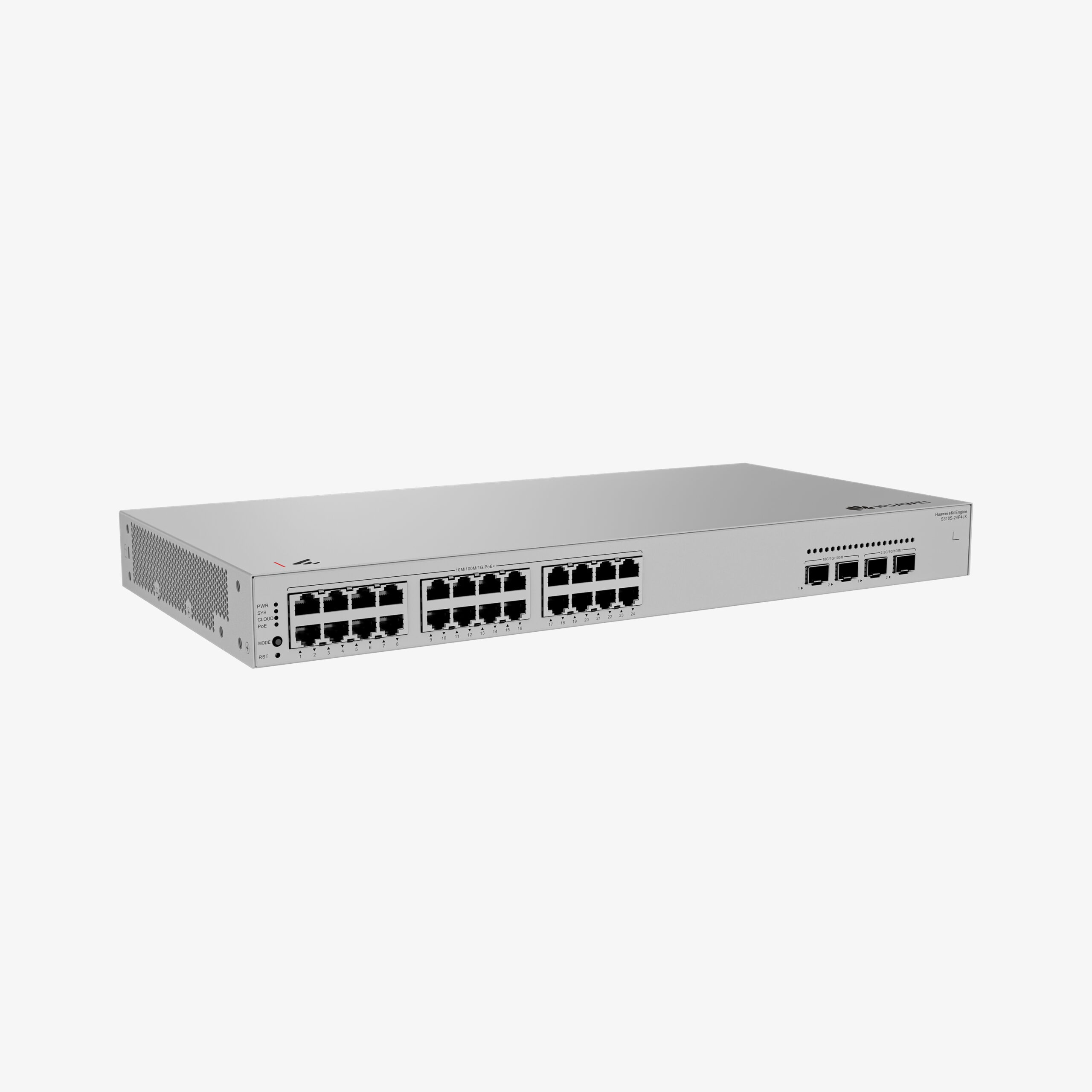

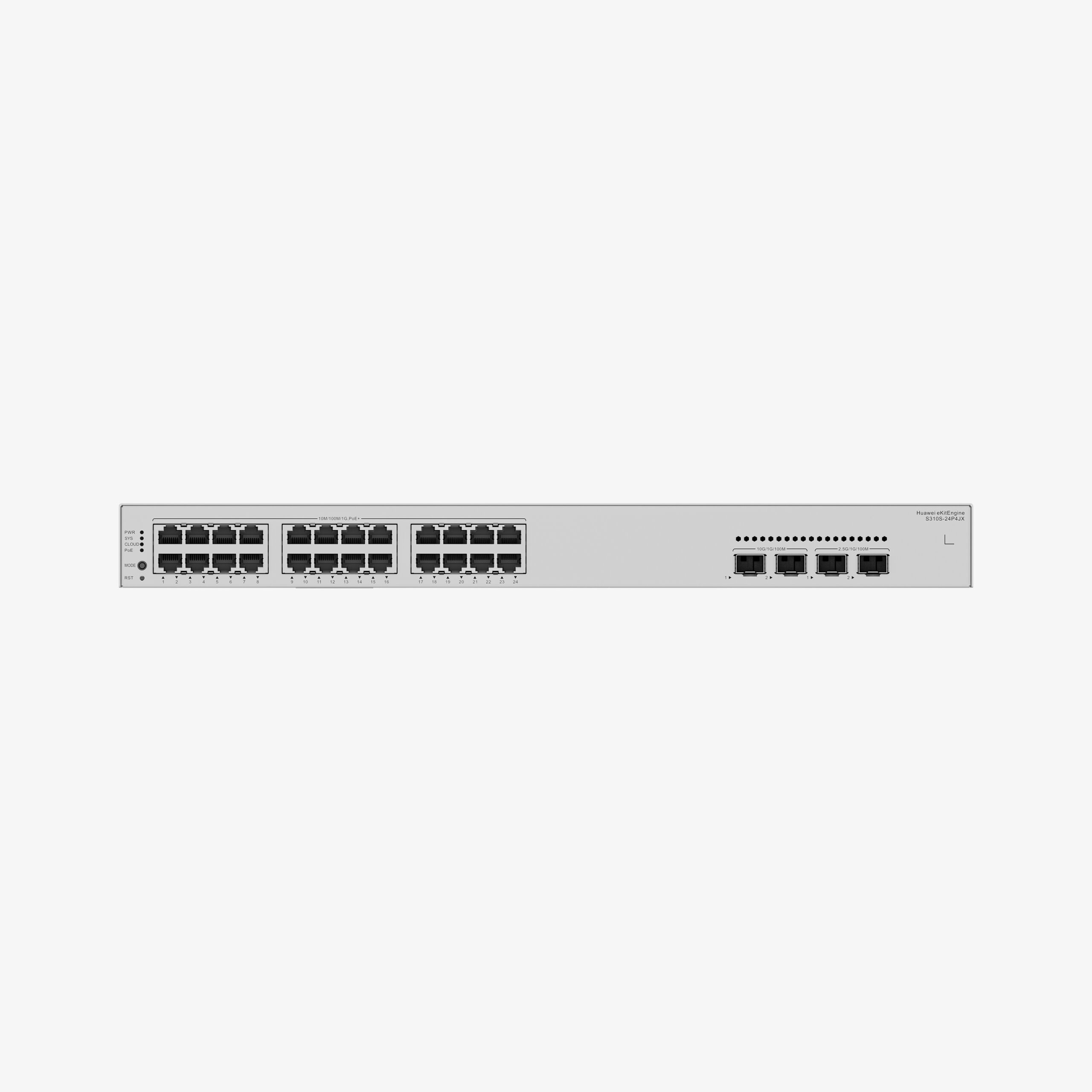

The Huawei eKit S310S-24P4JX is designed for environments that require many powered devices and high bandwidth uplinks, such as enterprise offices, access network distribution layers, remote branches, or campus edge. It includes 24 Gigabit RJ-45 downlink ports that support PoE+ (802.3af/at), enabling simultaneous powering of wireless APs, IP cameras, VoIP phones, and other powered devices across the entire port array.

For uplink flexibility, this model adds 2 × 10 GE SFP+ ports and 2 × 2.5 GE SFP ports, allowing connection to higher-speed aggregation or core switches. The built-in AC power supply delivers up to 400 W PoE budget, ensuring full port performance under load.

Cooling is handled with dual built-in fans to maintain thermal stability under load. The switch chassis (1U rack height, metal) supports operation in a broad temperature range (-5°C to +45°C), and is built for reliability (MTBF ~ 48.77 years).

Dimensions are 43.6 × 442 × 220 mm, with packaged depth up to 227 mm. Weight ~ 2.8 kg without packaging, ~ 3.71 kg packed. Power consumption ranges from ~ 33.3 W (typical) without PoE, to ~ 482.6 W under full PoE load.

Application

Enterprise networks, Campus backbone / aggregation, Retail & Hospitality, SMB & branch offices, Surveillance & AP heavy deployments

Key Features

✔️ 24 × GE downlink ports with full PoE+ (802.3af/at)
✔️ 400 W total PoE budget to power multiple devices simultaneously
✔️ 2 × 10 GE SFP+ + 2 × 2.5 GE SFP uplinks for flexible high-speed backbone connections
✔️ Dual-fan cooling system for reliable performance under full load
✔️ Rack-mount 1U metal chassis, 43.6 × 442 × 220 mm
✔️ Operating temperature from -5°C to +45°C, with decent altitude & humidity tolerances
✔️ MTBF ~ 48.77 years; Availability > 0.99999
