HSGQ E04D — 4-Port EPON OLT, 4xPON, 4xGE RJ45, 4xGE SFP Uplinks

The HSGQ E04D is a 4-Port EPON OLT (Optical Line Terminal) designed for FTTx and ISP access networks. It features 4×PON SFP ports, 4×GE RJ45 uplink ports, and 4×GE SFP uplinks, with dual AC power inputs for redundancy. Supporting up to 64 ONUs per PON, 20 km reach, and full IEEE 802.3ah EPON compliance, it’s an ideal compact solution for metro and access network deployments.

Description

The HSGQ E04D is a high-performance 4-port EPON OLT that provides scalable fiber access for FTTx, ISPs, and enterprise networks. It supports IEEE 802.3ah EPON standard and is backward compatible with multiple ONU types, offering seamless integration and high reliability for network operators.

Equipped with 4 EPON SFP PON interfaces, 4 Gigabit RJ45 copper uplinks, and 4 Gigabit SFP uplink slots, it can serve up to 256 ONUs (64 per PON port) with a maximum transmission distance of 20 km. The system uses a dual AC (100–240V) power supply for redundancy and high availability.

The E04D supports a rich Layer 2/3 feature set including VLAN, STP/RSTP, IGMP snooping, QoS, port isolation, MAC management, ACL, and 802.1X authentication. Advanced management via CLI, SNMP, WebGUI, and SSH allows easy configuration and monitoring. With a compact 1U rackmount design, lightning protection, and wide environmental tolerance, the E04D is built for stable performance in professional EPON deployments.


Application

FTTx, ISP Access Networks, Campus Fiber, Enterprise and Metro Networks


Key Features

  • ✅ 4 × EPON PON ports (SFP PX20++/PX20+++ compatible)

  • ✅ 4 × GE RJ45 + 4 × GE SFP uplinks

  • ✅ Supports up to 64 ONUs per PON (256 total)

  • ✅ 20 km transmission distance per PON

  • ✅ Dual AC 100–240V redundant power supply

  • ✅ Layer 2/3 switching with VLAN, STP, QoS, and ACL

  • ✅ Web, SNMP, Telnet, SSH, and CLI management

  • ✅ Built-in lightning and surge protection

Specifications

SpecificationDetails
BrandHSGQ
ModelE04D
Product Type4-Port EPON OLT
DDR Memory512 MB
Flash Memory16 MB
Uplink Ports8 total (4 × RJ45 GE + 4 × GE SFP slots)
PON Ports4 × SFP slots (1000BASE-PX20+/++/+++)
Max Splitting Ratio1:64 per PON
Transmission DistanceUp to 20 km
Supported ONUsUp to 256 total

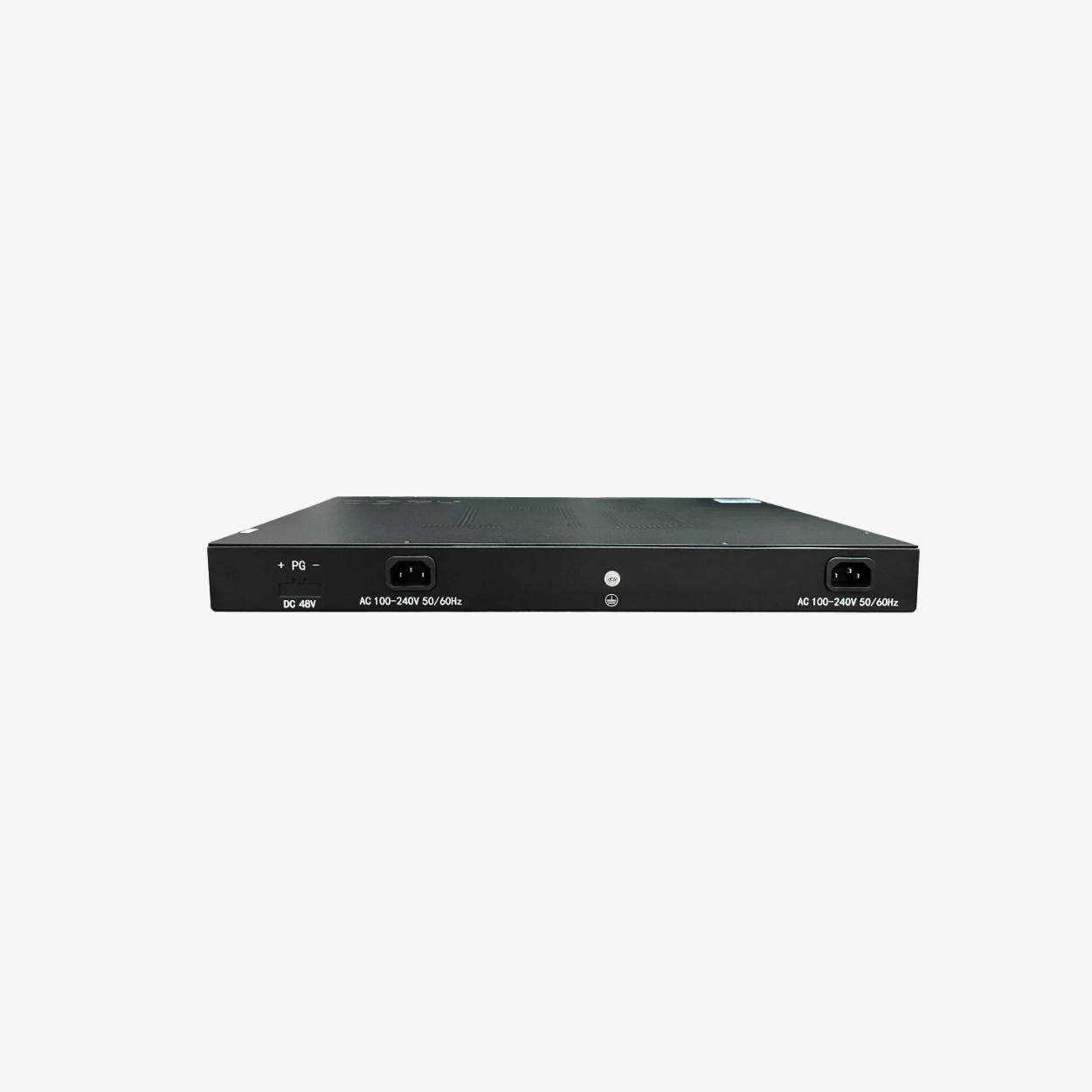

Power InputDual AC 100–240V, 47/63 Hz
Weight< 5 kg
Product Dimensions (L×W×H)442 × 260 × 44 mm
Package Dimensions520 × 372 × 87 mm
Operating Temperature–10 °C ~ +60 °C
Operating Humidity5% ~ 95% (non-condensing)
Management InterfacesConsole / NMS ports
Management ProtocolsSNMP, WebGUI, CLI, SSHv1/v2, TELNET
Layer 2/3 FeaturesVLAN, QinQ, STP/RSTP, IGMP Snooping, QoS, ACL, Port Isolation
PON FunctionsONU register/authorization, DBA config, whitelist/blacklist, P2P
Security802.1X authentication, encryption on PON ports
Lightning ProtectionYes (service port protected)
MaintenanceRemote Telnet, TFTP/FTP upgrade, syslog
Standards ComplianceIEEE 802.3ah EPON, IEEE 802.1Q, IEEE 802.1D/W/STP/RSTP, IEEE 802.3x

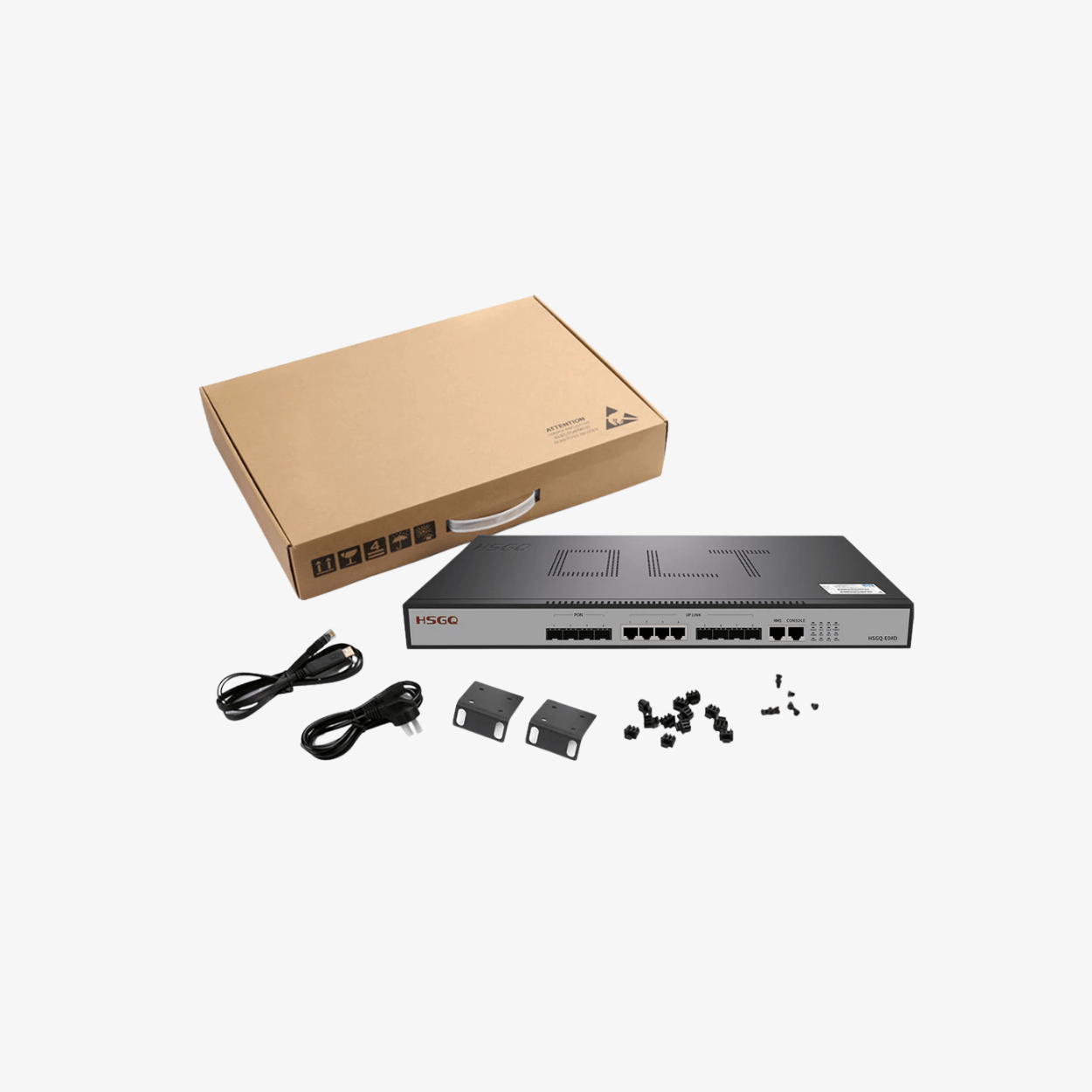

Package ContentsHSGQ E04D OLT, Power Cord, User Manual
Warranty1 Year
