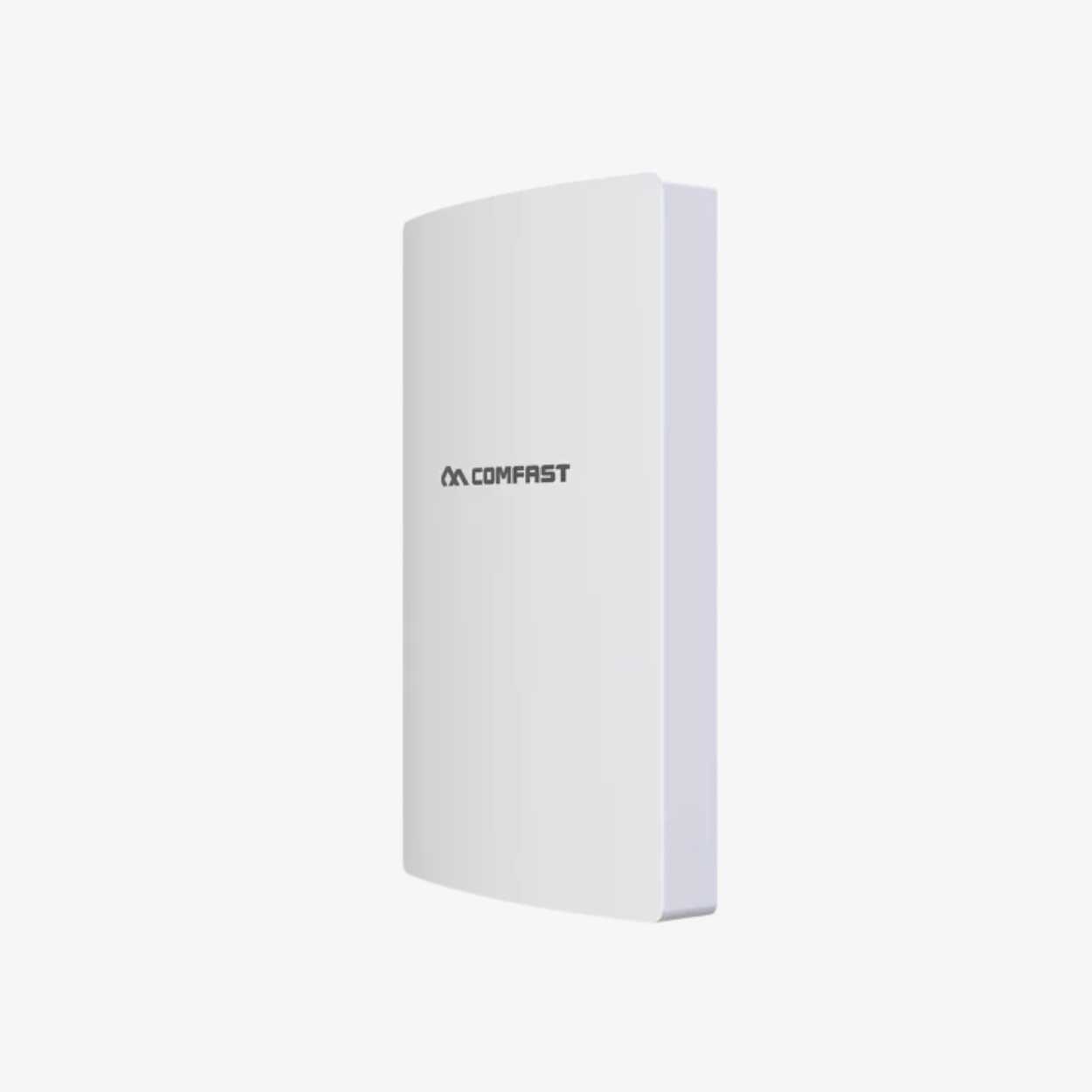

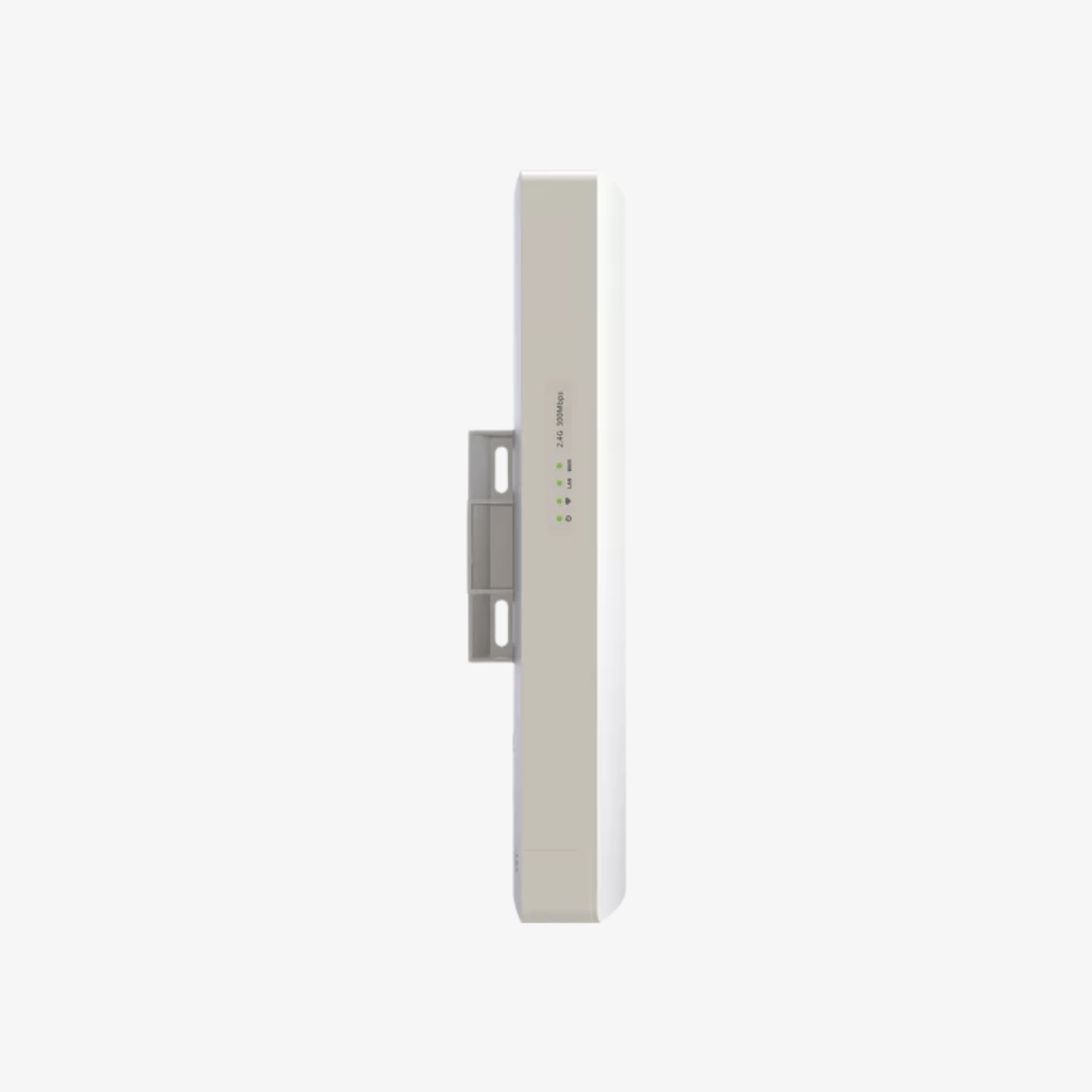

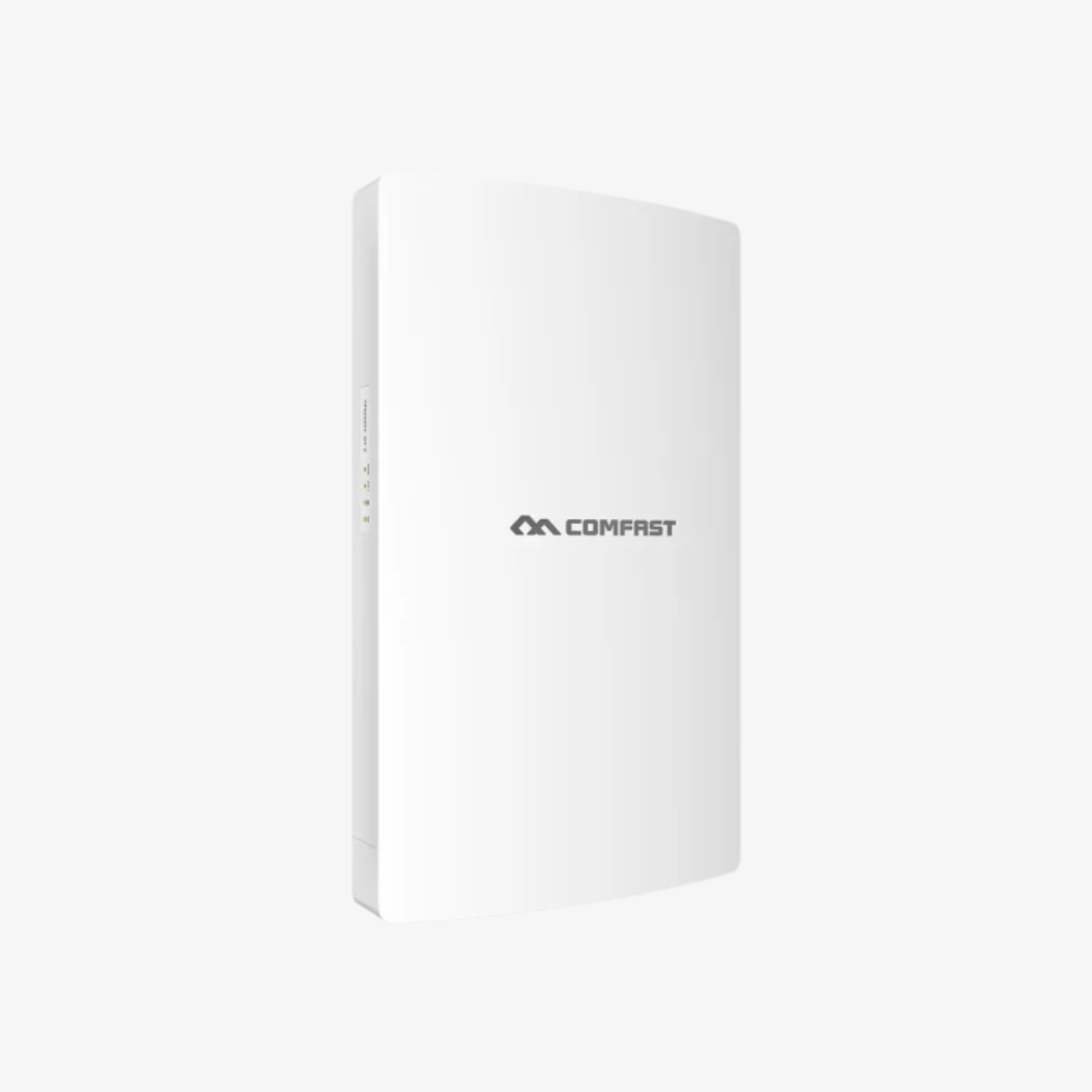

COMFAST CF-WA350 — 1300 Mbps Dual-Band Outdoor AP

The COMFAST CF-WA350 is a dual-band outdoor wireless access point delivering speeds up to 1300 Mbps. Featuring Qualcomm chipsets, 11 dBi / 13 dBi high-gain directional antennas, and IP67 protection, it ensures strong signal coverage for outdoor Wi-Fi networks. Designed for WISP and enterprise applications, it supports 48 V PoE, Gigabit ports, and stable 27 dBm transmission power for long-range performance.

Description

The COMFAST CF-WA350 is a high-power dual-band outdoor access point built for stable and extended Wi-Fi coverage. Delivering up to 1300 Mbps combined throughput (2.4 GHz 450 Mbps + 5 GHz 867 Mbps), it’s ideal for long-distance wireless bridges, WISP networks, and outdoor enterprise connectivity.

Powered by a Qualcomm QCA9563 + QCA8337 + QCA9886 chip solution with 128 MB memory and 16 MB flash, the CF-WA350 provides fast packet processing and reliable multitasking. Its 11 dBi (2.4 GHz) and 13 dBi (5.8 GHz) directional antennas deliver focused, long-range performance, while 27 dBm (500 mW) transmit power and −96 dBm sensitivity ensure strong, stable links over large outdoor areas.

The CF-WA350 includes Gigabit WAN and LAN ports, supports 48 V 0.5 A PoE power, and features low < 20 W consumption. Housed in an IP67-rated ABS enclosure, it withstands rain, heat, and dust. Designed for derrick or pole-mount installations, it provides professional outdoor Wi-Fi coverage with long service life (> 250 000 hours MTBF).

A perfect choice for resorts, campuses, WISP projects, and enterprise outdoor Wi-Fi deployments requiring durability, speed, and range.


Application

Wireless broadband, WISP deployments, Campus and resort networks, Enterprise bridging, Outdoor hotspot coverage


Key Features

✔️ Dual-band Wi-Fi (2.4 GHz 450 Mbps + 5 GHz 867 Mbps) for a total 1300 Mbps speed
✔️ Qualcomm QCA9563 + QCA8337 + QCA9886 chip solution for high stability
✔️ High-gain directional antennas — 11 dBi (2.4 GHz) / 13 dBi (5.8 GHz)
✔️ 500 mW (27 dBm) transmit power for long-range coverage
✔️ 48 V 0.5 A PoE power supply and Gigabit Ethernet ports
✔️ IP67 outdoor protection with ABS shell and low < 20 W consumption
✔️ Watchdog chip for automatic recovery and uptime stability
✔️ Wall / Pole mount installation for flexible deployment

Specifications

SpecificationDetails
BrandCOMFAST
Model / Product CodeCF-WA350
CPU / ChipsetQualcomm QCA9563 + QCA8337 + QCA9886
Memory (DDR)128 MB
Flash Storage16 MB
Power Amplifier Chip2.4 GHz SE2576L / 5.8 GHz SKY85728-11
Antenna TypeDirectional (2.4 GHz 11 dBi / 5.8 GHz 13 dBi)
Wi-Fi StandardIEEE 802.11 a/b/g/n/ac
Wireless Rate2.4 GHz 450 Mbps / 5 GHz 867 Mbps
Transmit Power (Max)27 dBm (500 mW)
Receive Sensitivity (Min)–96 dBm
Operating Frequency2.412 – 2.482 GHz / 5.18 – 5.825 GHz
Ethernet Ports1 × 10/100/1000 Mbps WAN RJ45; 1 × 10/100/1000 Mbps LAN RJ45
Other Interface1 × RESET button
IndicatorsPower / Wi-Fi / LAN / WAN
Power Supply48 V 0.5 A PoE adapter (included)
Power Consumption< 20 W
Waterproof RatingIP67
InstallationDerrick / Support (Pole mount or bracket)
Shell MaterialABS plastic
MTBF> 250 000 hours
Dimensions300 × 180 × 50 mm
Operating Temperature–10 °C to +65 °C
Storage Temperature–40 °C to +70 °C
Operating Humidity10 % – 90 % RH (non-condensing)
Storage Humidity5 % – 90 % RH (non-condensing)
Certifications & ApprovalsCE, FCC, RoHS
Warranty1-Year Limited Hardware Warranty
Package ContentsCF-WA350 unit, PoE adapter, mount kit, manual
