Description

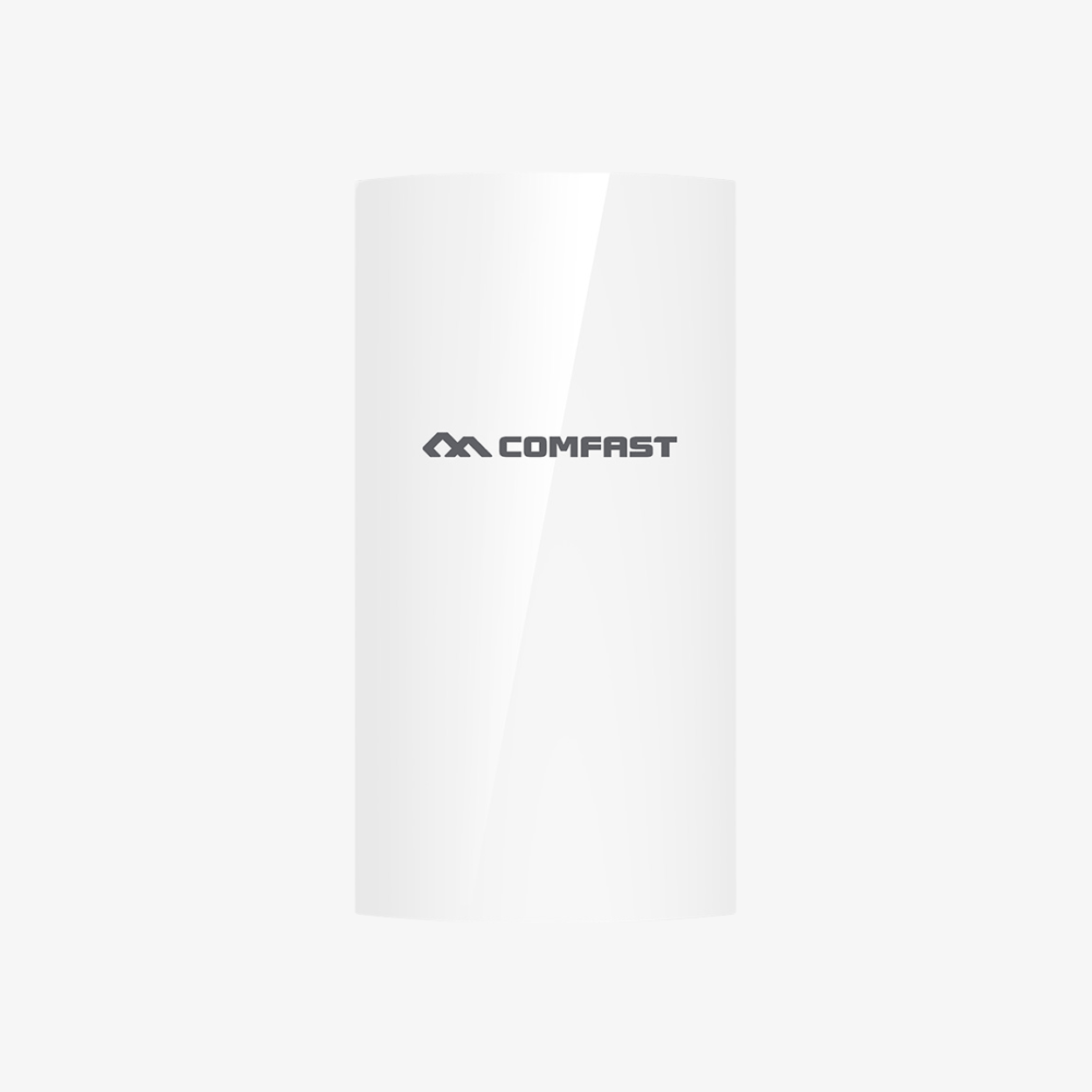

The COMFAST CF-E130N V2 is a professional-grade 2.4 GHz outdoor access point designed for reliable long-distance wireless transmission. Delivering up to 300 Mbps on 802.11 b/g/n, it combines high-power performance with compact, weatherproof construction.
Powered by a Qualcomm QCA9533 650 MHz CPU, with 64 MB DDR and 8 MB Flash, the device ensures efficient signal processing and consistent stability over extended ranges. Its built-in 8 dBi directional antenna focuses the signal for point-to-point (PtP) or point-to-multipoint (PtMP) connectivity, ideal for outdoor wireless coverage or surveillance backhaul.
With 80 mW (19 dBm) transmit power and –96 dBm sensitivity, the CF-E130N V2 maintains reliable links even in challenging environments. The IP65-rated enclosure offers protection from dust, water, and lightning (2 kV surge protection). It supports 15 V PoE power, consumes less than 7 W, and can be wall- or pole-mounted for flexible deployment.
Durable, energy-efficient, and cost-effective, the CF-E130N V2 is the perfect solution for small WISP deployments, farms, CCTV systems, and rural Wi-Fi coverage projects.
Application
Point-to-multipoint (PtMP) wireless bridges, Rural connectivity, CCTV backhaul, WISP access networks, Farm & campus Wi-Fi coverage
Key Features
✔️ 300 Mbps 2.4 GHz 802.11 b/g/n Wi-Fi speed
✔️ Qualcomm QCA9533 chipset with 64 MB RAM and 8 MB Flash
✔️ 8 dBi directional antenna for focused long-range signal
✔️ 19 dBm (80 mW) output power, –96 dBm sensitivity
✔️ IP65 weatherproof design with 2 kV lightning protection
✔️ ≤ 7 W low power consumption with 15 V PoE support
✔️ Compact 165 × 85 × 43.55 mm body, wall / pole mount ready
✔️ Operating temperature range –40 °C to +55 °C
