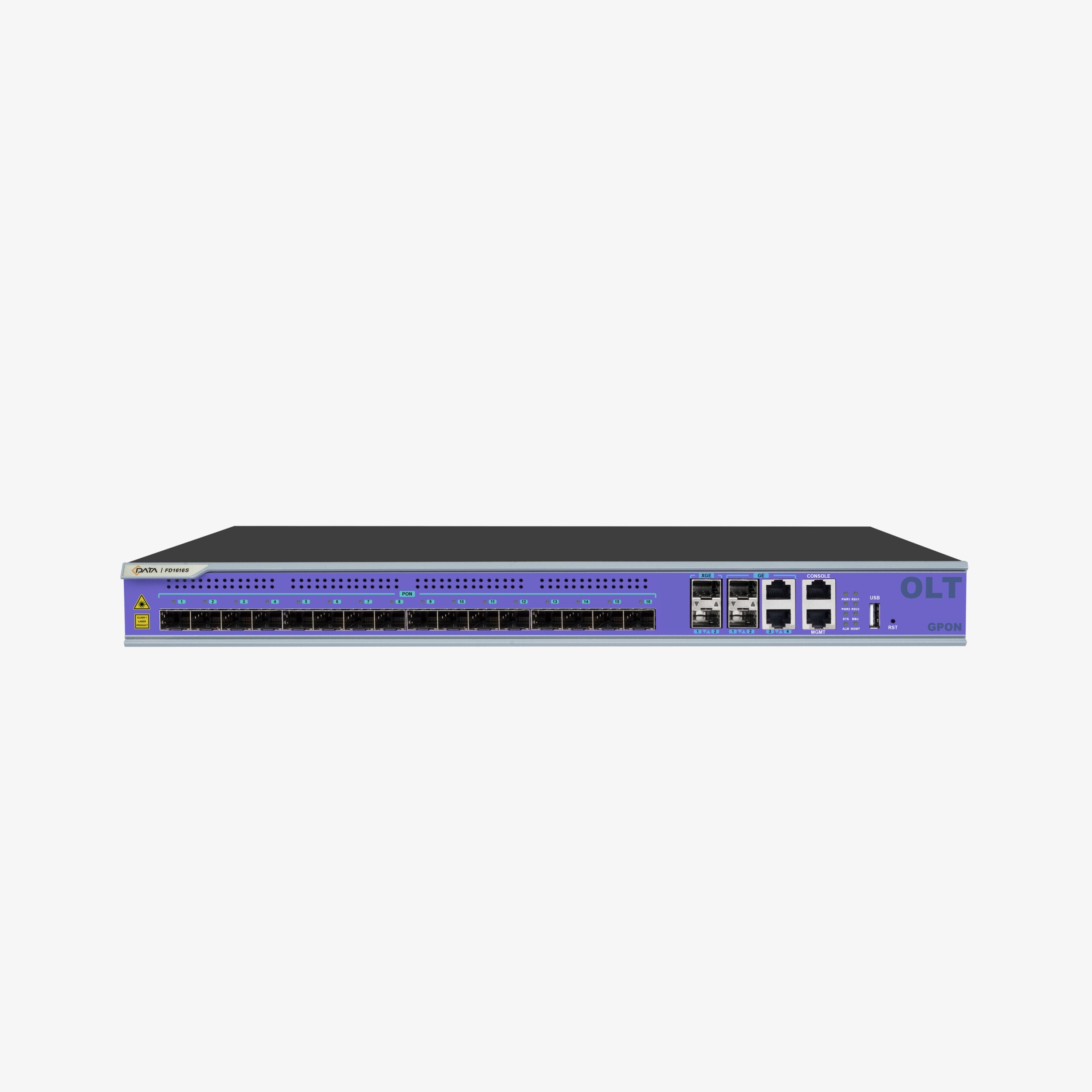

C-Data FD1616S-B1 Front View

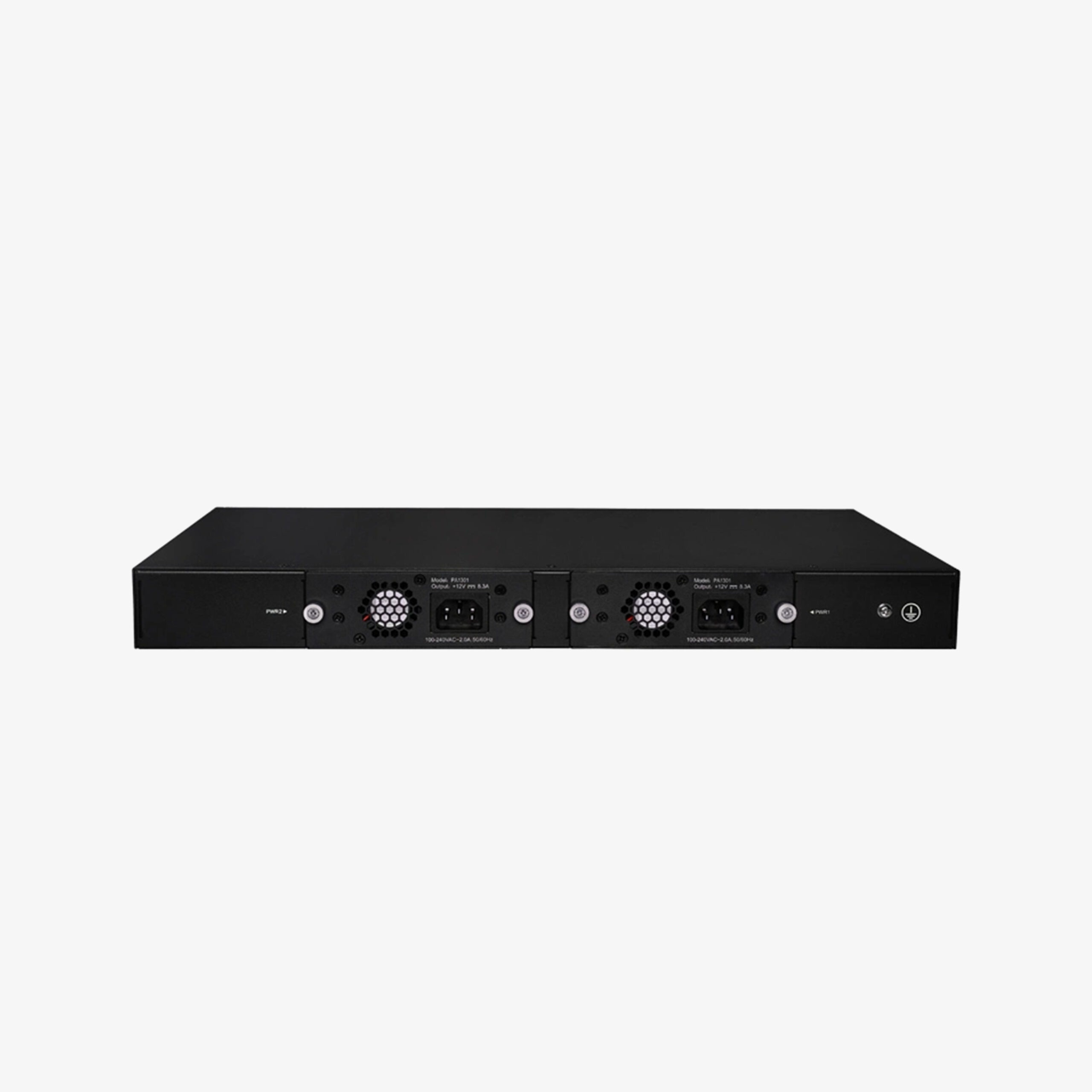

C-Data FD1616S-B1 Back View

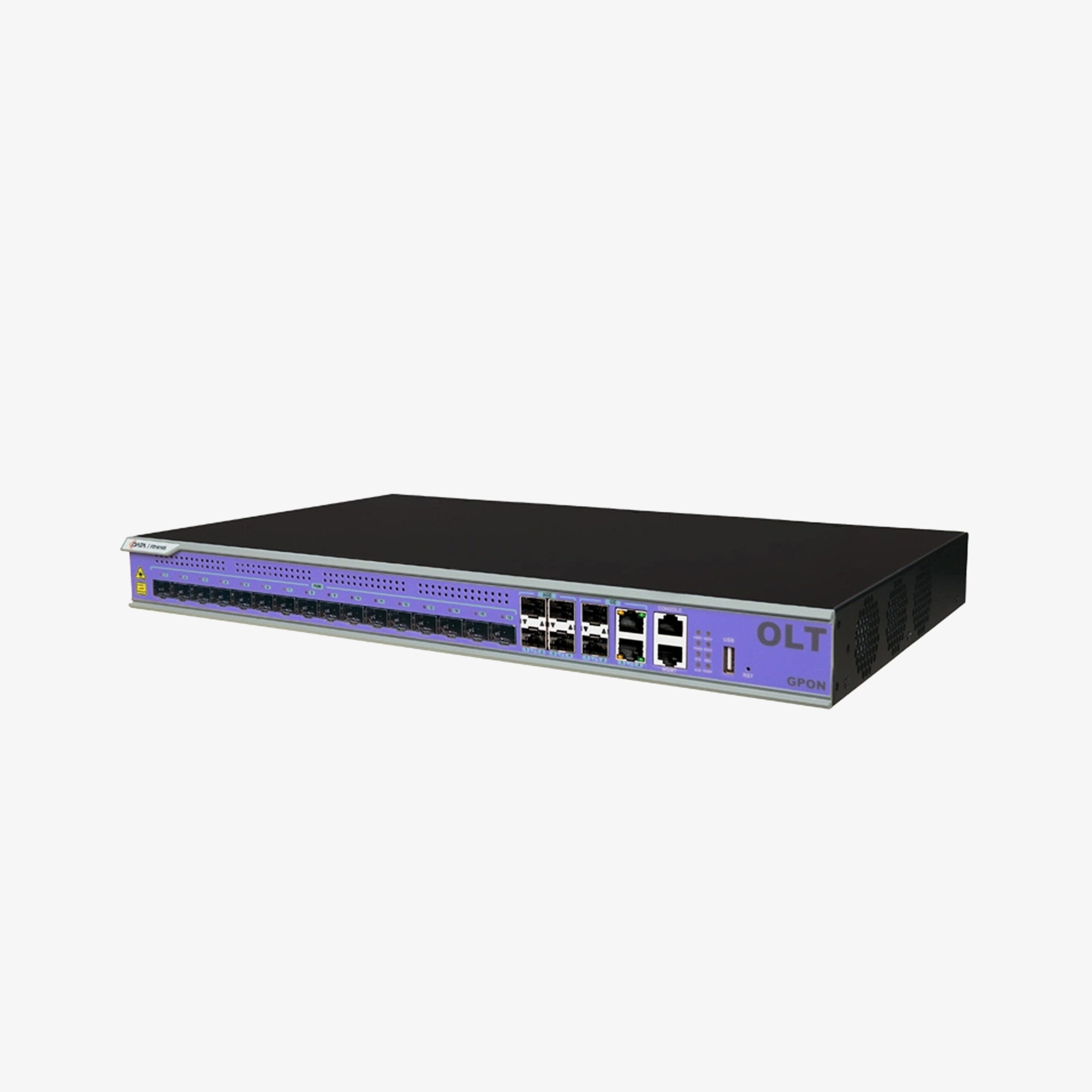

C-Data FD1616S-B1

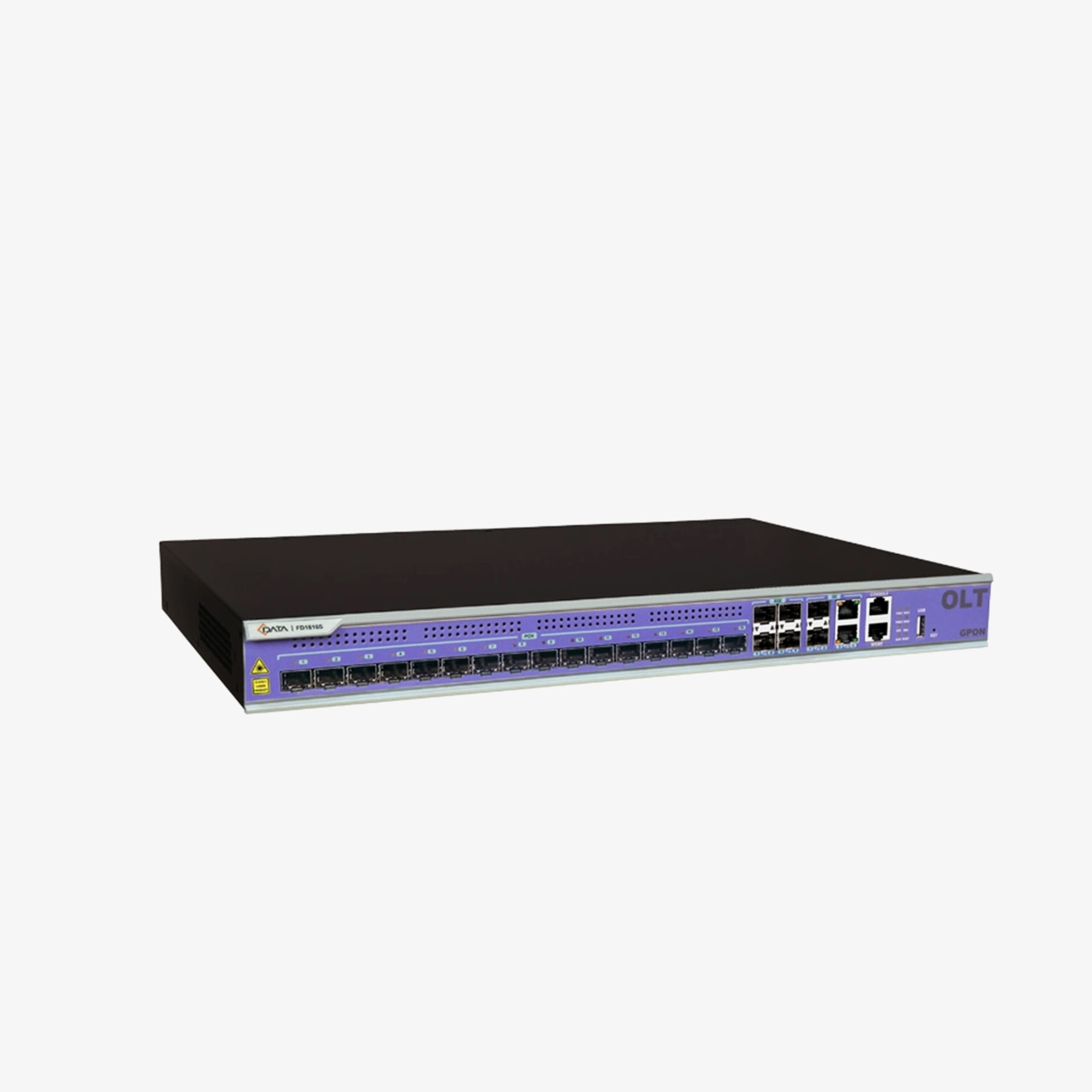

C-Data FD1616S-B1

C-Data FD1616S-B1 GPON OLT

The C-Data FD1616S-B1 is a high-capacity GPON OLT with 16 GPON ports suited for ISPs, large FTTH deployments, or telecom operators. Each PON port supports up to 1:128 splitting, with a system capacity up to 2,048 ONUs. It includes multiple uplinks (GE, SFP, 10GE), layer-3 switching, and dual power (AC + DC) options. Rack-mount 1U design with robust features makes it fit for core access networks needing high density and reliability.

  • User Manual
Request a Quote
6 people are viewing this product

Description

The C-Data FD1616S-B1 is a high-performance GPON optical line terminal engineered for large scale FTTH projects, broadband service providers, or telecom network operators who require many subscriber connections per unit. It complies with ITU-T G.984.x / FSAN standards. The unit has 16 PON ports, each supporting up to 1:128 splitting, so one device can serve up to 2,048 ONUs.

Uplink side includes: 2 Gigabit Ethernet (RJ45) ports, 2 SFP, and 2 × 10 Gbps SFP+ ports. Management ports include an out-of-band Gigabit Ethernet port, a console port, and a USB interface for firmware upgrades, configuration backup, and logs.

It supports full Layer-2 switching (VLAN access/trunk/hybrid, MAC table, RSTP, ACLs), L3 static routing, RIP, DHCP server/relay/snooping, ARP proxy; and QoS, multicast (IGMP snooping V1/V2/V3), device reliability features like dual power (AC and DC), automatic fan speed adjustment, and sturdy rack-mount 1U metal chassis.

Application

FTTH, FTTB, ISP backbone, Enterprise fiber links, Data centers

Key Features

✔️ 16 × GPON ports with 1:128 split ratio, supporting 2,048 ONUs
✔️ 4 × GE Combo uplinks and 2 × 10GE SFP+ uplinks for flexible backbone integration
✔️ Dual AC/DC power supply design for carrier-grade redundancy
✔️ Compact 1U rackmount chassis with low power consumption
✔️ Full Layer 2/3 features: VLAN, QoS, IGMP snooping, ACL, OAM
✔️ ITU-T G.984 standard compliance ensures interoperability
✔️ Ideal for large-scale FTTH and FTTB deployments

Specifications

Specification Details
Brand C-Data
Model / Product Code FD1616S-B1
GPON Ports 16 × GPON (up to 1:128 split per port, max 2,048 ONUs)
Uplink Ports 4 × GE Combo (RJ45/SFP), 2 × 10GE SFP+
Management CLI, SNMP, Web, OAM
Switching Layer 2/3, VLAN, QoS, IGMP snooping, ACL
CPU / Memory Not specified by vendor
Power Supply Dual AC/DC (redundant)
Power Consumption ≤ 65W
Form Factor 1U rackmount
Dimensions 440 × 276 × 44 mm
Weight ≤ 4.5 kg
Operating Temperature -40°C to +55°C
Storage Temperature -40°C to +70°C
Humidity 10%–90% (non-condensing)
Certifications CE, FCC, RoHS
Warranty 1 year
Package Contents Main unit, power adapter, 16 x GPON C++++ 9dBm SFP Module
