Description

The C-Data FD1608S-B1 is an enterprise-grade GPON OLT built to support demanding FTTH, broadband, surveillance, IoT, and enterprise access network deployments. Fully compliant with ITU-T G.984.x and FSAN standards, it provides 8 GPON ports (Class B+ / C+), each capable of handling up to 128 ONUs per port, totaling support for up to 1,024 terminal connections.

For uplink backbone and aggregation, it includes 4 × Gigabit Ethernet RJ-45 ports, 4 × 1 Gbps SFP ports, and 2 × 10GE SFP+ ports. There is also an out-of-band GE management port, a console port for local CLI, and a USB interface for configuration backup, firmware upgrades, and log storage.

Optically, it supports 20 km reach over single-mode fiber (SMF, 9/125 µm) with SC/UPC connectors. GPON downstream rate is 2.5 Gbps; upstream 1.25 Gbps. Wavelengths are 1490 nm (downstream) / 1310 nm (upstream).

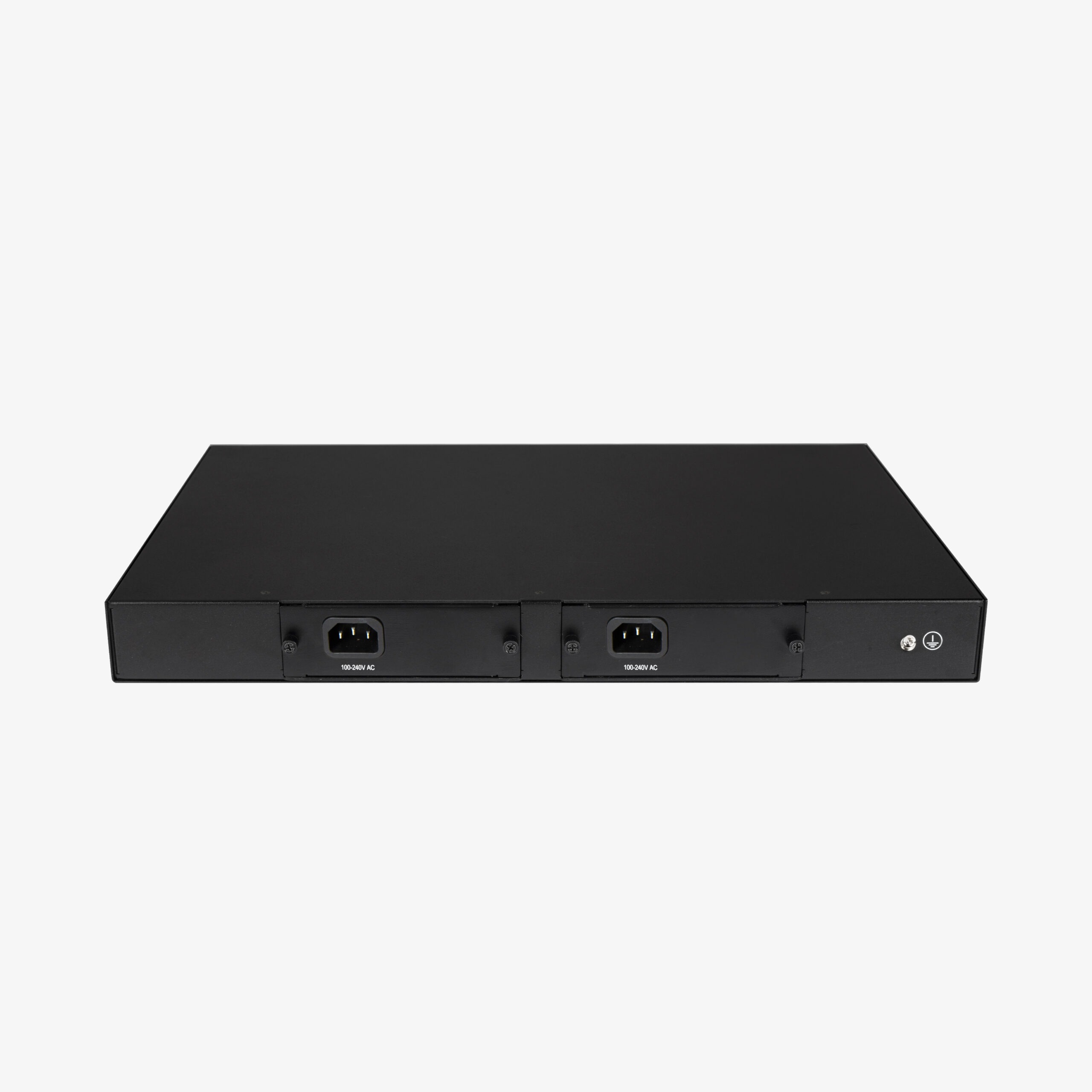

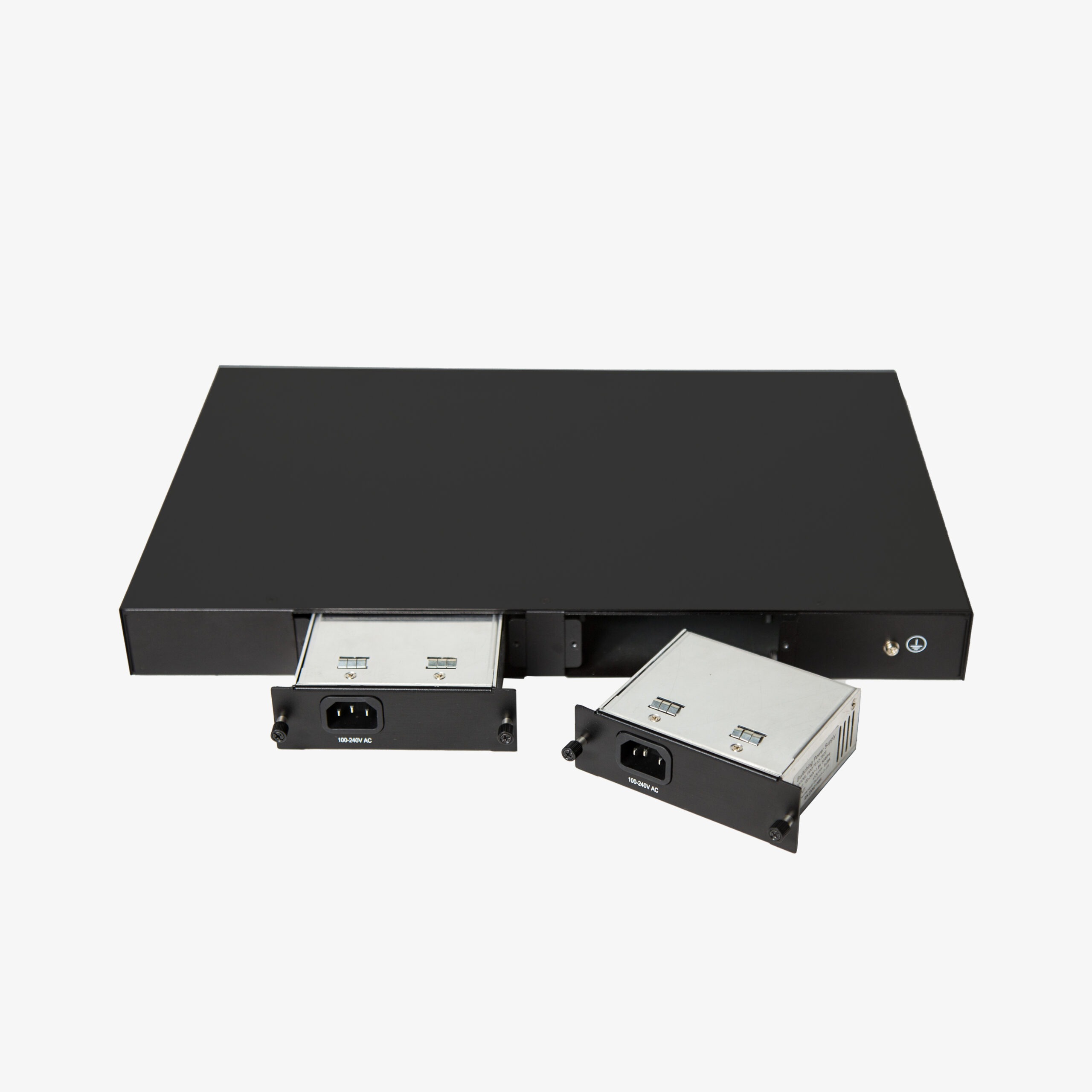

The FD1608S-B1 operates in a 1U 19-inch rack form, with dimension approx. 440 × 44 × 276 mm, weight ~4.5 kg. Power supply options include AC 100-240 V or −40 V to −72 V DC. Backup Battery Unit (BBU) support is included. Environment support: operating temperature −15 to +50 °C; storage −40 to +85 °C; relative humidity 5-90% non-condensing.

Application

FTTH, ISP / WISP deployments, Video monitoring networks, Enterprise LAN fiber access, IoT infrastructure

Key Features

✔️ 8 GPON ports (ITU-T G.984.2, Class B+/C+) with 1:128 split per port

✔️ Supports up to 1,024 ONUs total

✔️ Multiple uplink interfaces: 4 × GE RJ45, 4 × 1G SFP, 2 × 10GE SFP+

✔️ Out-of-band GE management port, console port, USB for backup/upgrade/logs

✔️ 20 km reach over single-mode fiber; 2.5 Gbps downstream / 1.25 Gbps upstream per PON port

✔️ Layer-2 switching, VLAN, QoS, ACL, IGMP, LACP; plus static routing / VLANIF / DHCP relay support

✔️ 1U rack mount form factor, approx. 440 × 44 × 276 mm, ~4.50 kg

✔️ Broad power range: AC 100-240 V or DC (-40 V to -72 V), with BBU support
