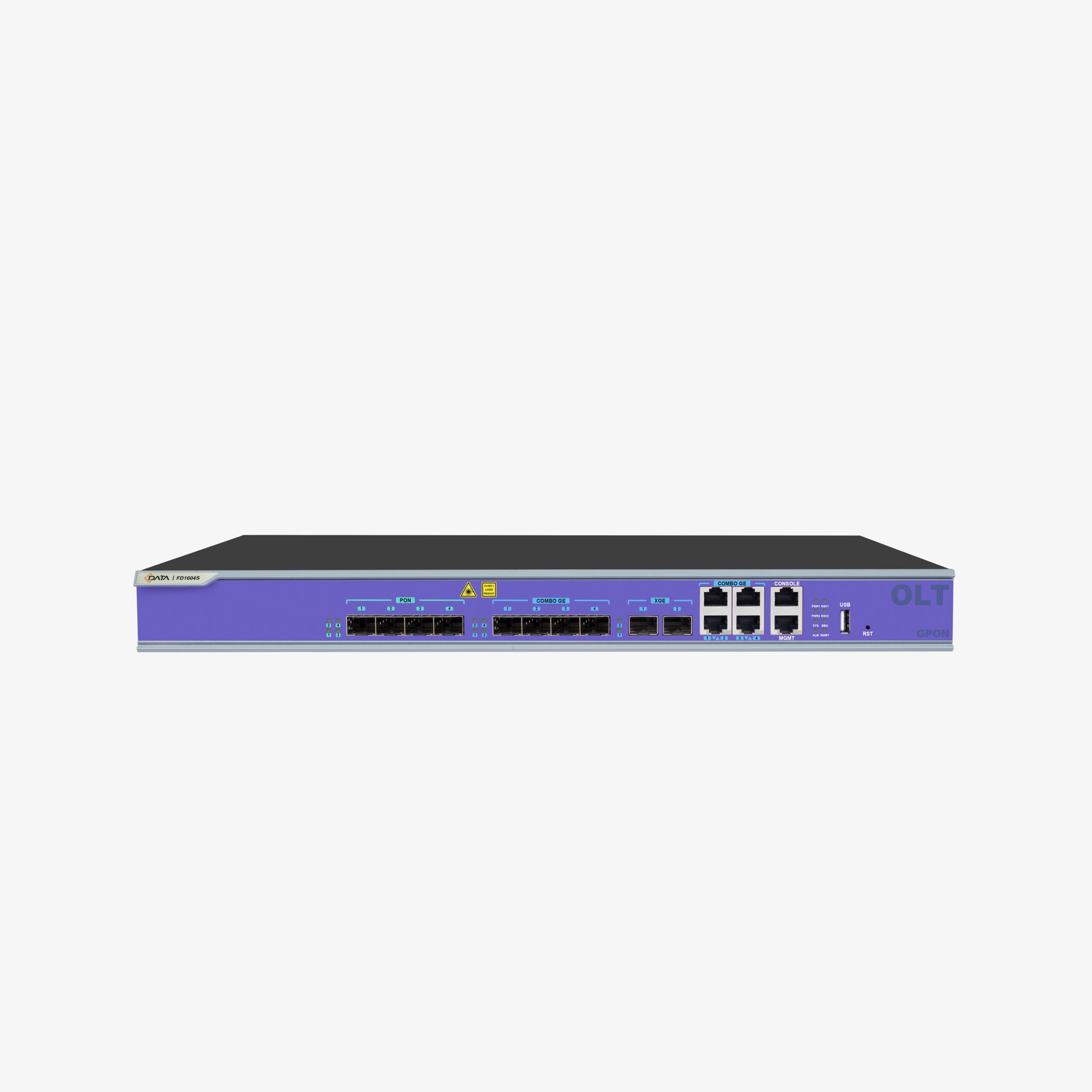

C-Data FD1604S-B1 Front View

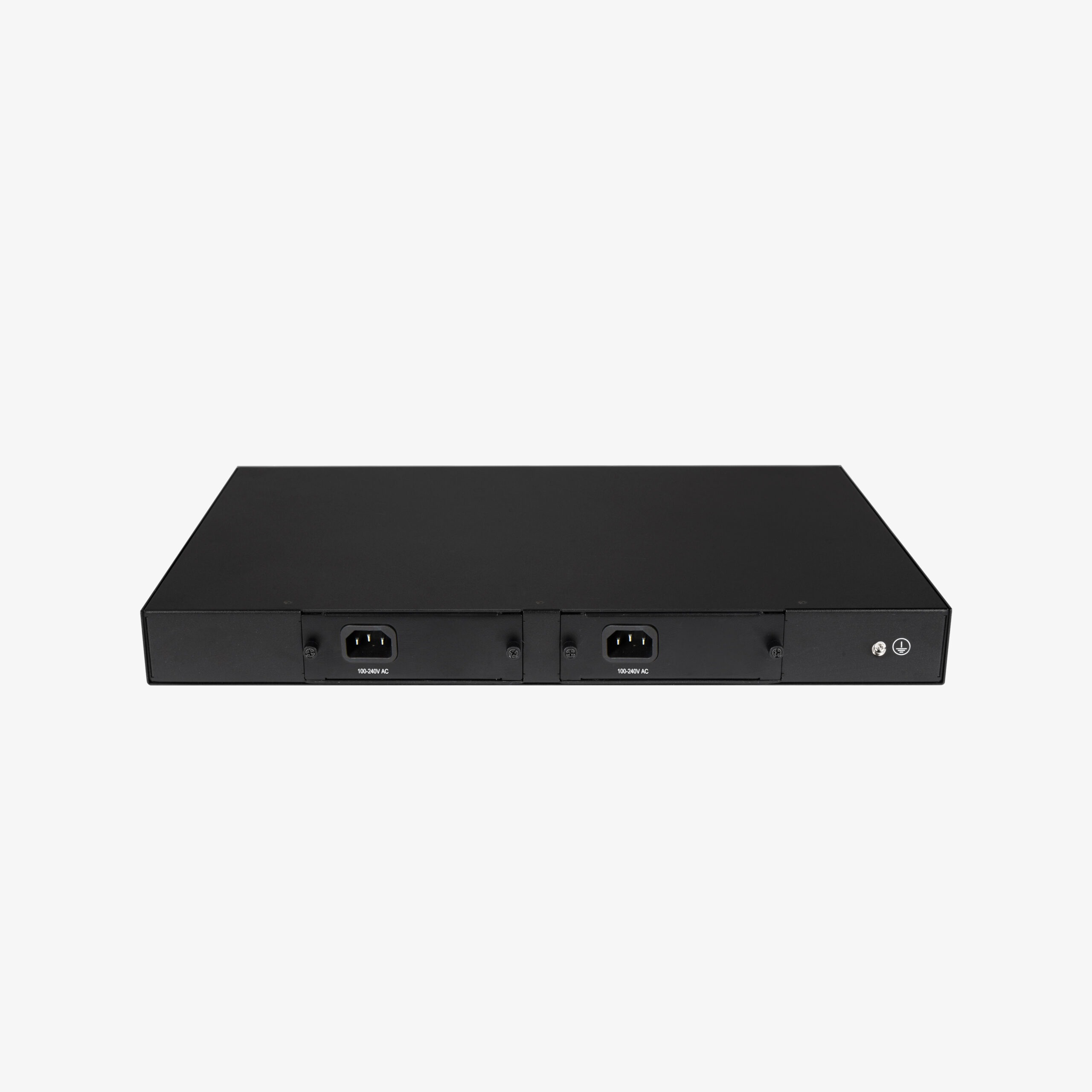

C-Data FD1604S-B1 Back View

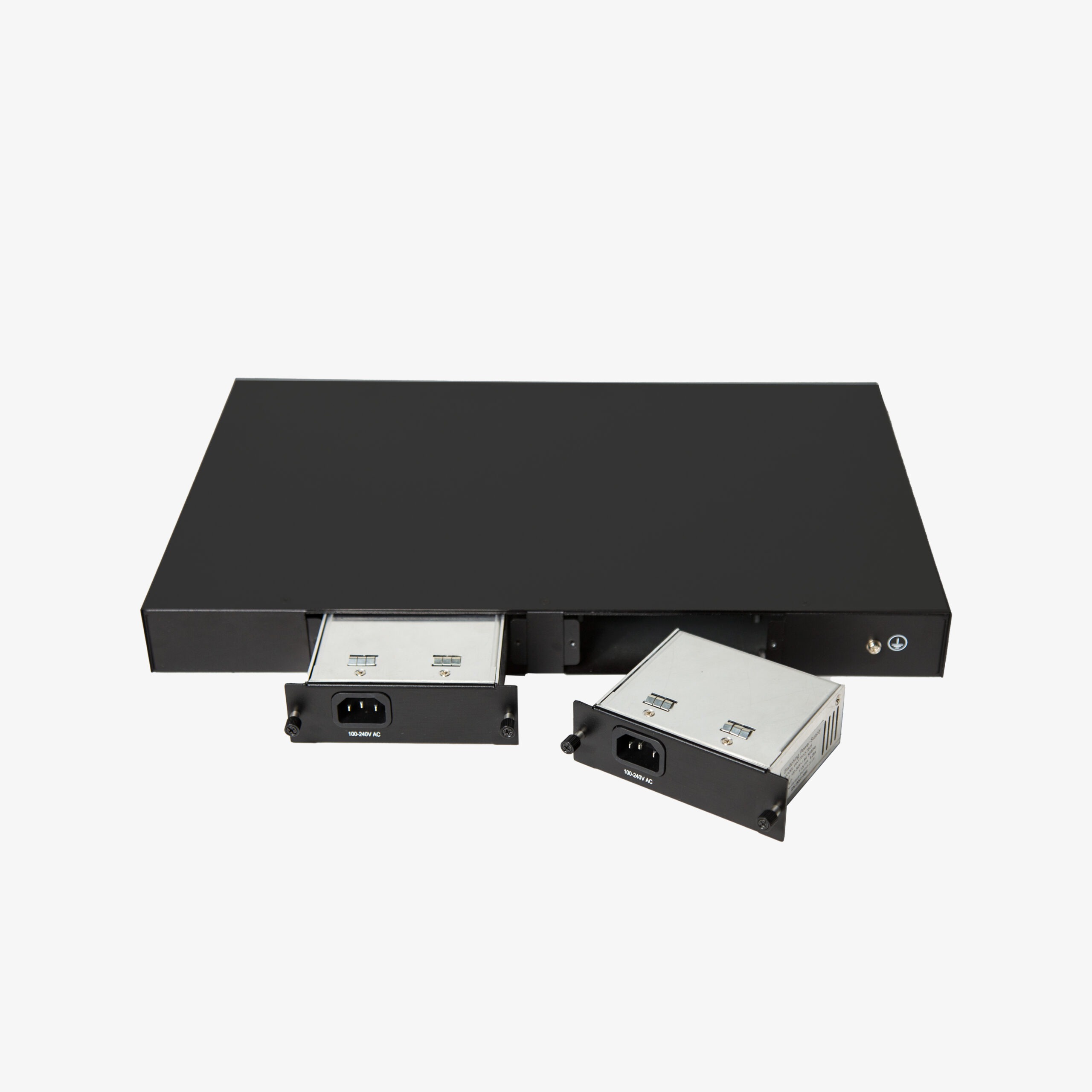

C-Data FD1604S-B1

C-Data FD1604S GPON OLT

The C-Data FD1604S-B1 is a high-capacity GPON OLT built for ISPs, FTTH networks, and enterprise fiber deployments. It has 4 GPON ports (each supporting up to 128 ONU splits) plus multiple uplink options: 4 GE ports, 4 SFP, and 2 × 10GE SFP+ for backbone connectivity. Management includes CLI, Web, Telnet, SSH, plus built-in Wi-Fi for local administration. Rugged 1U rack form, wide temp range, and high performance make it ideal for demanding access network environments.

  • User Manual
Request a Quote
10 people are viewing this product

Description

The C-Data FD1604S-B1 is a powerful GPON Optical Line Terminal suitable for FTTH, enterprise fiber access, video surveillance networks, and IoT networks. It fully complies with ITU-T G.984.x and FSAN standards. The device offers 4 GPON ports, each capable of supporting a 1:128 split, giving up to 512 ONUs in total.

For uplinks, it includes 4 GE auto-negotiated RJ-45 ports, 4 SFP ports, and 2 × 10GE SFP+ ports, which allow connection to high capacity backbones. Fibre reach is up to 20 km over single-mode fiber (9/125 μm) with SC/UPC connectors.

Management is robust: there is an out-of-band Ethernet port, a console port, and a USB interface for backup, firmware upgrades, and logs. It supports CLI, Web GUI, Telnet, SSH, SNMP. Also supports layer-2 and some layer-3 features (static routing, VLANIF etc.), QoS, ACL, IGMP snooping, and DBA templates for traffic management.

It draws power from AC100-240V, supports rack mount in 1U 19-inch enclosure. Work-temperature range is -15 °C to +50 °C; humidity 5-90% non-condensing.

Application

FTTH networks, ISP / WISP deployments, Backbone / Aggregation, Video surveillance backhaul, Enterprise LAN fiber access

Key Features

✔️ 4 GPON ports (ITU-T G.984.2 Class B+ / C+) with support for up to 1:128 split each
✔️ Up to 512 ONUs supported total across all PON ports
✔️ Multiple uplink options: 4 × GE RJ-45 + 4 × 1G SFP + 2 × 10G SFP+
✔️ Out-of-band Ethernet & console ports
✔️ Fibre reach up to 20 km (SMF, SC/UPC) with typical GPON downstream/upstream 2.5 Gbps / 1.25 Gbps per PON port
✔️ Supports full management suite: CLI, Web GUI, Telnet, SSH, SNMP; features such as VLAN, QoS, ACL, static routing / VLANIF etc.
✔️ USB port for backup, upgrades, log management
✔️ Rack-mount 1U form with wide environmental tolerance (-15 °C to +50 °C)

Specifications

Specification Details
Brand C-Data
Model / Product Code FD1604S-B1
CPU / Chipset Not specified by vendor
Memory Not specified by vendor
Storage Not specified by vendor
Wi-Fi Standard Not supported
Wireless Capabilities Not supported
Ethernet Ports 4 × GE RJ-45 uplink ports (auto-negotiation)
SFP Uplink Ports 4 × 1G SFP
10GE Uplink Ports 2 × SFP+ (10 Gbps)
Management Ports 1 × out-of-band Ethernet port; 1 × console port
USB 1 USB interface (for backup, logs, firmware)
PON / GPON Ports 4 GPON ports, ITU-T G.984.2 Class B+ / C+
Splitting Ratio Up to 1:128 per PON port
Max ONUs Supported Up to 512 ONUs total
Downstream GPON Rate 2.5 Gbps per GPON port
Upstream GPON Rate 1.25 Gbps per GPON port
Fibre / Connector Type Single-mode fiber, SC/UPC
Wavelengths Tx 1490 nm / Rx 1310 nm
Light Transmission Power Class B+ +1.5 to +5 dBm; Class C+ +3 to +7 dBm
Receiver Sensitivity B+: -28 dBm; C+: -30 dBm
Saturation Power B+: -8 dBm; C+: -12 dBm
Backplane Bandwidth 63 Gbps
Power Supply AC 100-240 V, 47-63 Hz; also supports -40 V to -72 V DC; backup battery input (BBU) supported.
Cooling Active automatic fan
Operating Temperature -15 °C to +50 °C
Environmental Rating Humidity 5-90% non-condensing
Mounting Options Rack-mount 1U 19-inch standard box
Dimensions 440 × 44 × 276 mm
Weight ~4.0 kg
Certifications & Approvals ITU-T G.984.x / FSAN compliance
Warranty 1 year
Package Contents Main unit, power adapter, 4 x  GPON C++++ 9dBm SFP Module
