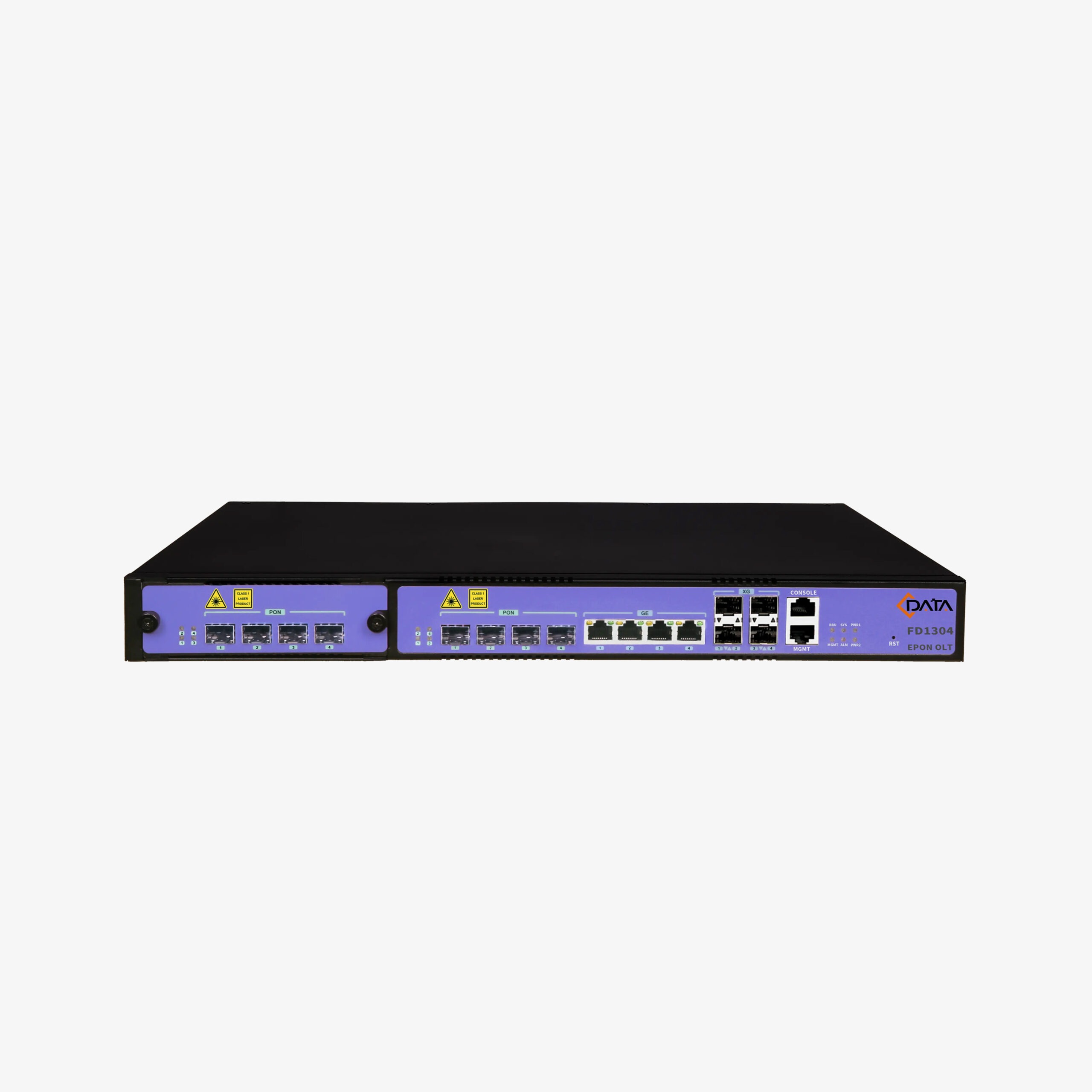

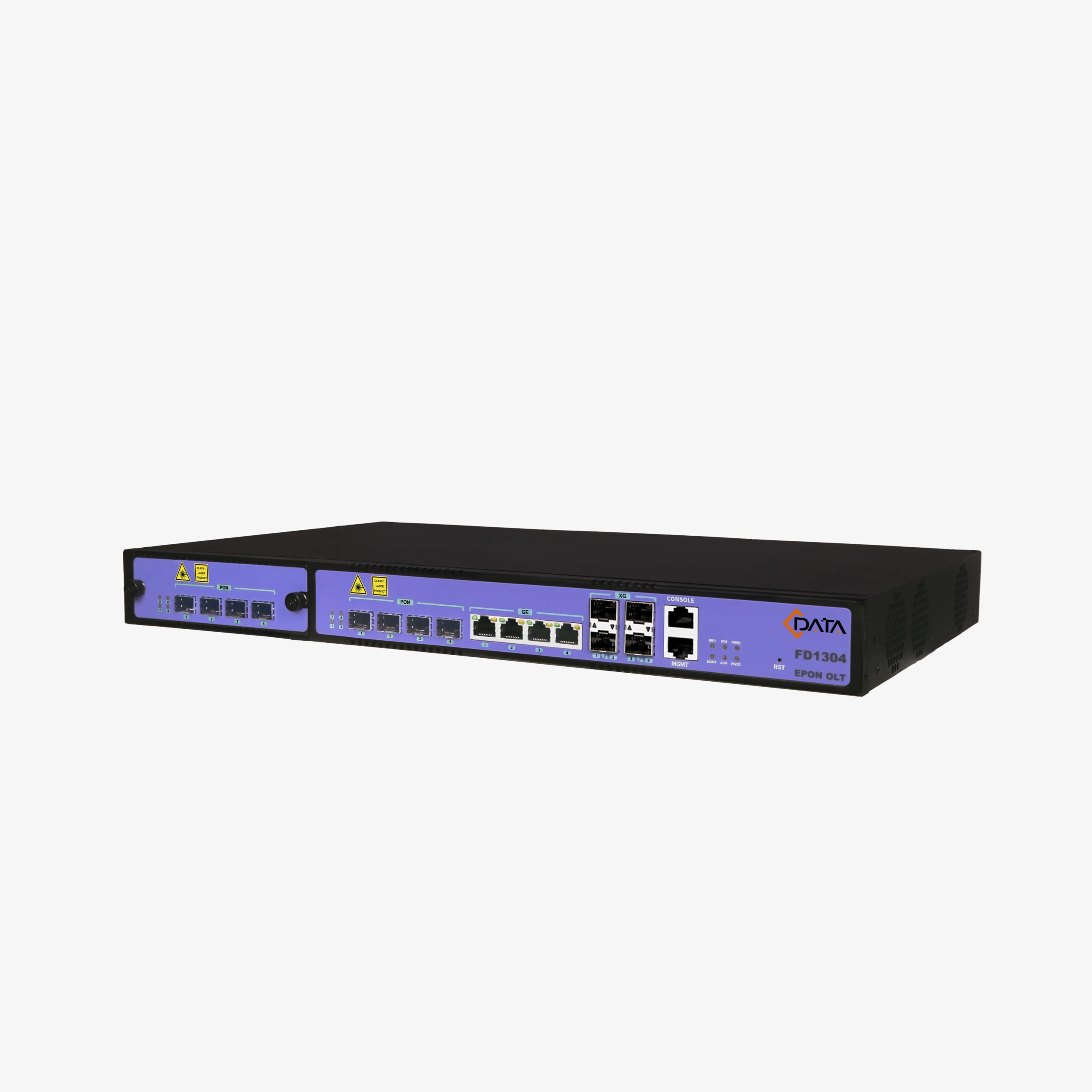

C-Data FD1304E-B1 Front View
C-Data FD1304E-B1

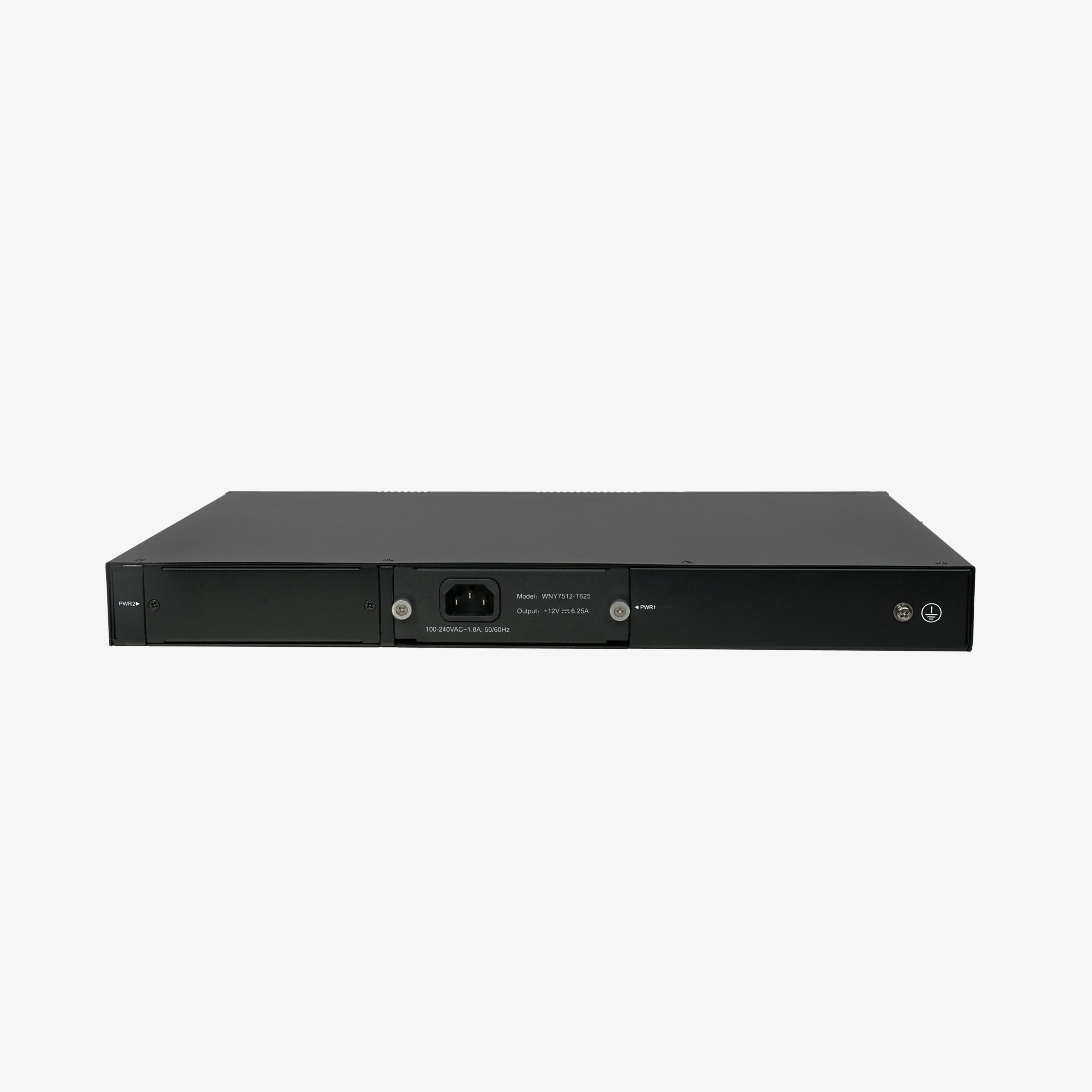

C-Data FD1304E-B1 Back View
C-Data FD1304E-B1

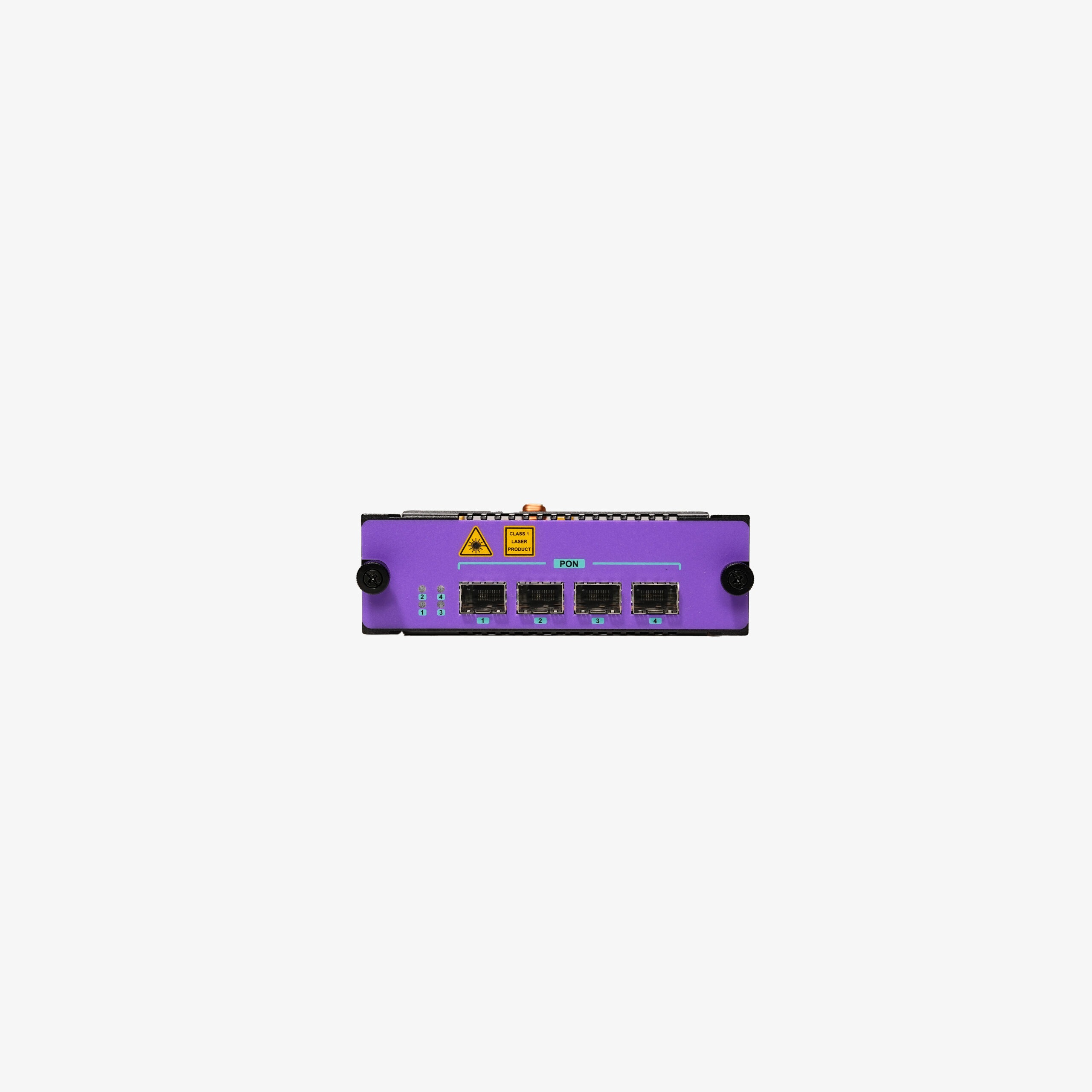

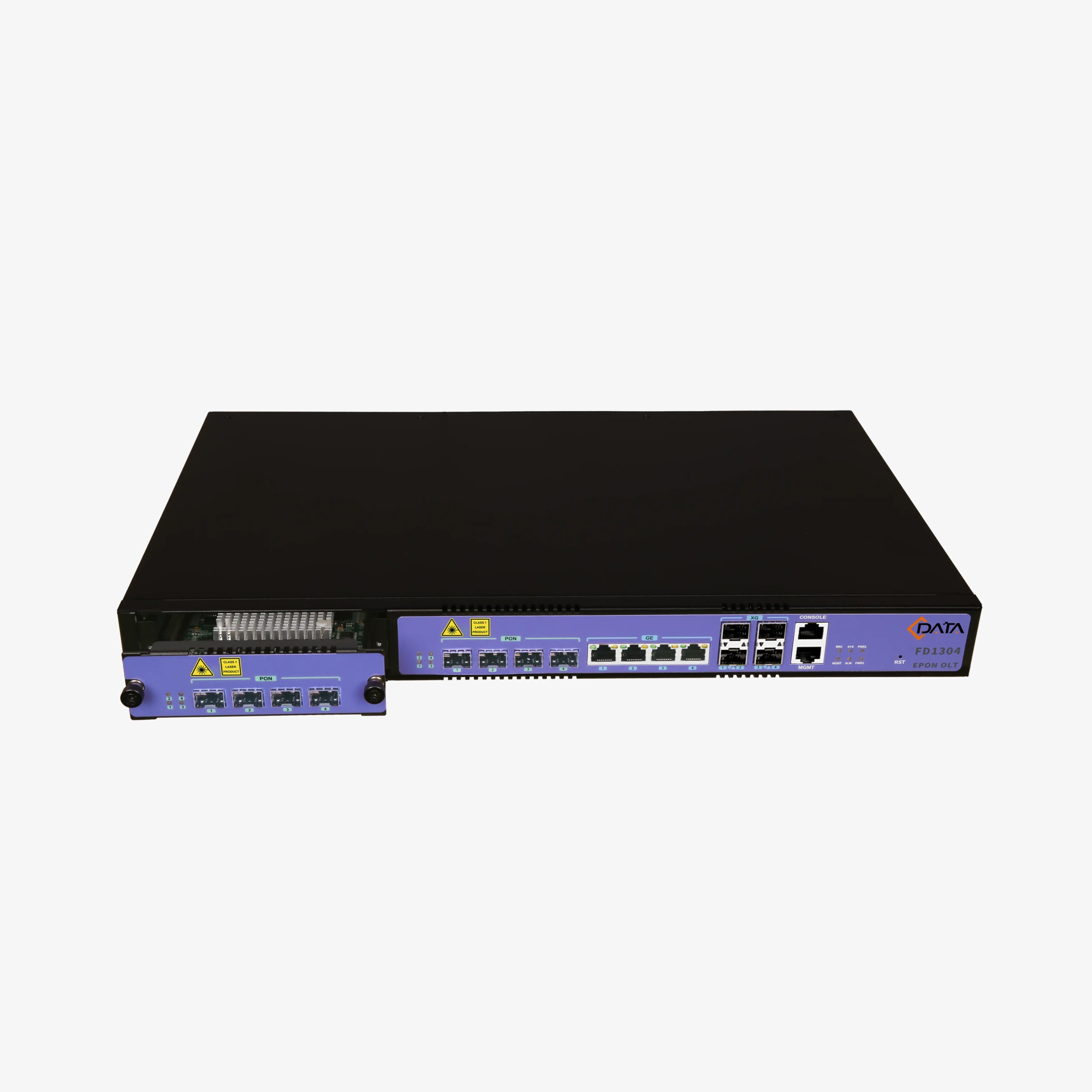

C-Data FD1304E-B1 Extender Card

C-Data FD1304E-B1 EPON OLT

C-Data FD1304E-B1 is a 1U rack-mount EPON OLT for FTTH and enterprise access networks. It offers up to 8 PON ports (4 fixed + 4 optional), 4 × GE uplink ports, and 4 × 10GE SFP+ uplinks. It supports EPON at symmetrical 1.25 Gbps over distances up to 20 km, with support for up to 512 terminal (ONU) connections. Designed for versatility, it includes both Layer 2 and Layer 3 functions for network isolation, routing, and advanced traffic management.

  • User Manual
Request a Quote
7 people are viewing this product

Description

The FD1304E-B1 from C-Data is built for operators and enterprise networks needing scalable, high-performance access infrastructure. It fully complies with IEEE 802.3ah EPON and FSAN standards. The device supports 4 fixed EPON ports plus 4 optional ones, giving flexibility to scale up to 8 PON ports. Each port supports a splitting ratio of 1:64, enabling coverage for up to 512 ONUs.

Uplinks include 4 Gigabit Ethernet (auto-negotiating) ports and 4 × 10GE SFP+ interfaces to handle backbone/aggregation traffic. Management is via out-of-band GE Ethernet port and local console. The FD1304E-B1 includes a feature set for both Layer 2 (VLAN, trunking, RSTP, IGMP, ACL, QoS, port management, traffic shaping) and Layer 3 (static routing, DHCP relay, VLAN interface / VLANIF) functionalities. This allows for more complex network topologies where inter-VLAN routing or forwarding between subnets is required at the access layer.

Reliability features include AC power supply, backup battery unit (BBU) slot (BBU not included), protection switching for PON, automatic fan speed control, and operating temperature range from -15 °C to +50 °C. Its backplane bandwidth is 108 Gbps.

Application

FTTP, Video surveillance networks, Enterprise LANs, IoT deployments, Access network expansion

Key Features

✔️ 4 fixed + 4 optional EPON ports, allowing dynamic port scaling
✔️ Splitting ratio up to 1:64 per EPON port
✔️ Uplink flexibility: 4 RJ45 ports + 4 × 10GE SFP+ ports
✔️ Out-of-band management port + Console port for local access
✔️ Support for AC/DC/BBU expansion for power redundancy
✔️ Up to 20 km reach over SMF (SC/UPC) with 1.25 Gbps symmetric EPON rate
✔️ Fan speed automatic adjustment for cooling efficiency
✔️ Robust environmental range -15°C to +50°C operating; wide storage and humidity tolerance

Specifications

Specification Details
Brand C-Data
Model / Product Code FD1304E-B1
EPON Ports 4 fixed + 4 optional EPON ports
EPON Standards IEEE 802.3ah, FSAN compliant
Split Ratio Up to 1:64 per EPON port
Uplink Ports 4 × GE (10/100/1000 RJ45) + 4 × 10GE SFP+
Management Ports 1 × 100/1000BASE-Tx out-of-band Ethernet, 1 × Console port
Data Rate (EPON) Symmetric 1.25 Gbps down / up per port
Transmission Distance 20 km
Fiber / Connector Type SMF 9/125 µm, SC/UPC
Wavelength Tx: 1490 nm, Rx: 1310 nm
Receiving Sensitivity -27 dBm
Saturation Power -6 dBm
Backplane Bandwidth 108 Gbps
Power Supply AC 100-240 V
Power Consumption (Max) 78 W
Cooling Active fan
Operating Temperature -15 °C to +50 °C
Storage Temperature -40 °C to +85 °C
Humidity 5-90% non-condensing
Dimensions 440 × 293 × 44 mm
Weight 3.6 kg
Warranty 1 year
Package Contents Main unit, power adapter, 4 + 4 PX+++ 9DB EPON SFP Module
