Description

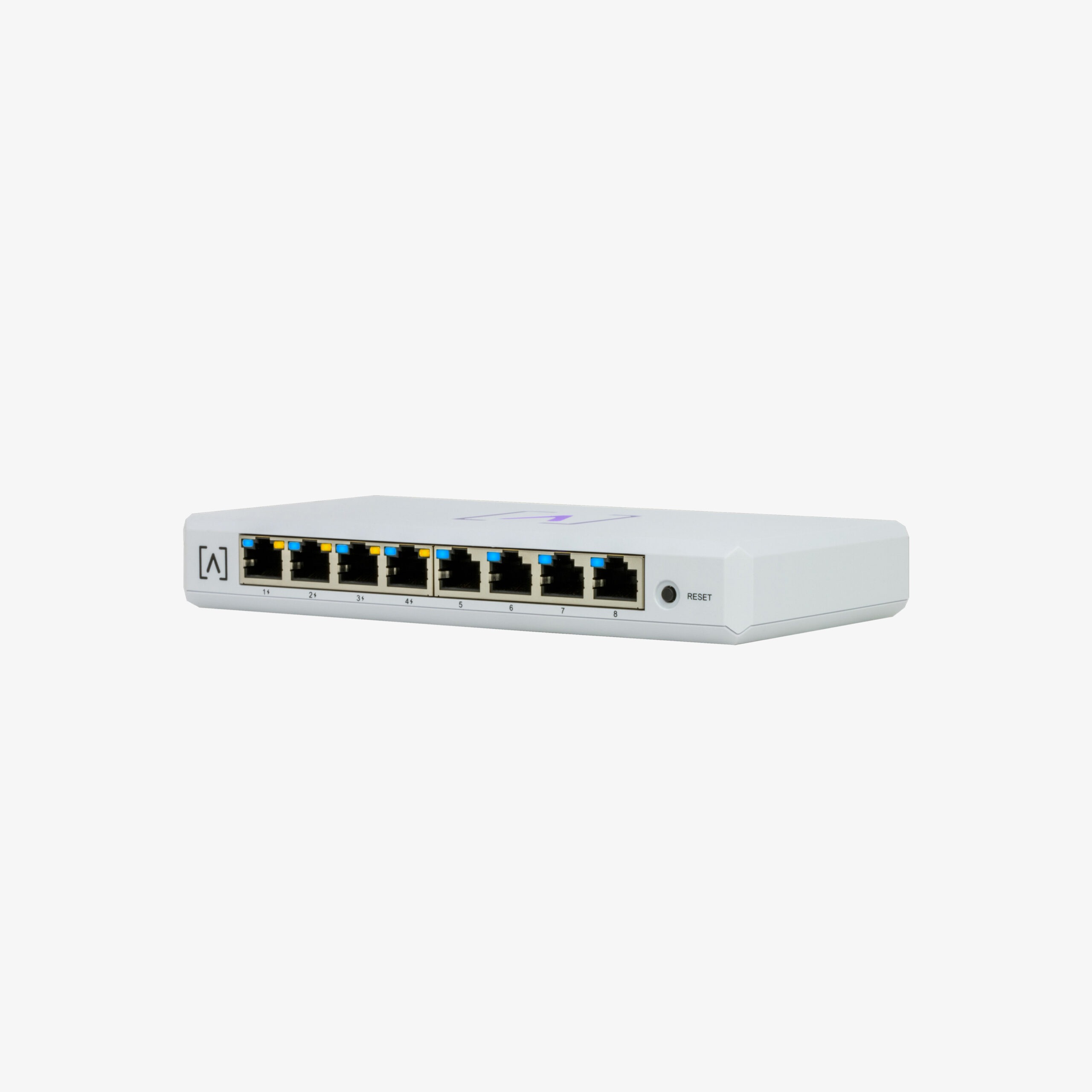

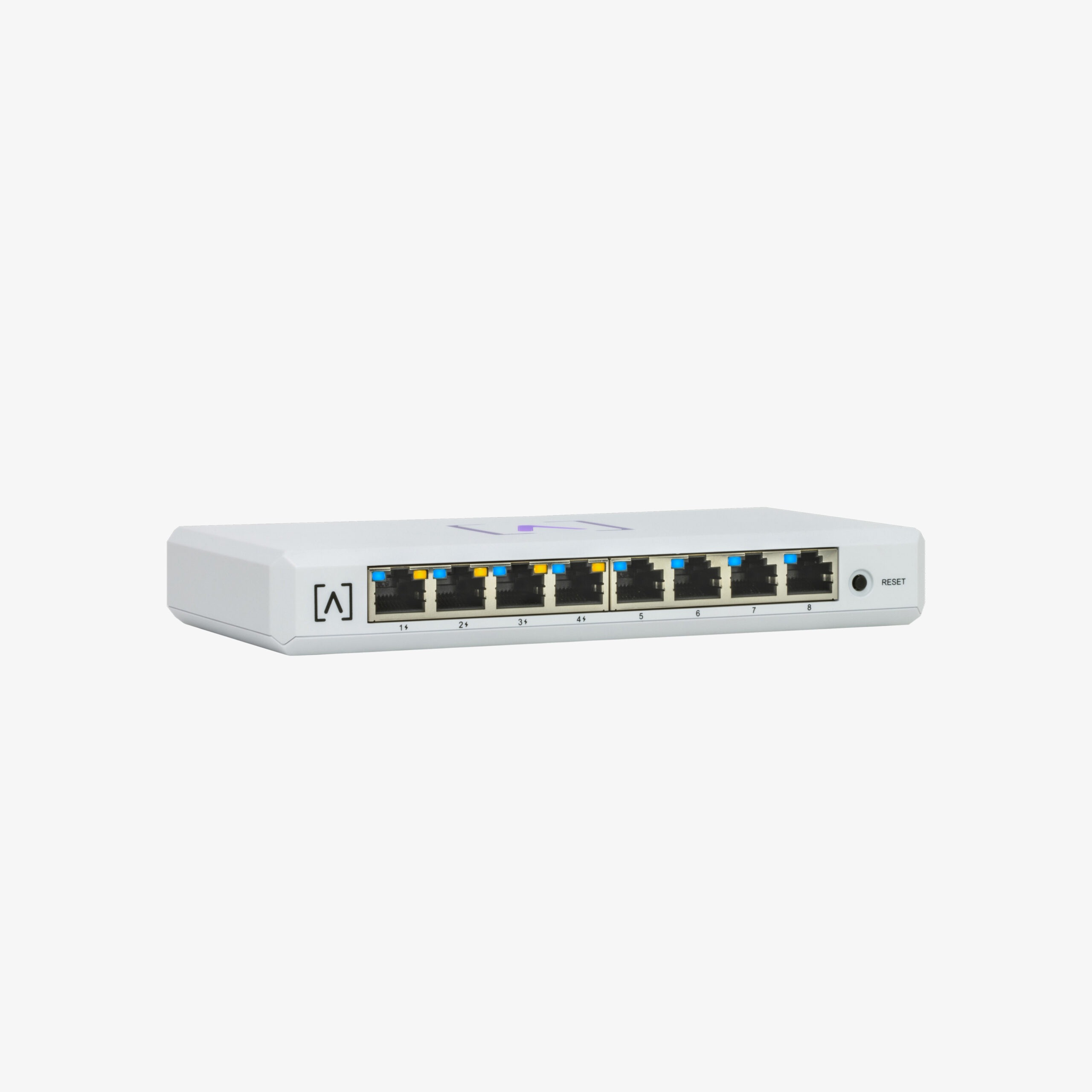

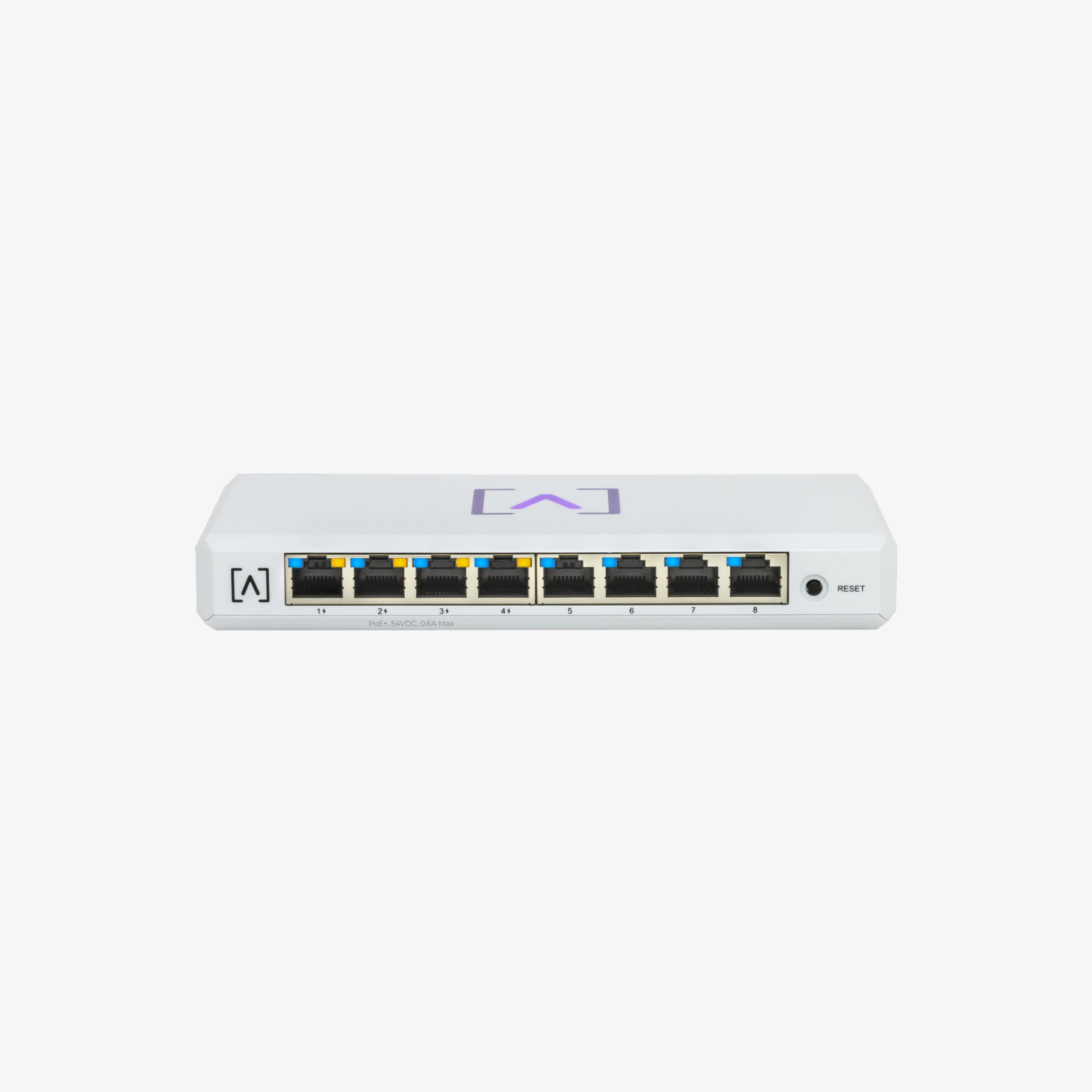

The Alta Labs S8-PoE is designed for users who need a feature-rich, managed switch with Power over Ethernet in a compact form. With 8 RJ-45 Gigabit ports (10/100/1000 Mbps), where 4 support PoE+ (802.3at), it delivers both data and power over Ethernet for devices like access points, VoIP phones, and security cameras. The switch delivers up to 30 W per PoE port and a total PoE budget of 60 W.

Switching performance is solid: 16 Gbps switching capacity, 8 Gbps non-blocking throughput, forwarding rate of about 11.9 Gbps. The hardware includes 8 K mac table entries, 4.1 Mbit packet buffer, energy-efficient Ethernet.

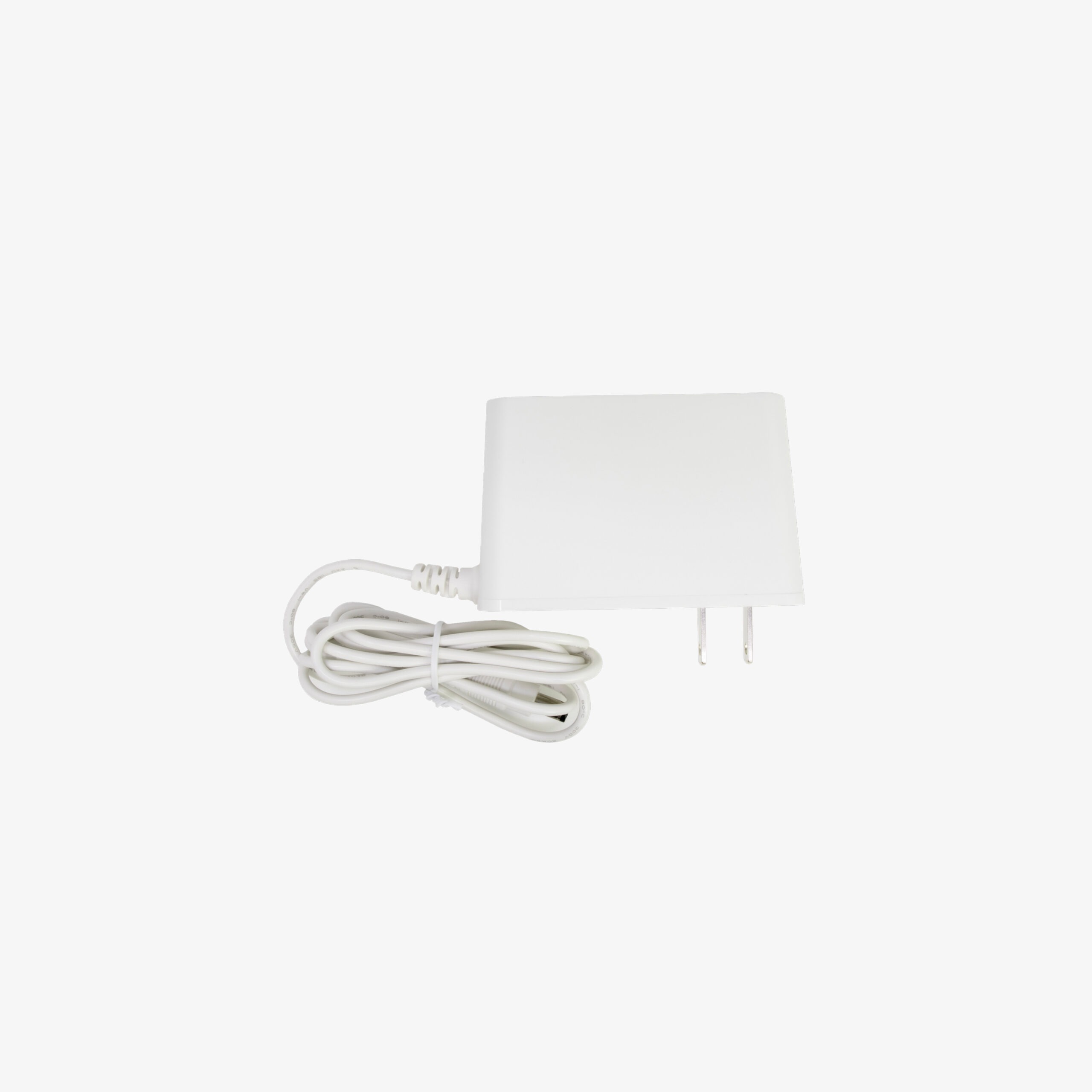

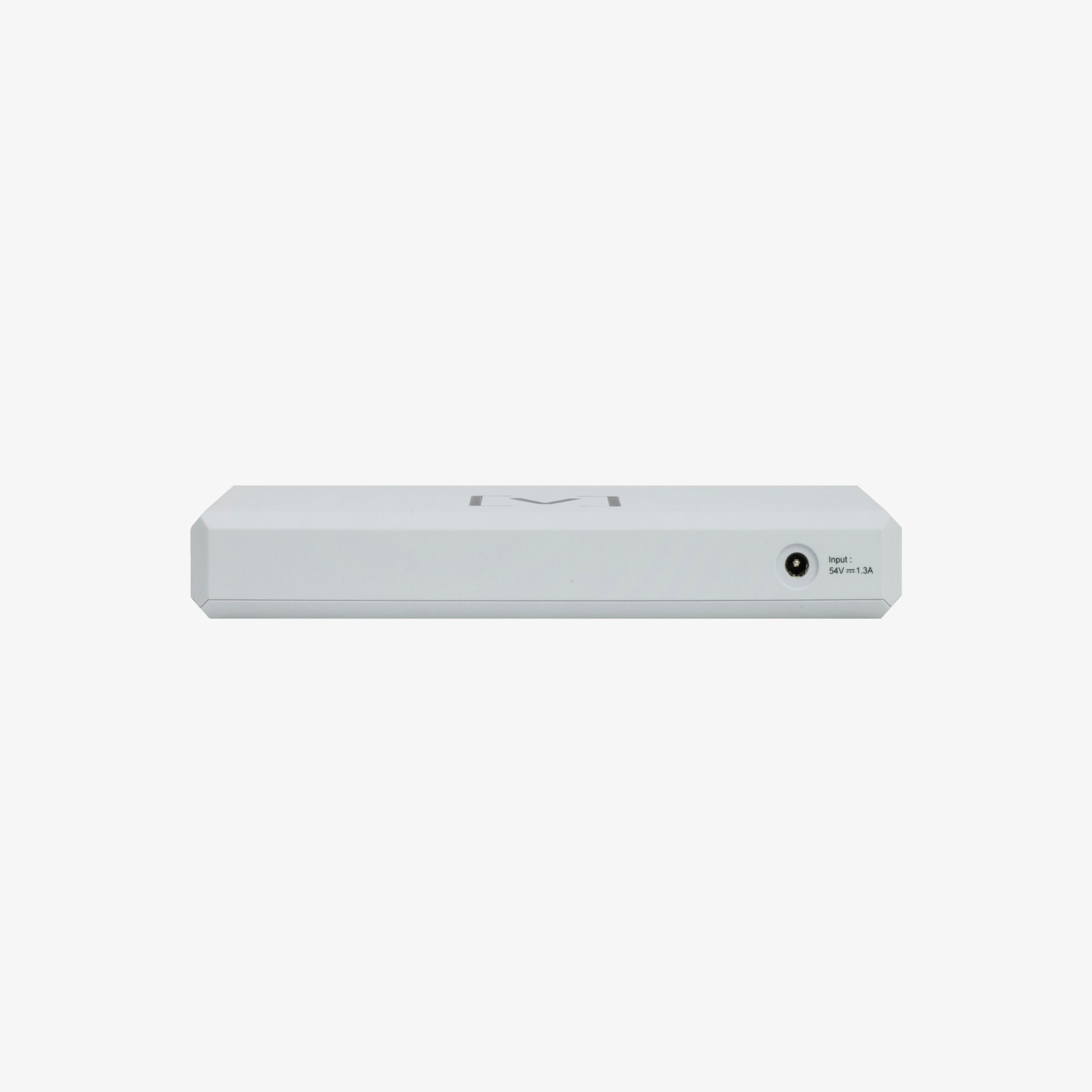

Power consumption: about 8 W when not supplying PoE; 68 W under full PoE load. External AC supply (100-240 VAC).

Management and features: cloud-based management via Alta Labs platform, Bluetooth setup, egress/ingress rate limiting, 802.1X authentication, network loop detection, and status visibility via mobile/web interface.

Application

Enterprise networks, Small offices, Home Wi-Fi setups, SOHO deployments

Key Features

✔️ Eight Gigabit Ethernet ports, with 4 supporting IEEE 802.3at PoE+ (30 W each)
✔️ Total PoE budget of 60 W
✔️ Managed switch features: rate limiting, 802.1X, loop detection, cloud & Bluetooth setup
✔️ High performance: 16 Gbps switching capacity; 8 Gbps non-blocking throughput

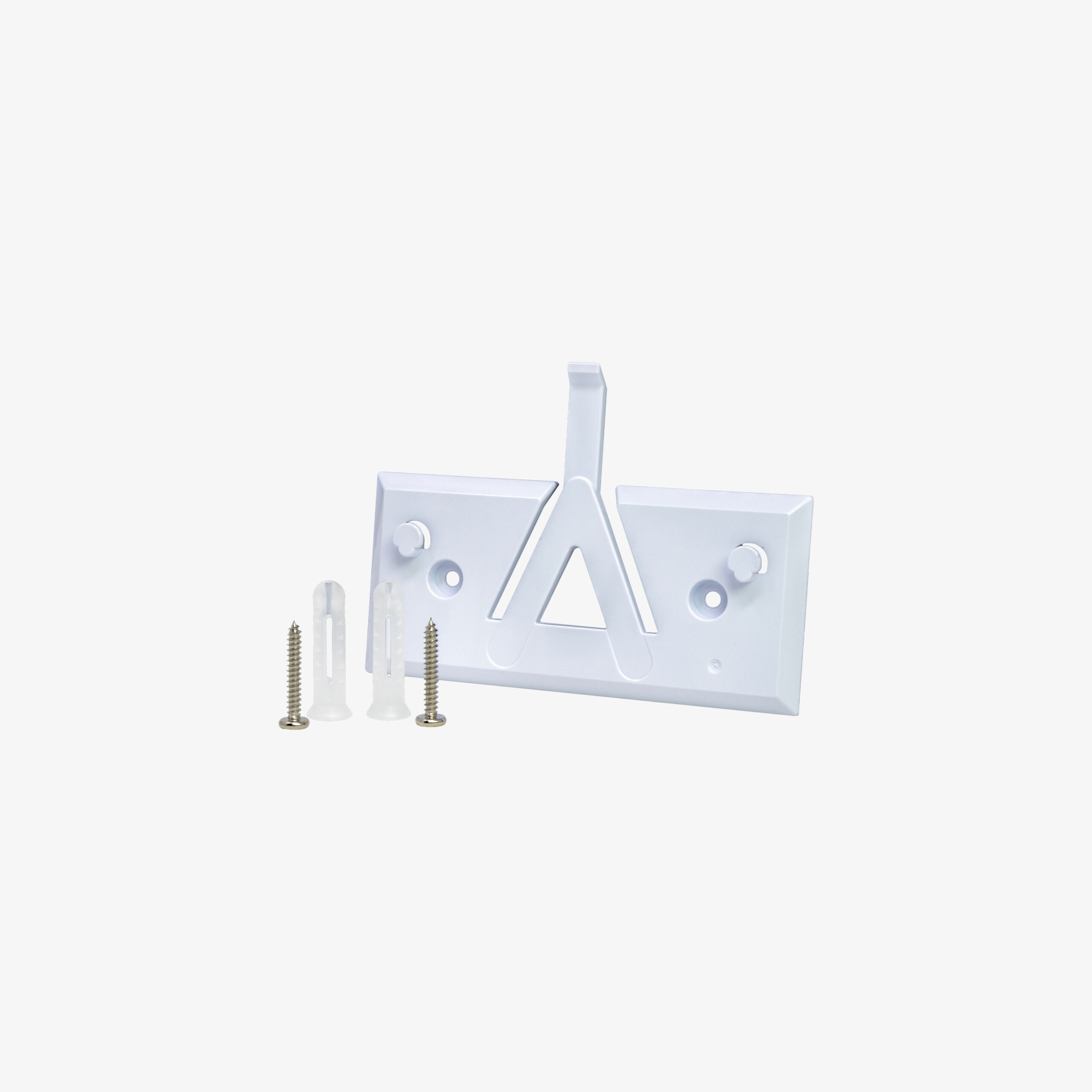

✔️ Compact, fanless, flexible mounting (desktop or wall)
✔️ POWER: low idle consumption (~8 W) and up to 68 W under full PoE load
✔️ Durable and compliant: CE, FCC, IC certifications; good environmental tolerance
