Alta Labs AP6

The Alta Labs AP6 is a professional-grade Wi-Fi 6 access point designed for high-density environments, making it ideal for businesses, educational institutions, and public venues. Powered by the latest Wi-Fi 6 (802.11ax) technology, it delivers fast, reliable wireless connectivity with enhanced efficiency. With support for both 2.4 GHz and 5 GHz bands, PoE+ input, and advanced security features, the AP6 ensures a seamless and secure network experience. Its robust design and scalable platform provide a future-proof solution for demanding wireless networking needs.

5 people are viewing this product

Description

The Alta Labs AP6 is a high-performance dual-band Wi-Fi 6 access point engineered to provide superior wireless networking for modern businesses, small offices, and advanced home networks. With support for the latest 802.11ax standard, the AP6 delivers faster speeds, lower latency, and improved efficiency in high-density environments.

Equipped with 2×2 MU-MIMO radios, it supports up to 600 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz, reaching a total aggregate throughput of 3 Gbps. Features like OFDMA and BSS Coloring enhance spectral efficiency, ensuring stable performance even in congested areas. Seamless roaming ensures uninterrupted connectivity as clients move across multiple APs within the network.

The AP6 is powered through PoE+ for simplified installation and is easily managed via Alta Labs’ cloud-based controller, accessible through web and mobile applications. Its sleek design blends into modern environments while providing robust performance for enterprise-grade networking.

Whether for offices, schools, or smart homes, the Alta Labs AP6 combines power, efficiency, and simplicity to meet the demands of today’s wireless users.

Application

Home Wi-Fi, Small offices, Enterprise networks

Key Features

✔️ Wi-Fi 6 dual-band 2×2 MU-MIMO with up to 3 Gbps throughput
✔️ 600 Mbps (2.4 GHz) + 2400 Mbps (5 GHz) capacity
✔️ Seamless roaming and mesh support
✔️ Cloud-based Alta Labs management with mobile and web access
✔️ Powered by PoE+ for flexible installations
✔️ OFDMA and BSS Coloring for efficiency in dense environments
✔️ Modern, low-profile design for indoor deployment
✔️ Enterprise-grade performance with simple management

Specifications

Specification Details
Brand Alta Labs
Model / Product Code AP6
CPU / Chipset Not specified by vendor
Memory Not specified by vendor
Storage Not specified by vendor
Wi-Fi Standard 802.11ax (Wi-Fi 6)
Wireless Capabilities Dual-band, 2×2 MU-MIMO, 600 Mbps @ 2.4 GHz, 2400 Mbps @ 5 GHz
Ethernet Ports 1 × 1 GbE PoE+
PoE In Yes, PoE+ (802.3af/at)
PoE Out Not specified by vendor
USB Not specified by vendor
Power 802.3af/at PoE+, max consumption 13 W
Cooling Passive
Operating Temperature -20°C to +50°C
Environmental Rating Indoor use
Mounting Options Wall/ceiling mount
Dimensions 190 × 125 × 32 mm
Weight / MTBF 400 g
Certifications & Approvals FCC, CE, IC
Warranty 1 year (as per Alta Labs standard hardware warranty)

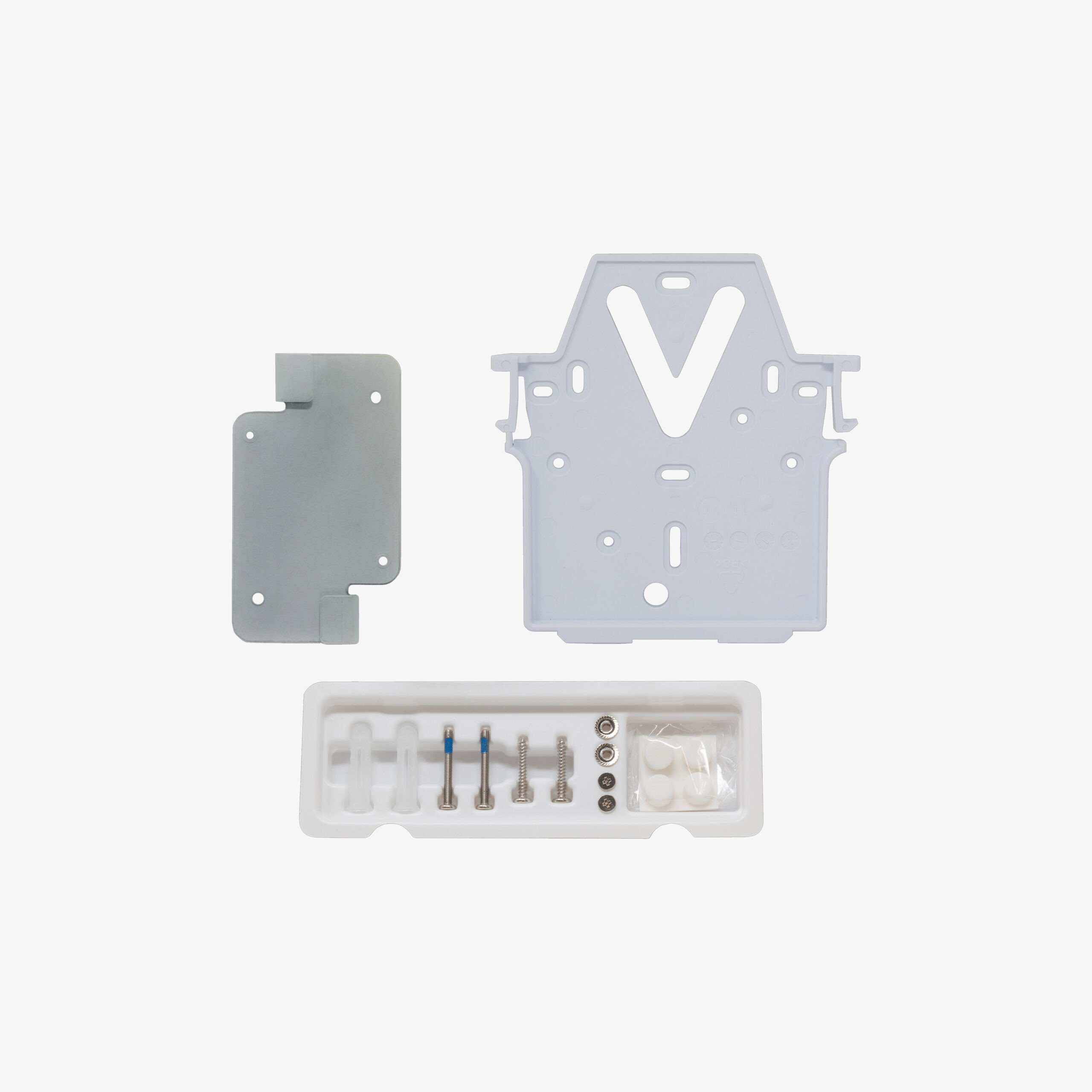

Package Contents AP6 unit, mounting kit, quick start guide
